| Citation: | DING Meng-yu, YUAN Ming-jia, ZHANG Lei. Same-path dual-wavelength image plane digital holography for long-distance topographic measurements[J]. Chinese Optics. doi: 10.37188/CO.EN-2025-0008
|

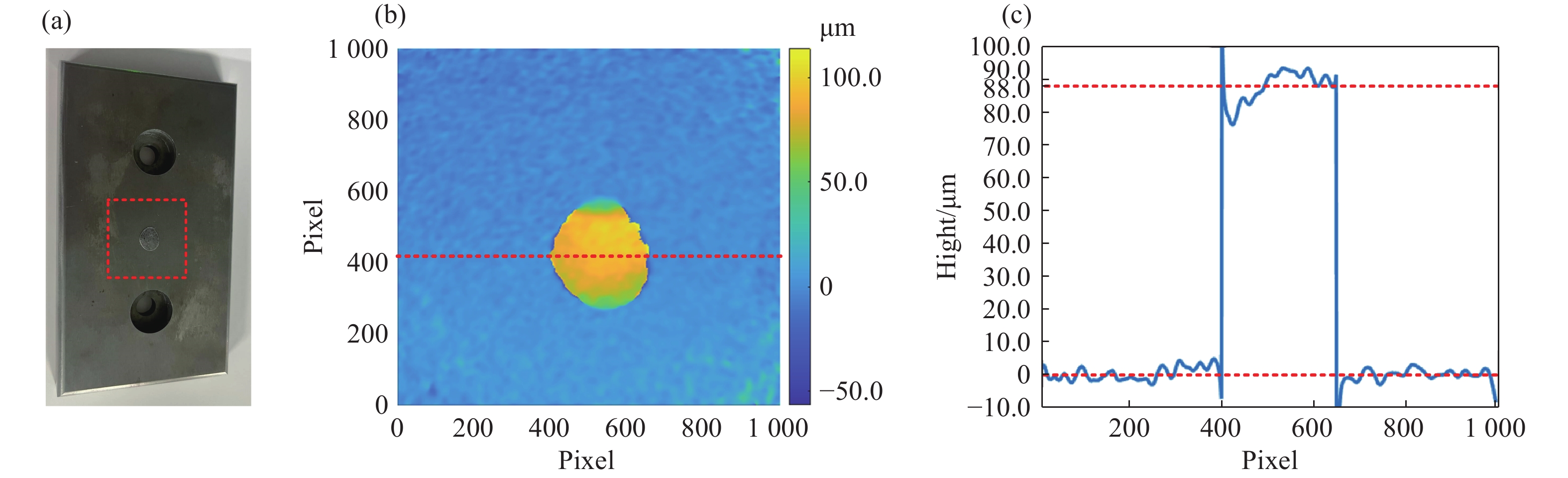

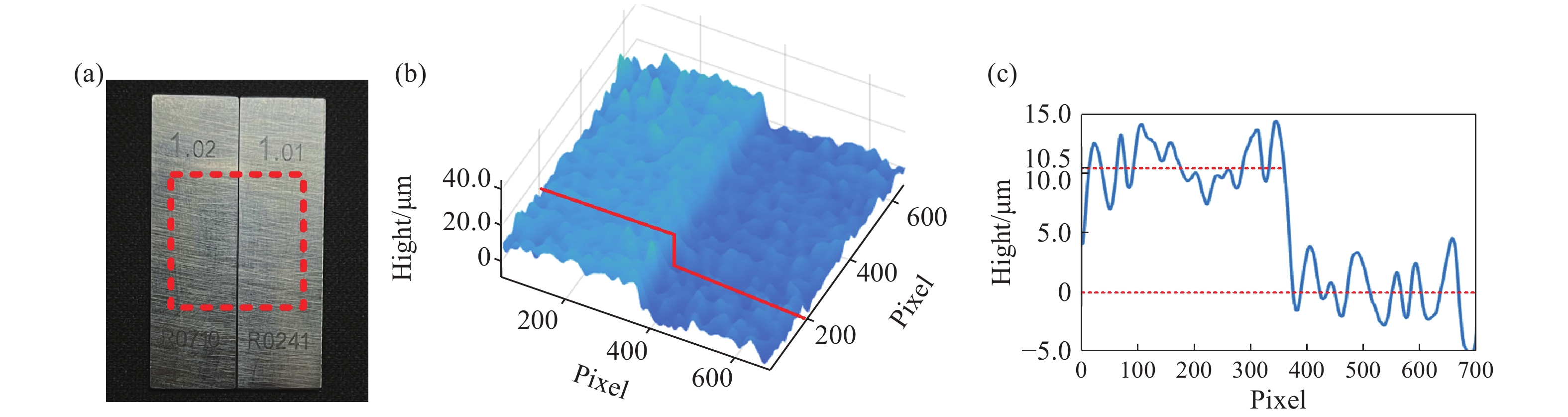

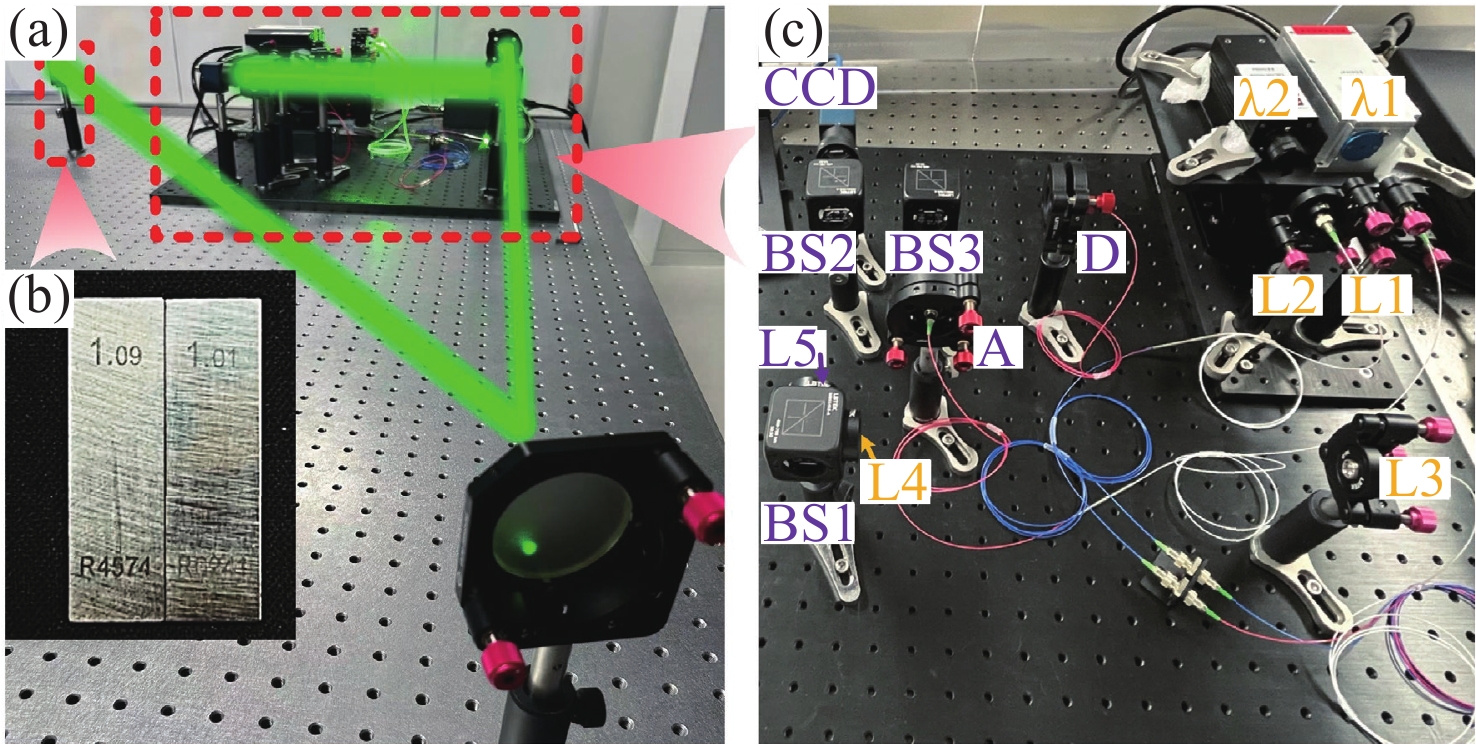

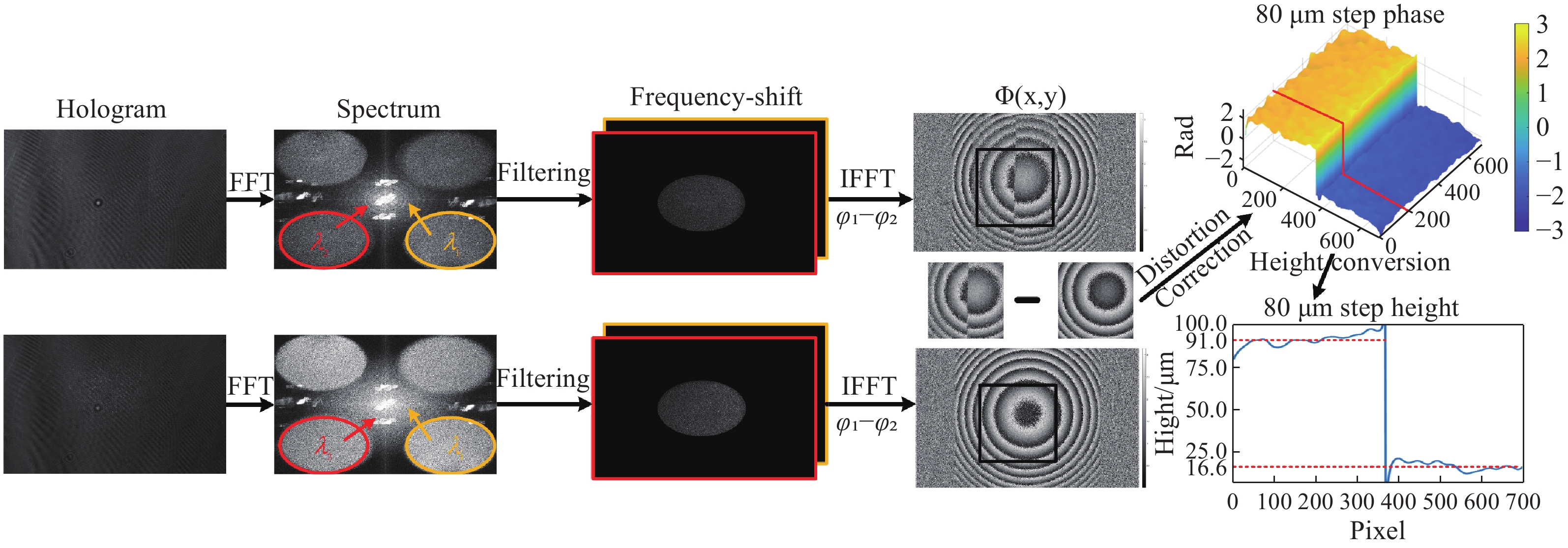

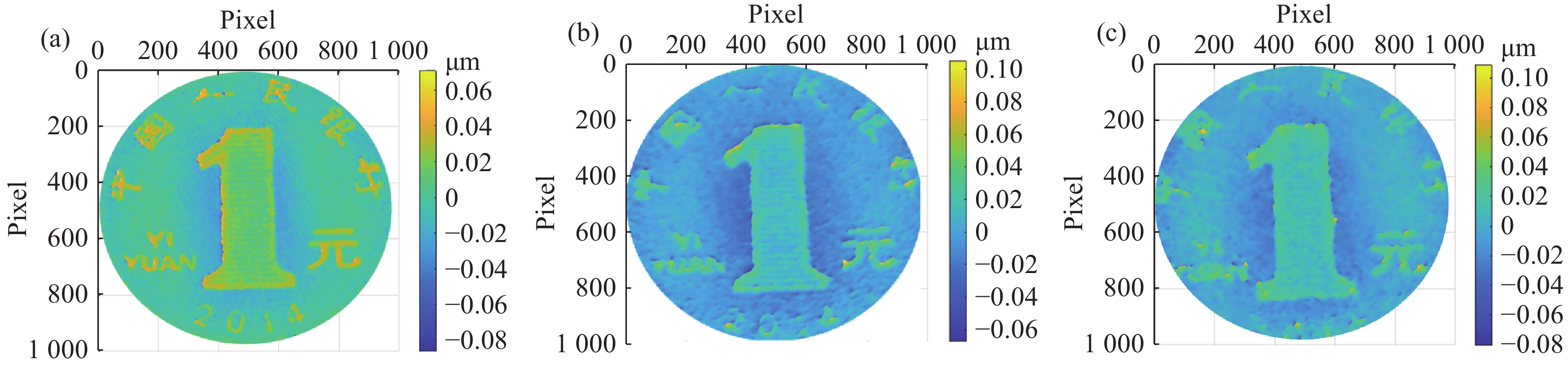

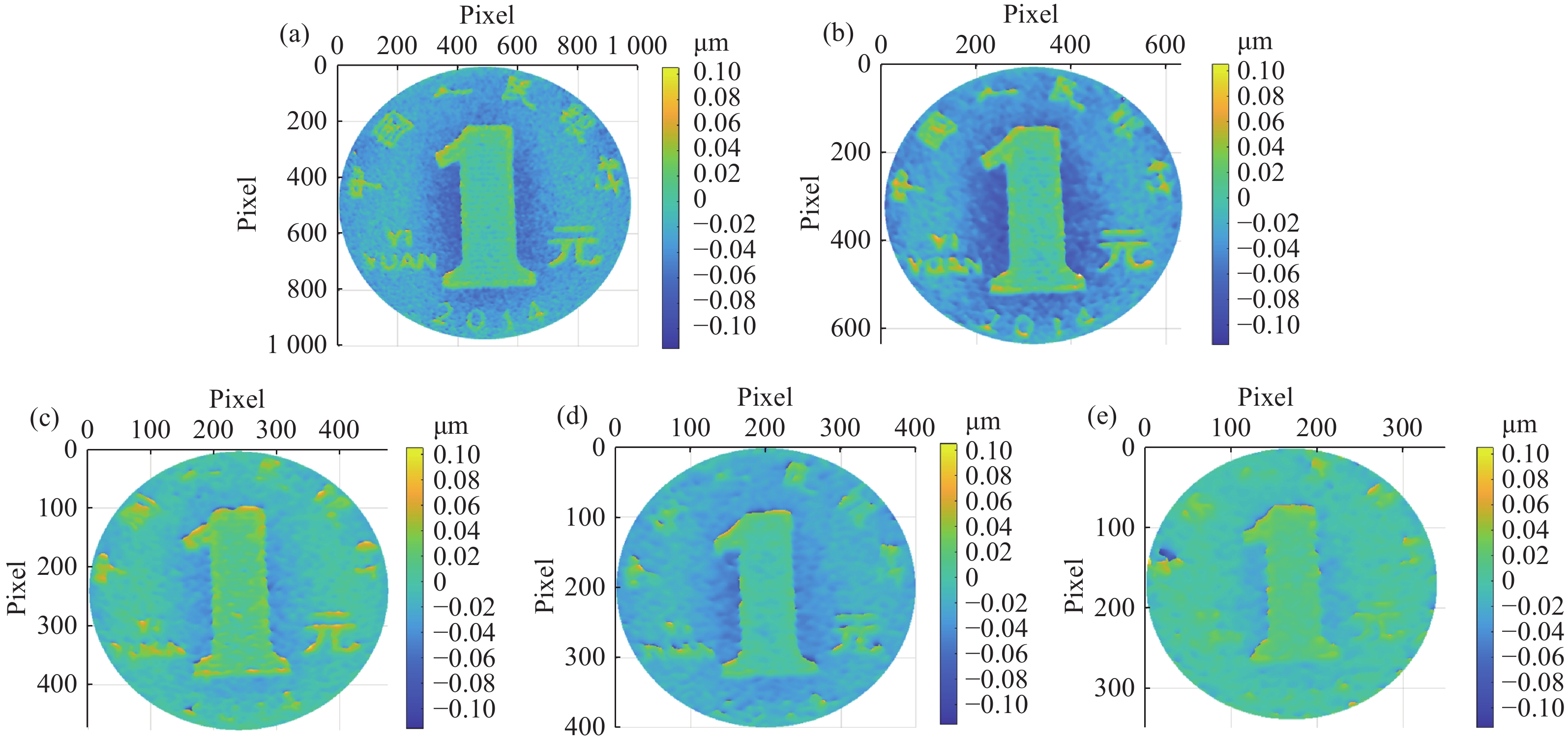

The dual-wavelength image plane digital holography is employed to achieve the long-distance topography measurements, which is expected for the Examination and Analysis System Technology (EAST) in divertor surface monitoring. The same-path design for the illumination and imaging beams is suitable for the upper diagnosis channel of the tokamak device. By selecting two wavelengths with a gap of 1.02 nm, the measurement range of system is extended to 276.87 µm, allowing for 138.44 µm gradient measurements. Experimental results demonstrate that the measurement error of the system for a step with a nominal high of 80 μm is 7.00%, with a minimum detectable height variation of 10 μm. Furthermore, confirm the long-distance measurement capability of the system, and off-line measurements were conducted on a dismantled divertor from a tokamak device. Which proves the system can be applied to the topography measurements of the divertor.
| [1] |
HE L, SHEN Y C, ZHANG H M, et al. Space-resolved vacuum-ultraviolet spectroscopy for measuring impurity emission from divertor region of EAST tokamak[J]. Plasma Science and Technology, 2022, 24(6): 064003. doi: 10.1088/2058-6272/ac5f81
|
| [2] |
CATALUCCI S, THOMPSON A, PIANO S, et al. Optical metrology for digital manufacturing: a review[J]. The International Journal of Advanced Manufacturing Technology, 2022, 120(7): 4271-4290.
|
| [3] |
GUO R L, LU SH D, WU Y H, et al. Robust and fast dual-wavelength phase unwrapping in quantitative phase imaging with region segmentation[J]. Optics Communications, 2022, 510: 127965. doi: 10.1016/j.optcom.2022.127965
|
| [4] |
HUANG M, SUN CH, QIN H P, et al. Measurement of liquid refractive index by quantitative phase reconstruction of single frame dual-wavelength digital hologram[J]. Measurement, 2023, 206: 112325. doi: 10.1016/j.measurement.2022.112325
|
| [5] |
TURKO N A, SHAKED N T. Erythrocyte volumetric measurements in imaging flow cytometry using simultaneous three-wavelength digital holographic microscopy[J]. Biomedical Optics Express, 2020, 11(11): 6649-6658. doi: 10.1364/BOE.404368
|
| [6] |
YOSHIKAWA N, MIYAKE T. Omnidirectional 3D shape measurement using image outlines reconstructed from gabor digital holography[J]. Optics Communications, 2023, 529: 129080. doi: 10.1016/j.optcom.2022.129080
|
| [7] |
JEON S, CHO J, JIN J N, et al. Dual-wavelength digital holography with a single low-coherence light source[J]. Optics Express, 2016, 24(16): 18408-18416. doi: 10.1364/OE.24.018408
|
| [8] |
TIAN X B, TU X ZH, ZHANG J CH, et al. Snapshot multi-wavelength interference microscope[J]. Optics Express, 2018, 26(14): 18279-18291. doi: 10.1364/OE.26.018279
|
| [9] |
KÜHN J, COLOMB T, MONTFORT F, et al. Real-time dual-wavelength digital holographic microscopy with a single hologram acquisition[J]. Optics Express, 2007, 15(12): 7231-7242. doi: 10.1364/OE.15.007231
|
| [10] |
KHMALADZE A, KIM M, LO C M. Phase imaging of cells by simultaneous dual-wavelength reflection digital holography[J]. Optics Express, 2008, 16(15): 10900-10911. doi: 10.1364/OE.16.010900
|
| [11] |
TURKO N A, SHAKED N T. Simultaneous two-wavelength phase unwrapping using an external module for multiplexing off-axis holography[J]. Optics Letters, 2017, 42(1): 73-76. doi: 10.1364/OL.42.000073
|
| [12] |
SHANGGUAN H C, URBACH H P, KALKMAN J. Lensless single-shot dual-wavelength digital holography for industrial metrology[J]. Applied Optics, 2024, 63(16): 4427-4434. doi: 10.1364/AO.519491
|
| [13] |
ZENG Y N, WANG F, LEI H, et al. Surface profile measurement of microstructures based on dual-wavelength digital microscopic image-plane holography[J]. Acta Physica Sinica, 2013, 33(10): 1009001. (in Chinese).
|
| [14] |
WANG H Y, LIU F F, SONG X F, et al. High-quality digital image-plane micro-holographic system with the same wavefront curvature of reference and object wave[J]. Acta Physica Sinica, 2013, 62(2): 024207. (in Chinese). doi: 10.7498/aps.62.024207
|
| [15] |
GUO R L, WANG F. Compact and stable real-time dual-wavelength digital holographic microscopy with a long-working distance objective[J]. Optics Express, 2017, 25(20): 24512-24520. doi: 10.1364/OE.25.024512
|
| [16] |
PINIARD M, SORRENTE B, HUG G, et al. Melt pool monitoring in laser beam melting with two-wavelength holographic imaging[J]. Light: Advanced Manufacturing, 2022, 3(1): 14-25.
|
| [17] |
CLAUS D, ALEKSEENKO I, GRABHERR M, et al. Snap-shot topography measurement via dual-VCSEL and dual wavelength digital holographic interferometry[J]. Light: Advanced Manufacturing, 2021, 2(4): 403-414.
|
| [18] |
PEDRINI G, ALEKSEENKO I, JAGANNATHAN G, et al. Feasibility study of digital holography for erosion measurements under extreme environmental conditions inside the International Thermonuclear Experimental Reactor tokamak[J]. Applied Optics, 2019, 58(5): A147-A155. doi: 10.1364/AO.58.00A147
|
| [19] |
HUANG M, QIN H P, JIANG ZH Q. Real-time quantitative phase imaging by single-shot dual-wavelength off-axis digital holographic microscopy[J]. Applied Optics, 2021, 60(15): 4418-4425. doi: 10.1364/AO.424666
|
| [20] |
BAI CH, PENG T, MIN J W, et al. Dual-wavelength in-line digital holography with untrained deep neural networks[J]. Photonics Research, 2021, 9(12): 2501-2510. doi: 10.1364/PRJ.441054
|
| [21] |
PINIARD M, SORRENTE B, HUG G, et al. Modelling of the photometric balance for two-wavelength spatially multiplexed digital holography[J]. Proceedings of SPIE, 2021, 11783: 1178308.
|
Figures(7) / Tables(1)
