| Citation: | WANG Zhen, TU Shuai, ZHANG Rongzhu. Improved model and experimental study of laser-induced damage in multilayer dielectric films[J]. Chinese Optics. doi: 10.37188/CO.2025-0146
|

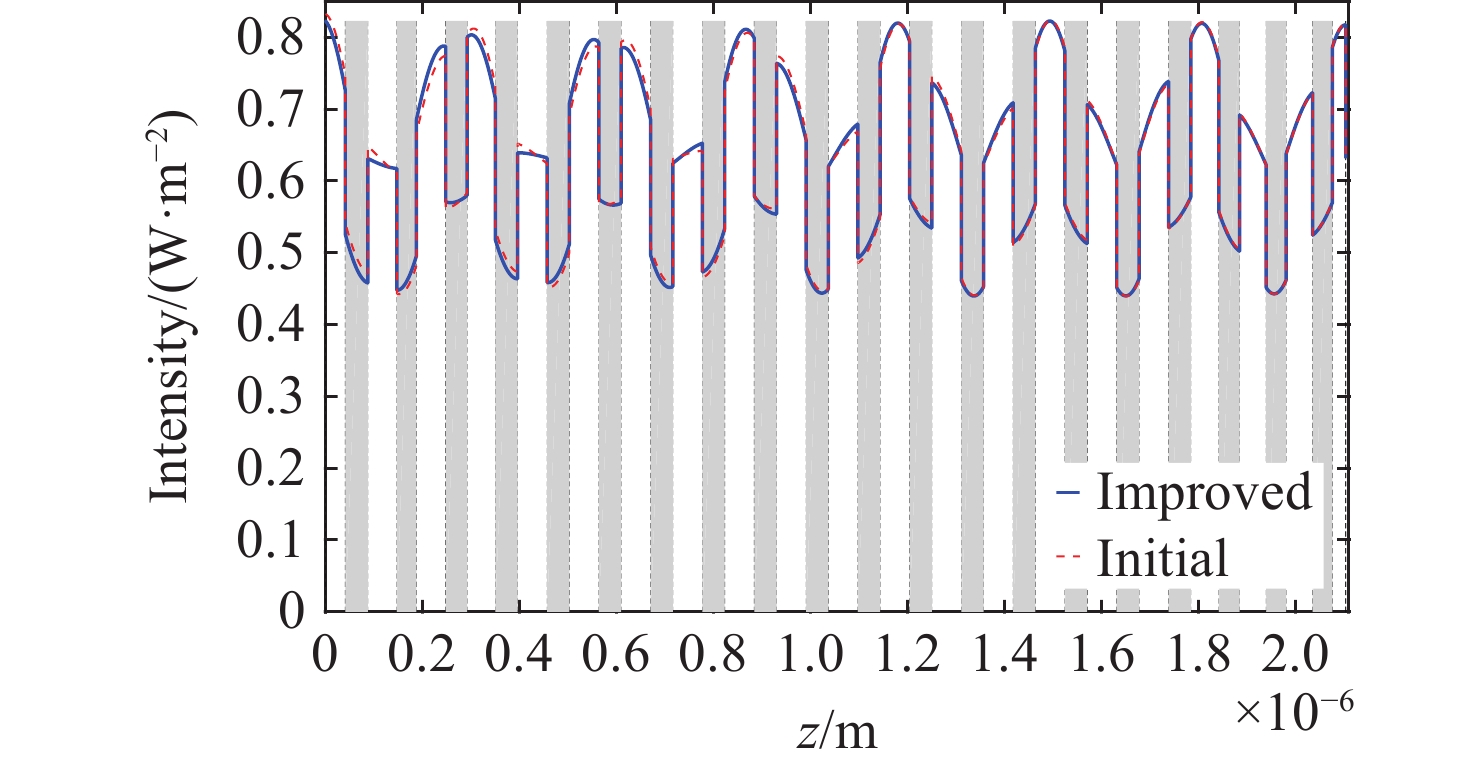

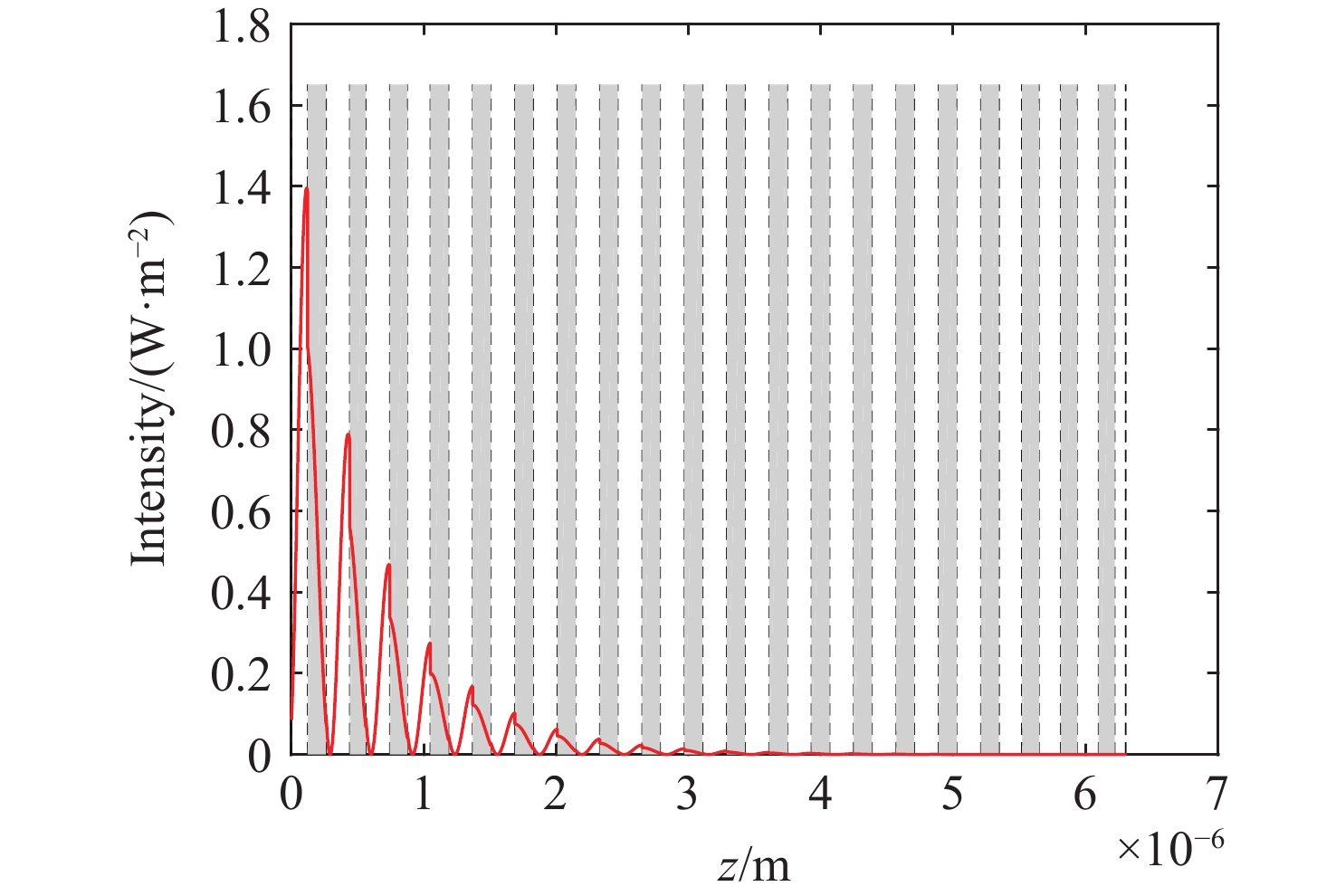

The structure of multilayer dielectric film will modulate the optical field, thus in the study of laser-induced damage characteristics, it is necessary to consider the energy distribution within the film system and the resulting changes in material optical properties.

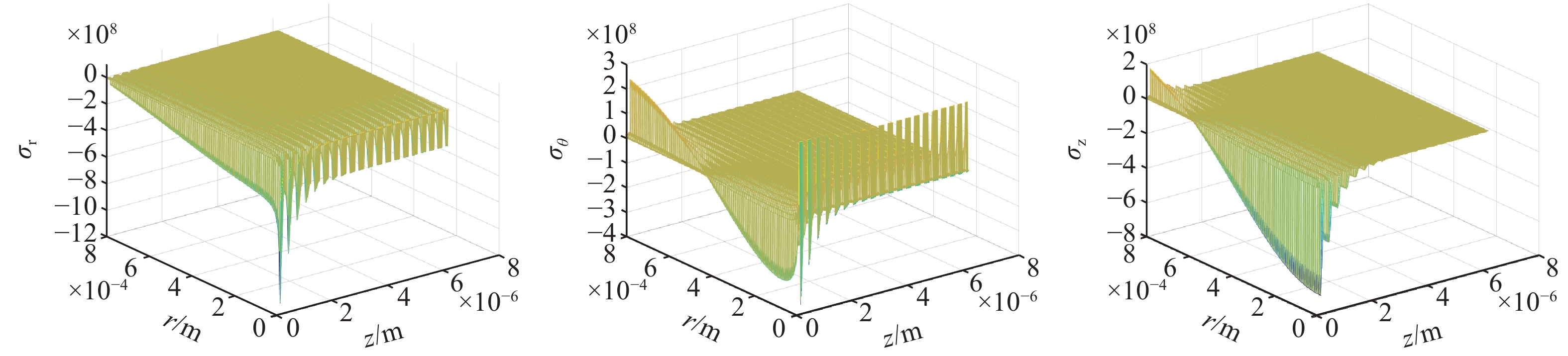

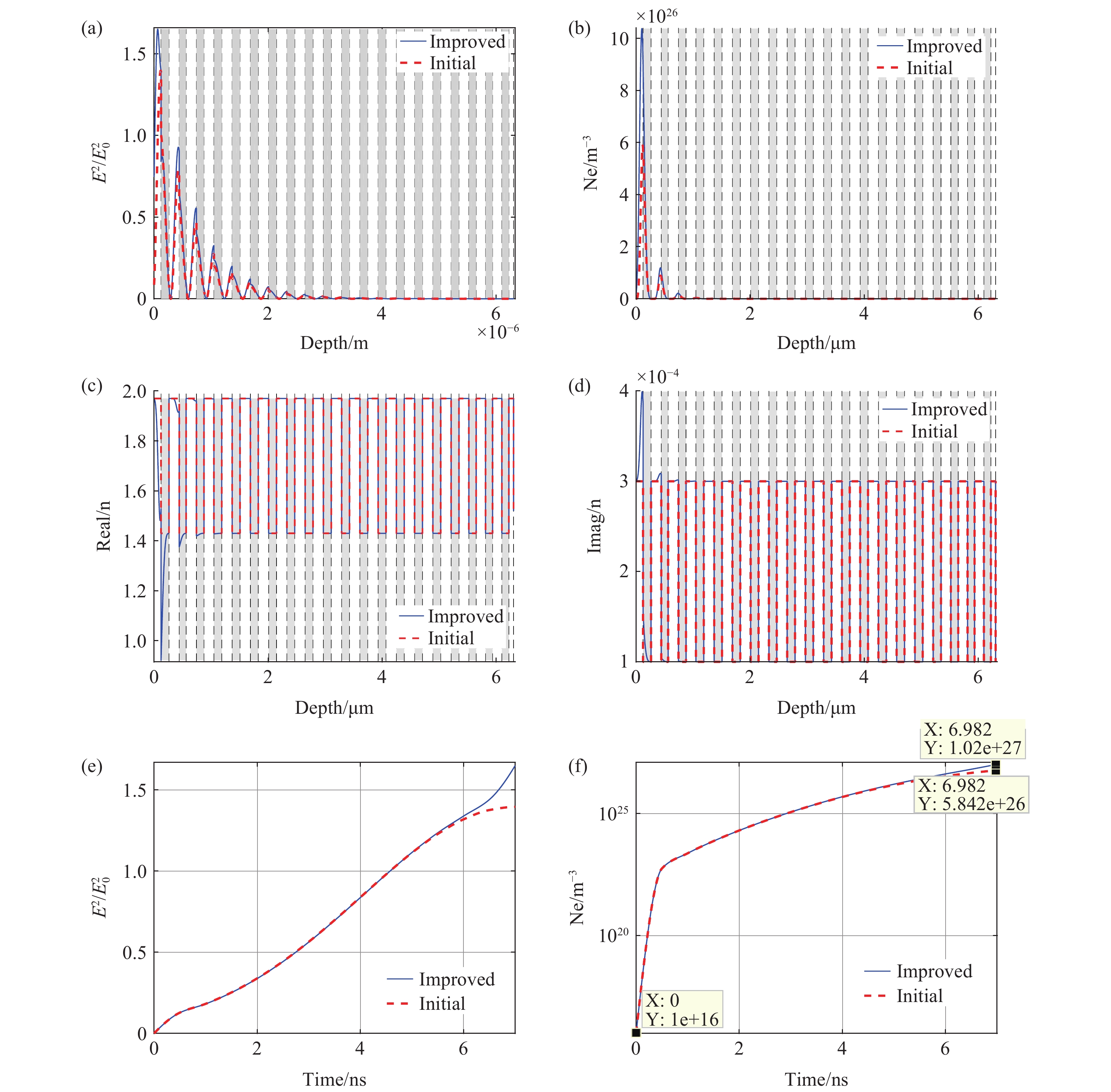

Taking the HfO2/SiO2 multilayer dielectric film structure as an example, and based on the laser-induced ionization/electron multiplication process, the Drude model is introduced into the optical field calculation, extending the film layer refractive index from a static constant to a dynamic complex refractive index driven by the free electron density. Based on this, a thermal conduction (and thermal stress) model is coupled to calculate the evolution of thermal effects inside the thin film under nanosecond pulsed laser irradiation, and the corresponding damage threshold is determined to be 13.65 J/cm2, and the damage characteristics of the film are studied experimentally.

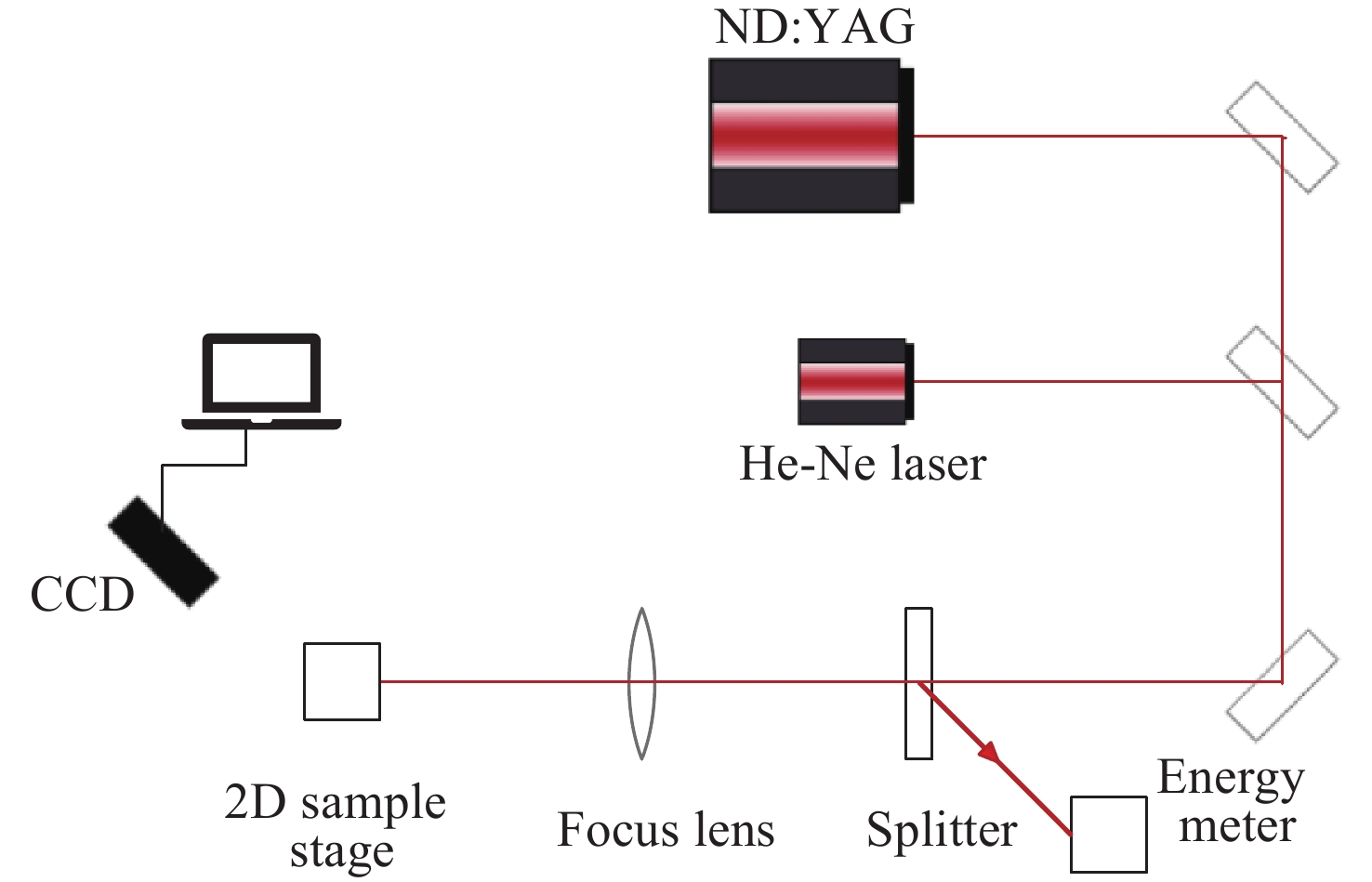

The verification experiment observed that the damage appearance of the HfO2/SiO2 multilayer dielectric film is a round hole type, which is a typical thermal melting damage, and is consistent with the conclusion of the theoretical model. The measured damage threshold is 13.75 J/cm2, which is only higher than the theoretical analysis result.
The improved model established is helpful to further analyse the interaction between strong laser and multilayer dielectric film from the theoretical level, and to better study the damage resistance of optical thin film.
| [1] |
KOZLOWSKI M R, THOMAS I M, CAMPBELL J H, et al. High-power optical coatings for a megajoule class ICF laser[J]. Proceedings of SPIE, 1993, 1780: 17802L. doi: 10.1117/12.983267
|
| [2] |
毛思达, 邹永刚, 范杰, 等. 离子后处理对TiO2光学薄膜及损伤特性的影响[J]. 光学 精密工程, 2019, 27(7): 1451-1457. doi: 10.3788/OPE.20192707.1451
MAO S D, ZOU Y G, FAN J, et al. Influence of plasma treatment on optical and damage properties of TiO2 thin films[J]. Optics and Precision Engineering, 2019, 27(7): 1451-1457. (in Chinese). doi: 10.3788/OPE.20192707.1451
|
| [3] |
刘瑞斌, 殷允嵩. 激光诱导击穿光谱技术相关物理机制研究进展[J]. 中国光学(中英文), 2024, 17(1): 19-37. doi: 10.37188/CO.2023-0019
LIU R B, YIN Y S. Research progress on the related physical mechanism of laser-induced breakdown spectroscopy[J]. Chinese Optics, 2024, 17(1): 19-37. (in Chinese). doi: 10.37188/CO.2023-0019
|
| [4] |
陈斐, 王树青, 程年恺, 等. 高重频声光门控自吸收免疫激光诱导击穿光谱技术分析研究[J]. 中国光学(中英文), 2024, 17(2): 253-262.
CHEN F, WANG SH Q, CHENG N K, et al. Study and analysis of self-absorption-free laser-induced breakdown spectroscopy with high-repetition rate acousto-optic gating[J]. Chinese Optics, 2024, 17(2): 253-262. (in Chinese).
|
| [5] |
钱方, 彭佳琦, 许永博. 脉冲激光辐照背照式CMOS图像传感器损伤机理研究[J]. 中国光学(中英文), 2025, 18(2): 256-265. doi: 10.37188/CO.2024-0139
QIAN F, PENG J Q, XU Y B. Damage mechanism of back-illuminated CMOS image sensor irradiated by pulsed laser[J]. Chinese Optics, 2025, 18(2): 256-265. (in Chinese). doi: 10.37188/CO.2024-0139
|
| [6] |
杨艳, 张慧敏, 张旭霖, 等. TiO2/PSS薄膜对Kretschmann型传感器光谱的调制[J]. 中国光学(中英文), 2025, 18(2): 297-306. doi: 10.37188/CO.2024-0125
YANG Y, ZHANG H M, ZHANG X L, et al. Modulation of a Kretschmann-type sensor’s spectra using TiO2/PSS thin films[J]. Chinese Optics, 2025, 18(2): 297-306. (in Chinese). doi: 10.37188/CO.2024-0125
|
| [7] |
辛亚武, 彭永超, 张宇翔, 等. 可见/近红外多波段激光滤光膜的研制[J]. 中国光学(中英文), 2026, 19(1): 239-249.
XIN Y W, PENG Y CH, ZHANG Y X, et al. Development of visible/near-infrared multiband laser filter film[J]. Chinese Optics, 2026, 19(1): 239-249. (in Chinese).
|
| [8] |
DU L F, ZHU X B, ZHANG R ZH. The thermal-stress accumulation in anti-reflective coatings with multi-pulse laser irradiation[J]. Optics Communications, 2015, 350: 263-269. doi: 10.1016/j.optcom.2015.04.009
|
| [9] |
CAI Y, ZHOU M L, MA ZH L, et al. Spectrum method for laser induced damage in dielectric thin films[J]. Proceedings of SPIE, 2015, 9543: 95430C. doi: 10.1117/12.2181798
|
| [10] |
WU SH J, SU J H, LI D J, et al. The effect of the applied electric field on laser-induced damage of dielectric thin films[J]. Materials Research Express, 2017, 4(1): 016403. doi: 10.1088/2053-1591/4/1/016403
|
| [11] |
ZHOU Q, MA P, QIU F M, et al. Material ejection and layer peeling-off in HfO2/SiO2 thin-film beam splitters induced by 1ω and 3ω lasers[J]. Optical Materials, 2022, 125: 111894. doi: 10.1016/j.optmat.2021.111894
|
| [12] |
郑梦珂, 李杰, 张蓉竹, 等. 激光诱导多层光学薄膜损伤分析与仿真[J]. 光学学报, 2022, 42(1): 0131001. doi: 10.3788/AOS202242.0131001
ZHENG M K, LI J, ZHANG R ZH, et al. Analysis and simulation on damage characteristics of multilayer optical film by pulsed laser[J]. Acta Optica Sinica, 2022, 42(1): 0131001. (in Chinese). doi: 10.3788/AOS202242.0131001
|
| [13] |
GROSSO G, PARRAVICINI G P. Solid State Physics[M]. 2nd ed. Amsterdam: Academic Press, 2013.
|
| [14] |
LI F Y, LIU G D, DU L F, et al. Comparisons and analyses of the properties of laser-induced damage to SiO2 and ZnS[J]. Journal of Modern Optics, 2014, 61(14): 1158-1163. doi: 10.1080/09500340.2014.924597
|
| [15] |
MANSURIPUR M, CONNELL G A N, GOODMAN J W. Laser-induced local heating of multilayers[J]. Applied Optics, 1982, 21(6): 1106-1114. doi: 10.1364/AO.21.001106
|
| [16] |
WANG ZH, ZHANG R ZH, CHEN M. Analysis of composite wavelength multilayer dielectric film damage based on the field-thermal effect[J]. Journal of the Optical Society of America B, 2024, 41(11): 2589-2598. doi: 10.1364/JOSAB.534813
|
| [17] |
WANG F, CHEN K J, GAO F, et al. Analysis of laser-induced damage in optical thin film based on ANSYS[J]. Proceedings of SPIE, 2018, 10964: 109642M. doi: 10.1117/12.2505819
|
| [18] |
WEBER M J. Handbook of Optical Materials[M]. Boca Raton: CRC Press, 2002.
|
| [19] |
WAKAKI M. Optical Materials and Applications[M]. Boca Raton: CRC Press, 2017.
|
