Underwater single-photon LIDAR optical system design
-
摘要:
针对单光子激光雷达在水下广域探测中难以兼顾大扫描视场与系统小型化的问题，本文提出基于转镜扫描与环形隔水视窗密封相结合的技术方案。通过构建扫描角度、光束口径与转镜几何尺寸之间几何关系，结合环形隔水视窗构型，在满足大扫描视场的同时实现系统小型化；采用光线追迹方法建立光学系统初始结构，利用柱面光学元件的成像与补偿原理，改善激光束经环形隔水视窗跨介质传输后光束质量退化的问题，并结合望远系统开展一体化优化设计，进一步提升光束质量。实验结果表明，该系统可实现110°扫描视场，发射激光光束质量因子优于1.3倍衍射极限，发散角为0.084 mrad，传输效率为91.00%，在水质衰减系数为0.184 m−1环境中的最大探测距离为24 m。该系统兼具大视场扫描能力和小型化结构优势，可为水下广域探测装备的工程化应用提供参考。

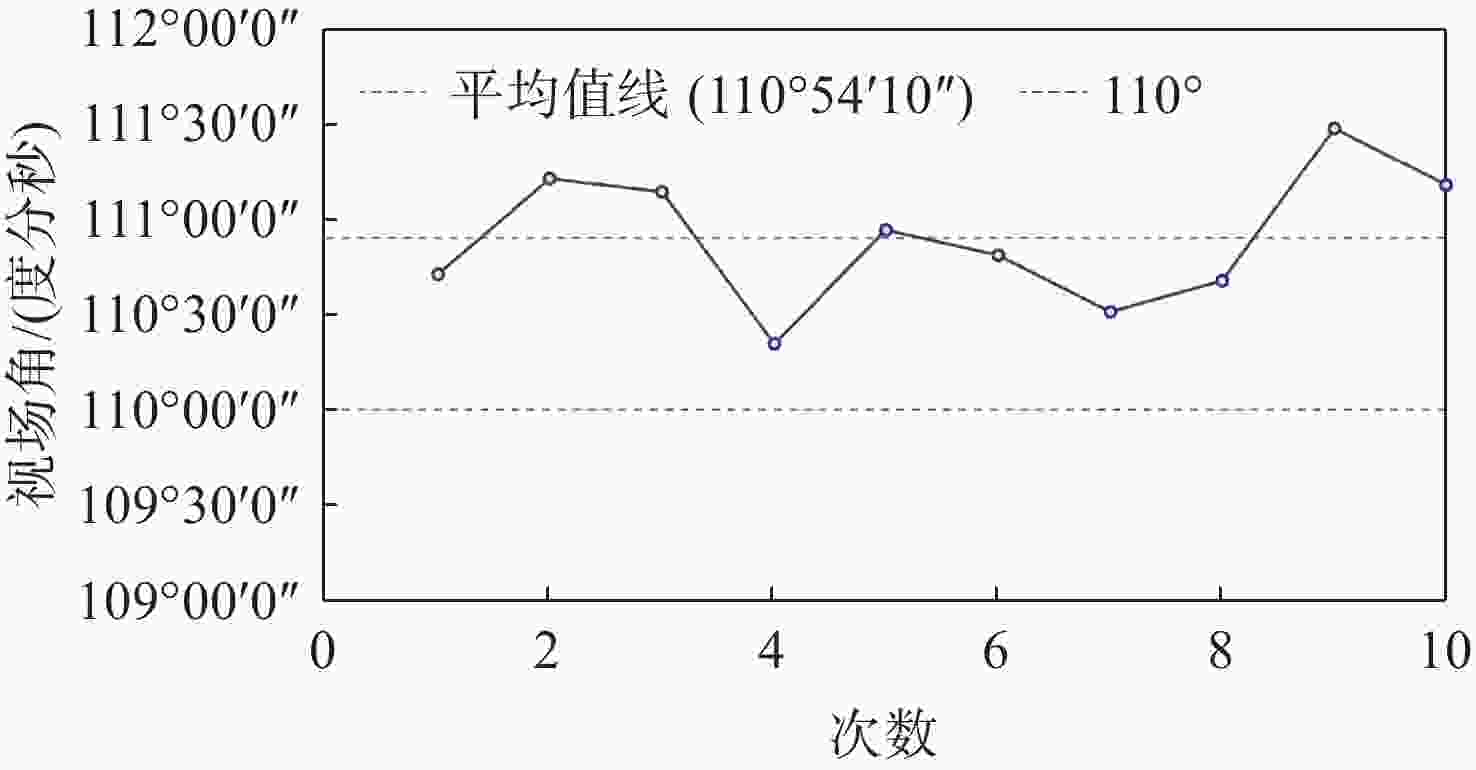

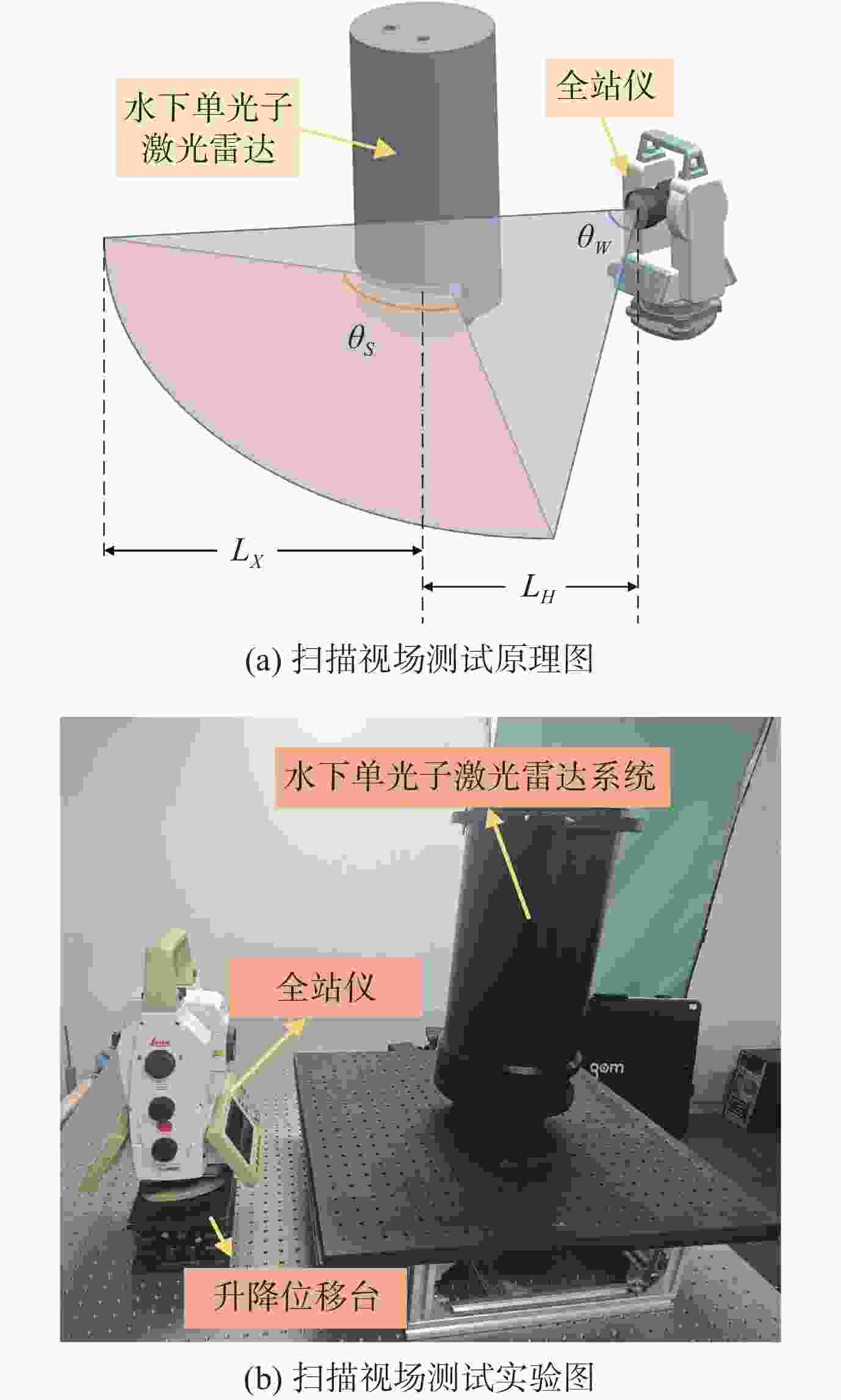

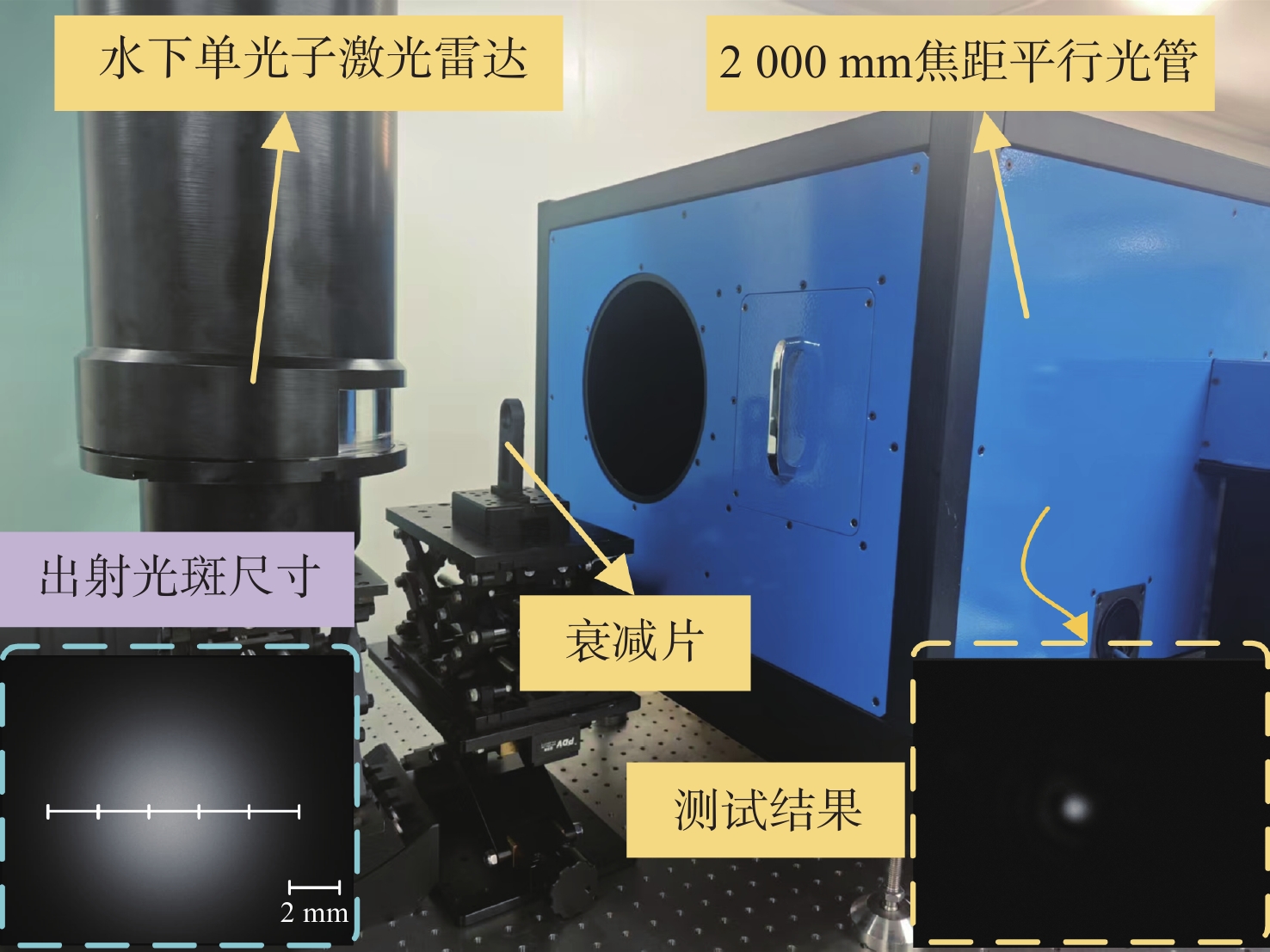

Abstract:To address the challenge of simultaneously achieving a large scanning field of view and system miniaturization in underwater single-photon LiDAR, this paper proposes a technical solution based on mirror scanning and a sealed annular window. By establishing the geometric relationship between scanning angle, beam aperture, and mirror size, and integrating an annular water-isolated window structure, the system achieves miniaturization while maintaining a large scanning field of view. The initial optical system structure is built using ray tracing, and by applying the imaging and compensation principles of cylindrical optical elements, it improves the degradation of beam quality after passing through the annular window across different media. Integrated optimization with the telescope system further enhances beam quality. Experimental results demonstrate that the proposed system achieves a scanning field of view of 110°, a beam quality factor of less than 1.3 times the diffraction limit, a beam divergence angle of 0.084 mrad, and a transmission efficiency of 91.00%. The maximum detection range reaches 24m in water with an attenuation coefficient of 0.184m-1. The proposed system provides both wide-field scanning capability and compact structural advantages, offering a potential solution for the engineering development of underwater wide-area detection platforms.
-
图 1 不同束腰激光光束传输不同距离后的光斑大小
Figure 1. The spot size of different waist laser beams after tr-ansmitting at different distances

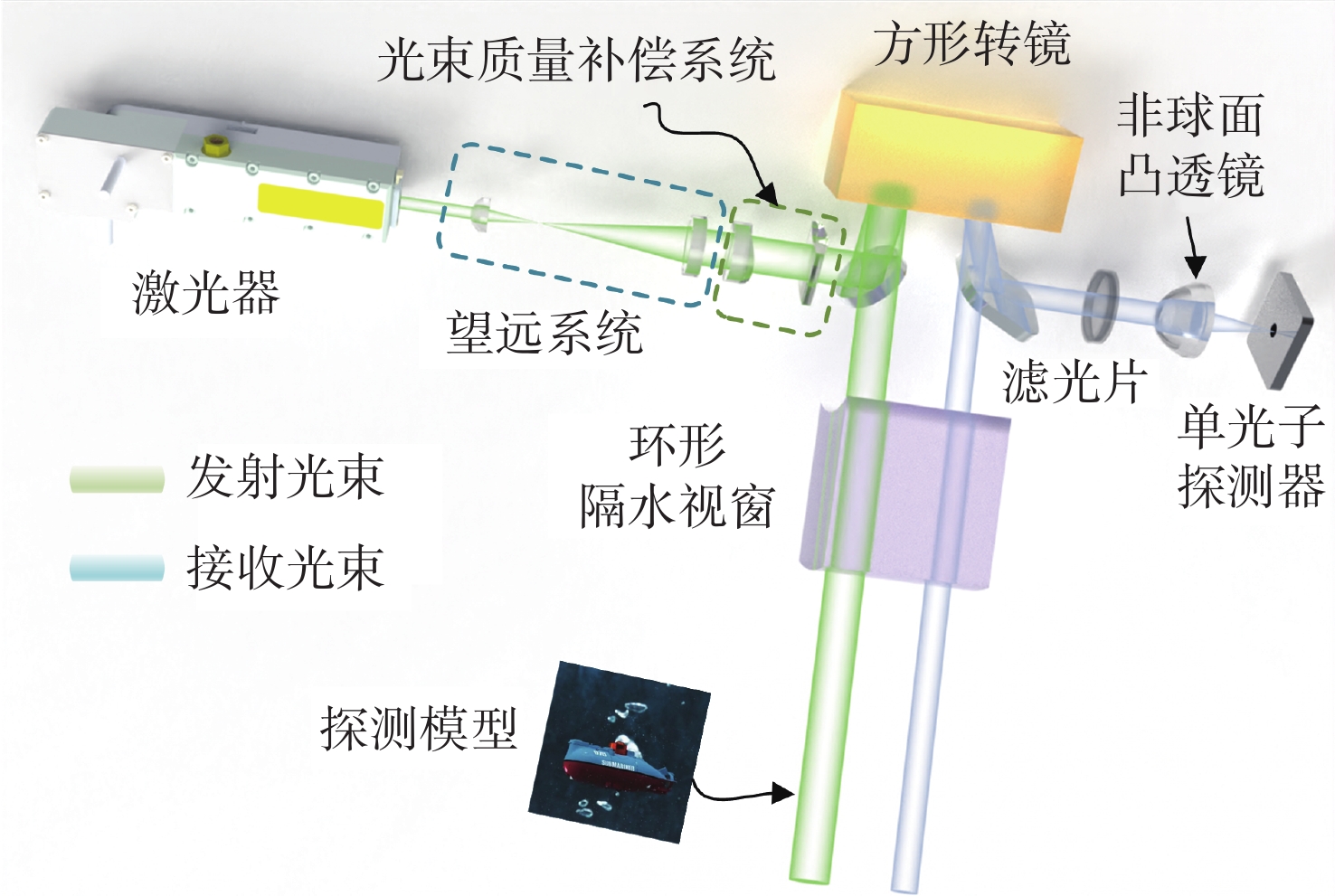

图 2 水下单光子激光雷达光学系统整体结构图
Figure 2. The overall structure diagram of the optical system of the underwater single-photon laser radar

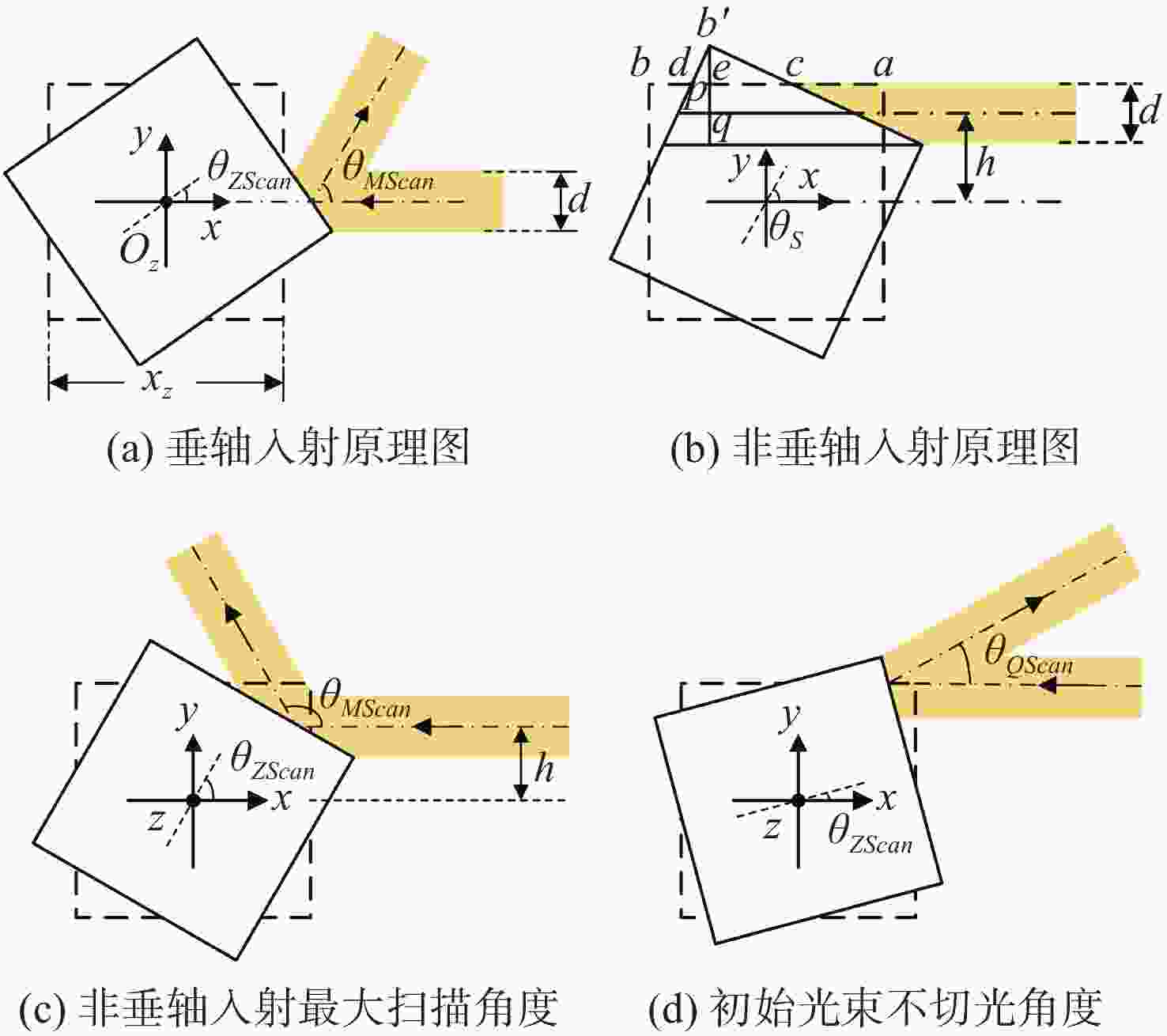

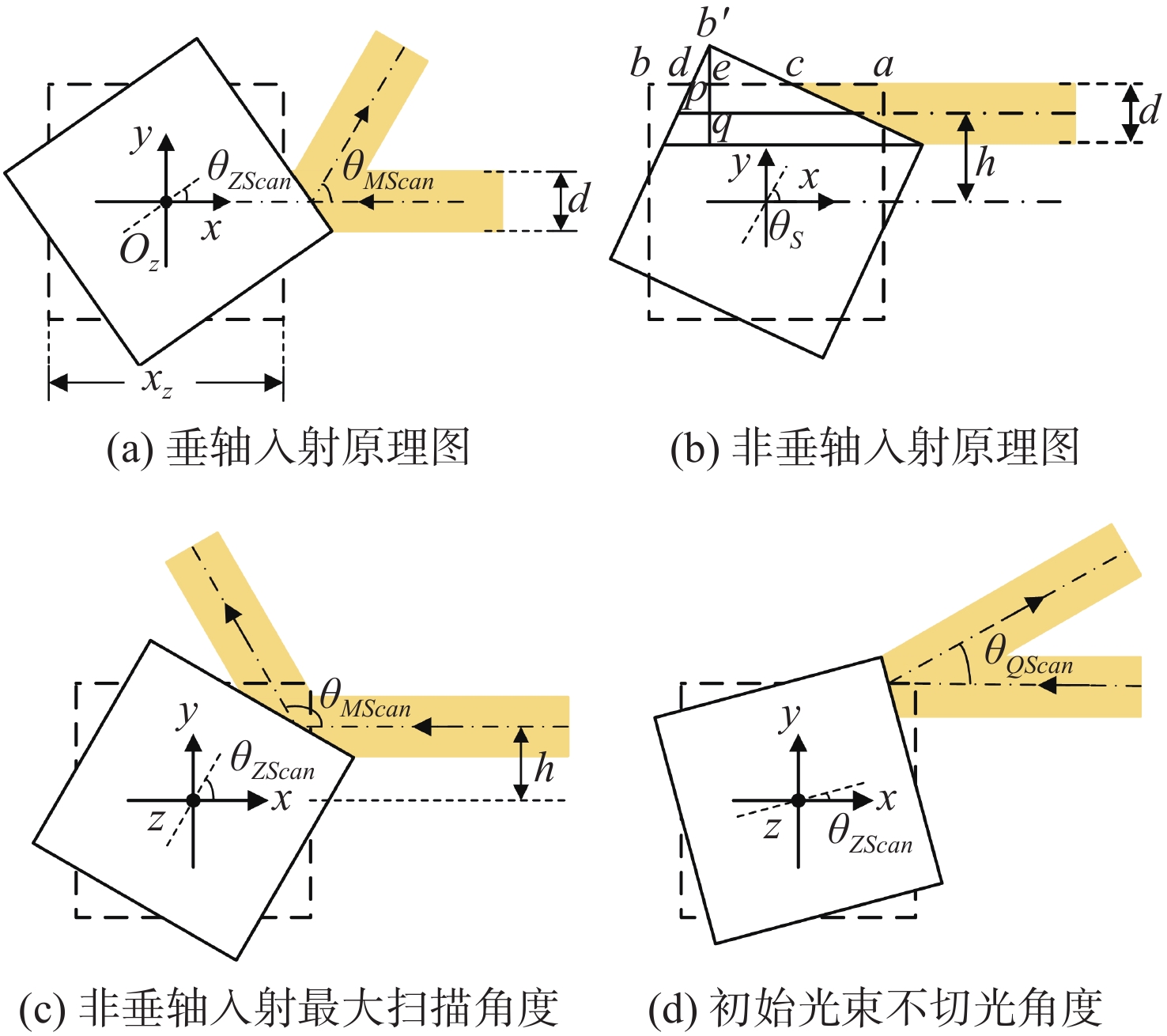

图 3 激光光束在不同位置时转镜扫描角度原理图
Figure 3. The principle diagram of scanning angle of rotating mirror when laser beam is in different positions

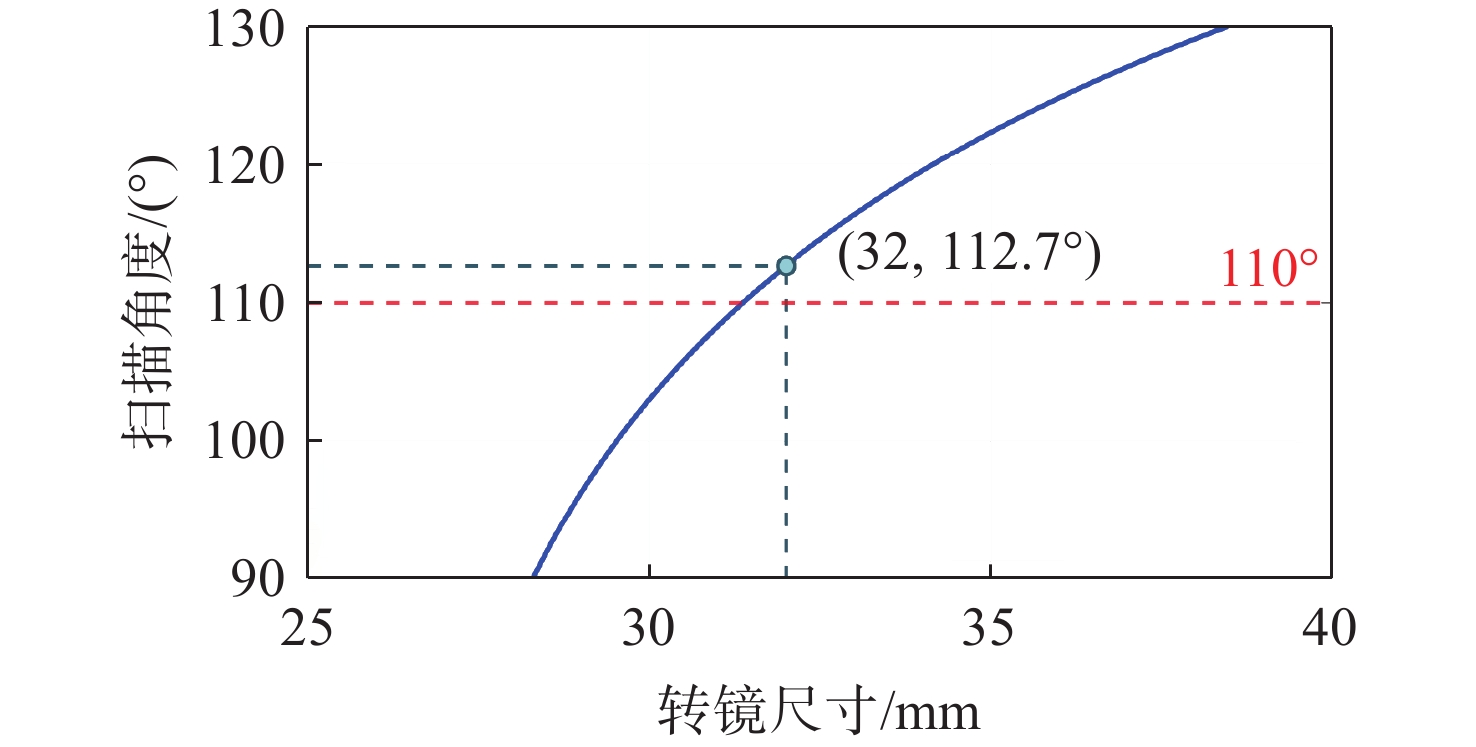

图 4 转镜尺寸与扫描角度之间关系图
Figure 4. The relationship between the size of the rotating mirror and the scanning angle

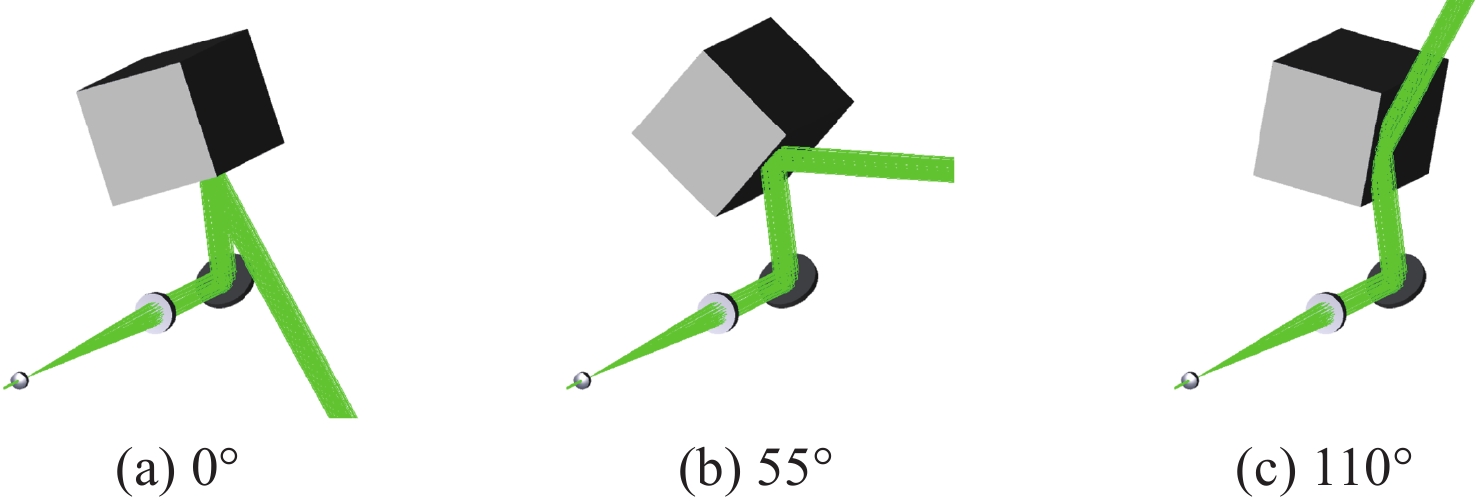

图 5 无视窗时转镜扫描角度仿真图
Figure 5. Simulation diagram of scanning angle of rotating mirror without window

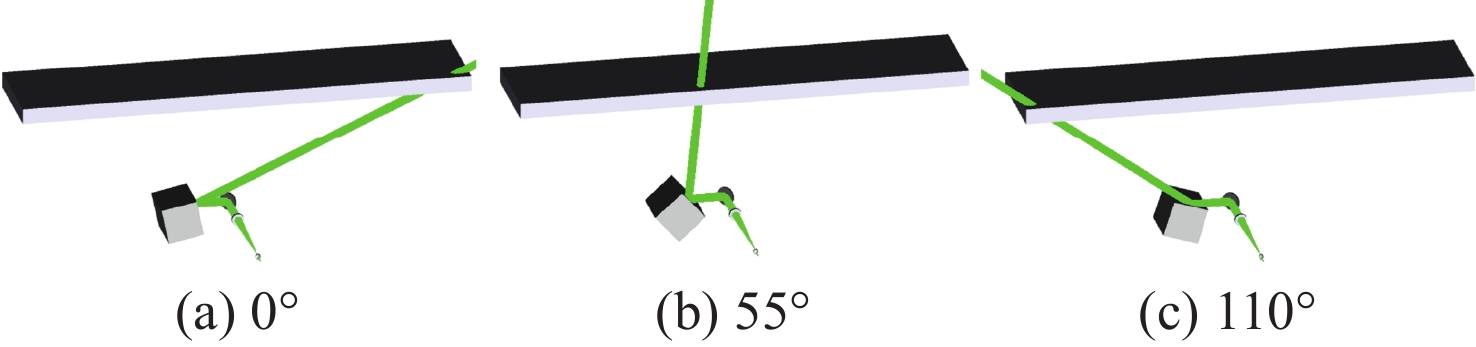

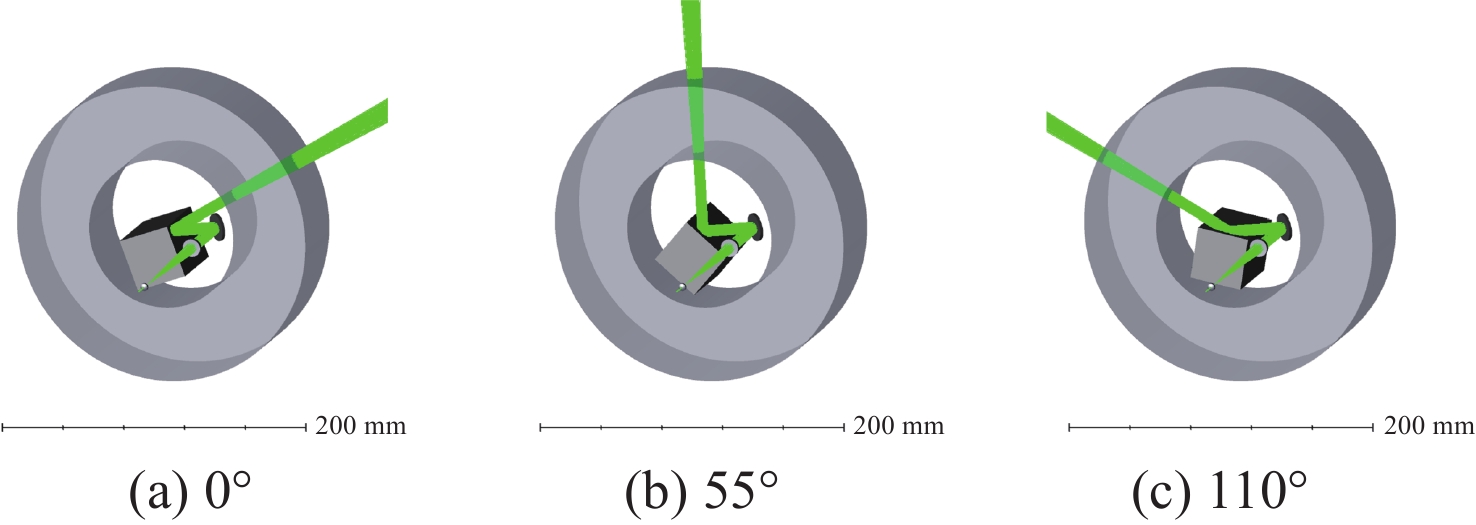

图 7 环形视窗转镜扫描角度仿真图
Figure 7. Simulation diagram of scanning angle of annular window rotating mirror

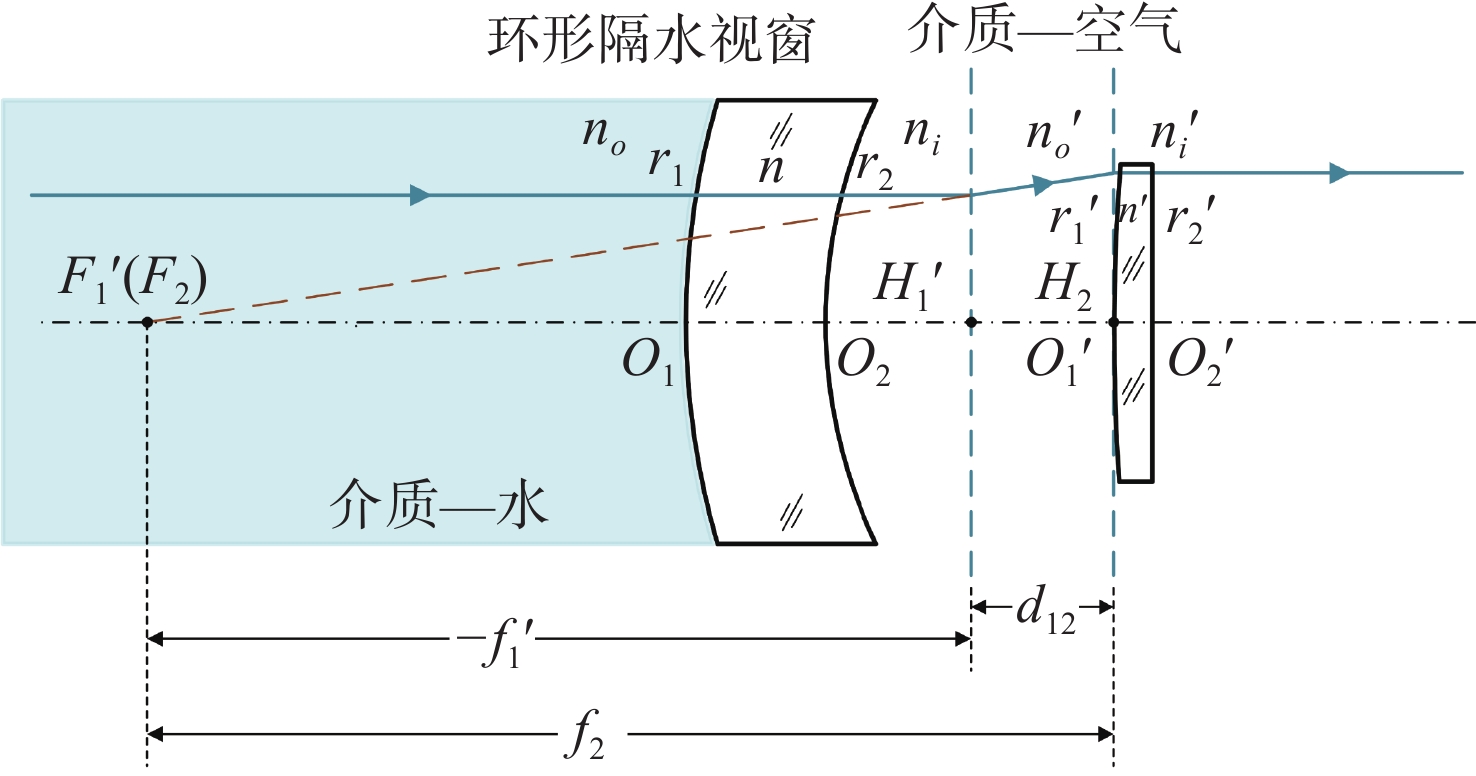

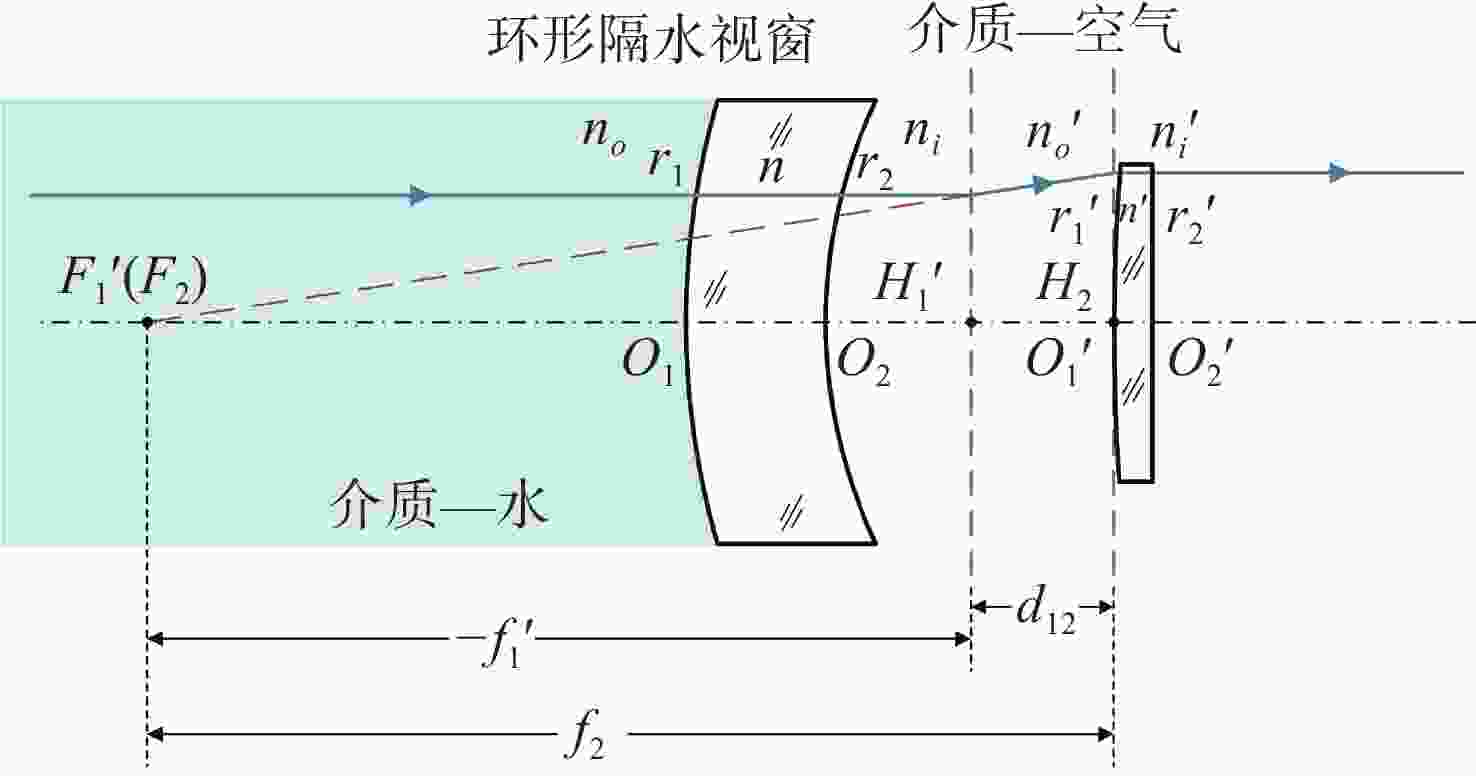

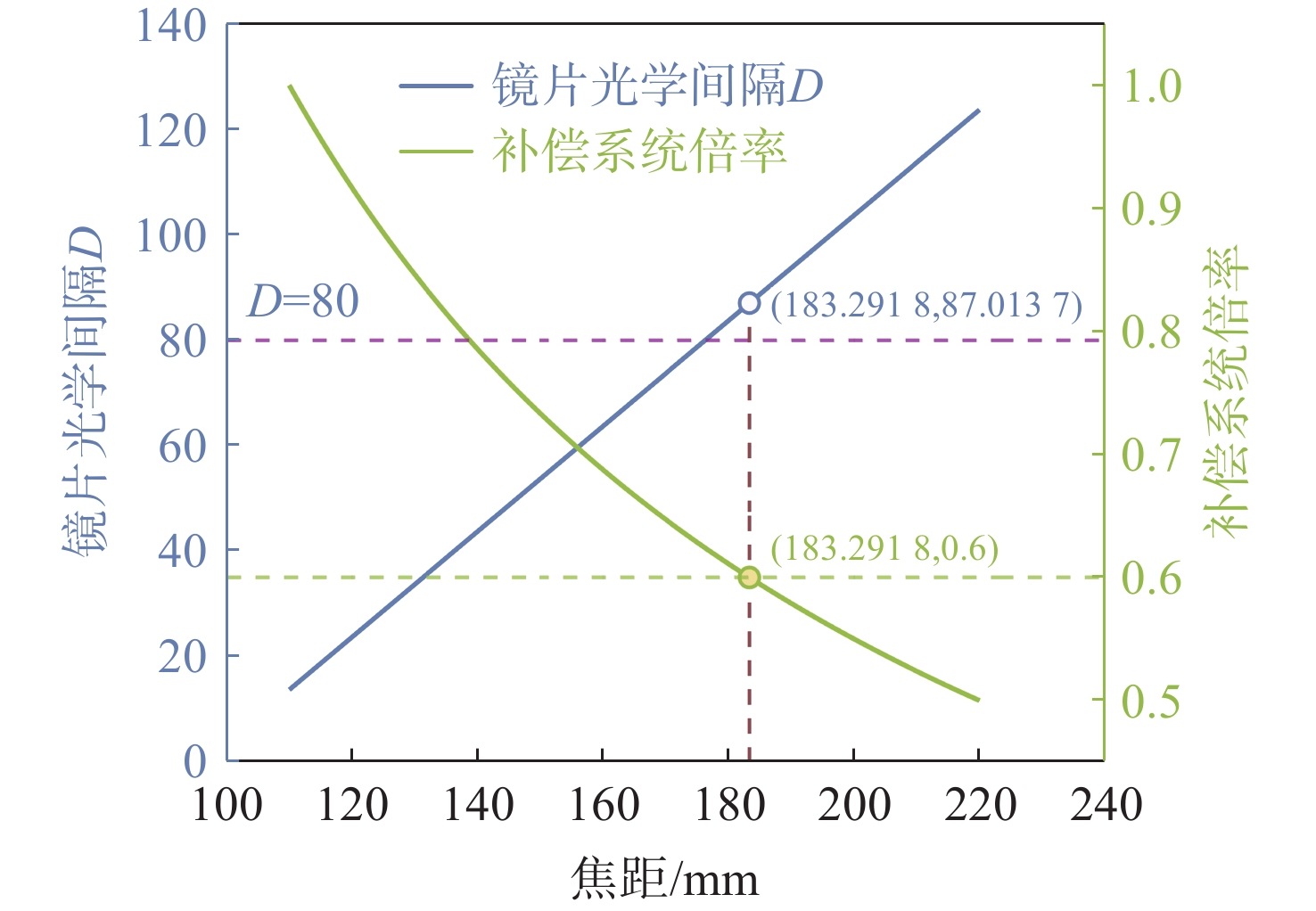

图 8 激光光束准直程度补偿原理图
Figure 8. Laser beam collimation degree compensation schematicdiagram

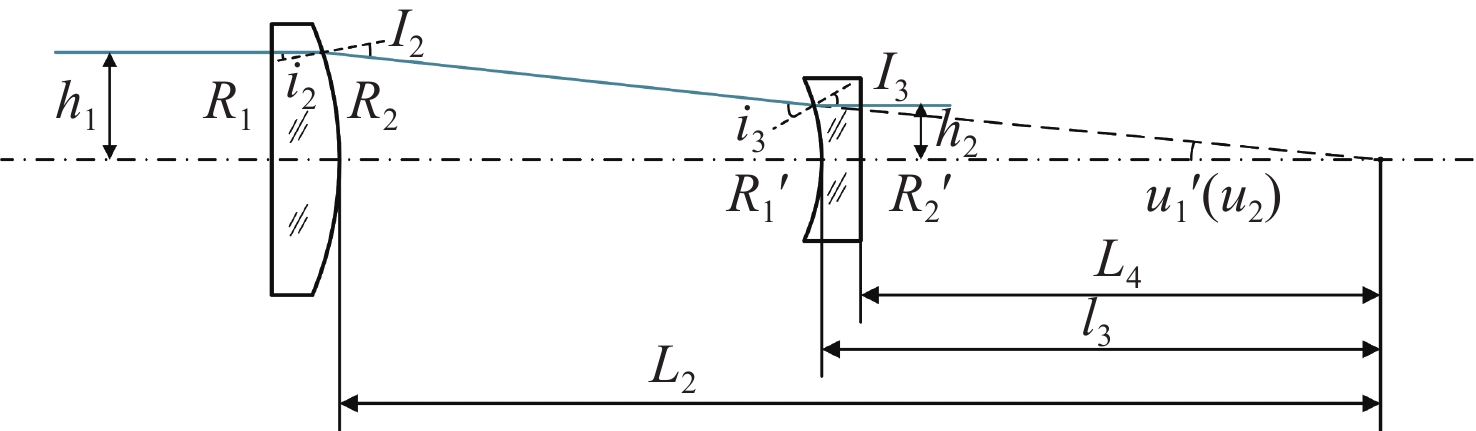

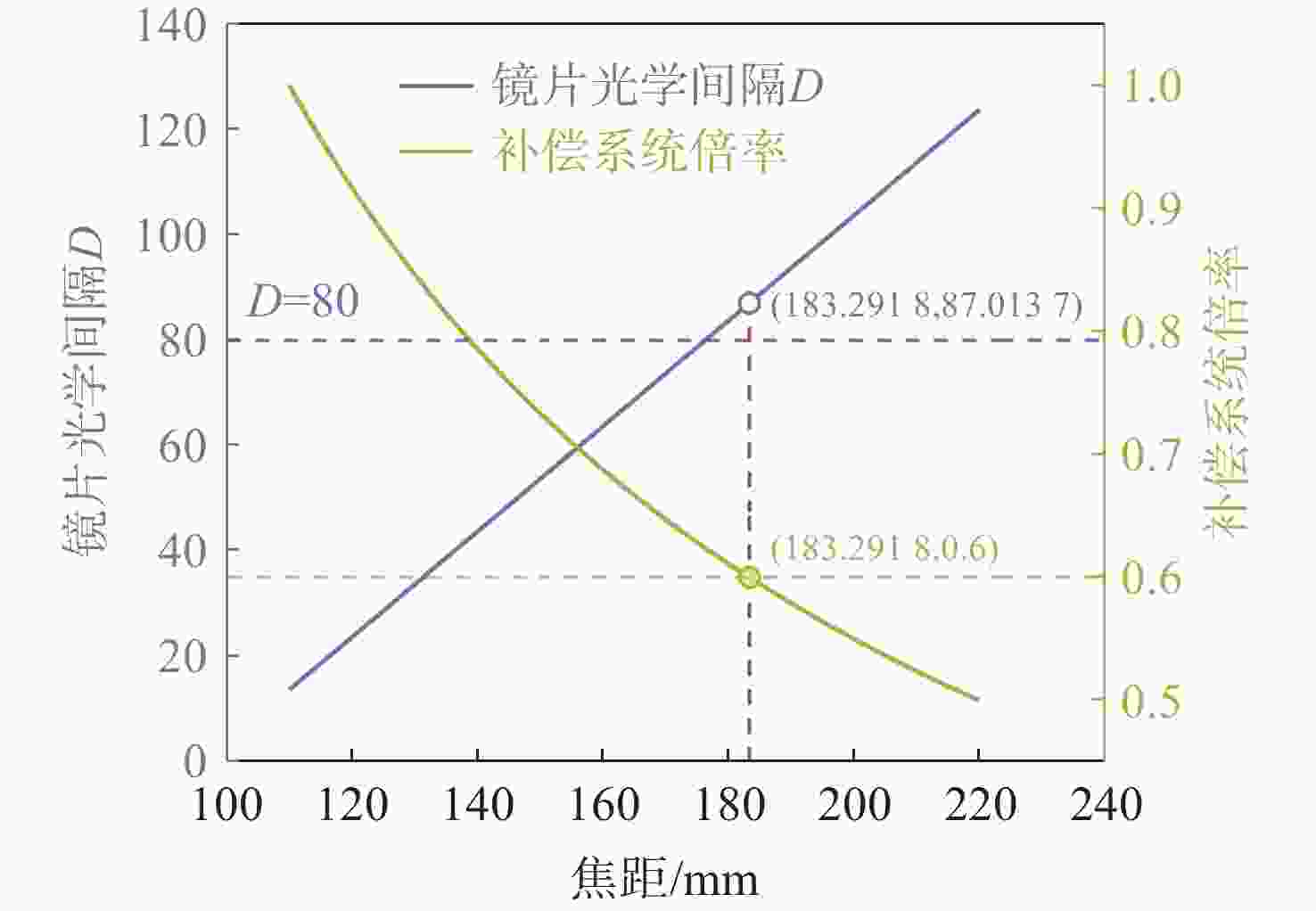

图 10 光线追迹法补偿光斑形状原理图
Figure 10. The principle diagram of light spot shape compensat-on by ray tracing method

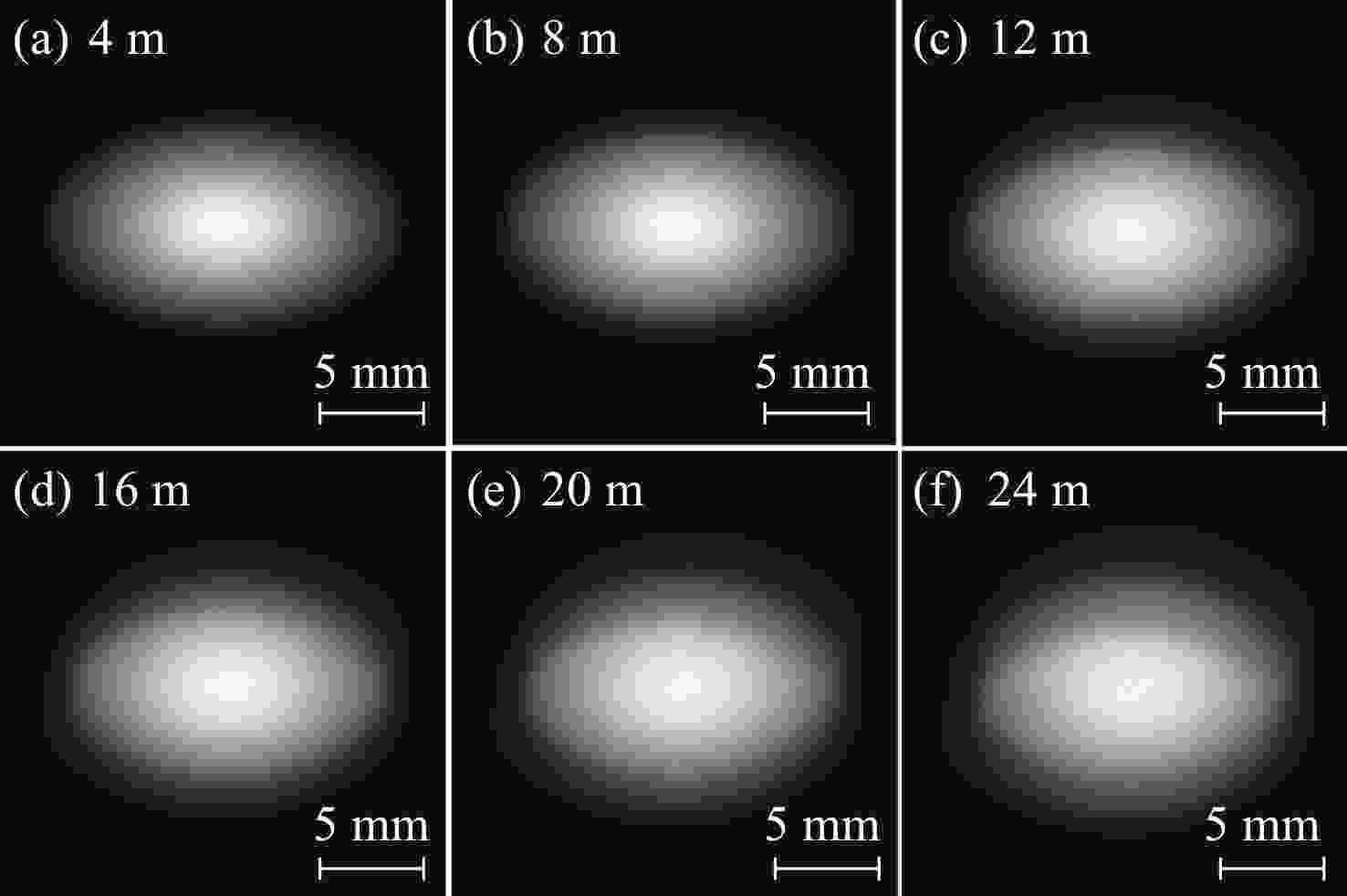

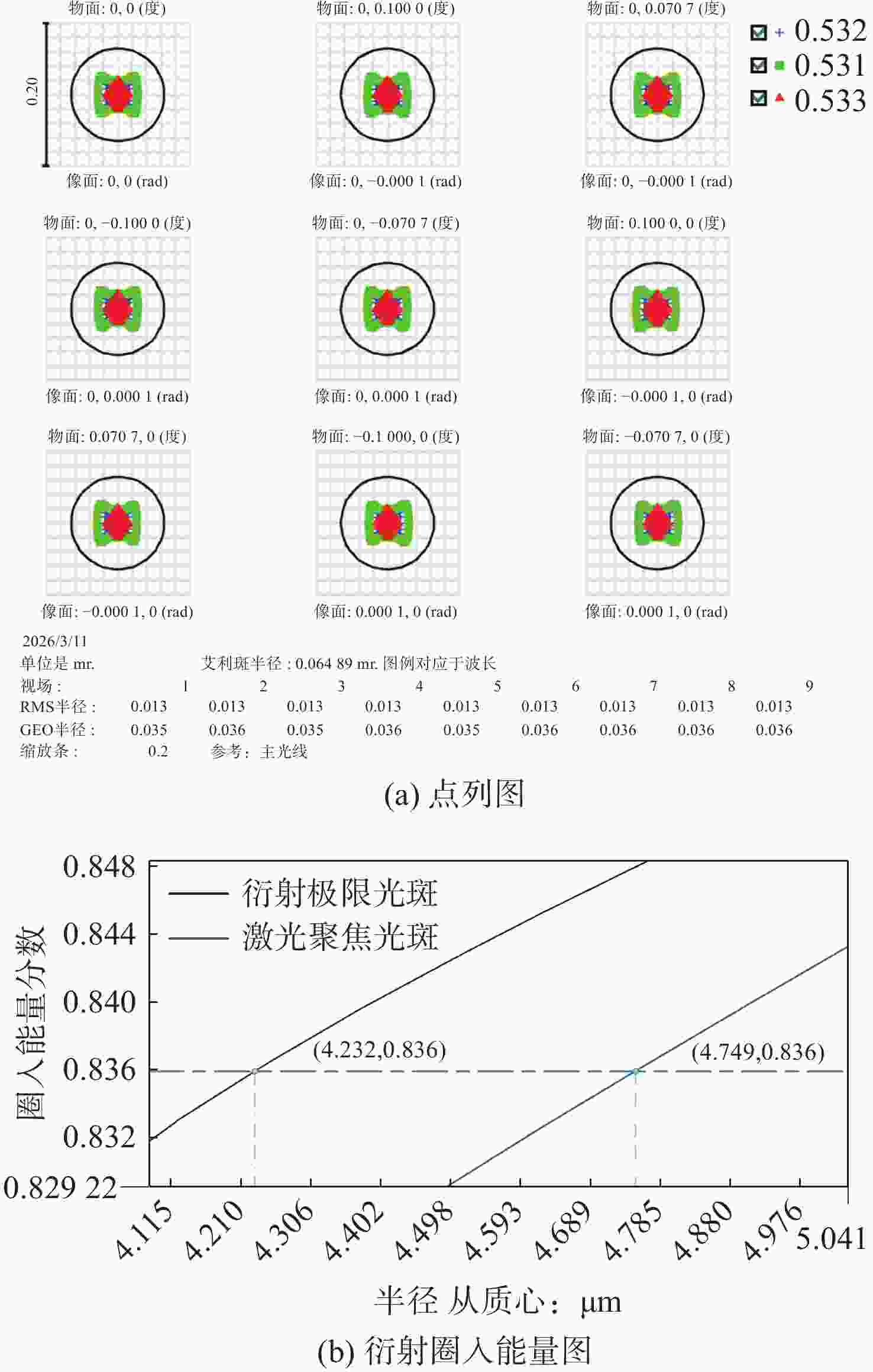

图 12 补偿发散角后不同距离下的几何光斑图
Figure 12. Geometric spot diagrams at different distances after compensating the divergence angle

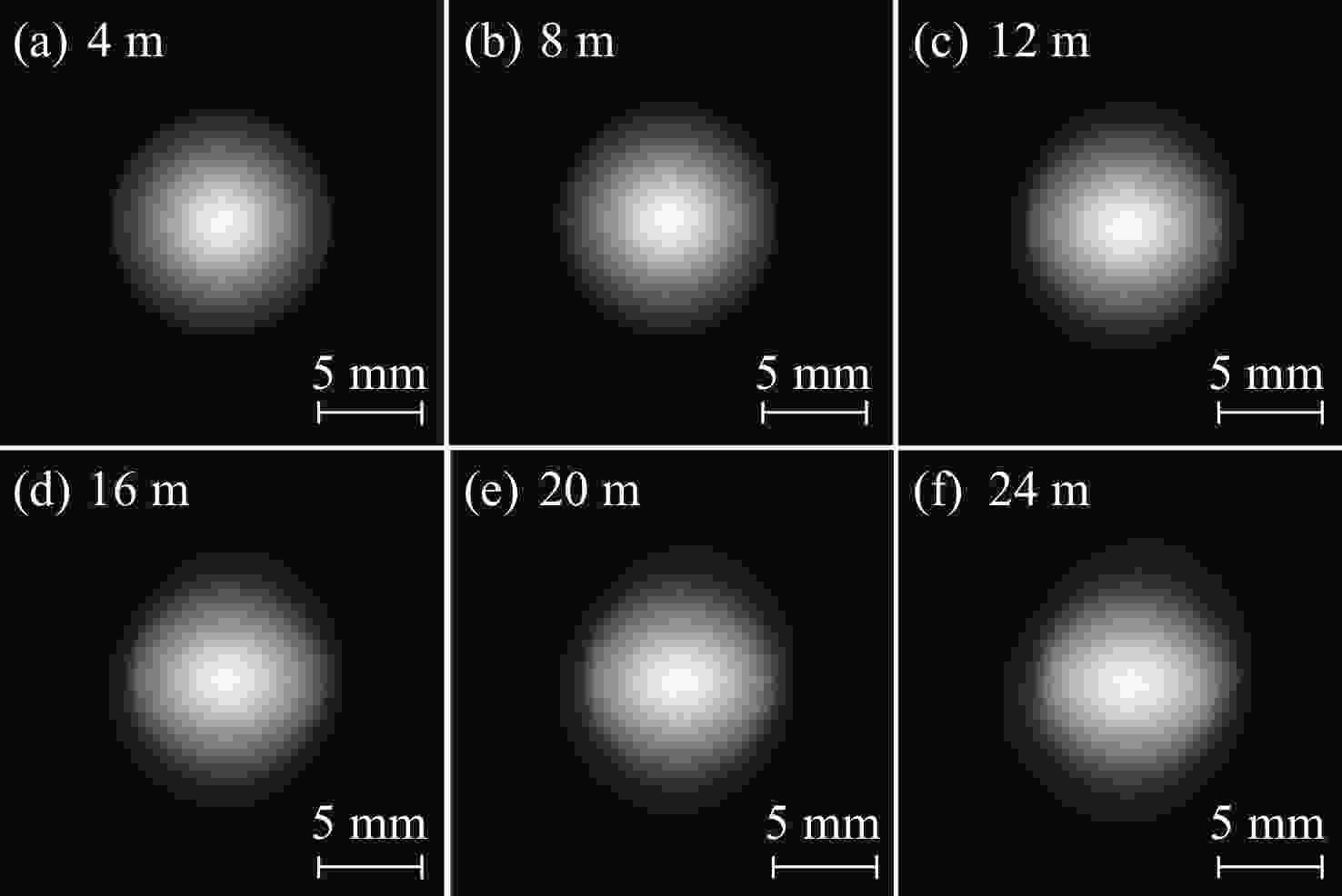

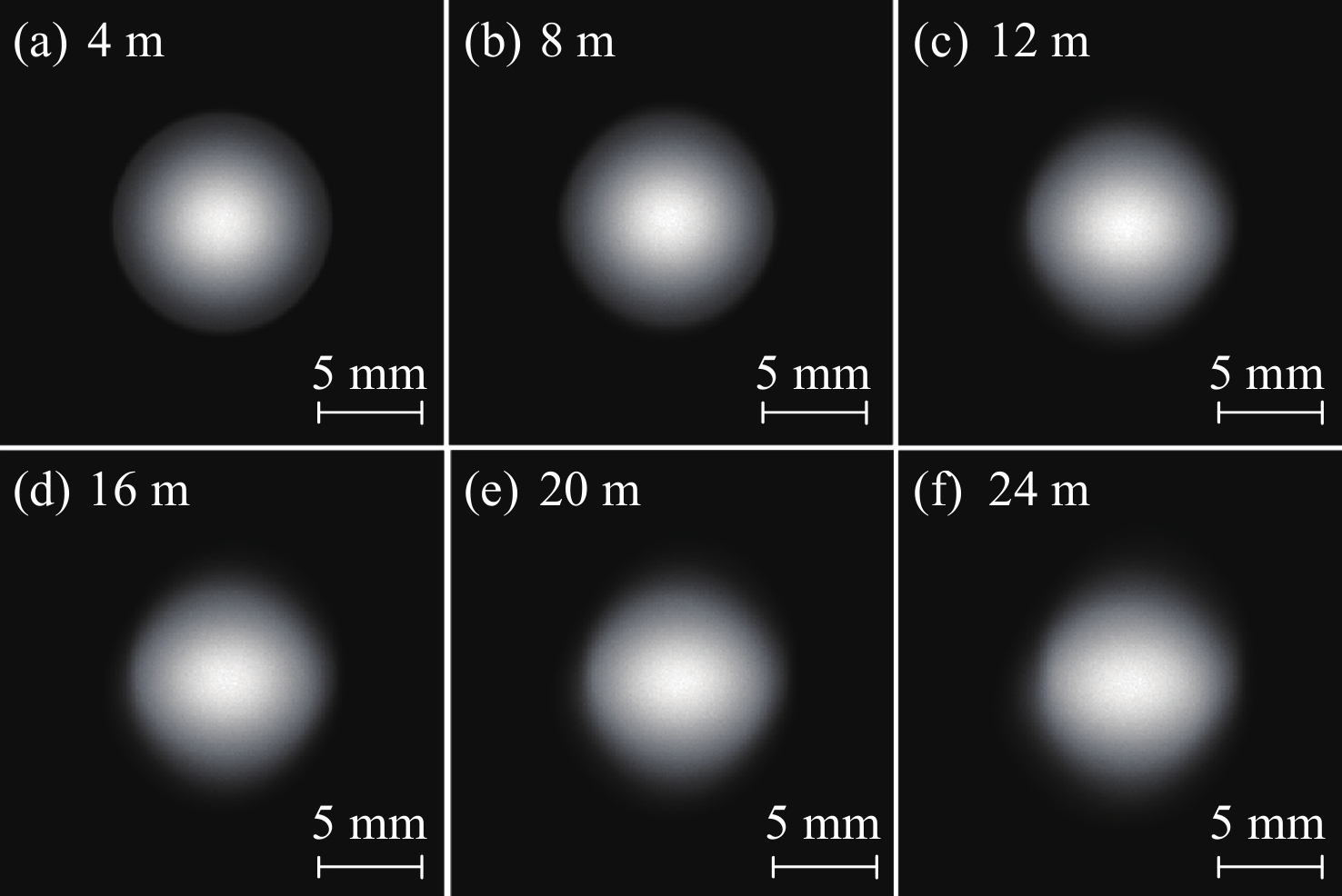

图 13 补偿光斑形状后不同距离下的几何光斑图
Figure 13. Geometric spot diagram at different distances after compensating spot shape

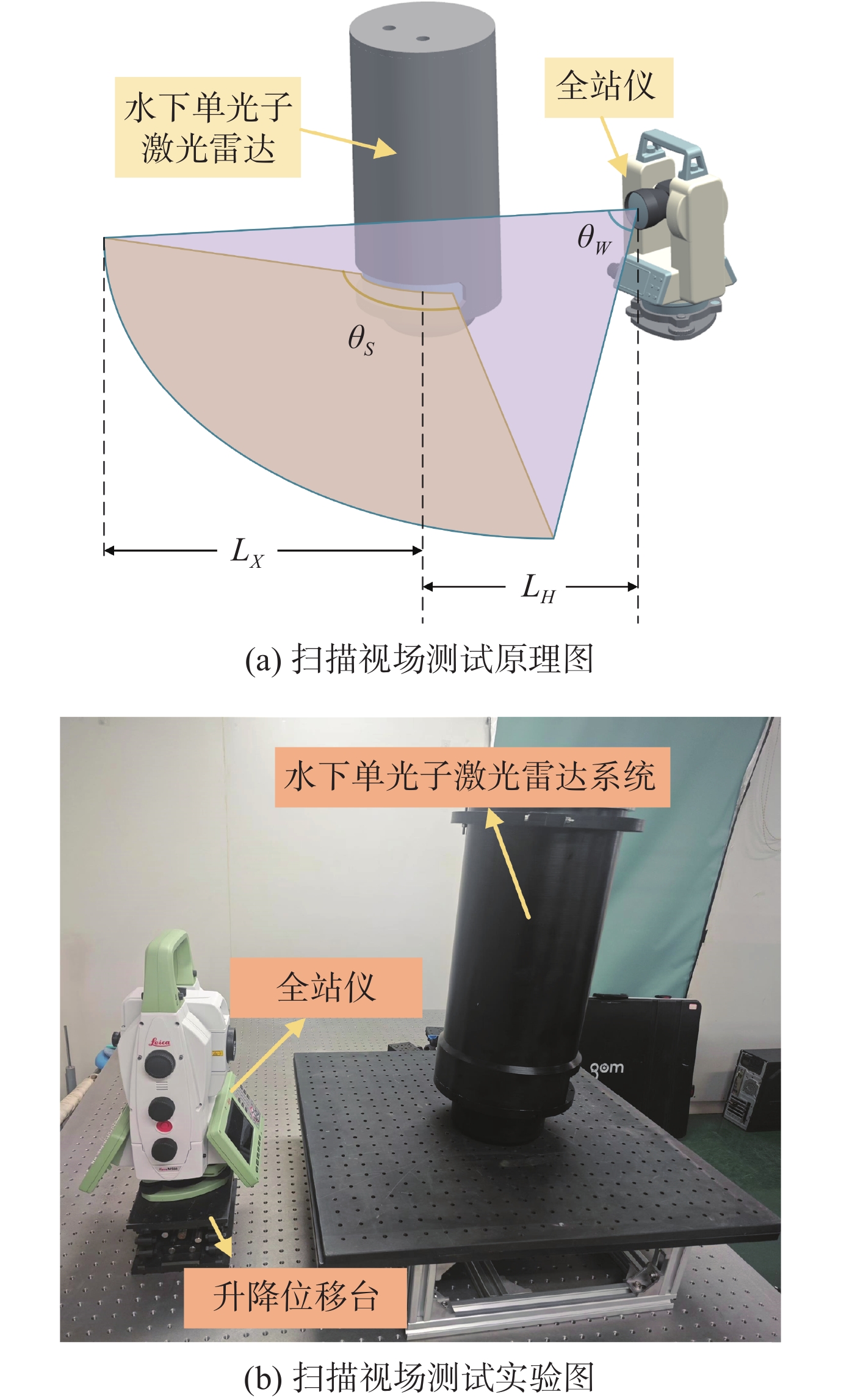

图 18 水下测距实验光斑补偿前后对比图
Figure 18. Comparison diagram before and after spot compensa-tion in underwater ranging experiment

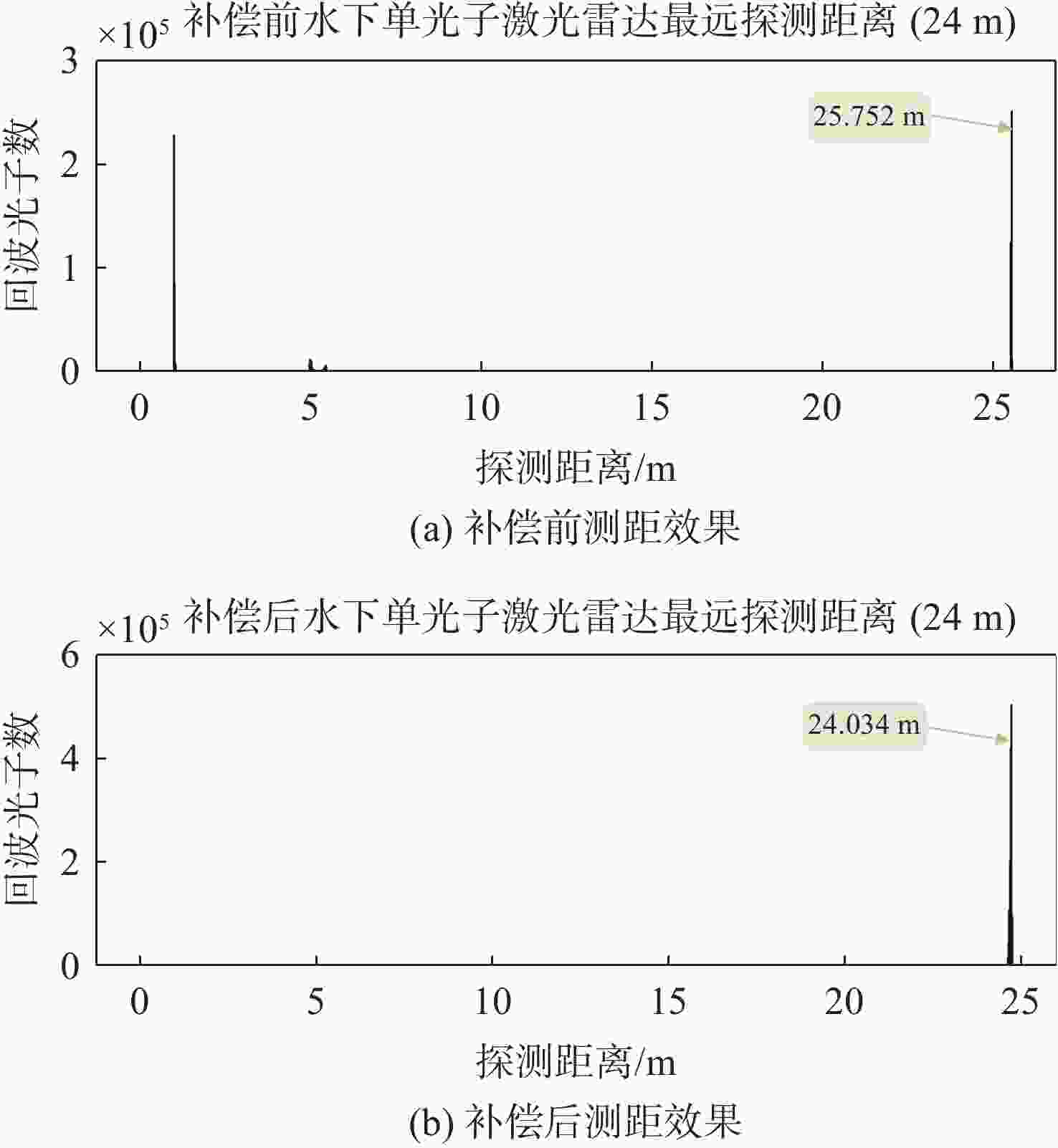

图 19 水下最大探测距离实验结果
Figure 19. Experimental results of maximum underwater detection distance
表 1 水下单光子激光雷达光学系统指标
Table 1. Optical system index underwater single photon lidar
指标 参数 工作波段 532±1nm 发散角 ＜0.1mrad 口径 ≥10mm 探测距离 ＞24m 扫描角度 0°~110° 传输效率 ＞90% 尺寸 220mm-450mm（直径-长度）
下载: 导出CSV

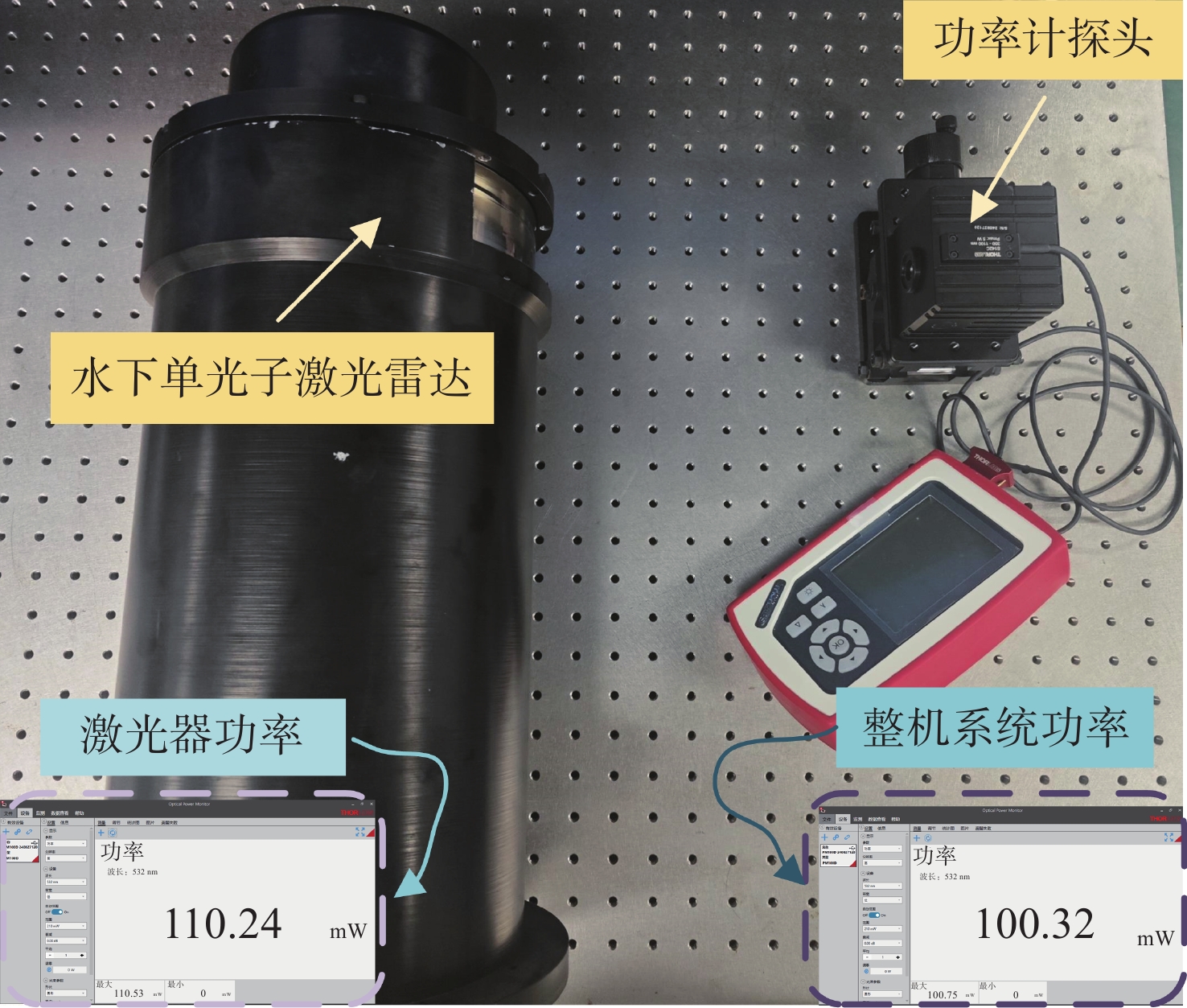

表 2 系统传输效率
Table 2. System transmission efficiency
膜系 传输效率 未镀膜 41.06% 0.99增透膜 85.12% 0.995增透膜 90.43%
下载: 导出CSV
表 3 水下单光子激光雷达系统参数
Table 3. Parameters of underwater single-photon laser radar system
指标 参数 脉冲能量 ＞5μJ 重复频率 ＞20kHz 脉宽 ＜0.85ns 平均输出功率 ＞100mW 单脉冲峰值功率 ＞7kW 接收孔径 25mm 探测效率 25%@532nm 暗记数 0.7Mcps
下载: 导出CSV
-
