Imaging System Design Scheme for the Point-Ahead Angle Mechanism in Space-Based Gravitational Wave Observation
-
摘要:
空间引力波探测中，超前指向机构（PAAM）是实现星间激光链路高精度指向的关键部件，但其转动引入的抖动耦合（TTL）噪声严重制约干涉测量精度。为抑制PAAM角抖动引起的局部TTL噪声，本文提出一种成像系统方案，通过将探测器光学成像至PAAM等效旋转中心，从几何光路主动抑制噪声。基于激光外差干涉原理构建高对称等臂干涉仪测试平台，利用IFOCAD软件系统分析非理想条件（角抖动、旋转中心偏移、安装误差、热致形变）下成像系统的抑制性能。实现表明：理想对准时，成像系统可抑制98.9%的杠杆光程变化和98.2%的活塞光程变化；安装误差下TTL噪声抑制在

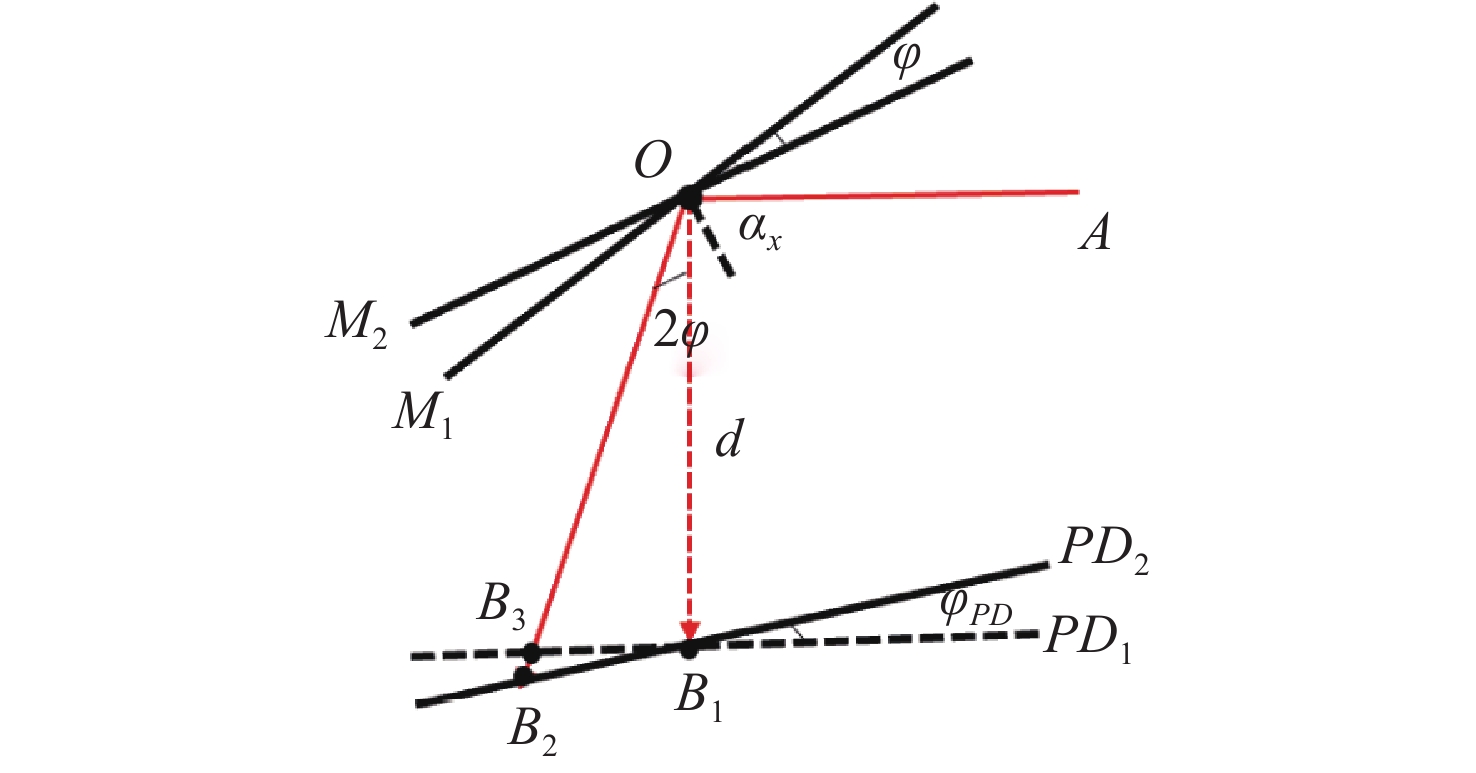

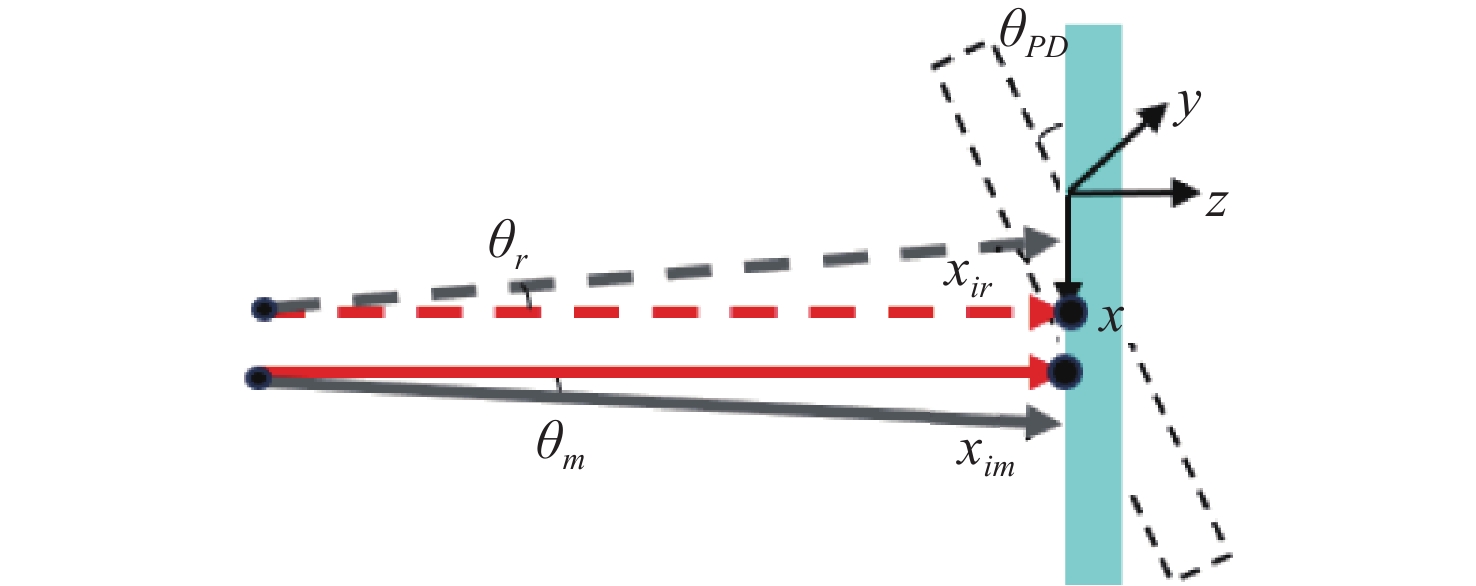

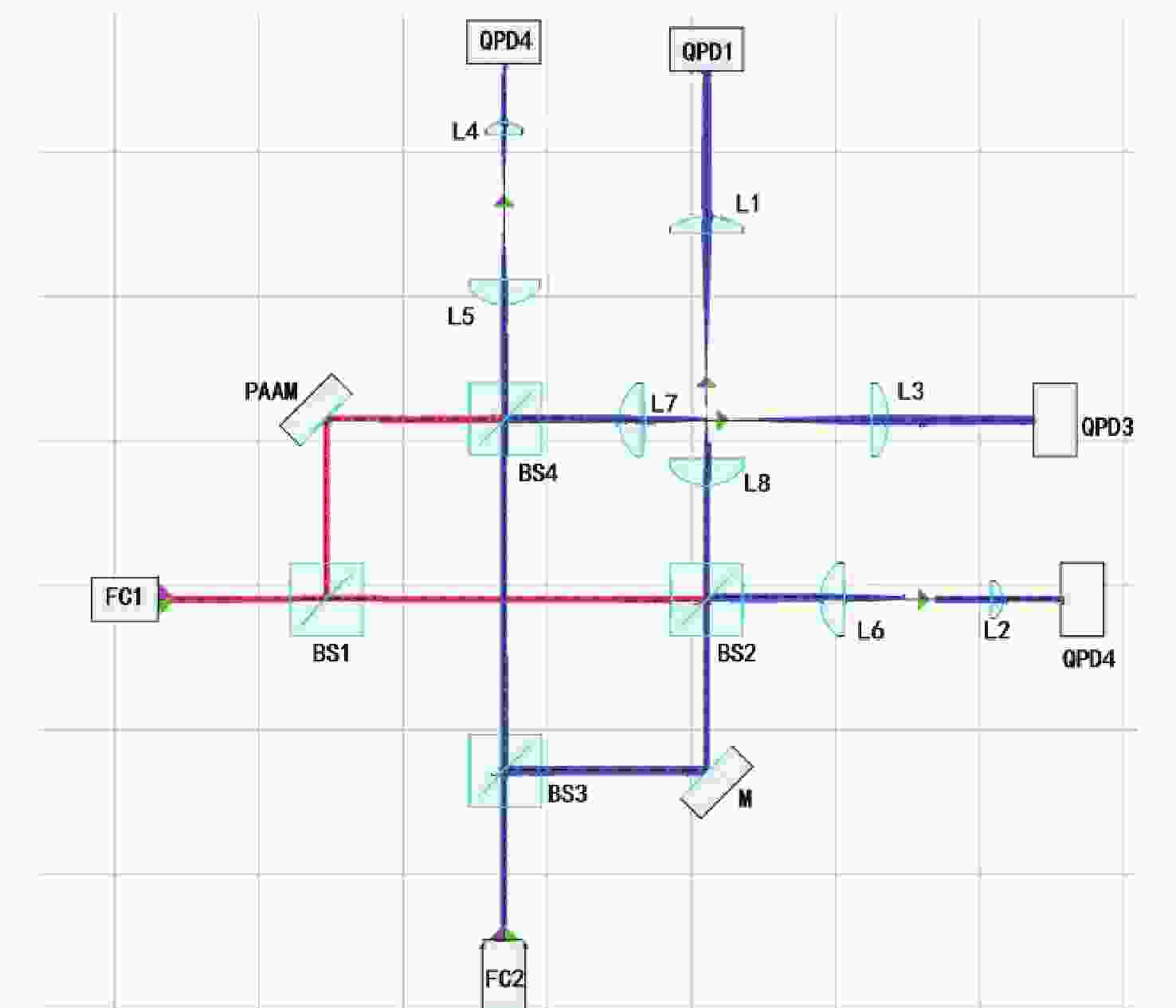

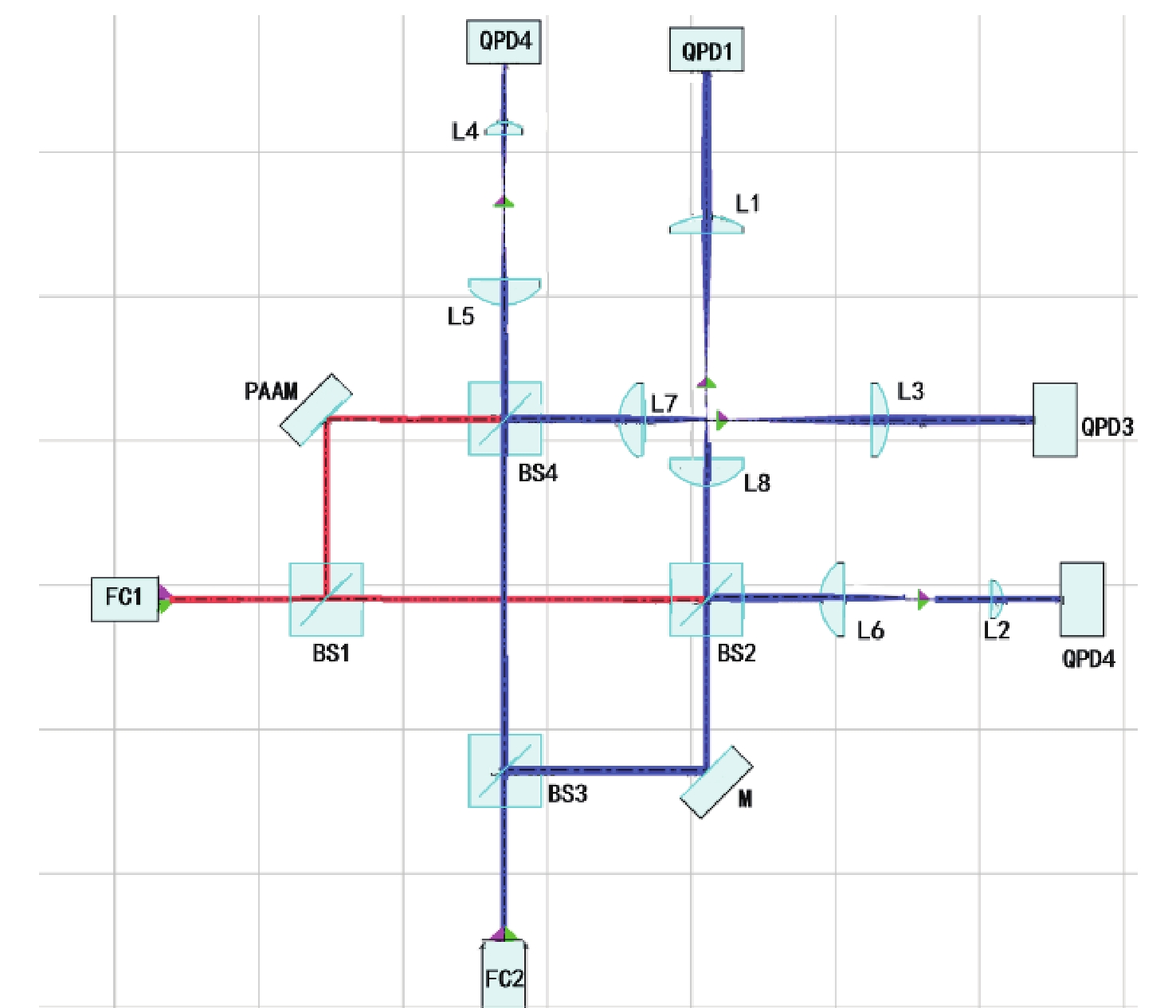

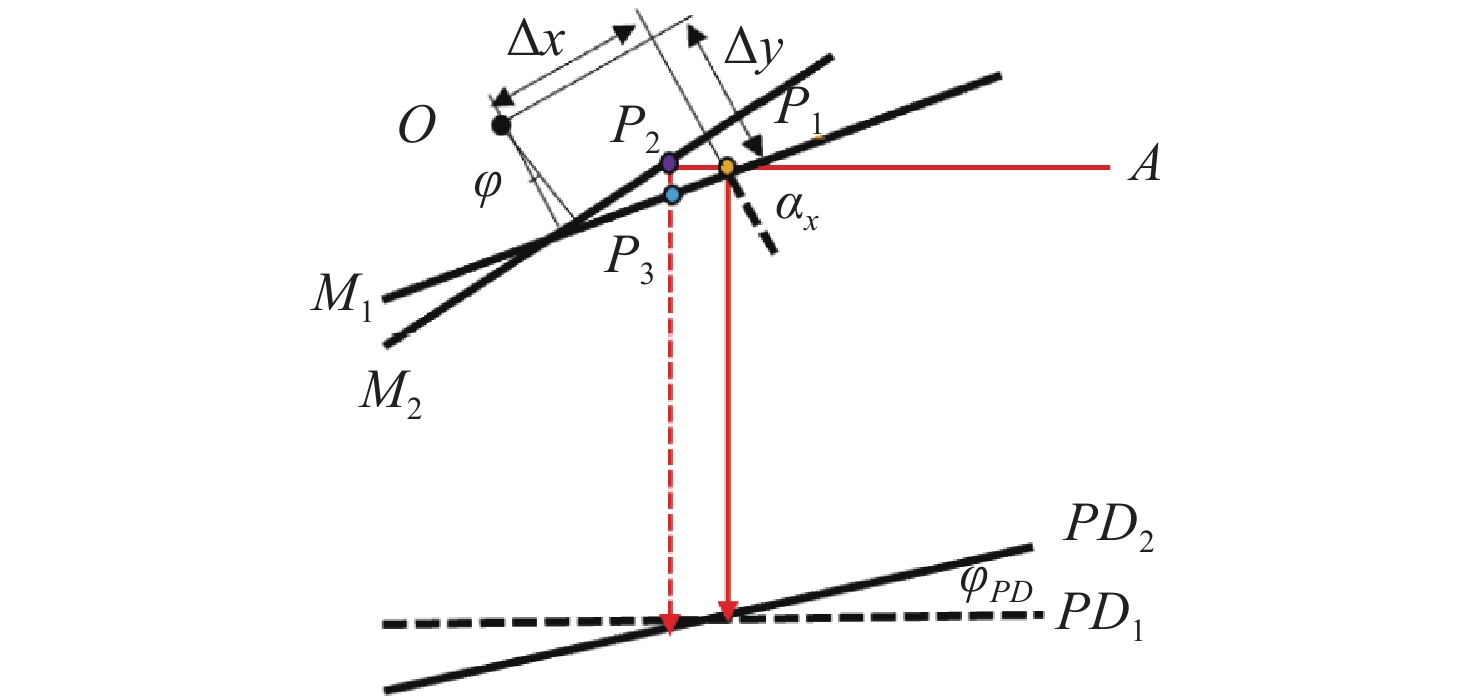

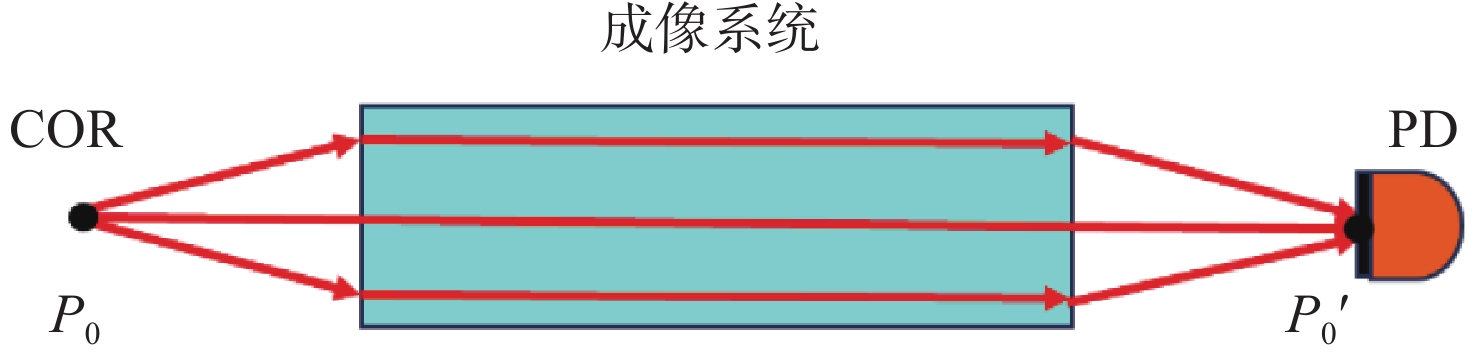

$ 1\;\mathrm{pm}/\sqrt{\text{Hz}} $ 以内，引入热噪声后仍稳定在$ 10\;\mathrm{pm}/\sqrt{\text{Hz}} $ 以内。仿真验证了杠杆噪声与角抖动呈二阶相关、活塞噪声呈一阶相关，与理论吻合。本研究为高稳定度光束指向控制系统设计及噪声评估提供了理论依据与仿真实现。Abstract:In space-based gravitational wave detection, the Point-Ahead Angle Mechanism (PAAM) is crucial for high-precision pointing of intersatellite laser links, but its rotation introduces tilt-to-length (TTL) noise that severely limits interferometric accuracy. To suppress local TTL noise caused by PAAM angular jitter, this paper proposes an imaging system that optically images the detector onto the equivalent rotation center of the PAAM, actively mitigating geometric TTL noise. A highly symmetric equal-arm heterodyne interferometer test platform was constructed, and IFOCAD simulations were performed to evaluate suppression performance under non-ideal conditions (angular jitter, rotation center offset, installation errors, thermal deformation). Results show that under ideal alignment, the imaging system suppresses 98.9% of lever-effect optical path changes and 98.2% of piston-effect changes. With installation errors, TTL noise is suppressed within
$ 1\;\text{pm/}\sqrt{\text{Hz}} $ , and remains below$ 10\;\text{pm/}\sqrt{\text{Hz}} $ when thermal noise is introduced. Simulations confirm that lever noise has a second-order correlation with angular jitter, while piston noise has a first-order correlation, consistent with theoretical analysis. This study provides theoretical and simulation support for designing high-stability beam pointing control systems and assessing noise in future missions. -
图 1 超前指向机构设计图纸与物理样机展示
Figure 1. Display of the Design Drawing and Physical Prototype of PAAM

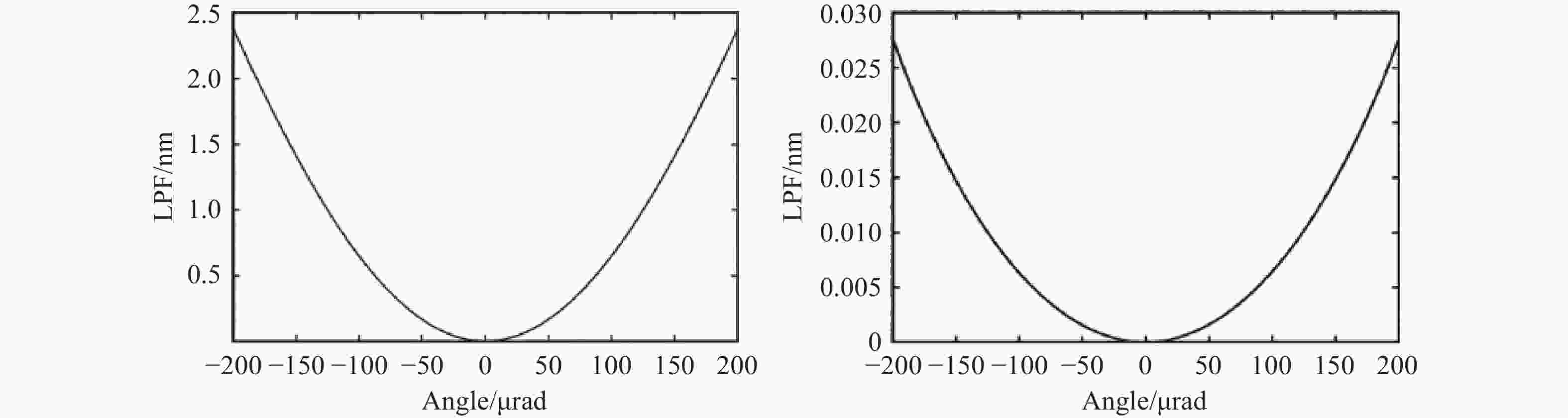

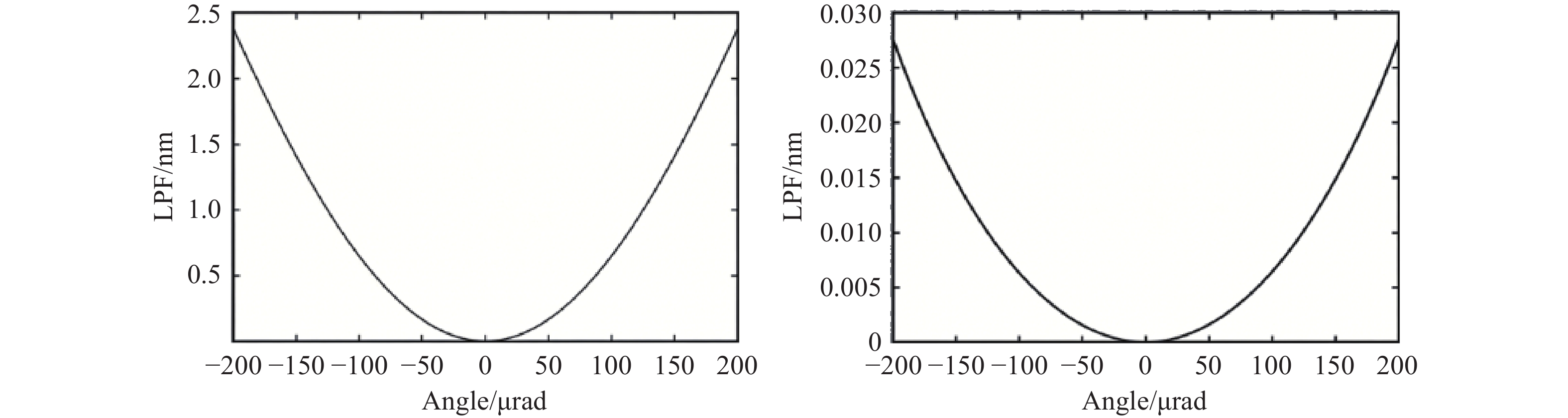

图 8 在成像系统安装前（左）和安装后（右）所产生的局部TTL耦合变化
Figure 8. Local TTL coupling variations generated without (left) and with (right) the imaging system

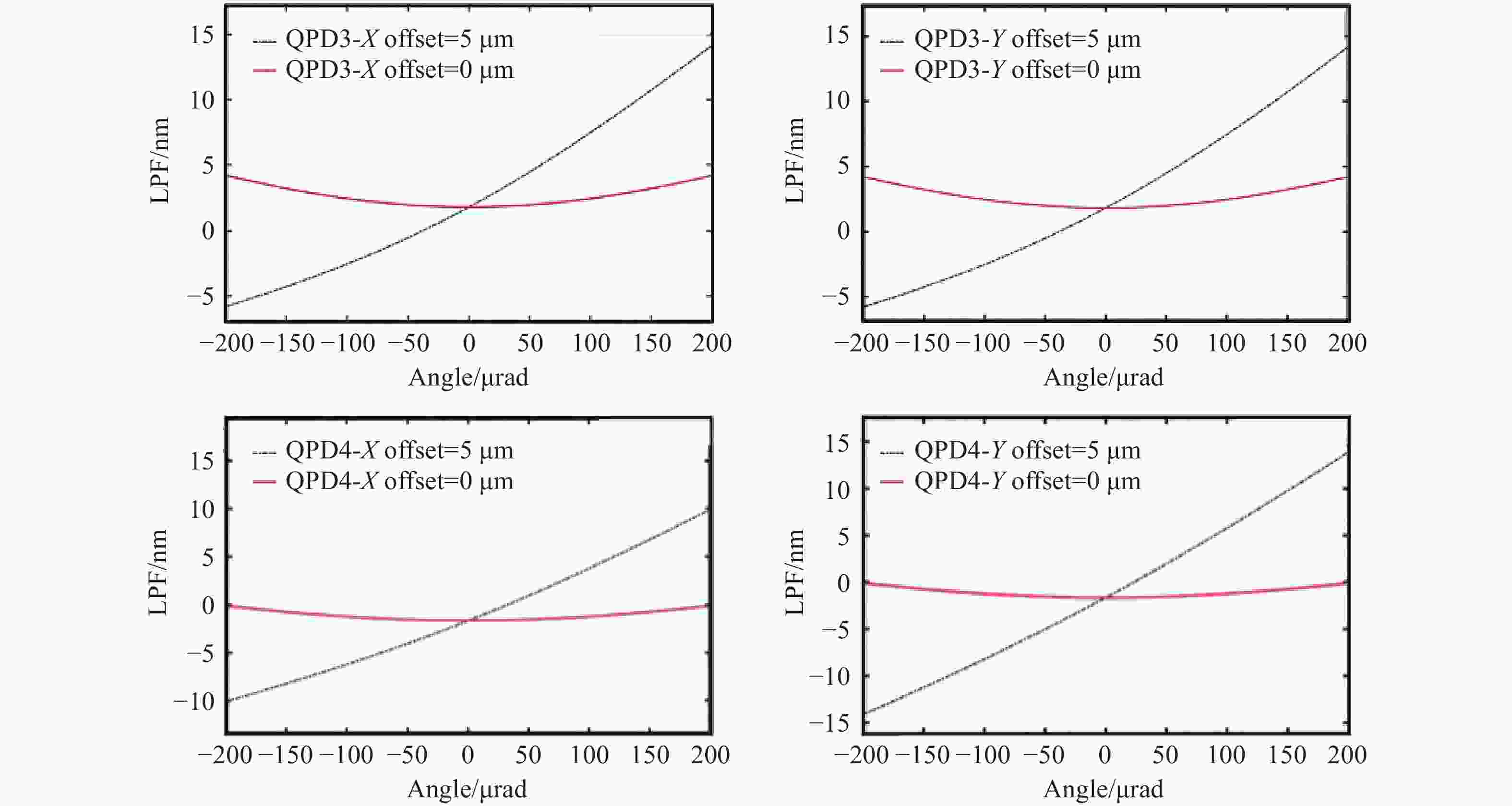

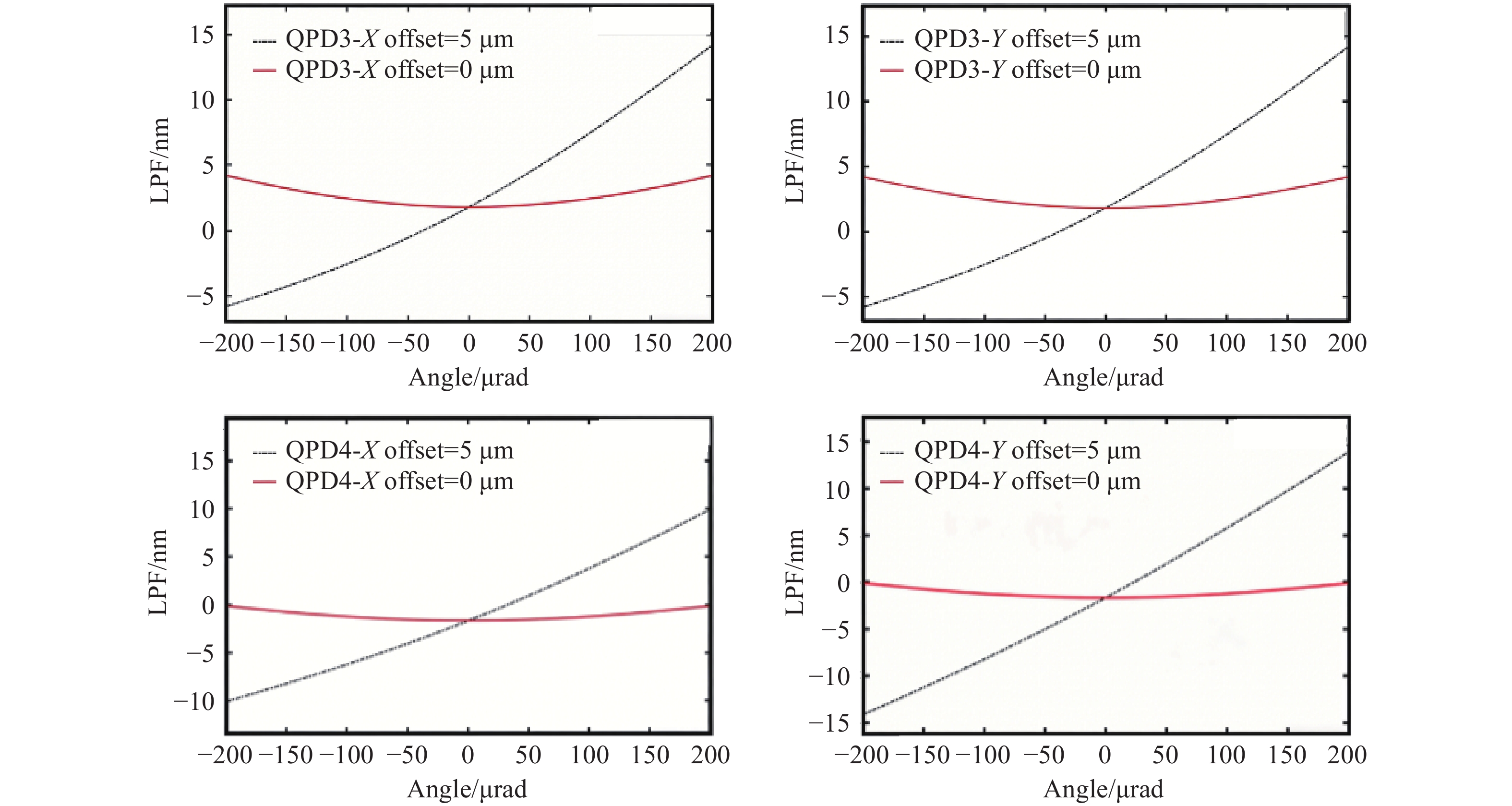

图 9 成像系统安装前仿真结果。横向偏移和纵向偏移产生的局部TTL耦合变化
Figure 9. Simulation results without imaging system. The local TTL coupling variations generated by the lateral offset (top) and the longitudinal offset (bottom) are given

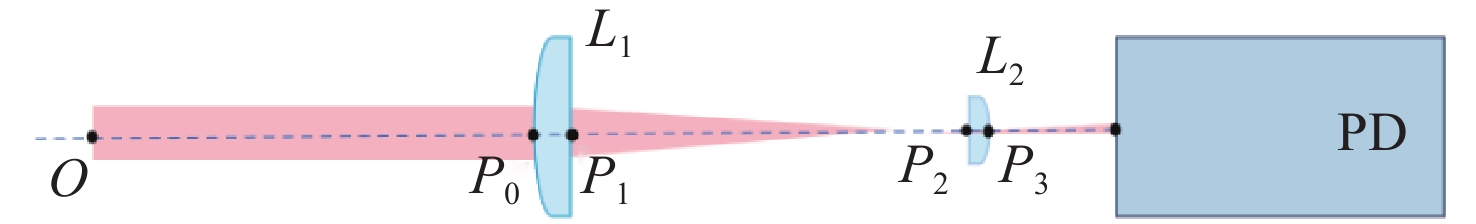

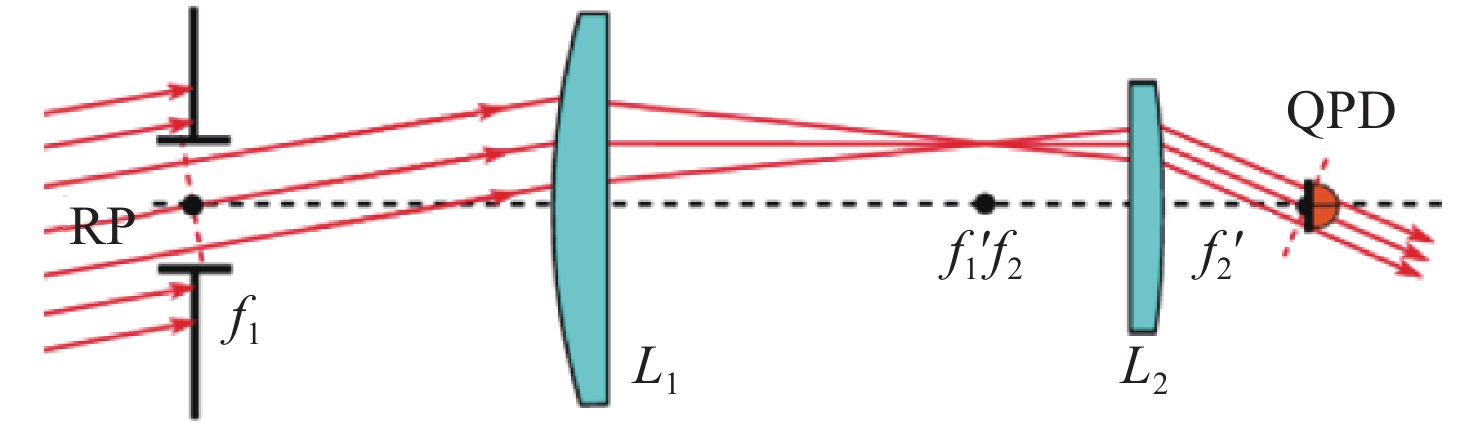

图 10 IFOCAD数值优化成像系统设计。标记了透镜组和QPD的前表面的中心的纵向位置，而旋转点O位于PAAM2旋转中心处。严格考虑透镜厚度对于光路传播影响
Figure 10. Design of the IFOCAD numerically optimized imaging system. The longitudinal positions of the centers of the lens group and the front surface of the QPD are marked, with the rotation point O located at the rotation center of PAAM2. The influence of lens thickness on optical path propagation is strictly considered

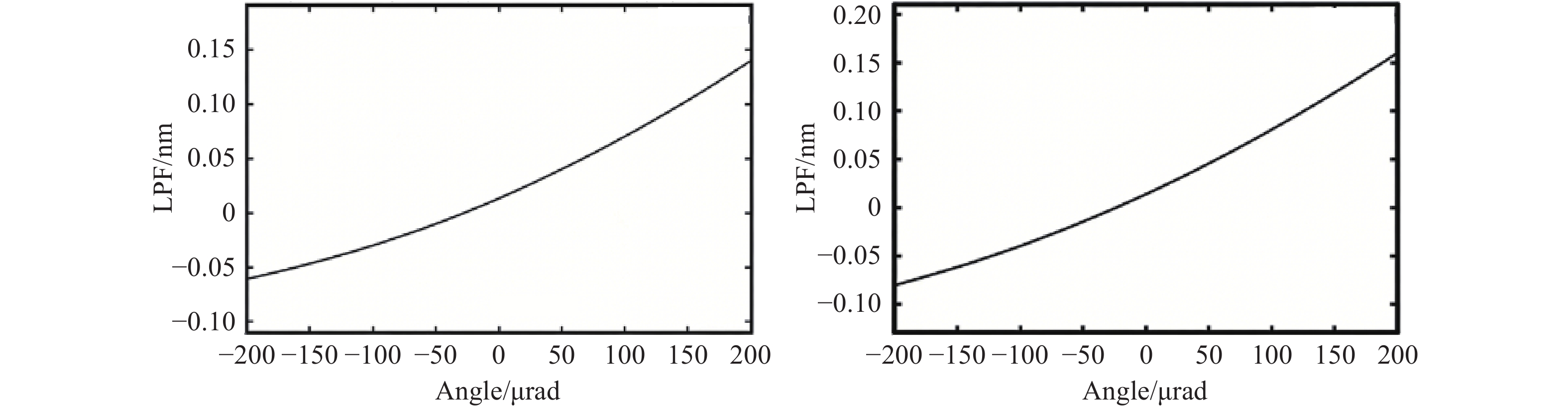

图 11 成像系统安装后仿真结果。横向偏移（左）和纵向偏移（右）所产生的局部TTL耦合变化
Figure 11. Simulation results without imaging system. The local TTL coupling variations generated by the lateral offset (top) and the longitudinal offset (bottom) are given.

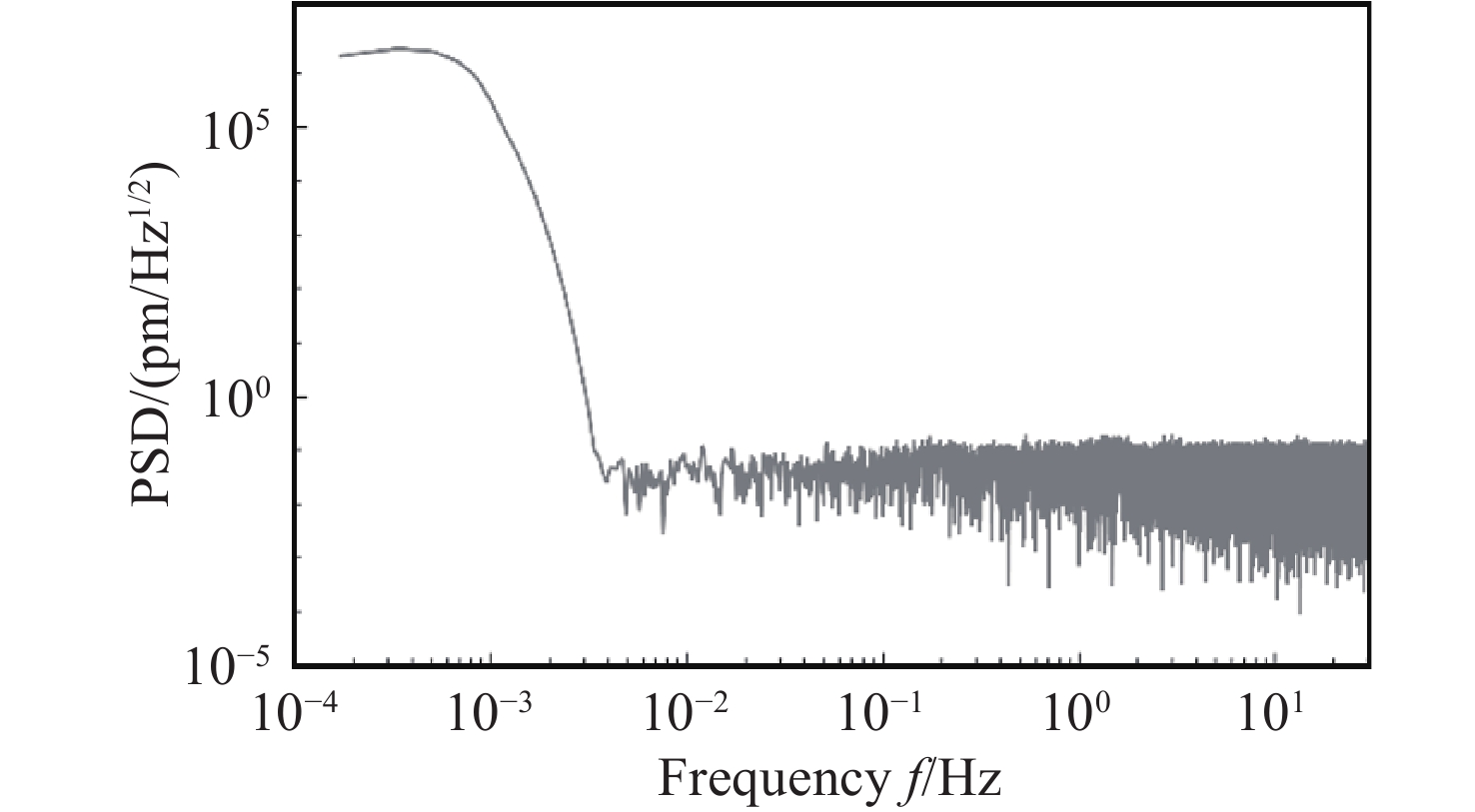

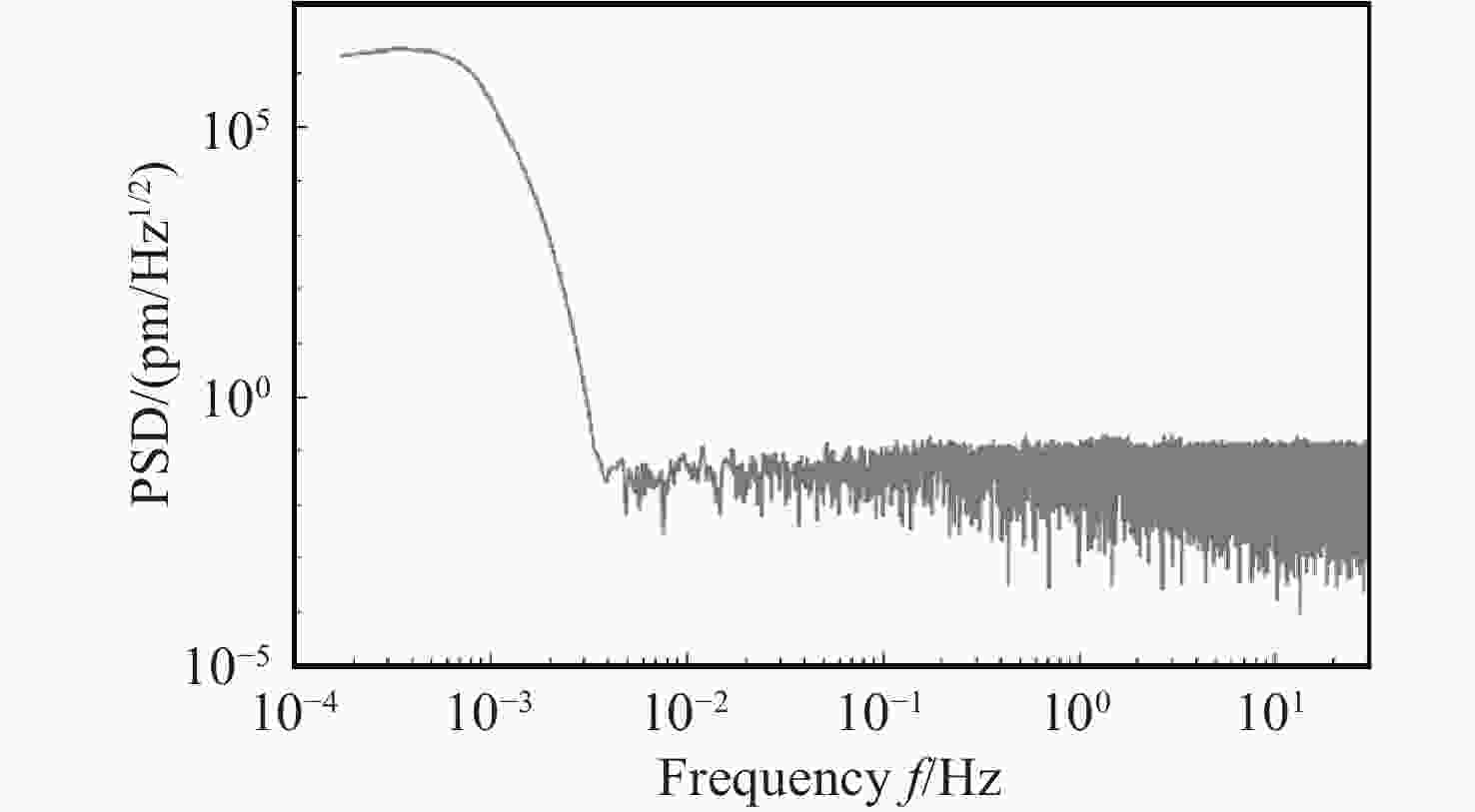

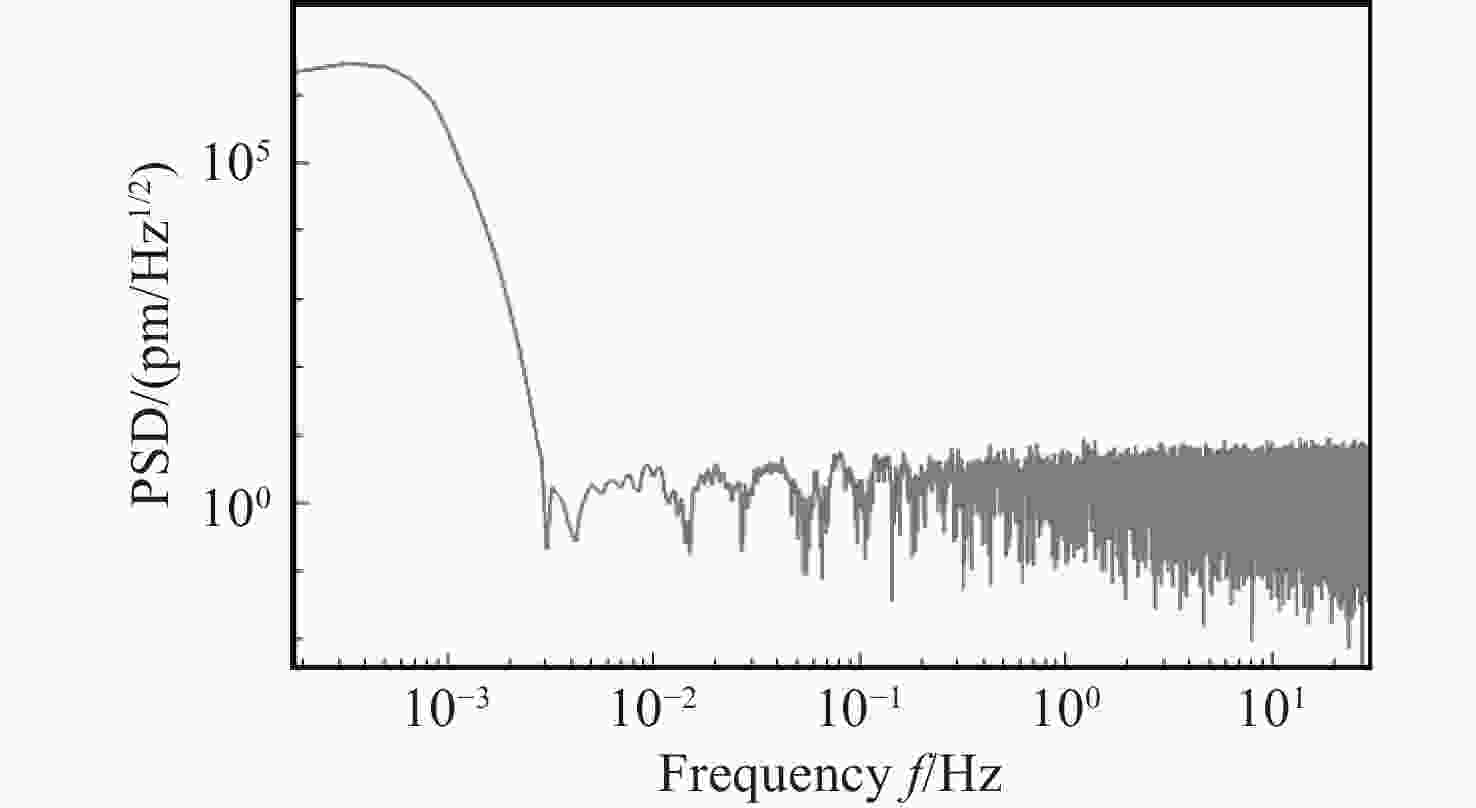

图 12 IFOCAD 中PAAM 角抖动引起的TTL耦合噪声
Figure 12. TTL coupling noise caused by PAAM rotation in IFOCAD
-
[1] EINSTEIN A. The field equations of gravitation[J]. Sitzungsberichte Der Koniglich Preussischen Akademie Der Wissenschaften, 1915, 1915: 844-847. (查阅网上资料, 未找到本条文献刊名, 请确认). [2] EINSTEIN A. On the general theory of relativity[J]. Sitzungsberichte Der Koniglich Preussischen Akademie Der Wissenschaften, 1915, 1915: 778-786. (查阅网上资料, 未找到本条文献刊名全拼, 请确认). [3] 罗子人, 白姗, 边星, 等. 空间激光干涉引力波探测[J]. 力学进展, 2013, 43(4): 415-447.LUO Z R, BAI SH, BIAN X, et al. Gravitational wave detection by space laser interferometry[J]. Advances in Mechanics, 2013, 43(4): 415-447. (in Chinese). [4] CHANG Y H, HAO G B, LIU C S. Design and characterisation of a compact 4-degree-of-freedom fast steering mirror system based on double Porro prisms for laser beam stabilization[J]. Sensors and Actuators A: Physical, 2021, 322: 112639. doi: 10.1016/j.sna.2021.112639 [5] KLUK D J, BOULET M T, TRUMPER D L. A high-bandwidth, high-precision, two-axis steering mirror with moving iron actuator[J]. Mechatronics, 2012, 22(3): 257-270. doi: 10.1016/j.mechatronics.2012.01.008 [6] WANG Y K, MENG L Q, XU X S, et al. Research on semi-physical simulation testing of inter-satellite laser interference in the China Taiji space gravitational wave detection program[J]. Applied Sciences, 2021, 11(17): 7872. doi: 10.3390/app11177872 [7] GAO L, ZHENG L A, LU B, et al. Generation of squeezed vacuum state in the millihertz frequency band[J]. Light: Science & Applications, 2024, 13(1): 294. [8] XIAO G Z, KUANG T F, HE Y T, et al. Giant enhancement of nonlinear harmonics of an optical-tweezer phonon laser[J]. eLight, 2024, 4(1): 17. doi: 10.1186/s43593-024-00064-8 [9] ZHAO W Q, TANG L, YANG SH, et al. Research on high-precision large-aperture laser differential confocal-interferometric optical element multi-parameter measurement method[J]. Light: Advanced Manufacturing, 2024, 5(4): 47. doi: 10.37188/lam.2024.047 [10] CUI C, GAO L Y, ZHAO P B, et al. Towards multi-dimensional atomic-level measurement: integrated heterodyne grating interferometer with zero dead-zone[J]. Light: Advanced Manufacturing, 2025, 6(2): 40. doi: 10.37188/lam.2025.040 [11] GEORGE D, SANJUAN J, FULDA P, et al. Calculating the precision of tilt-to-length coupling estimation and noise subtraction in LISA using Fisher information[J]. Physical Review D, 2023, 107(2): 022005. doi: 10.1103/PhysRevD.107.022005 [12] HARTIG M S. Tilt-To-Length coupling in LISA Pathfinder: model, data analysis and take-away messages for LISA[D]. Hannover: Leibniz University Hannover, 2022. [13] SHINSHI T, SHIMIZU D, KODEKI K, et al. A fast steering mirror using a compact magnetic suspension and voice coil motors for observation satellites[J]. Electronics, 2020, 9(12): 1997. doi: 10.3390/electronics9121997 [14] LIU H, NIU X, ZENG M, et al. Review of micro propulsion technology for space gravitational waves detection[J]. Acta Astronautica, 2022, 193: 496-510. doi: 10.1016/j.actaastro.2022.01.043 [15] HARTIG M S, SCHUSTER S, WANNER G. Geometric tilt-to-length coupling in precision interferometry: mechanisms and analytical descriptions[J]. Journal of Optics, 2022, 24(6): 065601. doi: 10.1088/2040-8986/ac675e [16] HARTIG M S, SCHUSTER S, HEINZEL G, et al. Non-geometric tilt-to-length coupling in precision interferometry: mechanisms and analytical descriptions[J]. Journal of Optics, 2023, 25(5): 055601. doi: 10.1088/2040-8986/acc3ac [17] WANNER G, HEINZEL G. Analytical description of interference between two misaligned and mismatched complete Gaussian beams[J]. Applied Optics, 2014, 53(14): 3043-3048. SHEARD B S, HEINZEL G, DANZMANN K, et al.. Intersatellite laser ranging instrument for the GRACE follow-on mission[J]. Journal of Geodesy, 2012, 86(12): 1083-1095. (此处有2条文献, 请确认).WANNER G, HEINZEL G. Analytical description of interference between two misaligned and mismatched complete Gaussian beams[J]. Applied Optics, 2014, 53(14): 3043-3048. SHEARD B S, HEINZEL G, DANZMANN K, et al. Intersatellite laser ranging instrument for the GRACE follow-on mission[J]. Journal of Geodesy, 2012, 86(12): 1083-1095. (此处有2条文献, 请确认). [18] IFOCAD. IfoCAD[EB/OL]. [2023-06-12]. https://www.aei.mpg.de/ifocad. [19] HU W R, WU Y L. The Taiji Program in Space for gravitational wave physics and the nature of gravity[J]. National Science Review, 2017, 4(5): 685-686. doi: 10.1093/nsr/nwx116 [20] ACCADIA T, ACERNESE F, ANTONUCCI F, et al. Status of the Virgo project[J]. Classical and Quantum Gravity, 2011, 28(11): 114002. doi: 10.1088/0264-9381/28/11/114002 -
