Design and experimental verification of automatic relocking technology for phasemeter in space laser interferometry
-
摘要:
面向空间激光干涉的相位计，当锁相环路发生失锁时，现阶段普遍采用FFT（Fast Fourier Transform，快速傅里叶变换）测频法重新完成信号捕获，该方法存在测频精度偏低（100 Hz量级）、重锁耗时较长（约7 ms）等技术问题。本文提出一种与FFT协同部署的自动重锁技术，该技术采用瞬时频率值与频率变化率相结合的失锁检测策略，同时选取环路滤波器原始数据与CIC（Cascaded Integrator-Comb，级联积分器梳状滤波器）降采样数据两类数据源完成失锁判断，失锁发生后通过复位操作清除积分误差，并接收频率预测算法输出的预测值。该频率预测算法针对周期信号采用波形生成算法，针对非周期信号采用二阶多项式预测算法，同时结合插值技术生成对应的频率预测值。该自动重锁技术与FFT采用并行部署的方式且形成明确的功能分工，其中该技术依托信号自身的规律性开展频率预测，负责处理所有规律信号的失锁场景（无论失锁时长）以及短时（<1 s）非规律信号的快速重锁，FFT则负责处理非规律信号以及长时复杂失锁场景下的信号重新捕获，二者形成优势互补的工作模式。实验验证结果表明，在规律信号失锁的场景下，本研究提出的算法平均重锁时间为32 μs，最大重锁时间为60 μs，相较于FFT方法提升两个数量级，且重锁速度与失锁时长无关联，即在失锁时长达到10 s时仍能保持数十微秒量级的重锁速度，同时在−10~10 dB的信噪比范围内，频率估计误差稳定在10 Hz以下，即使信噪比低至−10 dB时仍可实现稳定锁定。这种与FFT协同部署的架构在保留FFT宽频捕获能力的基础上，显著提升了规律信号场景下的快速重锁能力，为空间引力波探测任务提供了高精度、快响应、强稳定性的相位测量技术支撑。

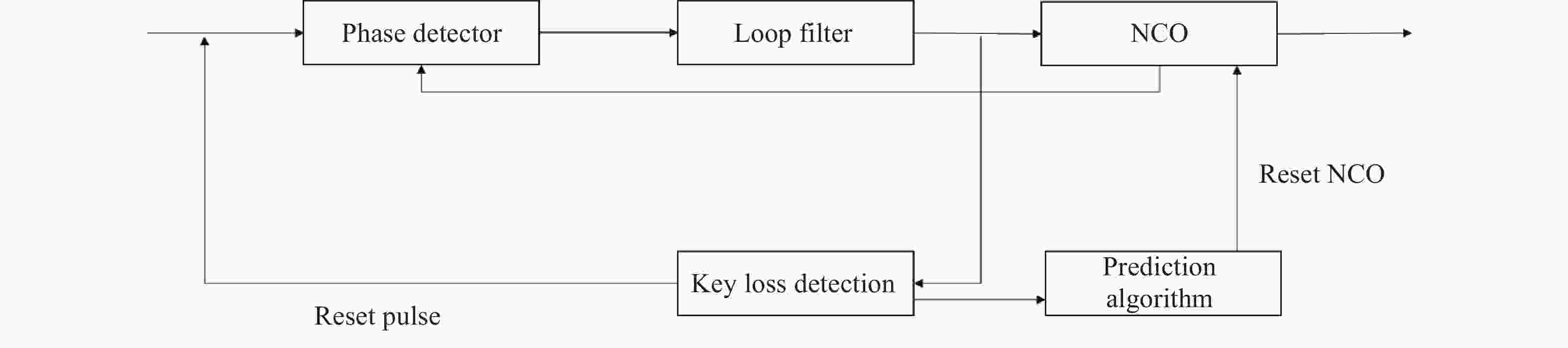

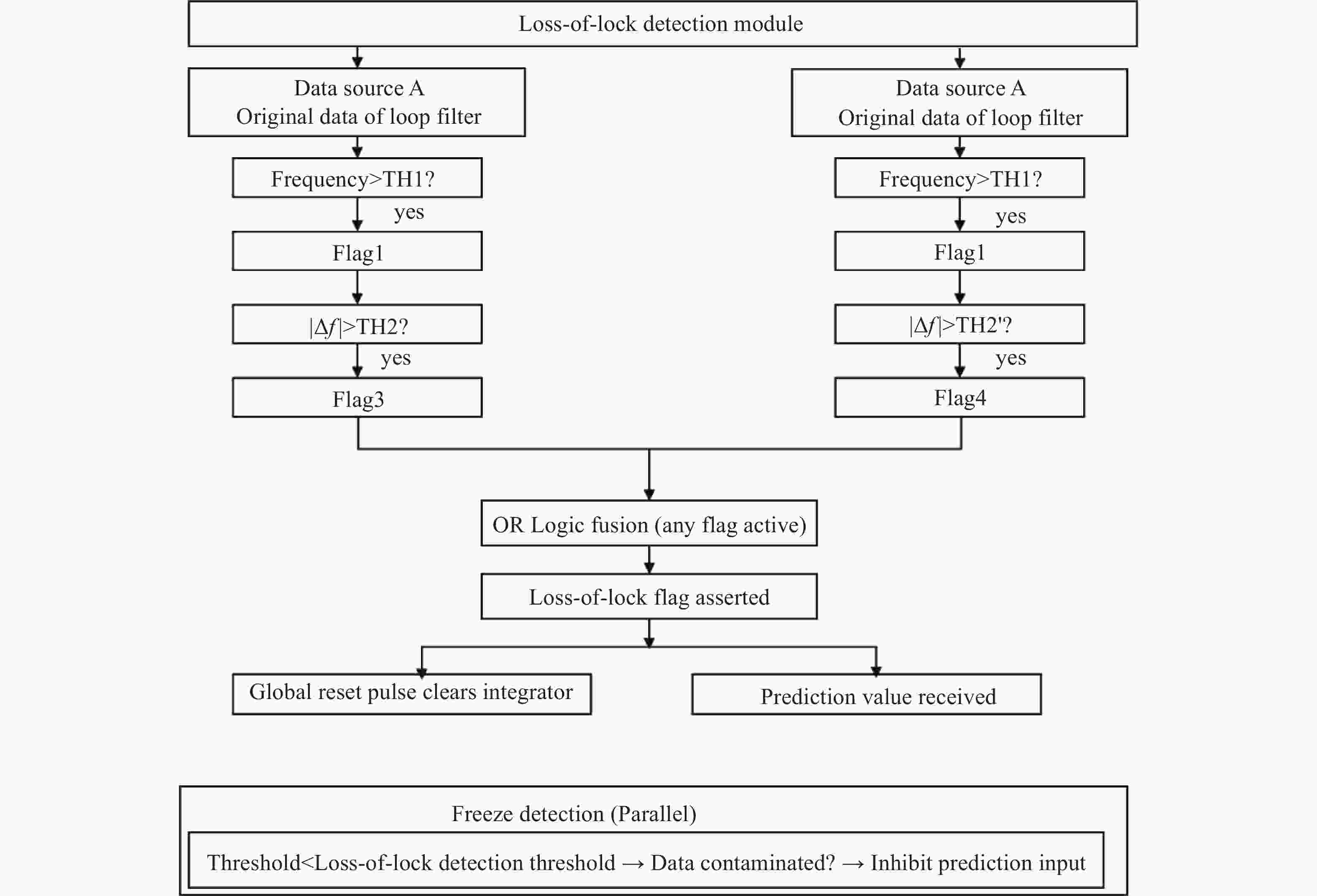

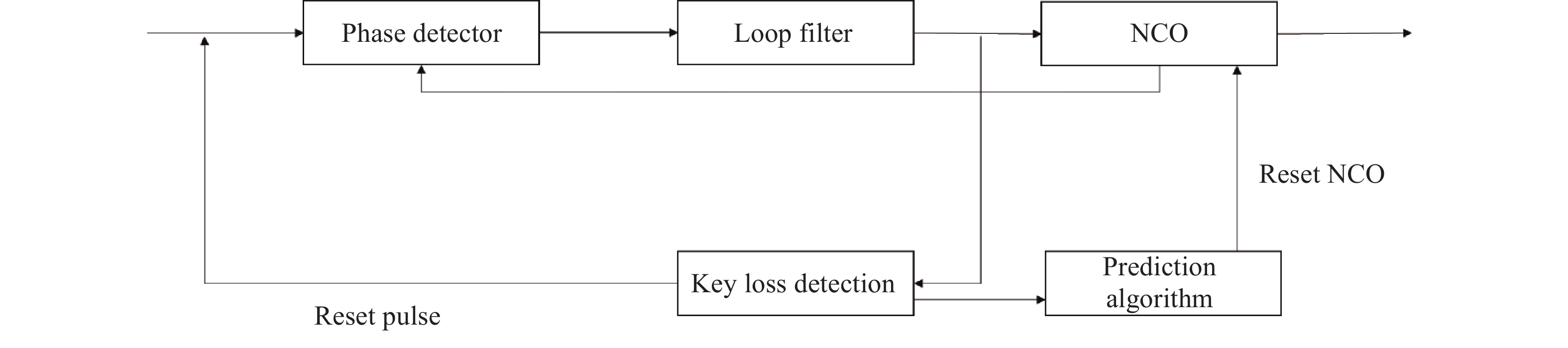

Abstract:This paper studies the phase meter applied to space laser interferometry. The phase-locked loop will suffer from lock loss in actual operation. Researchers commonly adopt the FFT frequency measurement method to re-acquire the signal at the present stage. This method has obvious technical defects. Its frequency measurement accuracy is low at the order of 100 Hz, and the relocking time is long about 7 ms. This paper proposes an automatic relocking technique deployed in collaboration with FFT. This technique adopts a lock-loss detection strategy that combines instantaneous frequency values and frequency change rates. It selects two data sources to judge lock loss, including the original data of the loop filter and the down-sampled data of CIC. It clears the integration error through the reset operation after lock loss occurs, and it receives the predicted value output by the frequency prediction algorithm. The frequency prediction algorithm uses the waveform generation algorithm for periodic signals. It uses the second-order polynomial prediction algorithm for aperiodic signals. It also combines interpolation technology to generate the corresponding frequency predicted value. The automatic relocking technique and FFT are deployed in parallel, and they form a clear functional division. This technique performs frequency prediction based on the inherent regularity of the signal. It deals with lock-loss scenarios of all regular signals regardless of the lock-loss duration. It also realizes fast relocking of short-time irregular signals within 1 s. FFT is responsible for signal re-acquisition in irregular signal scenarios and long-time complex lock-loss scenarios. The two methods form a working mode with complementary advantages. Experimental verification results show that the algorithm proposed in this study has an average relocking time of 32 μs and a maximum relocking time of 60 μs in the scenario of regular signal lock loss. The performance is improved by two orders of magnitude compared with the FFT method. The relocking speed has no correlation with the lock-loss duration. It can still maintain the relocking speed at the order of tens of microseconds when the lock-loss duration reaches 10 s. The frequency estimation error is stably controlled below 10 Hz in the signal-to-noise ratio range from −10 dB to 10 dB. The system can still achieve stable locking even when the signal-to-noise ratio is as low as −10 dB. This architecture deployed in collaboration with FFT retains the wide-band acquisition capability of FFT. It significantly improves the fast relocking capability in regular signal scenarios. It provides high-precision, fast-response and high-stability phase measurement technical support for space gravitational wave detection missions.
-
图 1 DPLL相位计原理框图
Figure 1. Schematic diagram of a DPLL phase meter (PD: Phase Detector, NCO: Numerically Controlled Oscillator, PI: Proportional-Integral Controller, ADC: Analog-to-Digital Converter, PIR: Phase Increment Register, PA: Phase Accumulator, LUT: Look-Up Table, Q: Quadrature signal, sin: Sine wave)

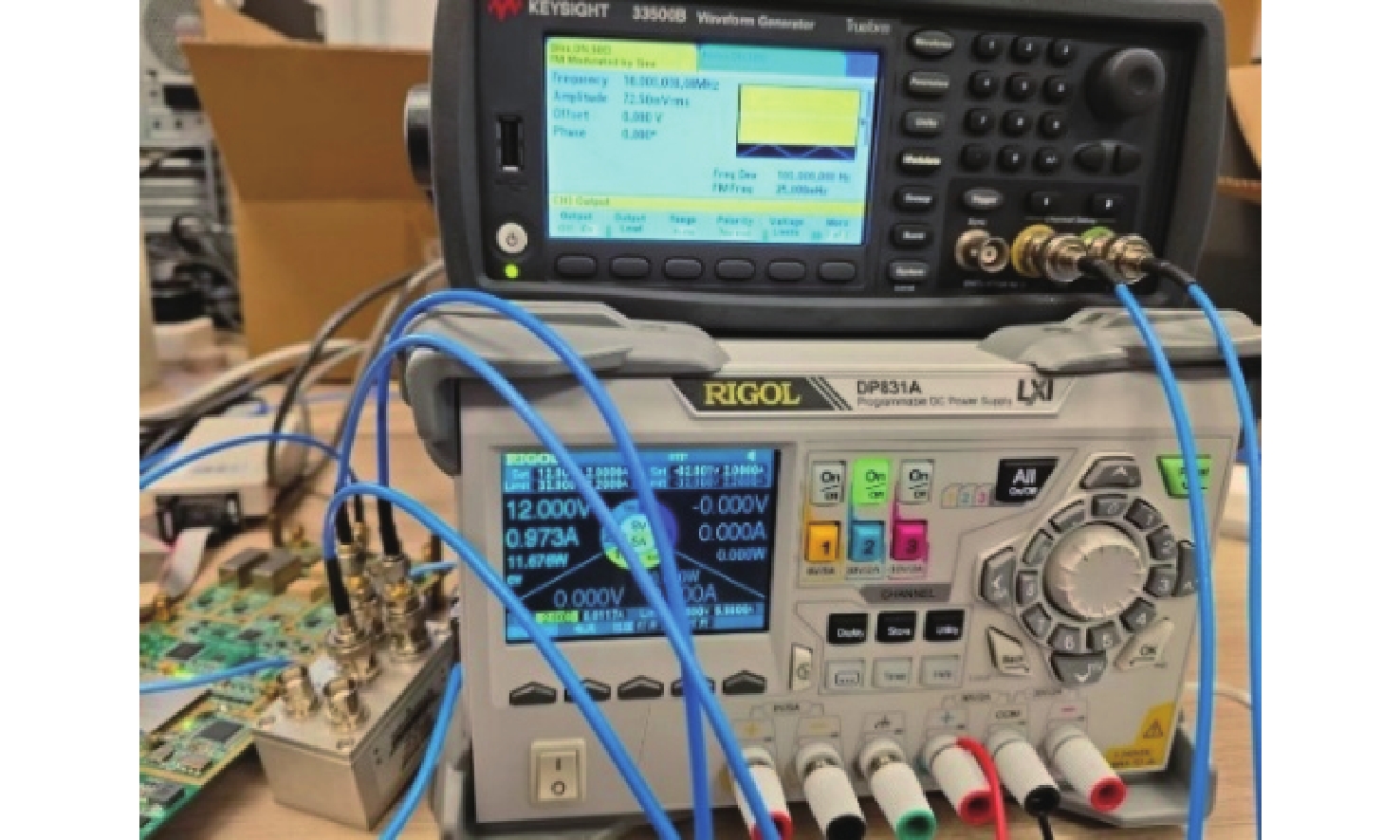

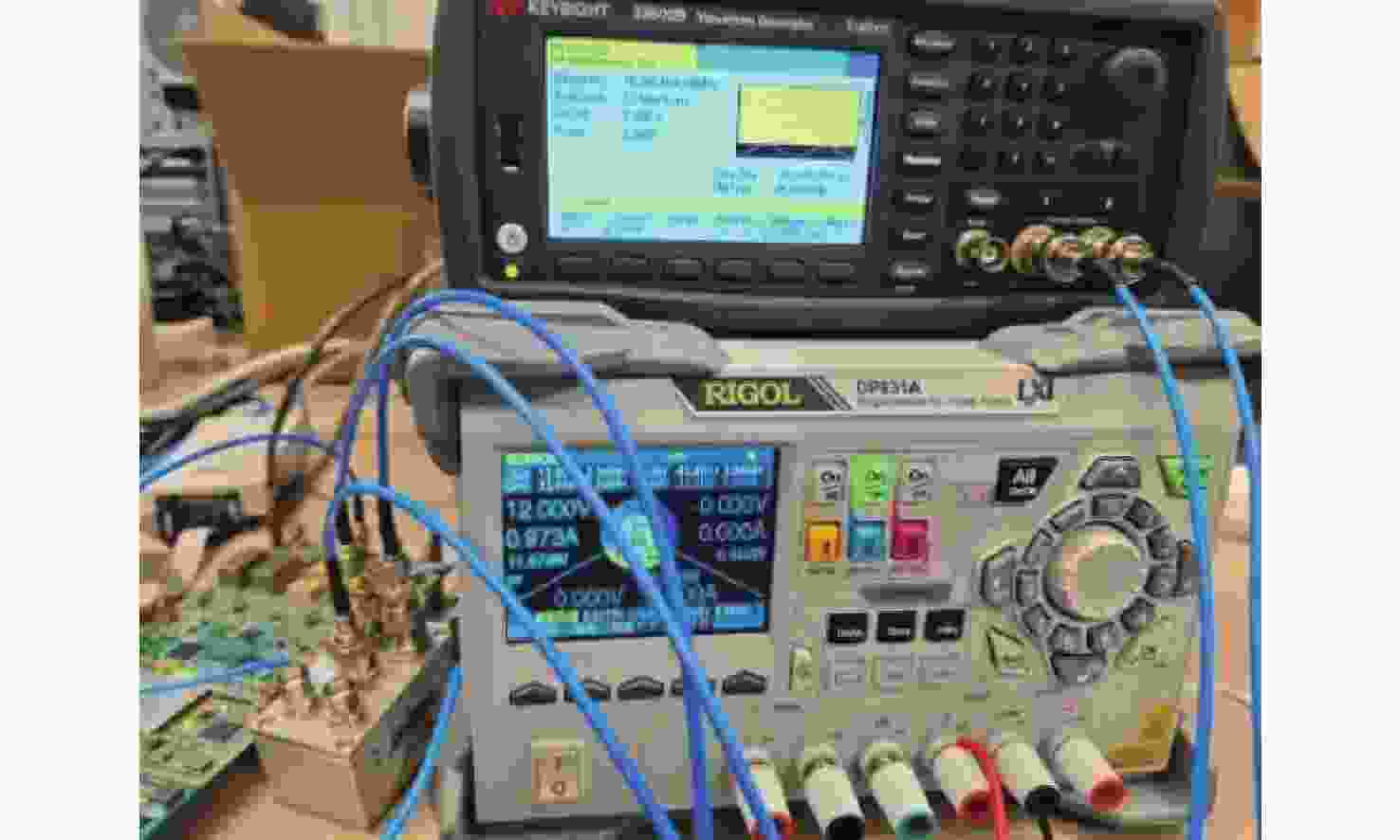

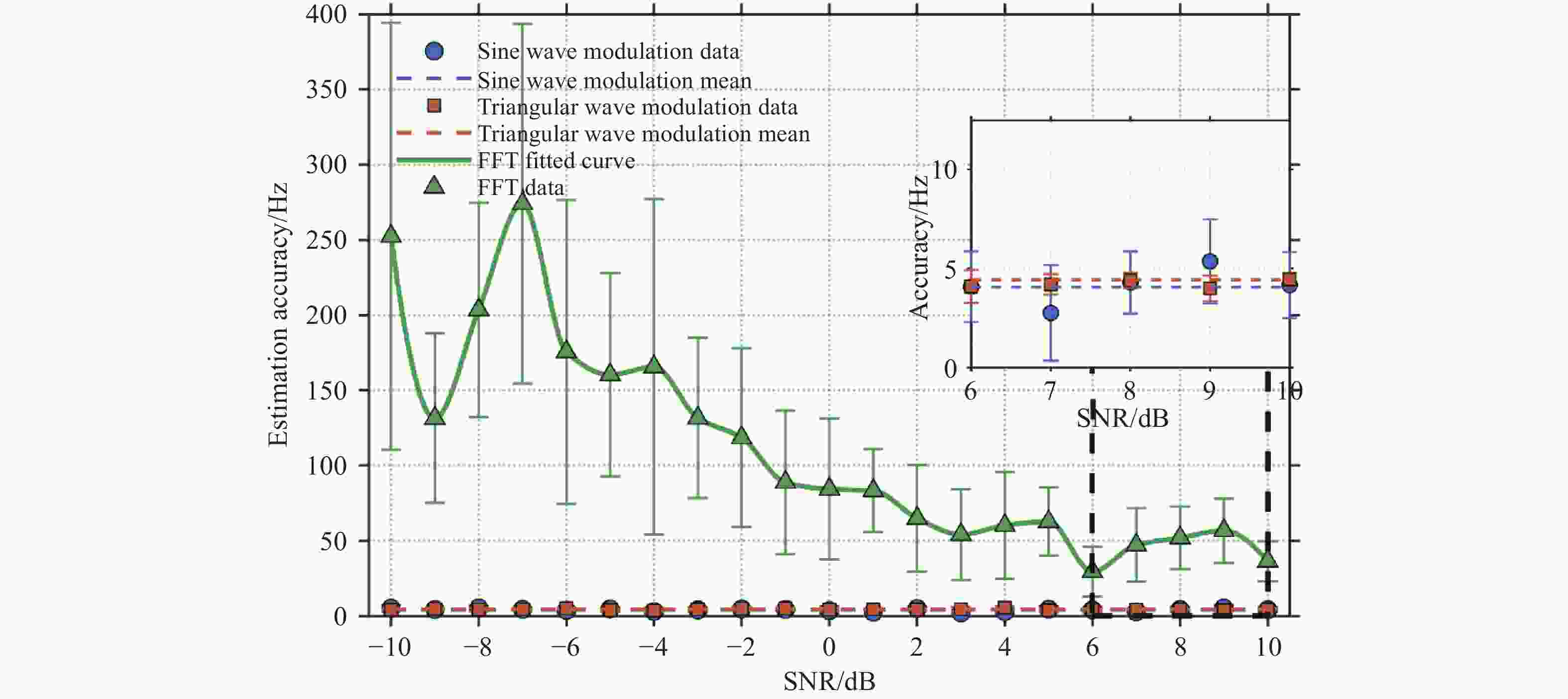

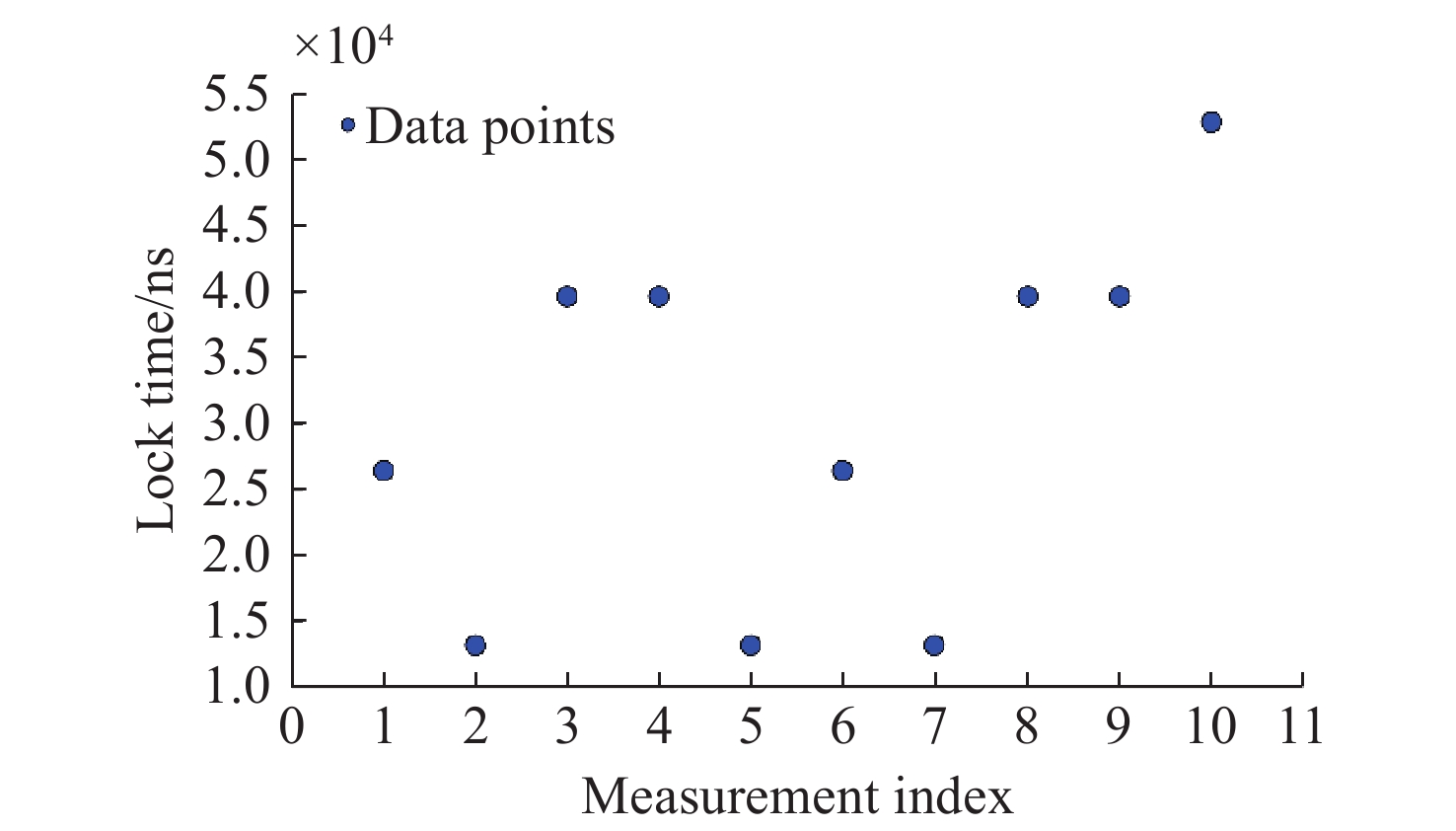

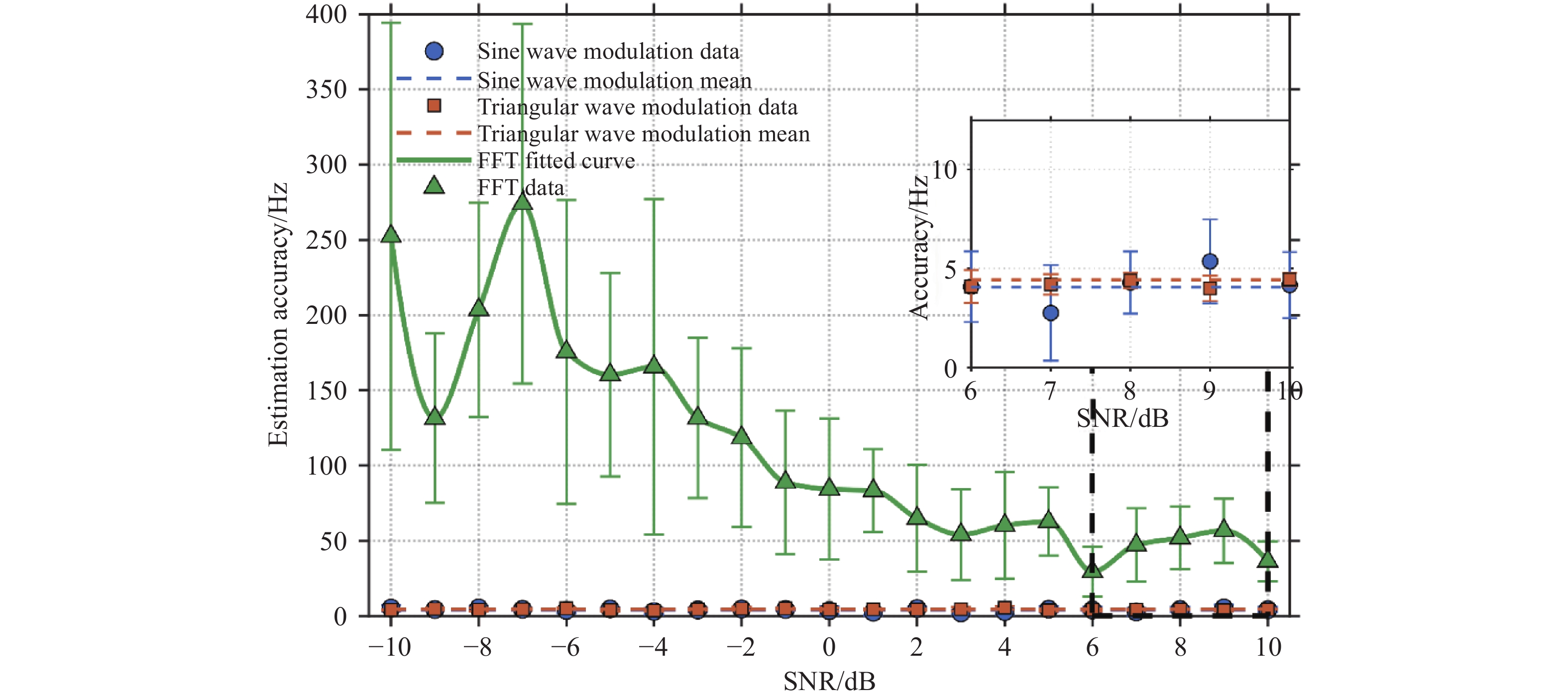

图 5 频率估计误差随信噪比变化散点图
Figure 5. Scatter plot of frequency estimation error varying with signal-to-noise ratio
-
[1] LUO Z R, GUO Z K, JIN G, et al. A brief analysis to Taiji: science and technology[J]. Results in Physics, 2020, 16: 102918. doi: 10.1016/j.rinp.2019.102918 [2] HU Y M, MEI J W, LUO J. Science prospects for space-borne gravitational-wave missions[J]. National Science Review, 2017, 4(5): 683-684. doi: 10.1093/nsr/nwx115 [3] CAPRINI C, HEFFERNAN A, BRITO R, et al. Science of the LISA mission: a summary for the European Strategy for Particle Physics[J]. arXiv: 2507.05130, 2025. (查阅网上资料, 未能确认文献类型, 请确认). [4] BARKE S, BRAUSE N, BYKOV I, et al. LISA metrology system-final report[R]. European Space Agency, 2014. (查阅网上资料, 未找到出版信息, 请确认出版社信息并且补充出版地信息). [5] 刘河山. 面向空间引力波探测的激光差分干涉相位计研究[D]. 北京: 中国科学院大学, 2015.LIU H SH. Research on laser differential interferometric phasemeter for space gravitational wave detection[D]. Beijing: University of Chinese Academy of Sciences, 2015. (in Chinese)(查阅网上资料, 未找到对应的英文翻译, 请确认). [6] GONG Y G, LUO J, WANG B. Concepts and status of Chinese space gravitational wave detection projects[J]. Nature Astronomy, 2021, 5(9): 881-889. doi: 10.1038/s41550-021-01480-3 [7] 王娟, 齐克奇, 王少鑫, 等. 面向空间引力波探测的激光干涉技术研究进展及展望[J]. 中国科学: 物理学 力学 天文学, 2024, 54(7): 270405.WANG J, QI K Q, WANG SH X, et al. Advance and prospect in the study of laser interferometry technology for space gravitational wave detection[J]. Scientia Sinica Physica, Mechanica & Astronomica, 2024, 54(7): 270405. (in Chinese). [8] ZHANG J F, YANG ZH, MA X SH, et al. Inter-spacecraft offset frequency setting strategy in the Taiji program[J]. Applied Optics, 2022, 61(3): 837-843. doi: 10.1364/AO.442583 [9] ZHENG L, YANG SH T, ZHANG X F. Doppler effect in TianQin time-delay interferometry[J]. Physical Review D, 2023, 108(2): 022001. doi: 10.1103/PhysRevD.108.022001 [10] 刘河山, 王娟, 高瑞弘, 等. 太极二号干涉仪系统噪声与指标分解[J]. 空间科学学报, 2025, 45(4): 1047-1057. doi: 10.11728/cjss2025.04.2025-yg02LIU H SH, WANG J, GAO R H, et al. Noise and index decomposition of Taiji-2 interferometer system[J]. Chinese Journal of Space Science, 2025, 45(4): 1047-1057. (in Chinese). doi: 10.11728/cjss2025.04.2025-yg02 [11] LUO J, BAI SH J, BAI Y ZH, et al. Progress of the TianQin project[J]. Classical and Quantum Gravity, 2025, 42(17): 173001. doi: 10.1088/1361-6382/adda8a [12] GERBERDING O, SHEARD B, BYKOV I, et al. Phasemeter core for intersatellite laser heterodyne interferometry: modelling, simulations and experiments[J]. Classical and Quantum Gravity, 2013, 30(23): 235029. doi: 10.1088/0264-9381/30/23/235029 [13] GERBERDING O, DIEKMANN C, KULLMANN J, et al. Readout for intersatellite laser interferometry: measuring low frequency phase fluctuations of high-frequency signals with microradian precision[J]. Review of Scientific Instruments, 2015, 86(7): 074501. doi: 10.1063/1.4927071 [14] 张强涛. 面向空间引力波探测的相位计优化研究[D]. 北京: 中国科学院国家空间科学中心, 2023.ZHANG Q T. Optimization research of phasemeter for space gravitational wave detection[D]. Beijing: National Space Science Center, the Chinese Academy of Sciences, 2023. (in Chinese)(查阅网上资料, 未找到对应的英文翻译, 请确认). [15] 张强涛, 刘河山, 罗子人. 面向空间激光干涉的多通道相位测量系统[J]. 中国光学(中英文), 2023, 16(5): 1089-1099.ZHANG Q T, LIU H SH, LUO Z R. Multi-channel phase measurement system for the space laser interferometry[J]. Chinese Optics, 2023, 16(5): 1089-1099. (in Chinese). [16] ZHANG Q T, LIU H SH, DONG P, et al. Multi-frequency signal acquisition and phase measurement in space gravitational wave detection[J]. Review of Scientific Instruments, 2024, 95(5): 054501. doi: 10.1063/5.0198104 [17] SAMBRIDGE C. Low-power phase tracking in inter-spacecraft laser interferometry[D]. Canberra: The Australian National University, 2025. [18] PIZZELLA A. LISA optical bench development: experimental investigation of differential-wavefront sensing for a spaceborne gravitational wave detector[D]. Hannover: Institutionelles Repositorium der Leibniz Unversität Hannover, 2025. [19] YANG R, LIU H SH, LUO Z R. Optimization design of decimation filter for the phasemeter in the space gravitational wave detection[J]. IEEE Transactions on Instrumentation and Measurement, 2024, 73: 7006508. doi: 10.1109/tim.2024.3453345 [20] YANG R, LUO Z R, LIU H SH. Limitations and improvements in low-frequency performance of phasemeter for space gravitational wave detection[J]. Measurement, 2026, 260: 119825. doi: 10.1016/j.measurement.2025.119825 [21] LIANG Y R. Note: a new method for directly reducing the sampling jitter noise of the digital phasemeter[J]. Review of Scientific Instruments, 2018, 89(3): 036106. doi: 10.1063/1.5011654 [22] MING M, ZHANG J Y, DUAN H Z, et al. Study on TPD phasemeter to suppress low-frequency amplitude fluctuation and improve fast-acquiring range for GW detection[J]. Sensors, 2024, 24(11): 3434. doi: 10.3390/s24113434 [23] FAN ZH, LI ZH, HUANG X Q, et al. Phasemeter based on second harmonic signal filter for space-based gravitational wave detection[J]. Chinese Physics B, 2026, 35(1): 010601. doi: 10.1088/1674-1056/ae1efe [24] LI H J, QI H X, PAN M ZH, et al. Automatic amplitude control for phasemeter of spaceborne laser interferometry[J]. AIP Advances, 2023, 13(3): 035206. doi: 10.1063/5.0130186 [25] 刘河山, 高瑞弘, 罗子人, 等. 空间引力波探测中的绝对距离测量及通信技术[J]. 中国光学, 2019, 12(3): 486-492. doi: 10.3788/co.20191203.0486LIU H SH, GAO R H, LUO Z R, et al. Laser ranging and data communication for space gravitational wave detection[J]. Chinese Optics, 2019, 12(3): 486-492. (in Chinese). doi: 10.3788/co.20191203.0486 [26] 罗子人, 张敏, 靳刚. 激光干涉引力波空间阵列核心问题的综合讨论[J]. 科学通报, 2019, 64(24): 2468-2474.LUO Z R, ZHANG M, JIN G. Overall discussion on the key problems of a space-borne laser interferometer gravitational wave antenna[J]. Chinese Science Bulletin, 2019, 64(24): 2468-2474. (in Chinese). [27] 范习谦, 刘河山, 罗子人, 等. 基于MHz深度频率调制激光干涉的相位测量技术[J]. 中国光学(中英文), 2025, 18(3): 622-630.FAN X Q, LIU H SH, LUO Z R, et al. Phase measurement technique based on MHz-lever depth frequency modulated laser interferometry[J]. Chinese Optics, 2025, 18(3): 622-630. (in Chinese). [28] 张子恒, 范习谦, 靳刚, 等. 太极计划激光链路辅助功能方案设计及验证[J]. 中国激光, 2025, 52(11): 1106001. doi: 10.3788/CJL241483ZHANG Z H, FAN X Q, JIN G, et al. Design and verification of a laser link auxiliary function scheme for the Taiji Program[J]. Chinese Journal of Lasers, 2025, 52(11): 1106001. (in Chinese). doi: 10.3788/CJL241483 [29] HUANG X Q, WANG G F, YANG M L, et al. Study on picometer-level laser interferometer readout system in TianQin project[J]. Optics & Laser Technology, 2023, 161: 109185. doi: 10.1016/j.optlastec.2023.109185 [30] YAMAMOTO K, TOMIO H, ZEHNDER C, et al. Alternative approach to time-delay interferometry with an optical frequency comb[J]. Physical Review Applied, 2026, doi: 10.1103/9cdp-rh4j. -
