Research on rotational coupling of test mass interferometer based on laser heterodyne interferometry
-
摘要:
空间引力波探测采用激光外差干涉进行百万公里臂长间的测试质量微小位移波动检测，要求干涉系统在毫赫兹频段达到皮米级测量精度。干涉仪中测试质量的转动会通过转动-转动与转动-平动两类误差耦合共同限制系统灵敏度，本文旨在采取先抑制转动-转动耦合，再抑制转动-平动耦合的策略系统研究这两类误差耦合的耦合原理，建立耦合误差模型，并进行耦合误差消减。本文利用了激光外差干涉与波前传感技术，搭建了测试质量干涉仪系统，实现了位移与转角的高灵敏度测量和噪声分析；通过实验标定了偏摆镜与探测器之间的坐标变换关系，并将偏摆镜旋转至最小耦合角度以使偏摆镜与探测器之间的坐标系尽量重合，实现了转动-转动耦合的抑制；通过几何关系建立了光学模型及实验对参数进行标定，建立了实时补偿系统，实现了对转动-平动耦合实现动态抑制。经过抑制，转动-转动的耦合系数达到了约12.5 mrad/rad；转动-平动的耦合误差在时域消减了约90%，在频域上了降低约一个量级，为空间引力波探测干涉仪的多自由度解耦及噪声抑制奠定了理论和实验基础。
Abstract:Space-based gravitational wave detection uses laser heterodyne interferometry to measure picometer-level displacement fluctuations of test masses separated by millions of kilometers. The interferometric system must achieve picometer-level accuracy in the millihertz frequency band. In the interferometer, test-mass rotation limits system sensitivity through two types of coupling errors: rotation–rotation coupling and rotation–translation coupling. This paper systematically investigates the mechanisms of these two errors and adopts a sequential suppression strategy: rotation–rotation coupling is first suppressed, followed by rotation–translation coupling.A test-mass interferometer is developed based on laser heterodyne interferometry and wavefront sensing, enabling high-sensitivity displacement and angular measurement as well as noise analysis. The coordinate transformation between the steering mirror and the detector is experimentally calibrated. The steering mirror is then rotated to the minimum-coupling angle, aligning the two coordinate systems and suppressing rotation–rotation coupling. An optical model is further established based on geometric relationships, and its parameters are experimentally calibrated. A real-time compensation system is developed to dynamically suppress rotation–translation coupling.After suppression, the rotation–rotation coupling coefficient is approximately 12.5 mrad/rad. The rotation–translation coupling error is reduced by about 90% in the time domain and by approximately one order of magnitude in the frequency domain. These results provide a theoretical and experimental foundation for multi-degree-of-freedom decoupling and noise suppression in interferometers for space-based gravitational wave detection.
-

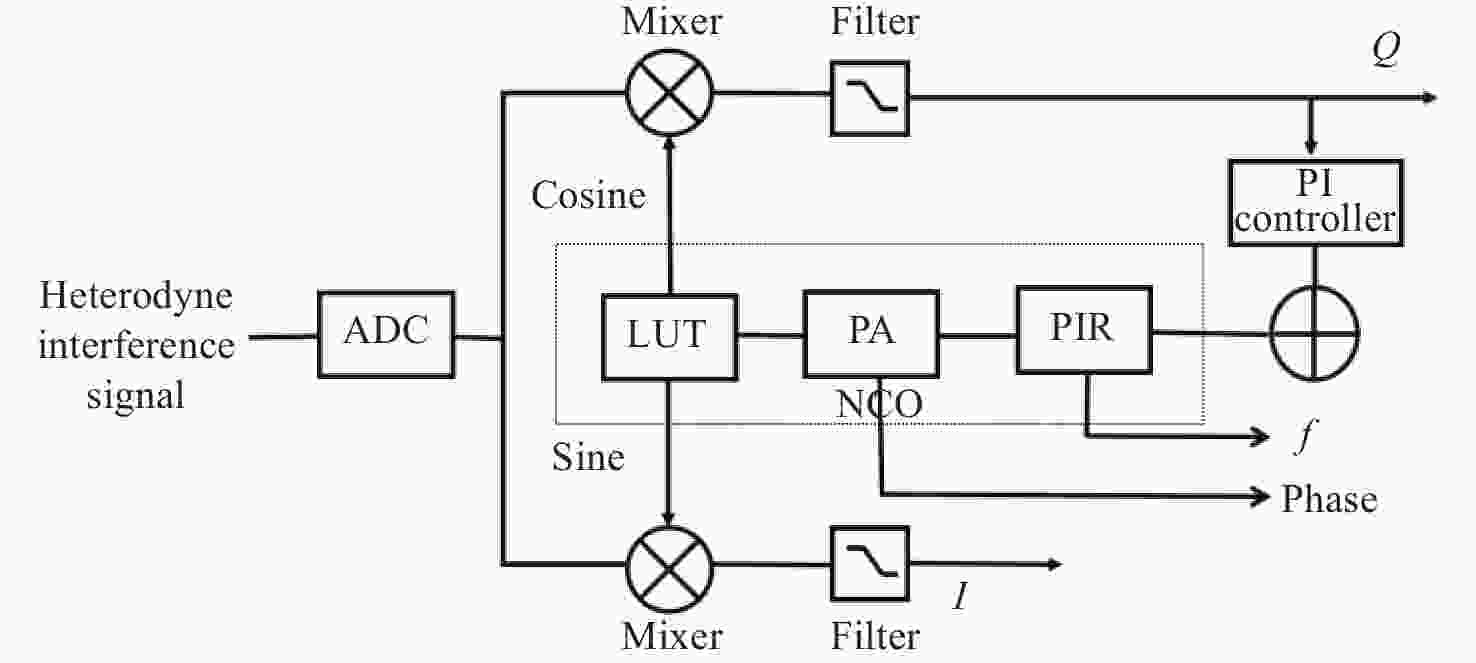

图 2 高精度相位解调原理图（ADC：模数转换器；LUT：相位查找表；PA：相位累加器；PIR：相位积分寄存器；PI Controller：比例积分控制器；NCO：数控振荡器;f：频率）
Figure 2. Schematic diagram of high-precision phase demodulation (ADC: Analog-to-Digital Converter; LUT: Phase Look-Up Table; PA: Phase Accumulator; PIR: Phase Integrator Register; PI Controller: Proportional-Integral Controller; NCO: Numerically Controlled Oscillator; f: Frequency)

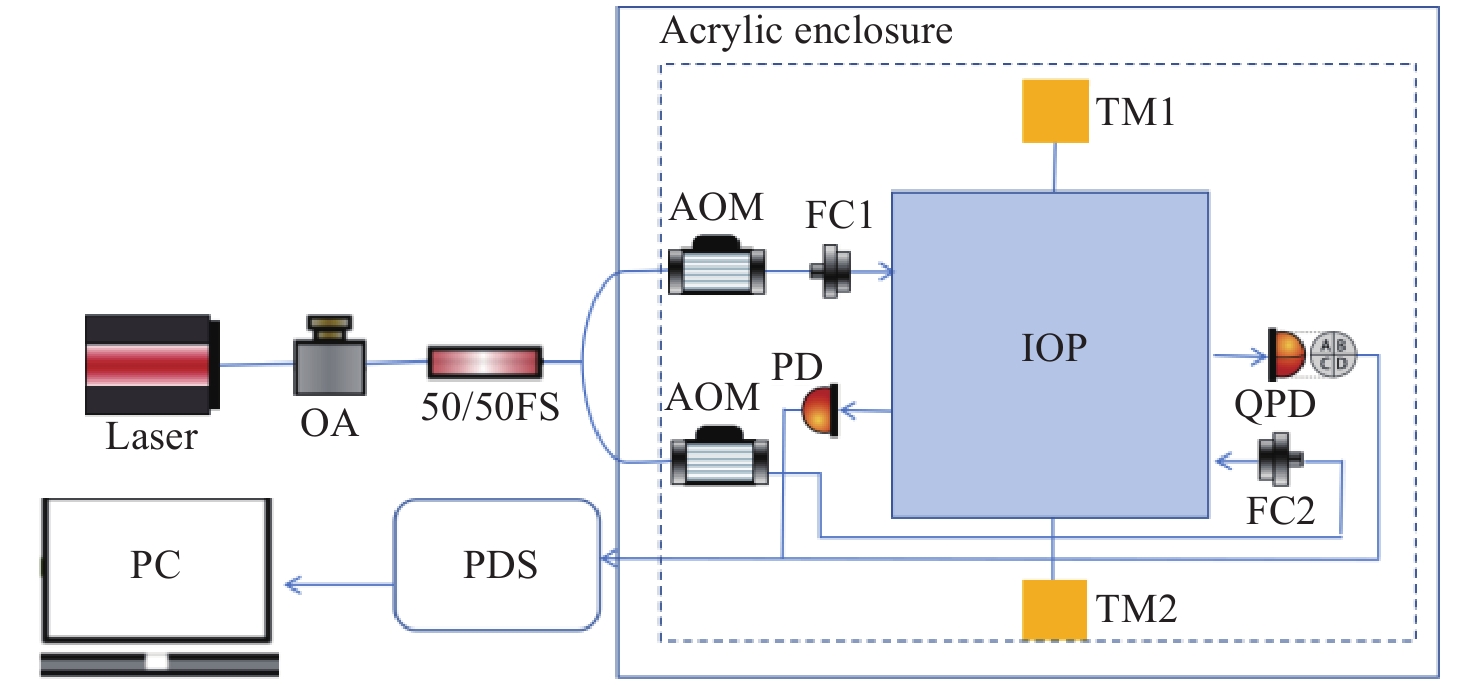

图 3 激光外差干涉测量系统布局（OA：光衰减器；50/50FS: 50/50 光纤分束器；AOM：声光移频器；FC：光纤准直器；IOP：干涉光路；TM:测试质量；QPD：四象限光电探测器；PD：光电探测器；PDS：相位解调系统；PC: 个人计算机）
Figure 3. Layout of the laser heterodyne interferometry measurement system (OA: Optical Attenuator; 50/50FS: 50/50 Fiber Splitter; AOM: Acousto-Optic Frequency Shifter; FC: Fiber Collimator; IOP: Interferometric Optical Path; TM: Test Mass; QPD: Quadrant Photodetector; PD: Photodetector; PDS: Phase Demodulation System; PC: Personal Computer)

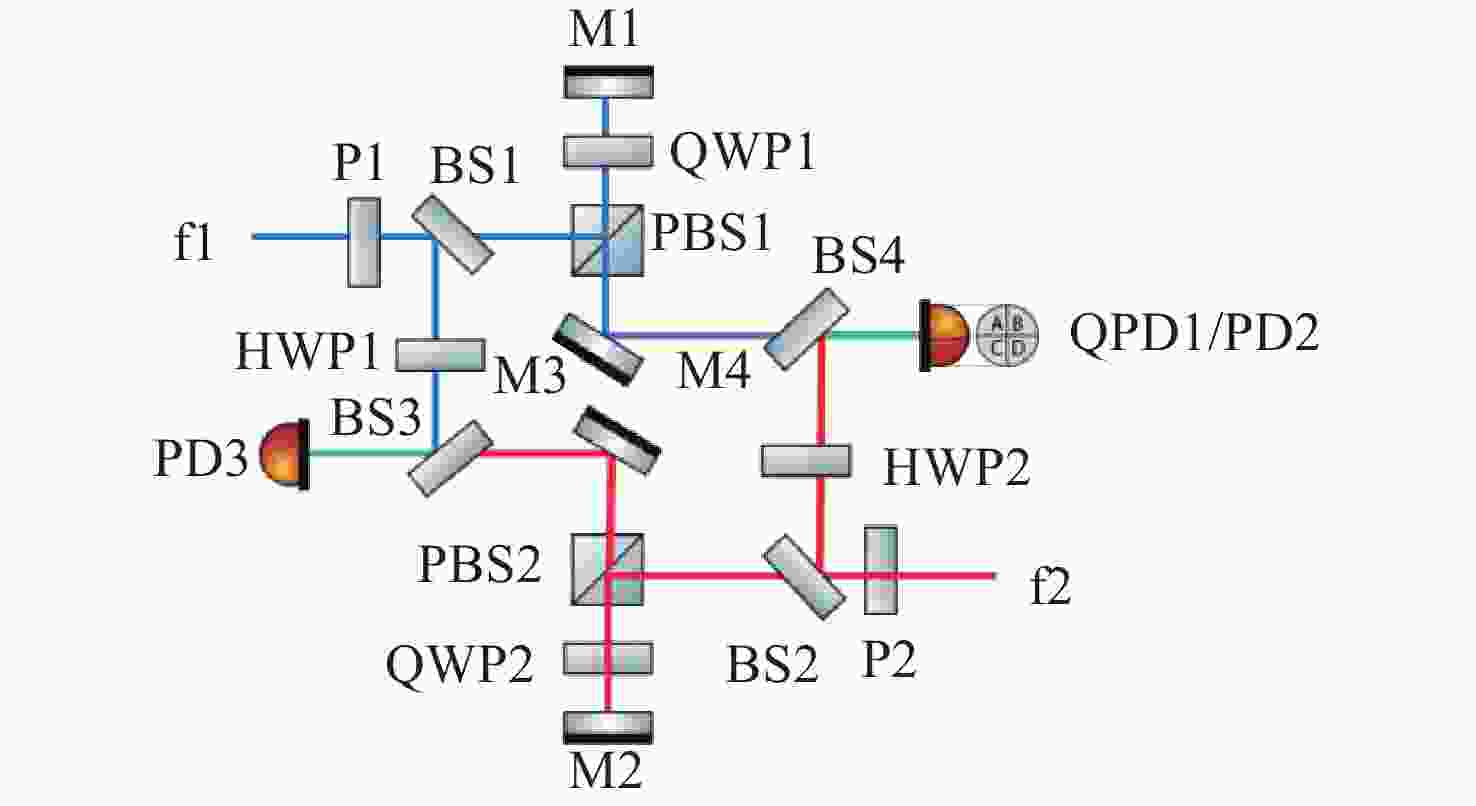

图 4 干涉光路设计图(P：偏振器;BS：分束器；HWP：二分之一波片；PBS：偏振分束器；QWP：四分之一波片；M：反射镜；QPD：四象限光电探测器；PD：光电探测器)
Figure 4. Interferometric optical layout (P: Polarizer; BS: Beam Splitter; HWP: Half Wave Plate; PBS: Polarizing Beam Splitter; QWP: Quarter Wave Plate; M: Mirror; QPD: Quadrant Photodetector; PD: Photodetector)

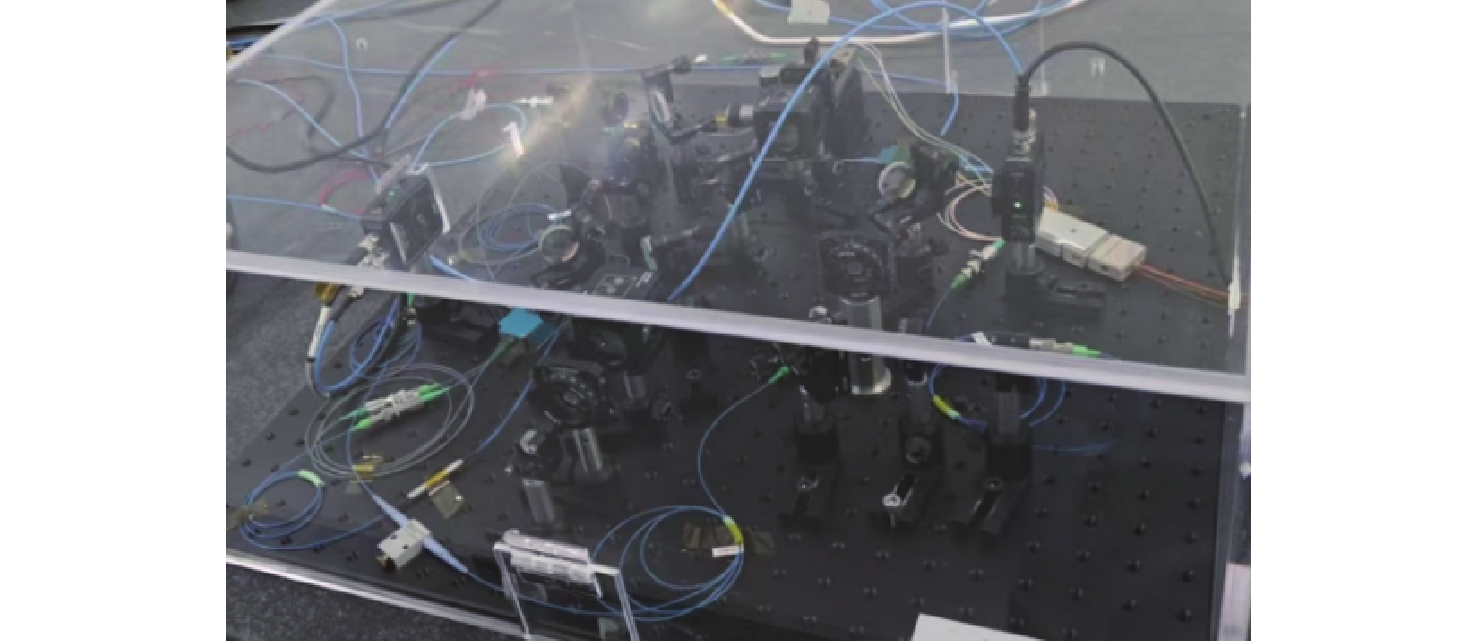

图 5 测试质量安装在微动位移台上的干涉仪搭建
Figure 5. The test mass mounted on a micro-motion stage in the interferometer setup.

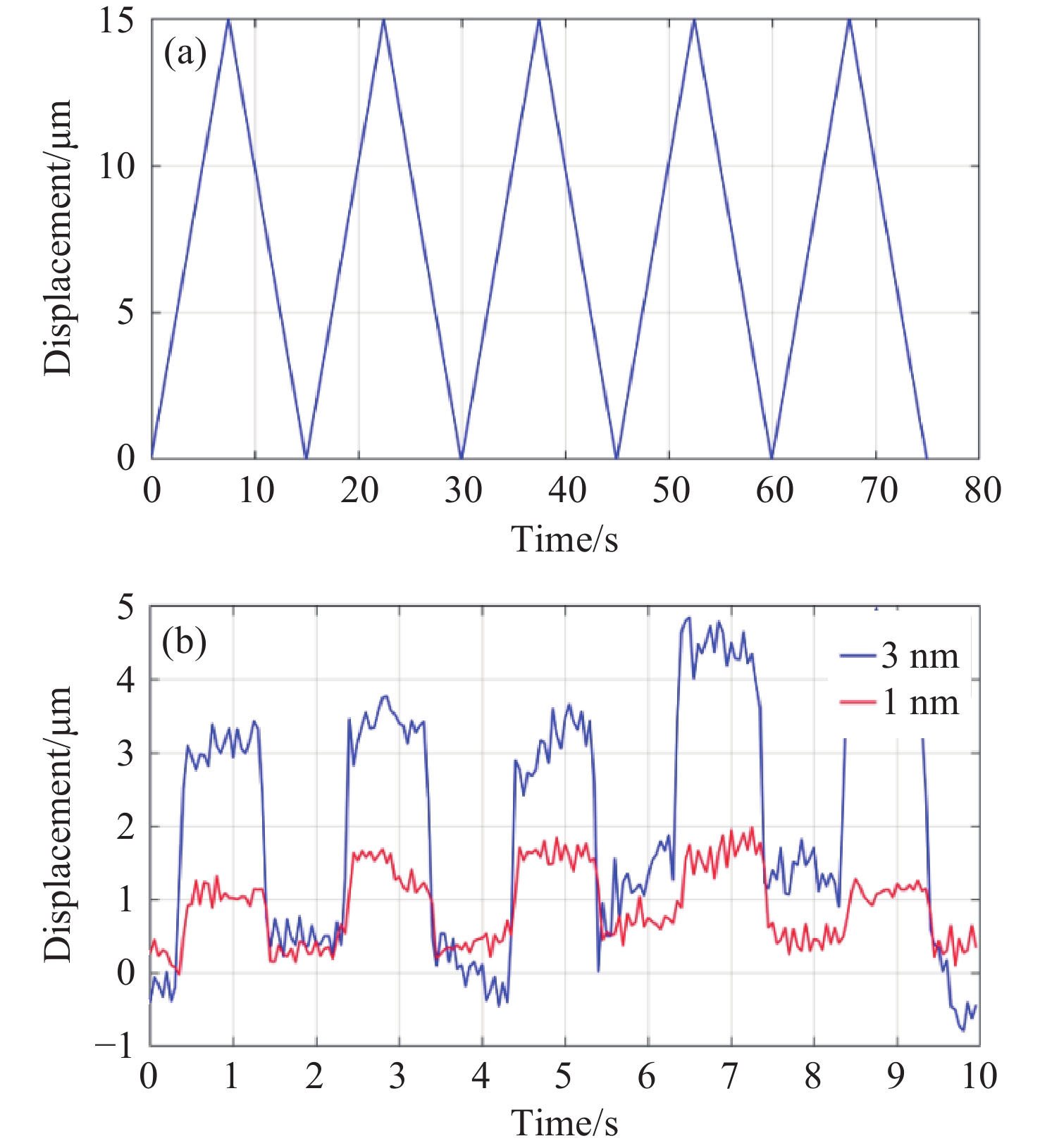

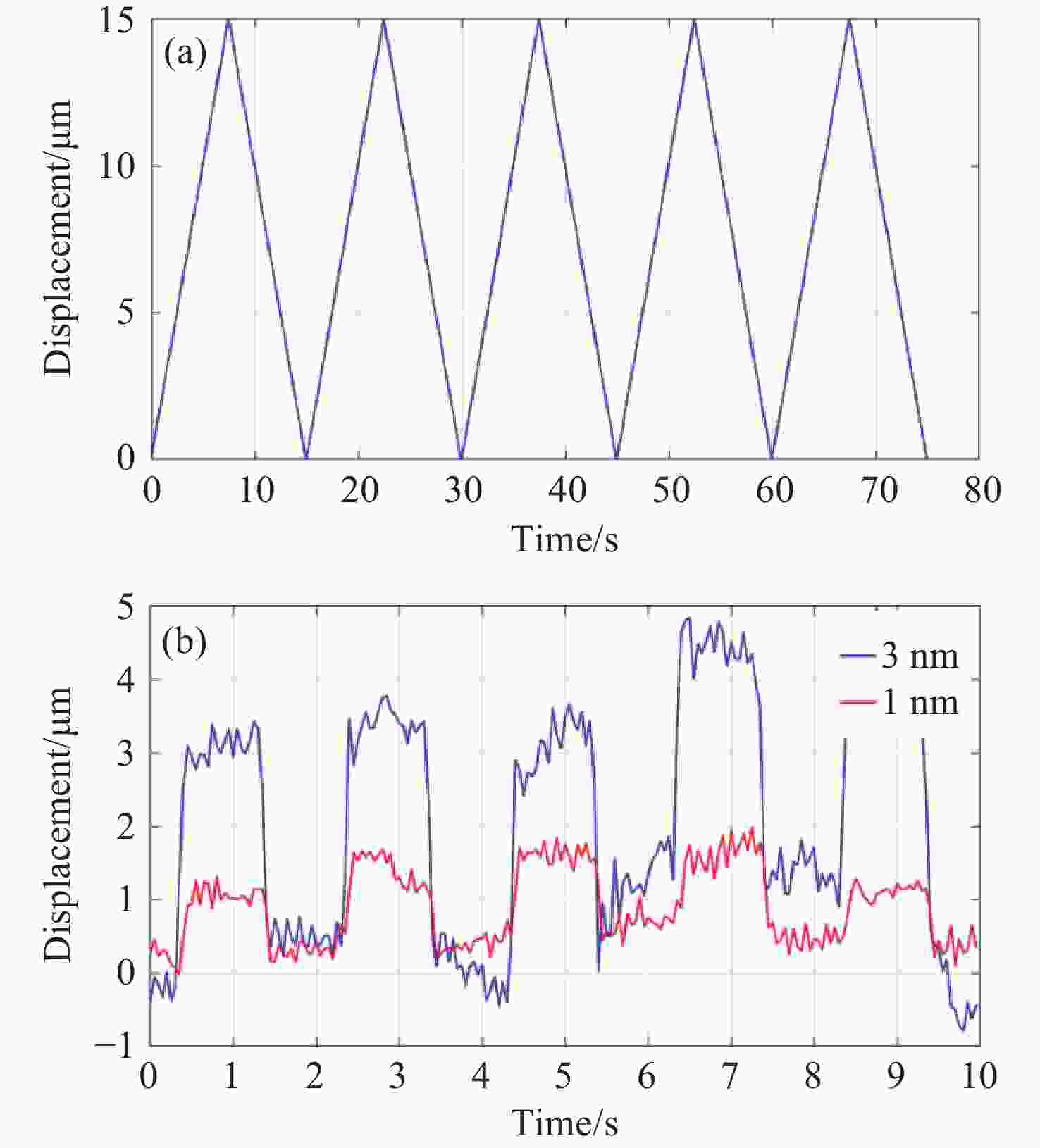

图 6 干涉光路平动读出。（a）量程；（b）分辨率3 nm和1 nm
Figure 6. Translation readout of the interferometric optical path. (a) Measurement range; (b) resolution of 3 nm and 1 nm.

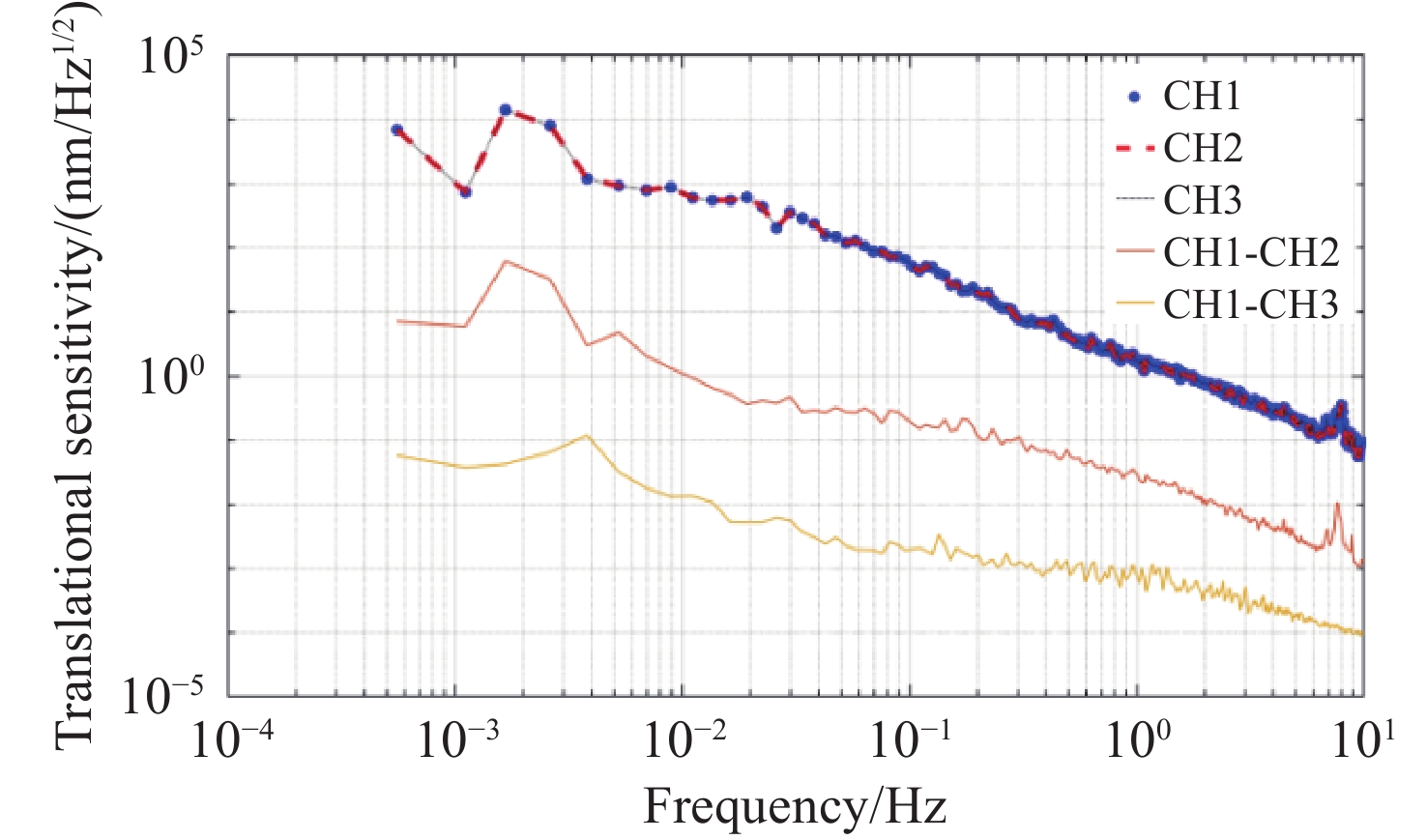

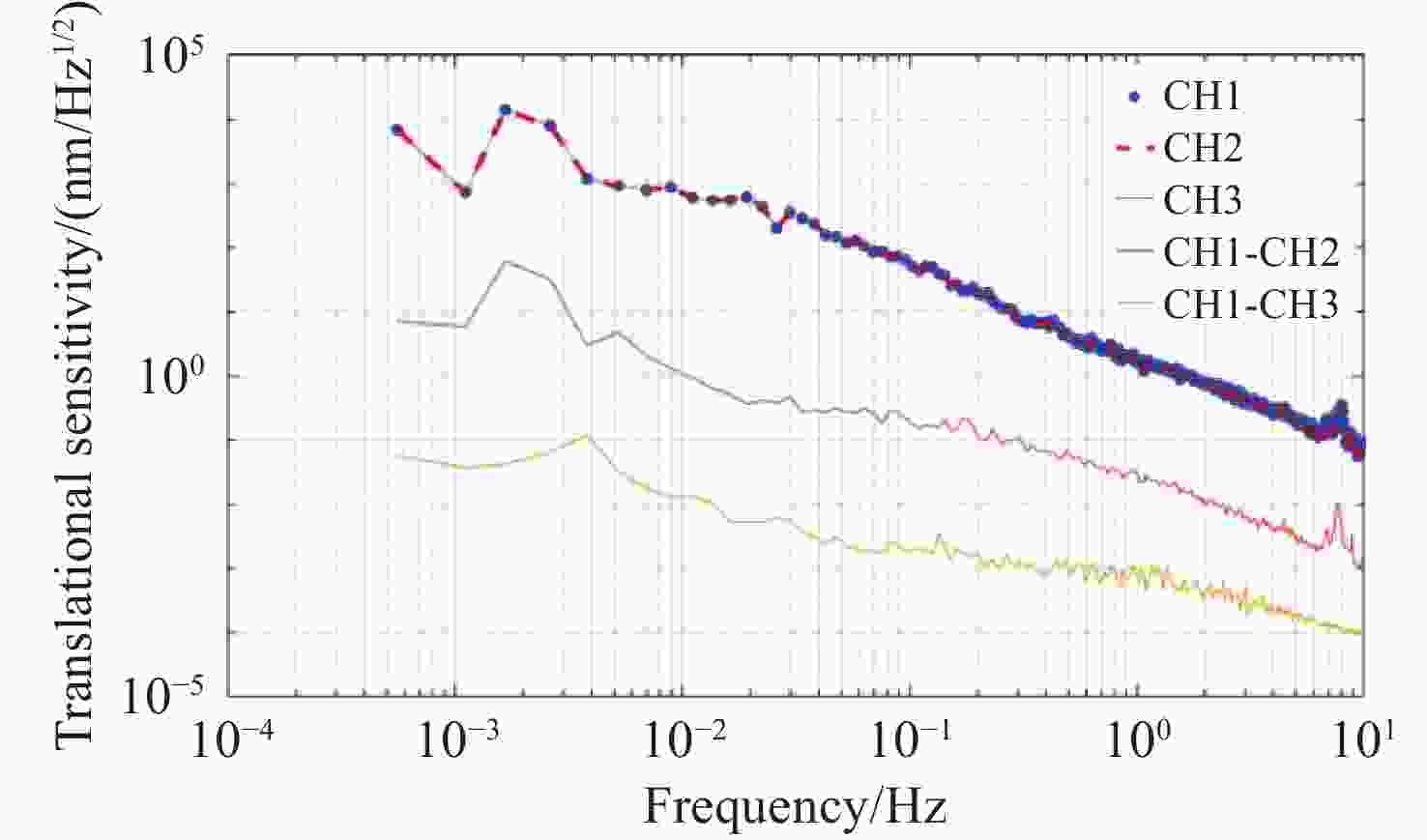

图 7 干涉光路平动读出噪声谱密度结果及相位计电子学本底噪声
Figure 7. Spectral density of translational readout noise from the interferometric optical path and electronic baseline noise of the phase meter

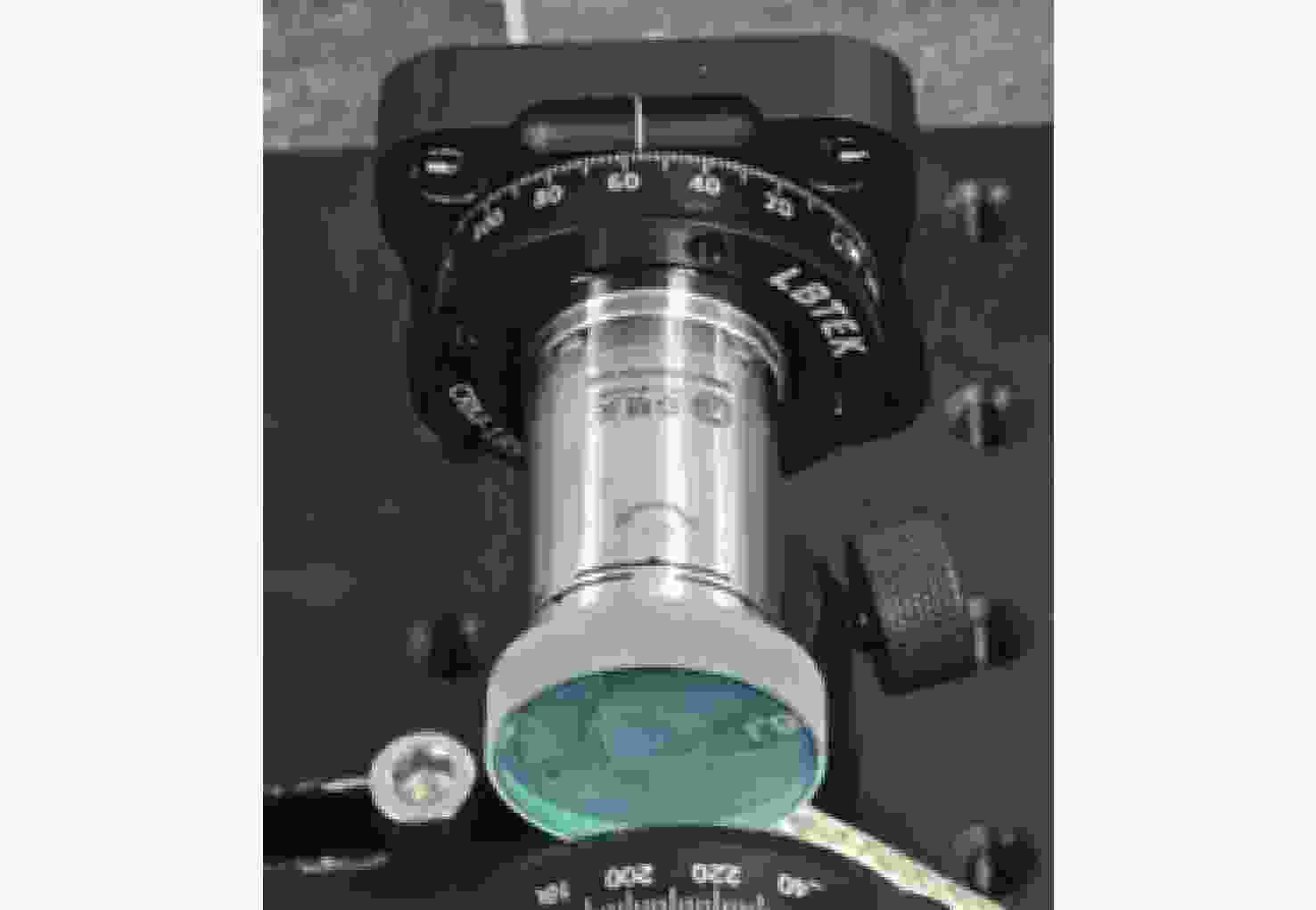

图 8 偏摆镜安装姿态与初始角度
Figure 8. Mounting configuration and initial angle of the steering mirror.

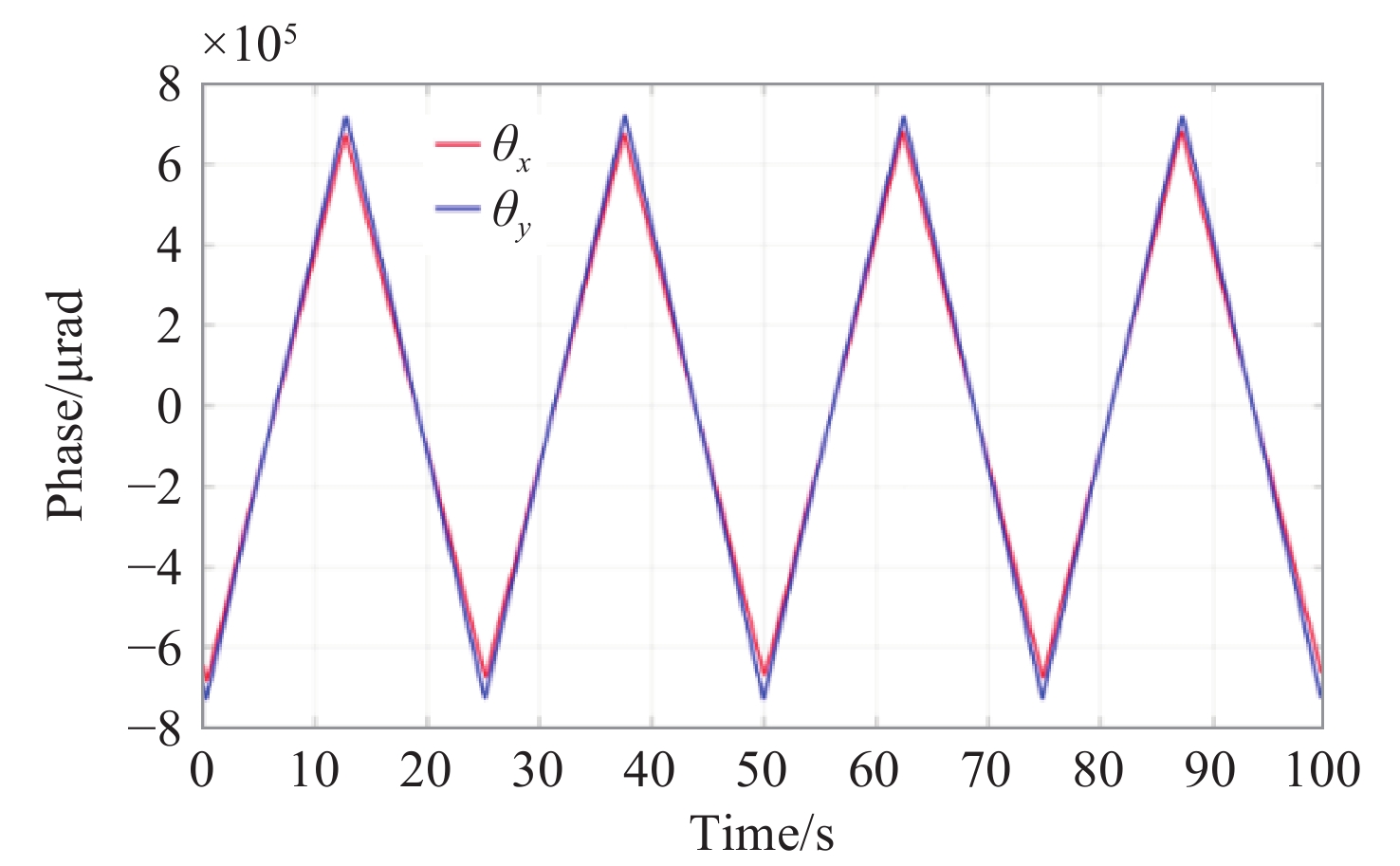

图 9 干涉光路中绕x轴和绕y轴转动的相位信号
Figure 9. Phase signals for rotations about the x-axis and y-axis in the interferometric optical path

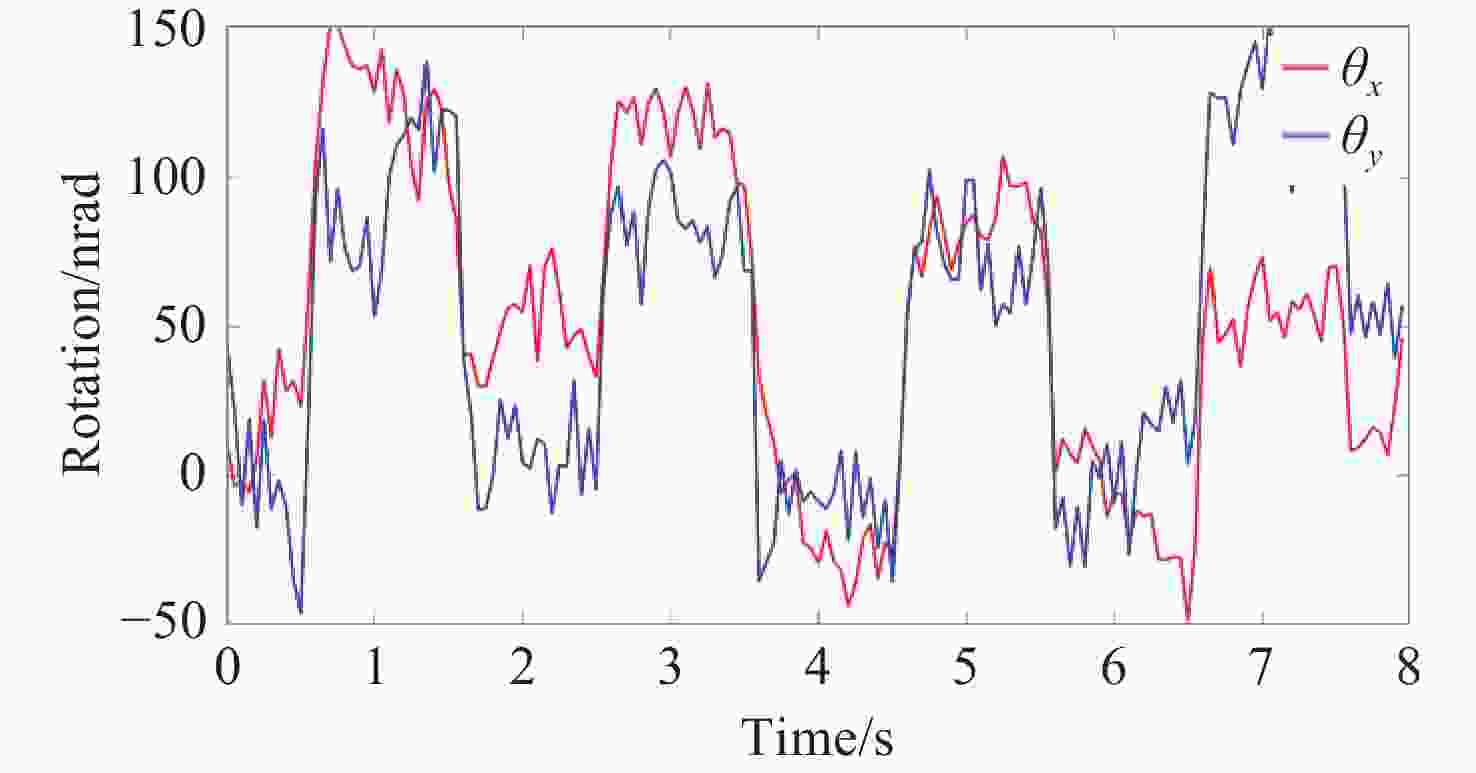

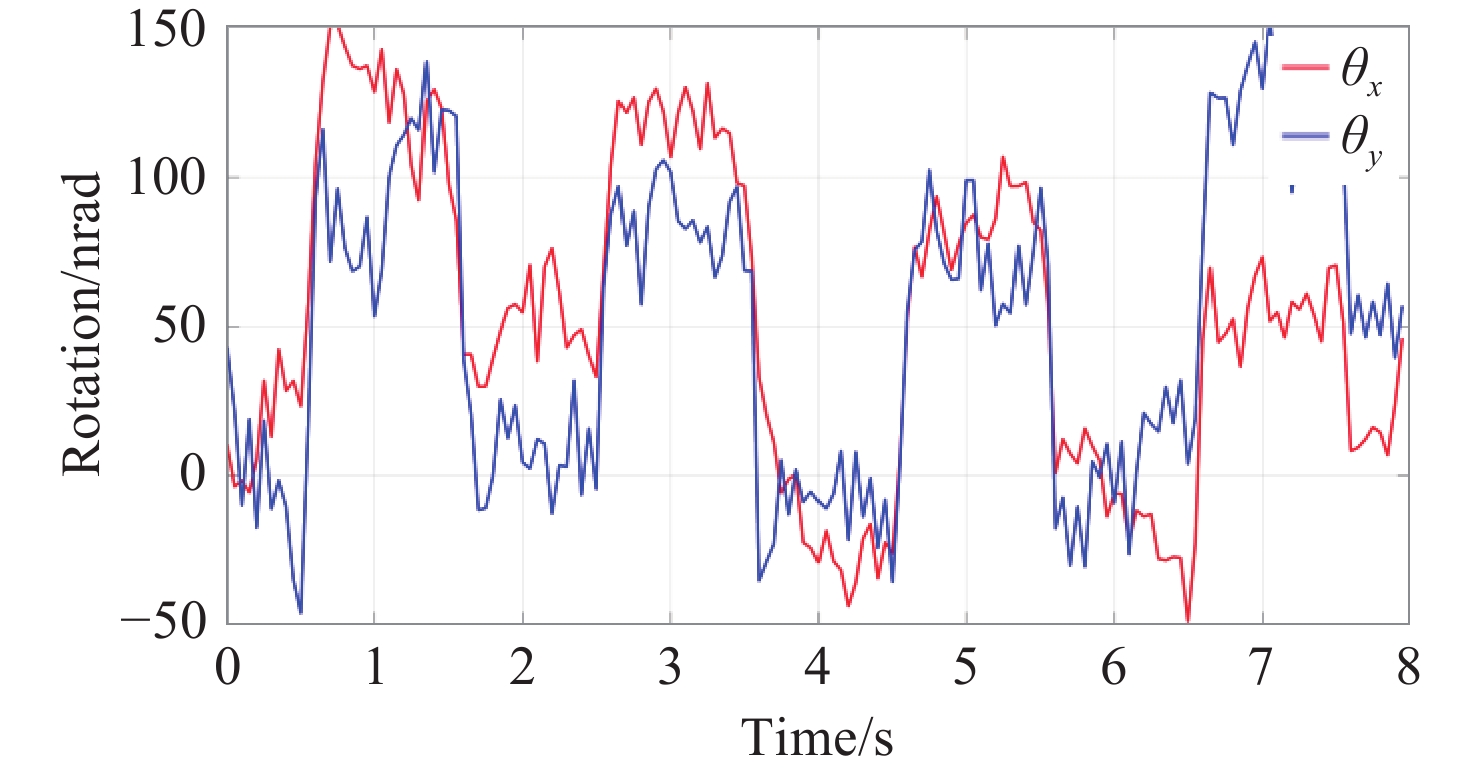

图 10 干涉光路绕x轴和绕y轴转动的分辨率
Figure 10. Rotational resolution about the x-axis and y-axis in the interferometric optical path

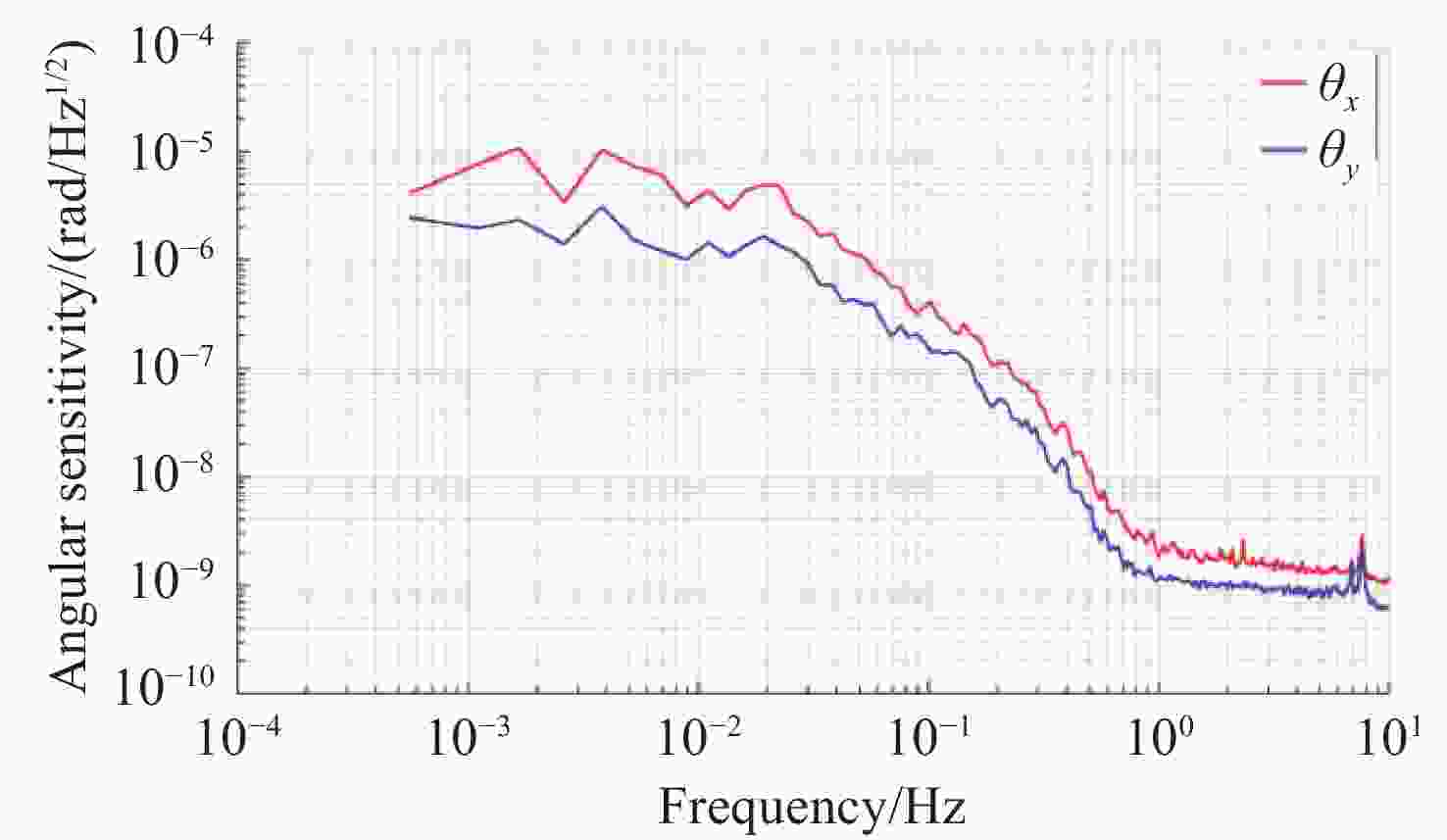

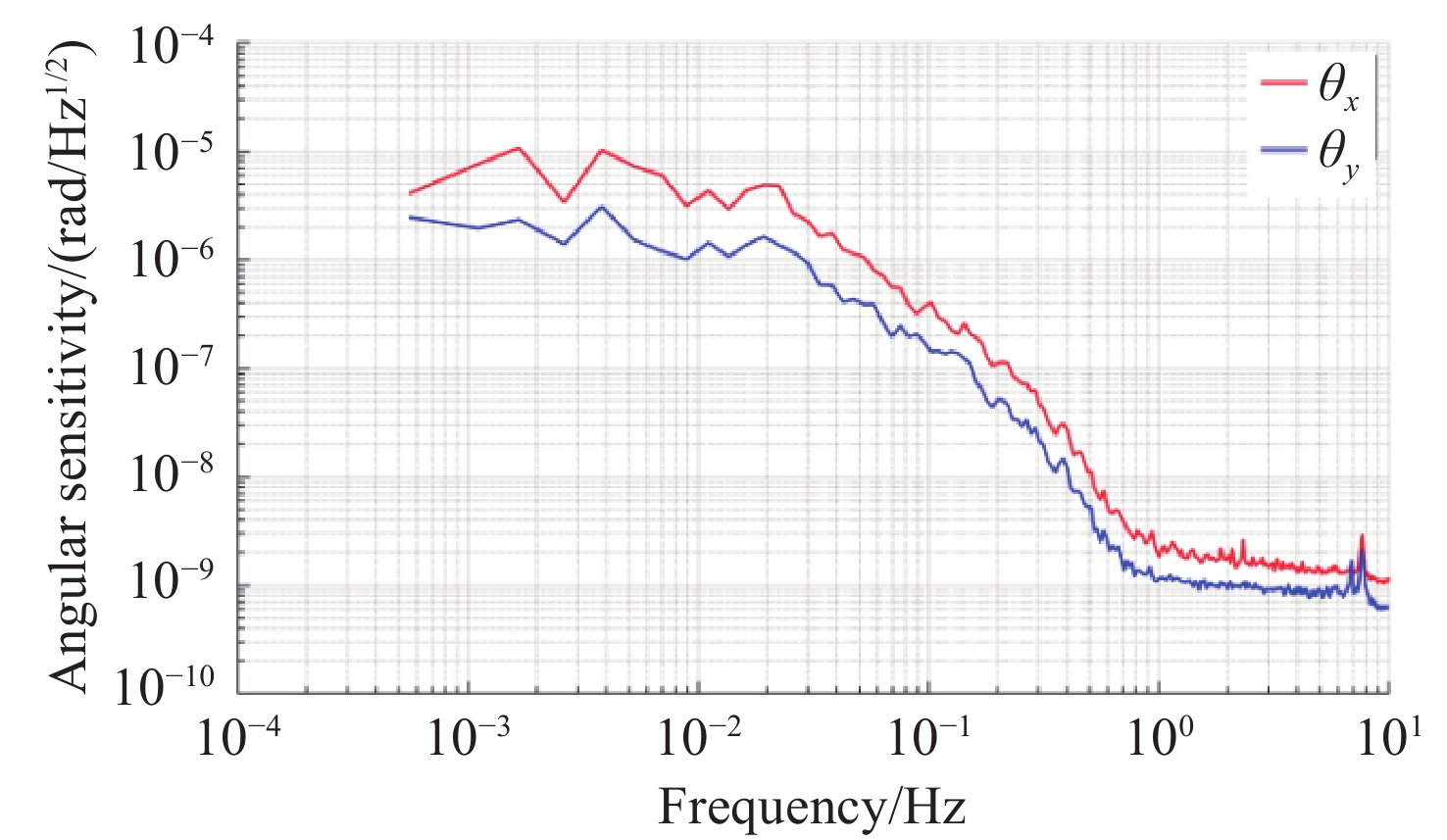

图 11 干涉光路中测试质量绕x轴和y轴的转动读出噪声谱密度结果
Figure 11. Readout noise spectral density for rotations about the x-axis and y-axis in the interferometer.

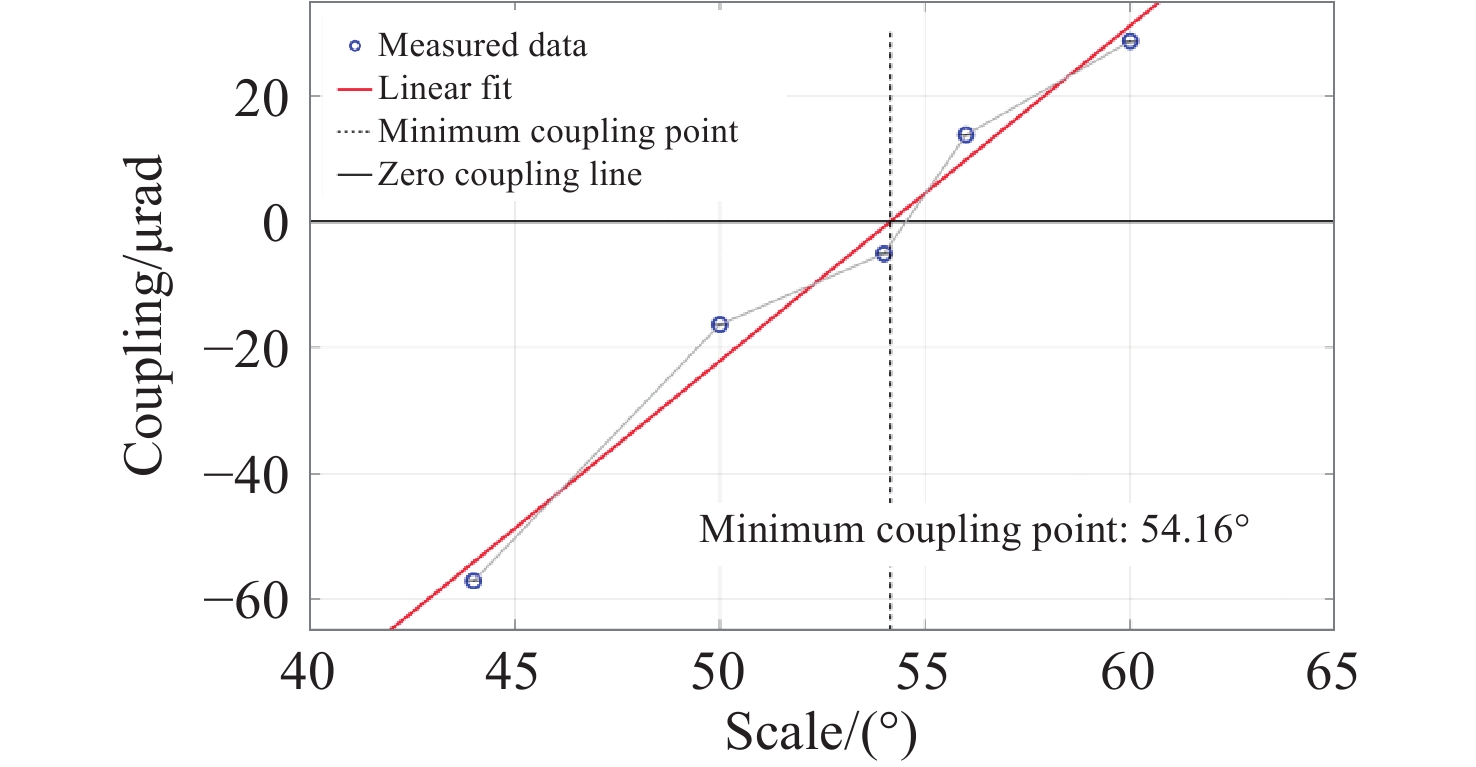

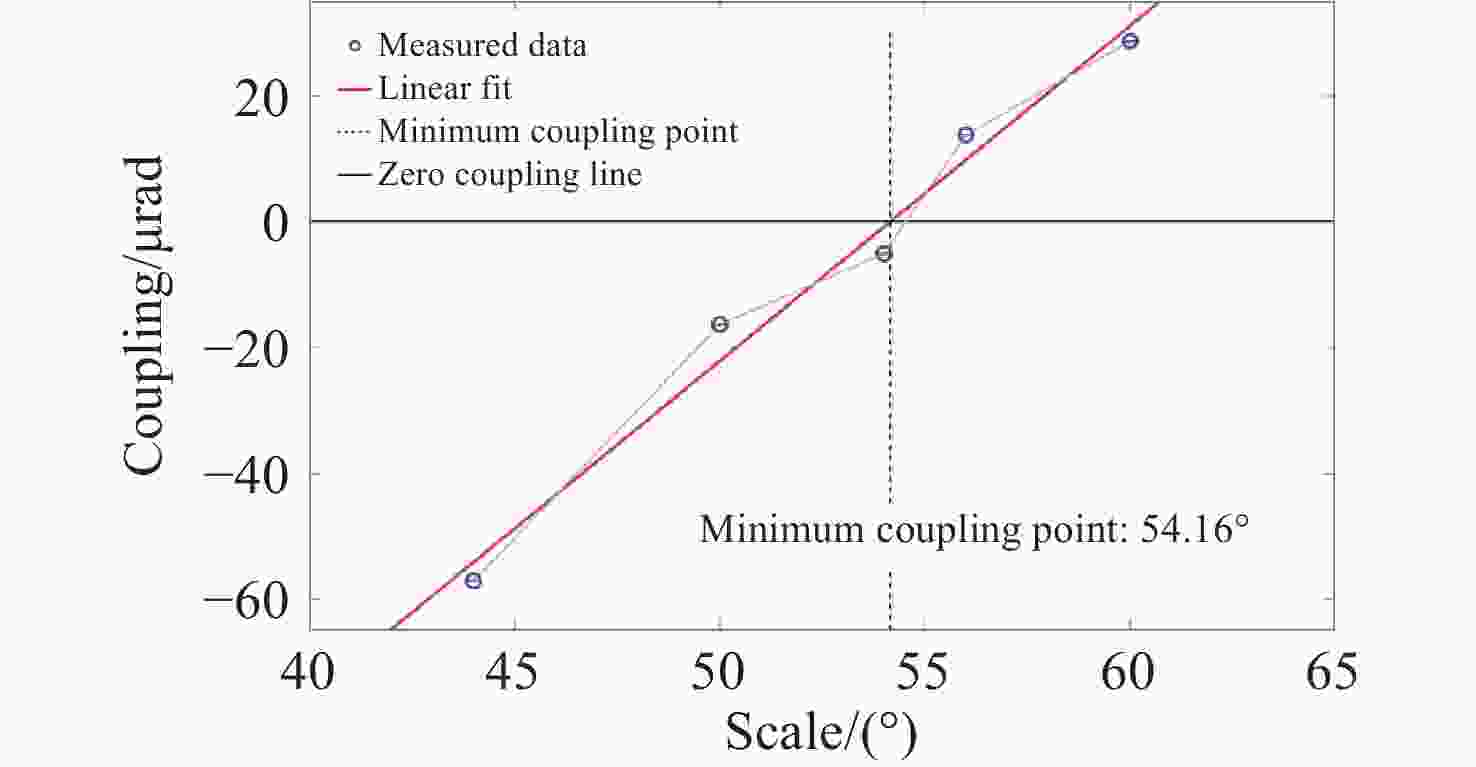

图 12 转动-转动耦合平均值耦合量随偏摆镜旋转刻度变化关系
Figure 12. The relationship between the mean tilt-to-tilt coupling and the steering mirror rotation scale.

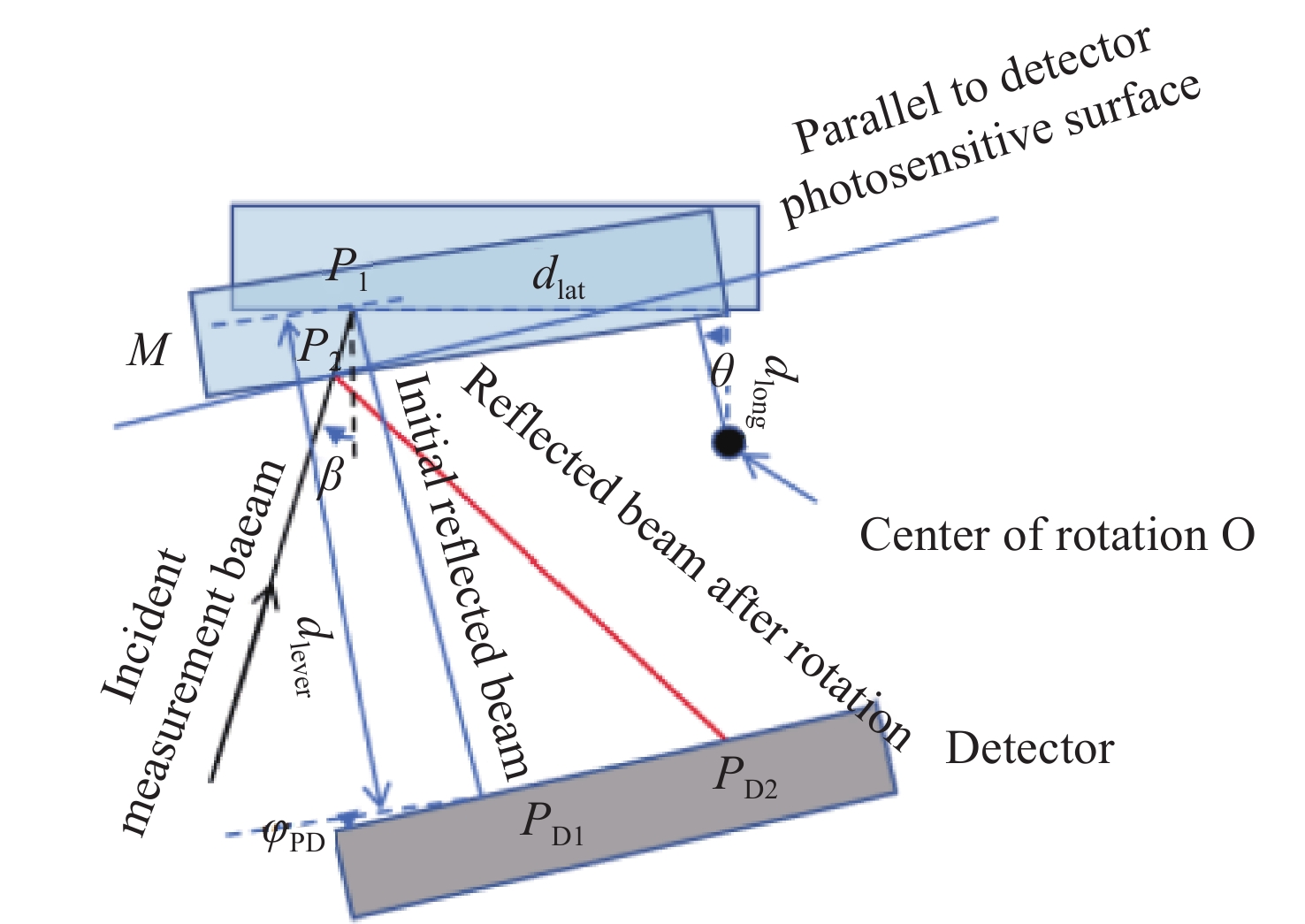

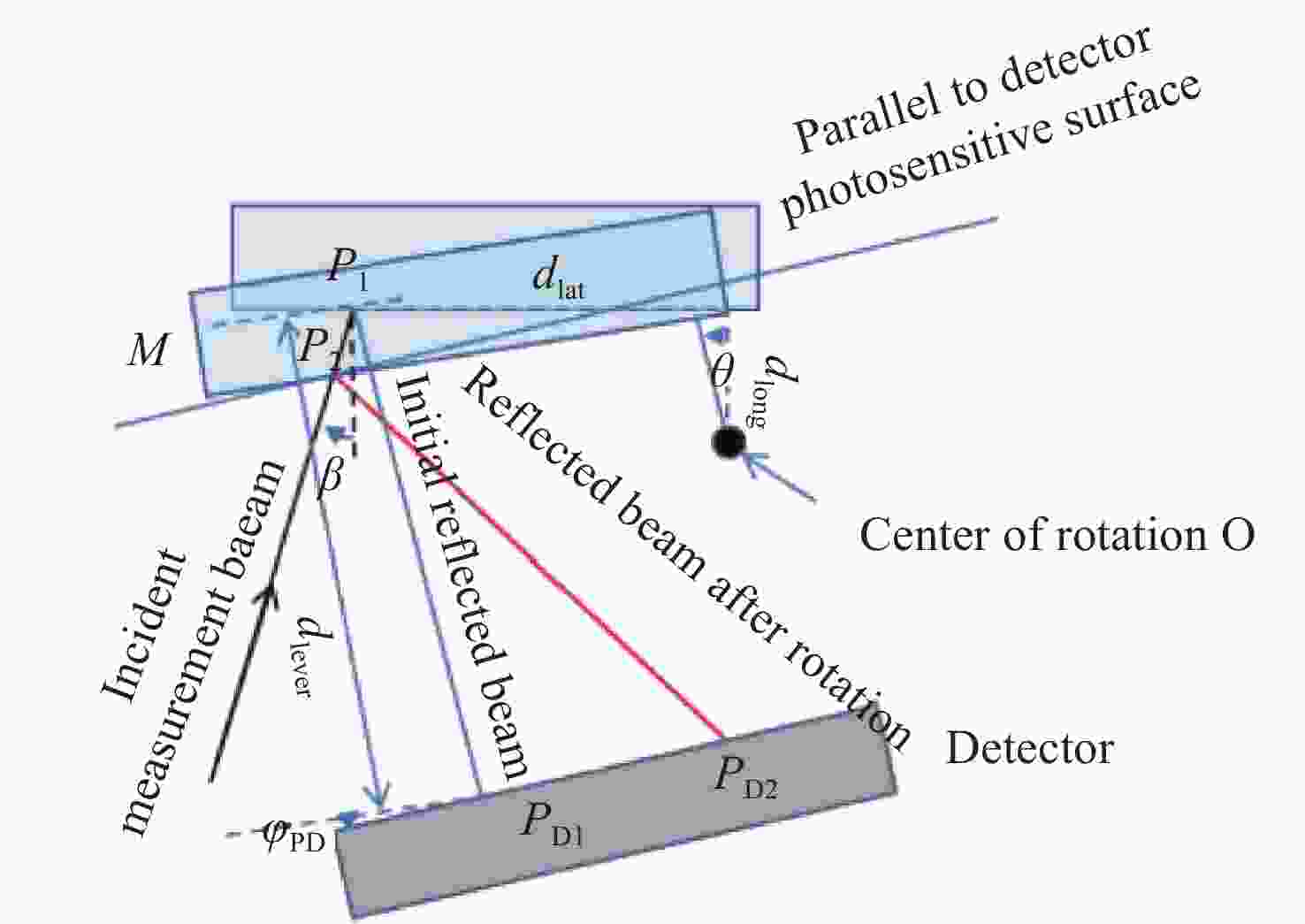

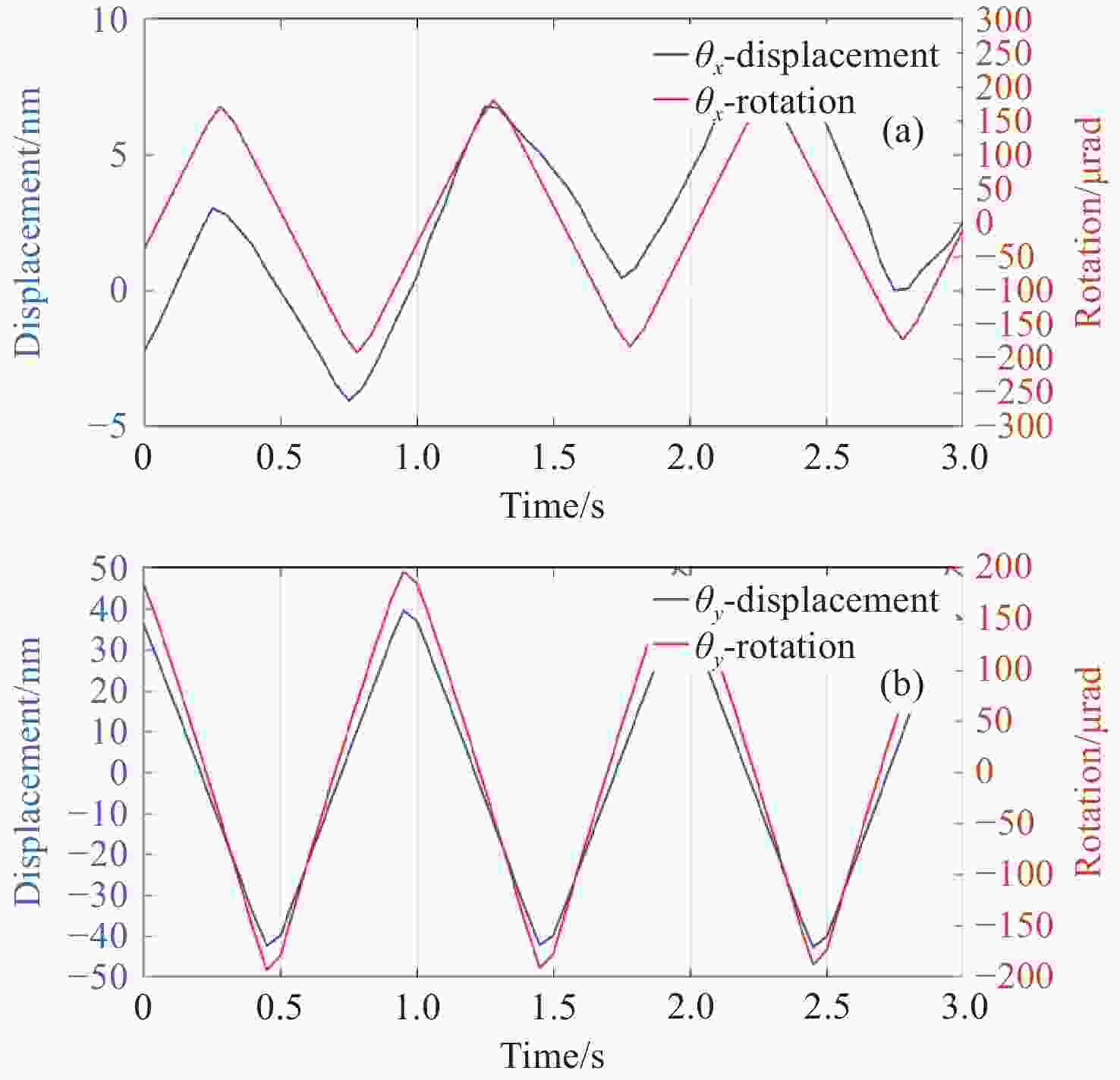

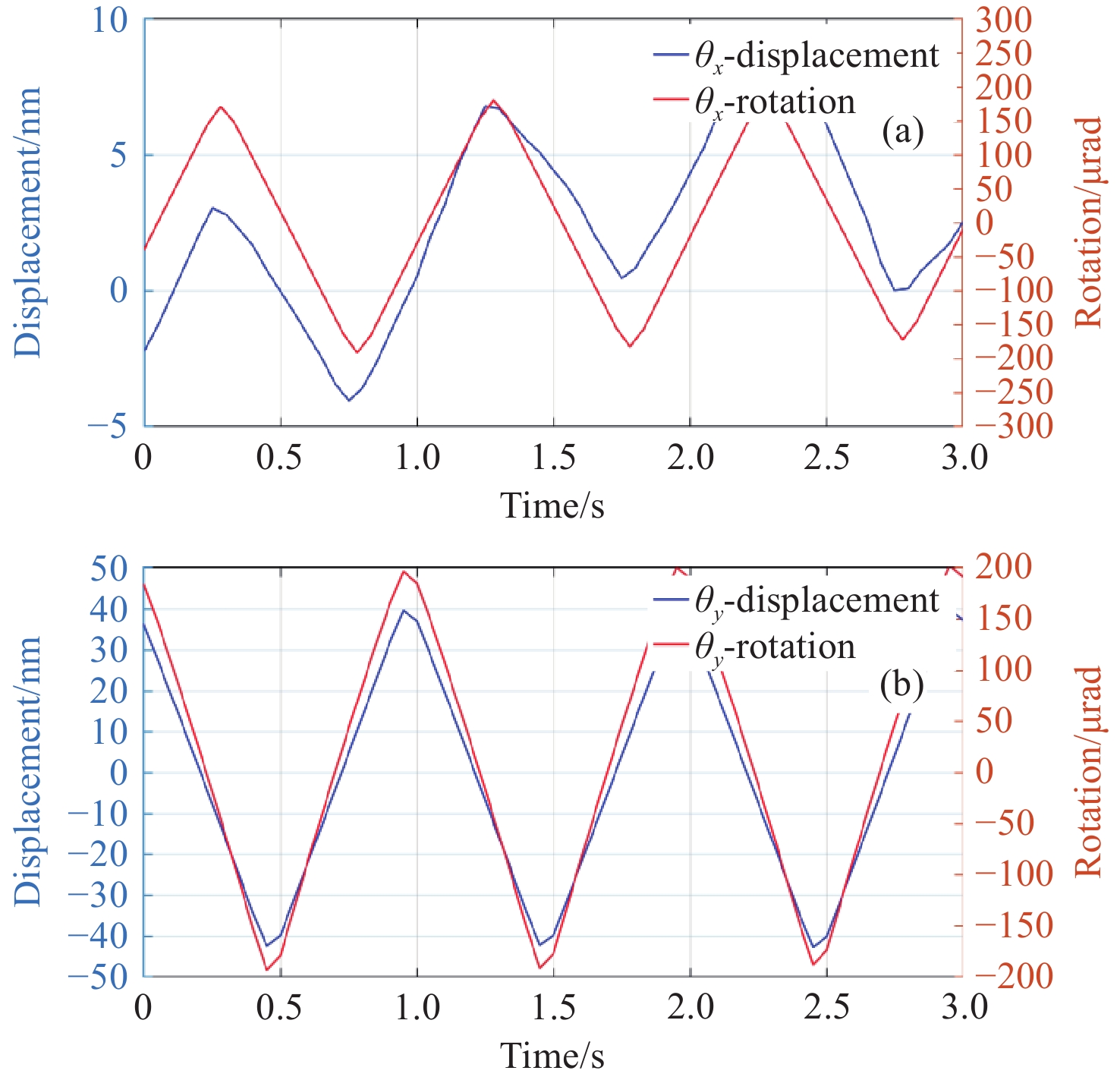

图 14 转动-平动耦合系数标定。(a)绕x轴转动的转动角度
$ \theta $ 和耦合误差$ \text{δL} $ ；(b)绕y轴转动的转动角度$ \theta $ 和耦合误差$ \text{δL} $ Figure 14. Tilt-to-length coupling coefficient calibration. (a) Rotation angle θ and Coupling error δL about the x-axis; (b) Rotation angle θ and coupling error δL about the y-axis

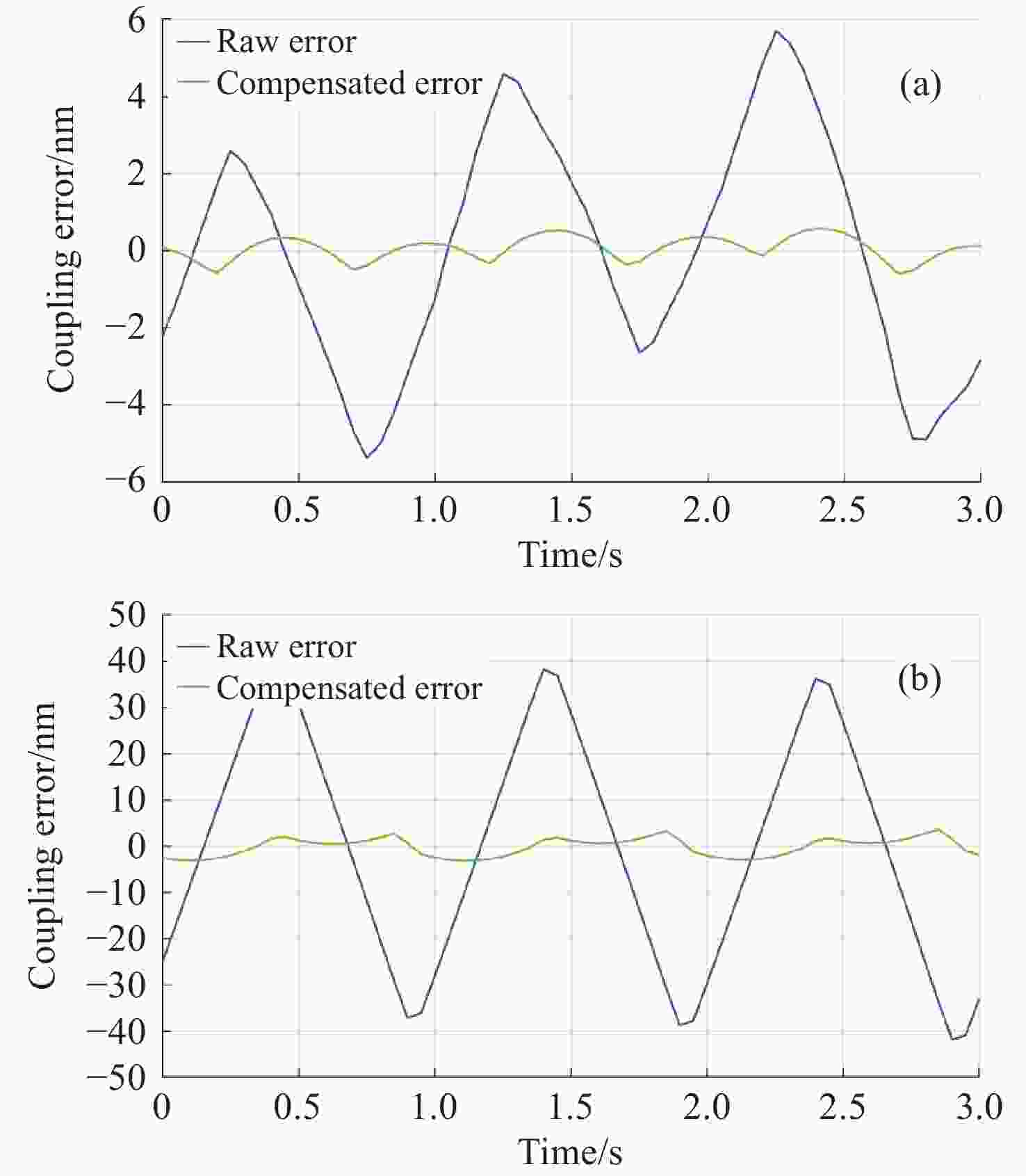

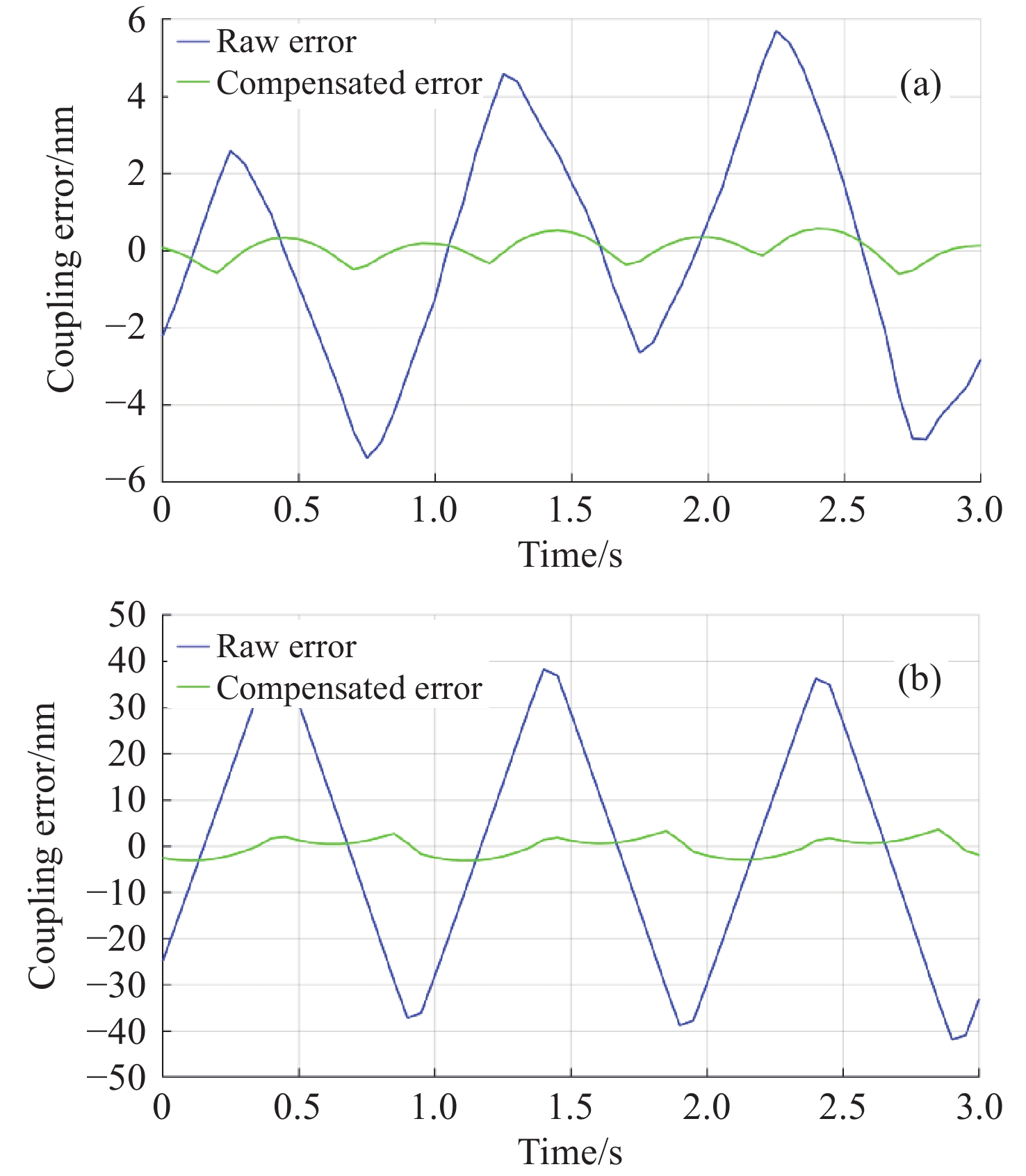

图 15 时域补偿效果。(a)绕x轴转动补偿前后对比；(b)绕y轴转动补偿前后对比
Figure 15. Time-domain compensation effects. (a) Comparisonbefore and after compensation forx-axisrotation; (b) Comparison before and after compensation for y-axis rotation

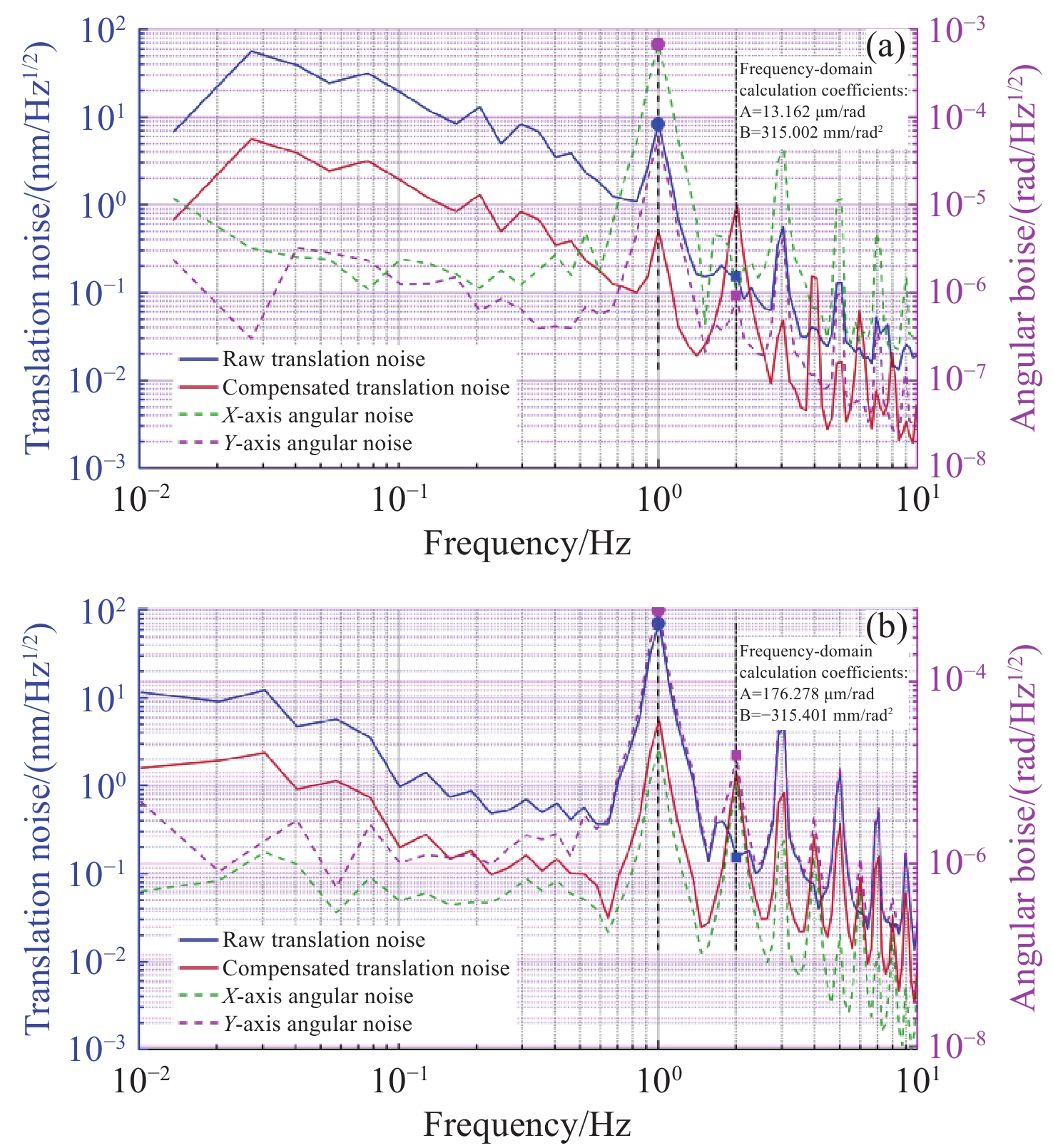

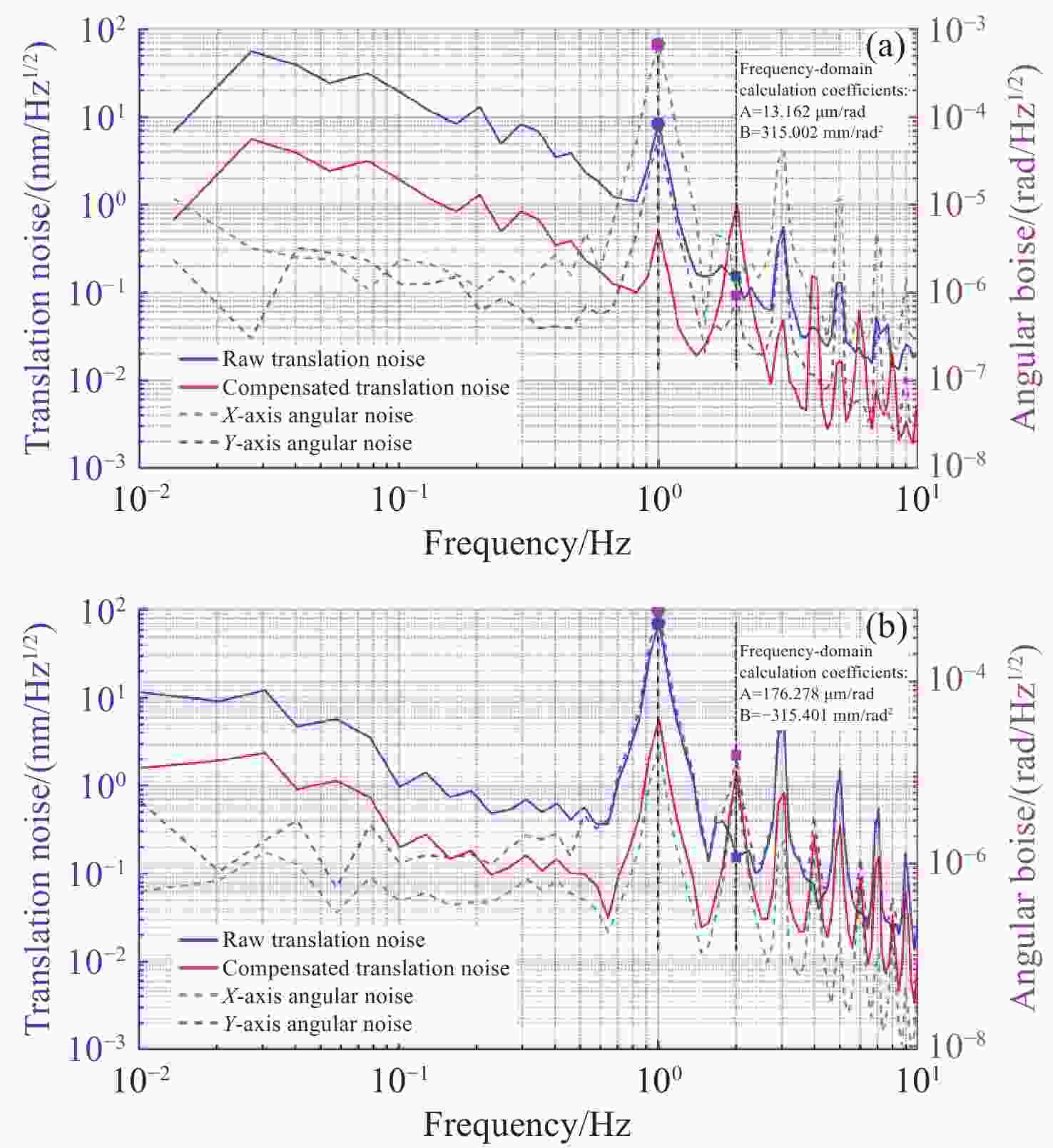

图 16 频域补偿效果 (a)绕x轴转动补偿前后对比；(b)绕y轴转动补偿前后对比
Figure 16. Frequency-domain compensation effects.(a)Comparison before and after compensation for x-axis rotation; (b) Comparison before and after compensation for y-axis rotation
表 1 偏摆镜转动角度与四象限探测器输出关系
Table 1. Relationship between Tip-Tilt Mirror Angle and Quadrant Detector Output
Steering mirror angle
(θx,θy) (μrad)Quadrant photodetector angle output
(dwsx,dwsy) (μrad)(θx1,θy1) = (0,0) (dwsx1,dwsy2) = (0,0) (θx2,θy2) = (400,0) (dwsx2,dwsy2) = (400,13) (θx3,θy3) = (0,400) (dwsx3,dwsy3) = (-13,400)
下载: 导出CSV
-
[1] MING M, LUO Y X, LIANG Y R, et al. Ultraprecision intersatellite laser interferometry[J]. International Journal of Extreme Manufacturing, 2020, 2(2): 022003. doi: 10.1088/2631-7990/ab8864 [2] 罗子人, 白姗, 边星, 等. 空间激光干涉引力波探测[J]. 力学进展, 2013, 43(4): 415-447.LUO Z R, BAI SH, BIAN X, et al. Space laser interferometric gravitational wave detection[J]. Advances in Mechanics, 2013, 43(4): 415-447. (in Chinese). [3] 王运永, 朱宗宏. 激光干涉仪引力波探测器的噪声和灵敏度[J]. 现代物理知识, 2019, 31(3): 56-62. doi: 10.13405/j.cnki.xdwz.2019.03.012WANG Y Y, ZHU Z H. Noise and sensitivity of laser interferometric gravitational wave detectors[J]. Modern Physics, 2019, 31(3): 56-62. (in Chinese). doi: 10.13405/j.cnki.xdwz.2019.03.012 [4] DANZMANN K. LISA-an ESA cornerstone mission for a gravitational wave observatory[J]. Classical and Quantum Gravity, 1997, 14(6): 1399-1404. doi: 10.1088/0264-9381/14/6/002 [5] 罗俊, 艾凌皓, 艾艳丽, 等. 天琴计划简介[J]. 中山大学学报(自然科学版), 2021, 60(1-2): 1-19. doi: 10.13471/j.cnki.acta.snus.2020.12.23.2020B154LUO J, AI L H, AI Y L, et al. A brief introduction to the TianQin project[J]. Acta Scientiarum Naturalium Universitatis Sunyatseni, 2021, 60(1-2): 1-19. (in Chinese). doi: 10.13471/j.cnki.acta.snus.2020.12.23.2020B154 [6] LUO Z R, GUO Z K, JIN G, et al. A brief analysis to Taiji: science and technology[J]. Results in Physics, 2020, 16: 102918. doi: 10.1016/j.rinp.2019.102918 [7] WU Y L. Space gravitational wave detection in China[C]. Presentation on First eLISA Consortium Meeting, APC-Paris, 2012. (查阅网上资料, 未找到出版者信息, 请确认). [8] 李星辉, 崔璨. 光栅干涉精密纳米测量技术[J]. 光学 精密工程, 2024, 32(17): 2591-2611.LI X H, CUI C. Grating interferometric precision nanometric measurement technology[J]. Optics and Precision Engineering, 2024, 32(17): 2591-2611. (in Chinese). [9] HECHLER F, FOLKNER W M. Mission analysis for Laser Interferometer Space Antenna (LISA)[R]. 1992. (查阅网上资料, 未找到出版地和出版者信息, 请确认). [10] GAO L, ZHENG L A, LU B, et al. Generation of squeezed vacuum state in the millihertz frequency band[J]. Light: Science & Applications, 2024, 13: 294, doi: 10.1038/s41377-024-01606-y. [11] HU W R, WU Y L. The Taiji program in space for gravitational wave physics and the nature of gravity[J]. National Science Review, 2017, 4(5): 685-686. doi: 10.1093/nsr/nwx116 [12] LUO J, CHEN L S, DUAN H Z, et al. TianQin: a space-borne gravitational wave detector[J]. Classical & Quantum Gravity, 2015, 33(3): 035010. [13] LIU H SH, WANG J, TAO W, et al. Recent development of the laser interferometer for Taiji space gravitational wave detection[J]. Research, 2026, 9: 1252. doi: 10.34133/research.1252 [14] 刘河山, 高瑞弘, 罗子人, 等. 空间引力波探测中的绝对距离测量及通信技术[J]. 中国光学, 2019, 12(3): 486-492. doi: 10.3788/CO.20191203.0486LIU H SH, GAO R H, LUO Z R, et al. Laser ranging and data communication for space gravitational wave detection[J]. Chinese Optics, 2019, 12(3): 486-492. (in Chinese). doi: 10.3788/CO.20191203.0486 [15] ZHAO Y, WANG ZH, LI Y P, et al. Method to remove tilt-to-length coupling caused by interference of flat-top beam and Gaussian beam[J]. Applied Sciences, 2019, 9(19): 4112. doi: 10.3390/app9194112 [16] 刘河山, 王娟, 高瑞弘, 等. 太极二号干涉仪系统噪声与指标分解[J]. 空间科学学报, 2025, 45(4): 1047-1057. doi: 10.11728/cjss2025.04.2025-yg02LIU H SH, WANG J, GAO R H, et al. Noise and index decomposition of Taiji-2 interferometer system[J]. Chinese Journal of Space Science, 2025, 45(4): 1047-1057. (in Chinese). doi: 10.11728/cjss2025.04.2025-yg02 [17] CHWALLA M, DANZMANN K, ÁLVAREZ M D, et al. Optical suppression of tilt-to-length coupling in the LISA long-arm interferometer[J]. Physical Review Applied, 2020, 14(1): 014030. doi: 10.1103/PhysRevApplied.14.014030 [18] LUOZ R, WANG Q L, MAHRDT C, et al. Possible alternative acquisition scheme for the gravity recovery and climate experiment follow-on-type mission[J]. Applied Optics, 2017, 56(5): 1495-1500. doi: 10.1364/AO.56.001495 [19] ARMANO M, AUDLEY H, AUGER G, et al. Sub-femto-g free fall for space-based gravitational wave observatories: LISA pathfinder results[J]. Physical Review Letters, 2016, 116(23): 231101. doi: 10.1103/PhysRevLett.116.231101 [20] WANNER G, KARNESIS N. Preliminary results on the suppression of sensing cross-talk in LISA pathfinder[J]. Journal of Physics: Conference Series, 2017, 840: 012043. doi: 10.1088/1742-6596/840/1/012043 [21] HARTIG M S, WANNER G. Tilt-to-length coupling in LISA pathfinder: analytical modeling[J]. Physical Review D, 2023, 108(2): 022008. doi: 10.1103/PhysRevD.108.022008 [22] ARMANO M, AUDLEY H, BAIRD J, et al. Tilt-to-length coupling in LISA pathfinder: a data analysis[J]. Physical Review D, 2023, 108(10): 102003. doi: 10.1103/PhysRevD.108.102003 [23] SCHÜTZE D. Intersatellite laser interferometry: test environments for GRACE follow-on[D]. Hannover: Gottfried Wilhelm Leibniz Universität Hannover, 2015. [24] PACZKOWSKI S, GIUSTERI R, HEWITSON M, et al. Postprocessing subtraction of tilt-to-length noise in LISA[J]. Physical Review D, 2022, 106(4): 042005. doi: 10.1103/PhysRevD.106.042005 [25] GEORGE D, SANJUAN J, FULDA P, et al. Calculating the precision of tilt-to-length coupling estimation and noise subtraction in LISA using Fisher information[J]. Physical Review D, 2023, 107(2): 022005. doi: 10.1103/PhysRevD.107.022005 [26] HOUBA N, DELCHAMBRE S, HECHENBLAIKNER G, et al. Time-delay interferometry infinity for tilt-to-length noise estimation in LISA[J]. Classical and Quantum Gravity, 2023, 40(10): 107001. doi: 10.1088/1361-6382/accbfc [27] HARTIG M S, PACZKOWSKI S, HEWITSON M, et al. Post-processing subtraction of tilt-to-length noise in LISA in the presence of gravitational wave signals[J]. Physical Review D, 2025, 111(4): 043048. doi: 10.1103/PhysRevD.111.043048 [28] 王璐钰, 李玉琼, 蔡榕. 空间激光干涉仪光程倾斜耦合噪声抑制[J]. 光学 精密工程, 2021, 29(7): 1491-1498. doi: 10.37188/OPE.20212907.1491WANG L Y, LI Y Q, CAI R. Noise suppression of tilt-to-length coupling in space laser interferometer[J]. Optics and Precision Engineering, 2021, 29(7): 1491-1498. (in Chinese). doi: 10.37188/OPE.20212907.1491 [29] 叶磊巧, 杜明辉, 徐鹏, 等. 空间引力波探测“太极计划”星间姿态-光程耦合噪声迭代拟合与高精度抑制方法[J]. 中国光学(中英文), 2025, 18(3): 583-595. doi: 10.37188/CO.2025-0042YE L Q, DU M H, XU P, et al. Iterative estimation and precision suppression of inter-spacecraft tilt-to-length coupling noise for the Taiji space gravitational wave detection mission[J]. Chinese Optics, 2025, 18(3): 583-595. (in Chinese). doi: 10.37188/CO.2025-0042 [30] FAN Z CH, ZHU ZH B, JI H R, et al. Pupil aberrations correction of the afocal telescope for the TianQin project[J]. Classical and Quantum Gravity, 2023, 40(19): 195017. doi: 10.1088/1361-6382/aceb2a [31] FAN W T, SONG J, HAI H W, et al. Research on the tilt-to-length coupling noise suppression method inside the gravitational wave detection telescope[J]. Optics Express, 2024, 32(7): 12200-12212. doi: 10.1364/OE.512394 [32] WANG ZH ZH, YANG SH J, WU K H, et al. Postprocessing of tilt-to-length noise with coefficient drifts in TianQin using a null time-delay interferometry channel[J]. Physical Review D, 2025, 111(4): 042004. doi: 10.1103/PhysRevD.111.042004 [33] SCHUSTER S, TRÖBS M, WANNER G, et al. Experimental demonstration of reduced tilt-to-length coupling by a two-lens imaging system[J]. Optics Express, 2016, 24(10): 10466-10475. doi: 10.1364/OE.24.010466 [34] TRÖBS M, SCHUSTER S, LIESER M, et al. Reducing tilt-to-length coupling for the LISA test mass interferometer[J]. Classical and Quantum Gravity, 2018, 35(10): 105001. doi: 10.1088/1361-6382/aab86c [35] 王娟. 面向空间激光干涉引力波探测的干涉仪噪声消减技术研究[D]. 北京: 中国科学院大学, 2023. (查阅网上资料, 未找到本条文献信息, 请确认).WANG J. Research on interferometer noise reduction technology for space laser interferometric gravitational wave detection[D]. Beijing: University of Chinese Academy of Sciences, 2023. (in Chinese). [36] 王娟, 齐克奇, 王少鑫, 等. 面向空间引力波探测的激光干涉技术研究进展及展望[J]. 中国科学: 物理学 力学 天文学, 2024, 54(7): 270405.WANG J, QI K Q, WANG SH X, et al. Advance and prospect in the study of laser interferometry technology for space gravitational wave detection[J]. SCIENTIA SINICA Physica, Mechanica & Astronomica, 2024, 54(7): 270405. (in Chinese). [37] BARKE S. Inter-spacecraft frequency distribution for future gravitational wave observatories[D]. Hannover: Gottfried Wilhelm Leibniz Universität Hannover, 2015. [38] XIAO G Z, KUANG T F, HE Y T, et al. Giant enhancement of nonlinear harmonics of an optical-tweezer phonon laser[J]. eLight, 2024, 4(1): 17. doi: 10.1186/s43593-024-00064-8 [39] CUI C, GAO L Y, ZHAO P B, et al. Towards multi-dimensional atomic-level measurement: integrated heterodyne grating interferometer with zero dead-zone[J]. Light: Advanced Manufacturing, 2025, 6: 40. doi: 10.37188/lam.2025.040 [40] XU X, LIU H SH, TAN Y D. Verification of laser heterodyne interferometric bench for Chinese spaceborne gravitational wave detection missions[J]. Research, 2024, 7: 0302. doi: 10.34133/research.0302 [41] SCHULDT T. An optical readout for the LISA gravitational reference sensor[D]. Berlin: Humboldt-Universität zu Berlin, 2010. [42] MESHKSAR N, MEHMET M, ISLEIF K S, et al. Applying differential wave-front sensing and differential power sensing for simultaneous precise and wide-range test-mass rotation measurements[J]. Sensors, 2020, 21(1): 164. doi: 10.3390/s21010164 [43] 梁浴榕. 外差激光干涉仪中的高精度相位测量研究[D]. 武汉: 华中科技大学, 2013.LIANG Y R. High precision phase measurement for heterodyne laser interferometer[D]. Wuhan: Huazhong University of Science and Technology, 2013. (in Chinese). [44] 刘河山. 面向空间引力波探测的激光差分干涉相位计研究[D]. 北京: 中国科学院大学, 2015. (查阅网上资料, 未找到对应英文翻译信息, 请确认).LIU H SH. Research on laser differential interferometric phase meter for space gravitational wave detection[D]. Beijing: University of Chinese Academy of Sciences, 2015. (in Chinese). [45] SCHWARZE T S. Phase extraction for laser interferometry in space: phase readout schemes and optical testing[D]. Hannover: Institutionelles Repositorium der Leibniz Universität Hannover, 2018. [46] YANG R, LIU H SH, LUO Z R. Optimization design of decimation filter for the phasemeter in the space gravitational wave detection[J]. IEEE Transactions on Instrumentation and Measurement, 2024, 73: 7006508. doi: 10.1109/tim.2024.3453345 [47] YANG R, LUO Z R, LIU H SH. Limitations and improvements in low-frequency performance of phasemeter for space gravitational wave detection[J]. Measurement, 2026, 260: 119825. doi: 10.1016/j.measurement.2025.119825 [48] 张强涛, 刘河山, 罗子人. 面向空间激光干涉的多通道相位测量系统[J]. 中国光学(中英文), 2023, 16(5): 1089-1099. doi: 10.37188/CO.2022-0258ZHANG Q T, LIU H SH, LUO Z R. Multi-channel phase measurement system for the space laser interferometry[J]. Chinese Optics, 2023, 16(5): 1089-1099. (in Chinese). doi: 10.37188/CO.2022-0258 [49] HARTIG M S, SCHUSTER S, WANNER G. Geometric tilt-to-length coupling in precision interferometry: mechanisms and analytical descriptions[J]. Journal of Optics, 2022, 24(6): 065601. doi: 10.1088/2040-8986/ac675e [50] HARTIG M S, SCHUSTER S, HEINZEL G, et al. Non-geometric tilt-to-length coupling in precision interferometry: mechanisms and analytical descriptions[J]. Journal of Optics, 2023, 25(5): 055601. doi: 10.1088/2040-8986/acc3ac [51] 徐欣. 面向空间引力波探测的激光干涉平动转动测量技术研究[D]. 北京: 清华大学, 2023. (查阅网上资料, 未找到本条文献信息, 请确认).XU X. Research on laser interferometric translational and rotational measurement technology for space gravitational wave detection[D]. Beijing: Tsinghua University, 2023. (in Chinese). -
