Design of all-optical half-adder based on nonlinear effect and linear interference effect

doi: 10.37188/CO.EN.2022-0029
Funds:  Supported by Natural Science Foundation of Gansu Province (No. 21JR7RA289)
More Information
  • Author Bio:

    Yang Jian-ye (1999—), male, born in Zhouqu County, Gansu Province, postgraduate. Received a Bachelor of Engineering degree from Lanzhou Jiaotong University in June 2021. Mainly engaged in research on mode division multiplexing integrated devices and all optical logic devices. E-mail: 1114332211@qq.com

  • Corresponding author: 1114332211@qq.com
  • Received Date: 04 Jan 2023
  • Rev Recd Date: 22 Feb 2023
  • Available Online: 17 Mar 2023

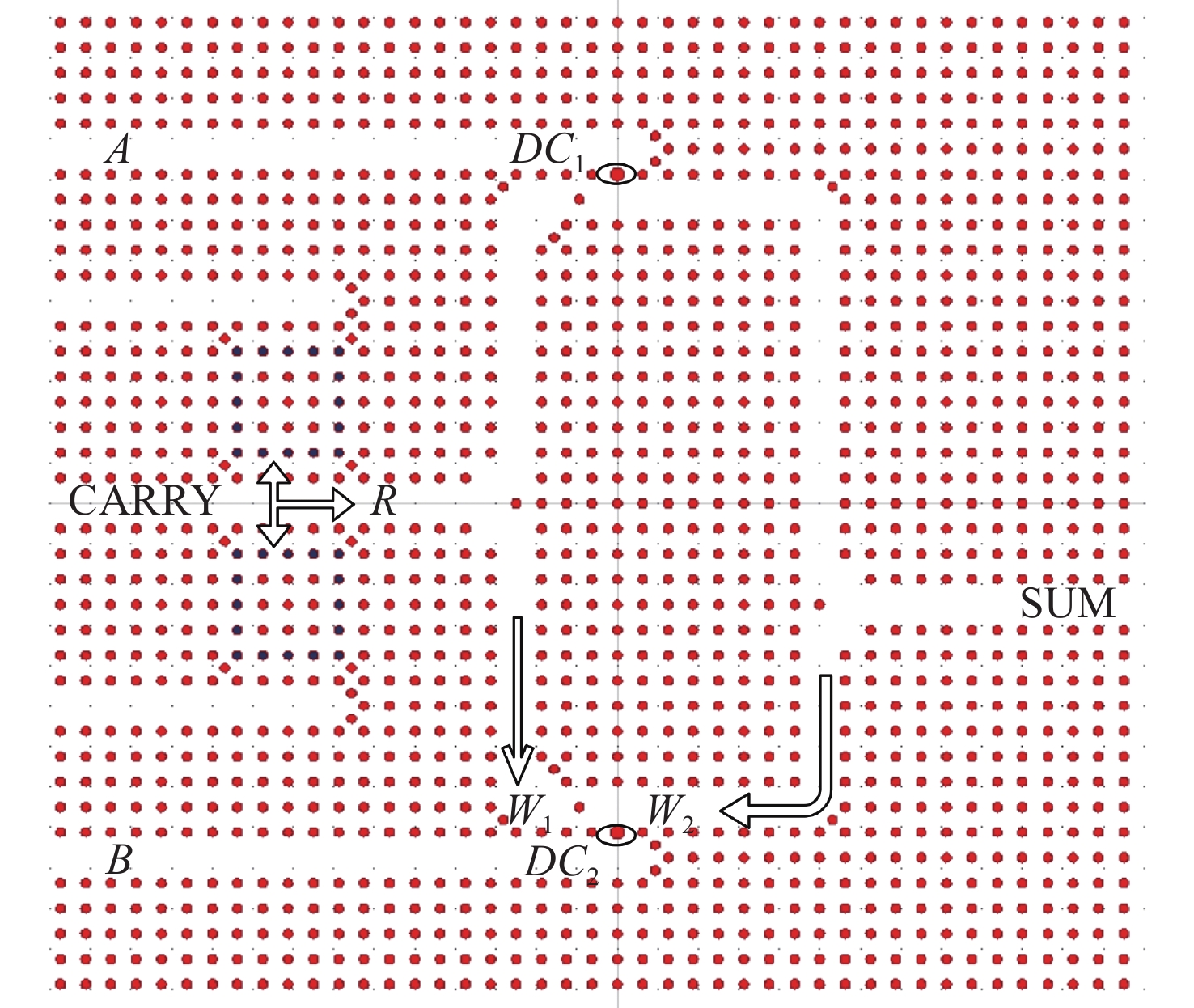

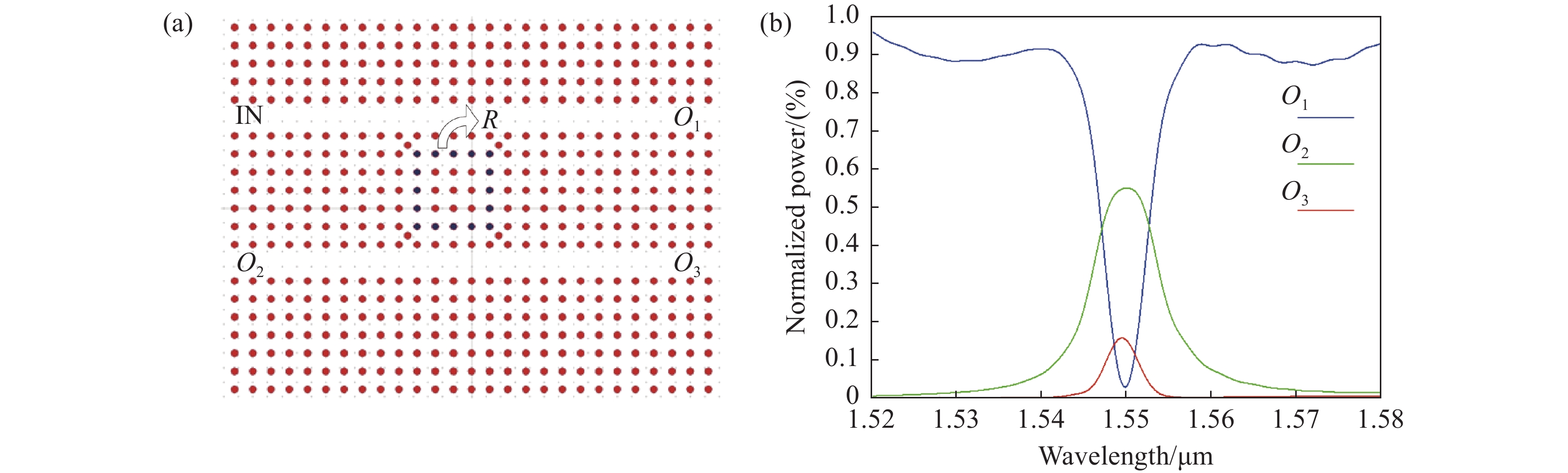

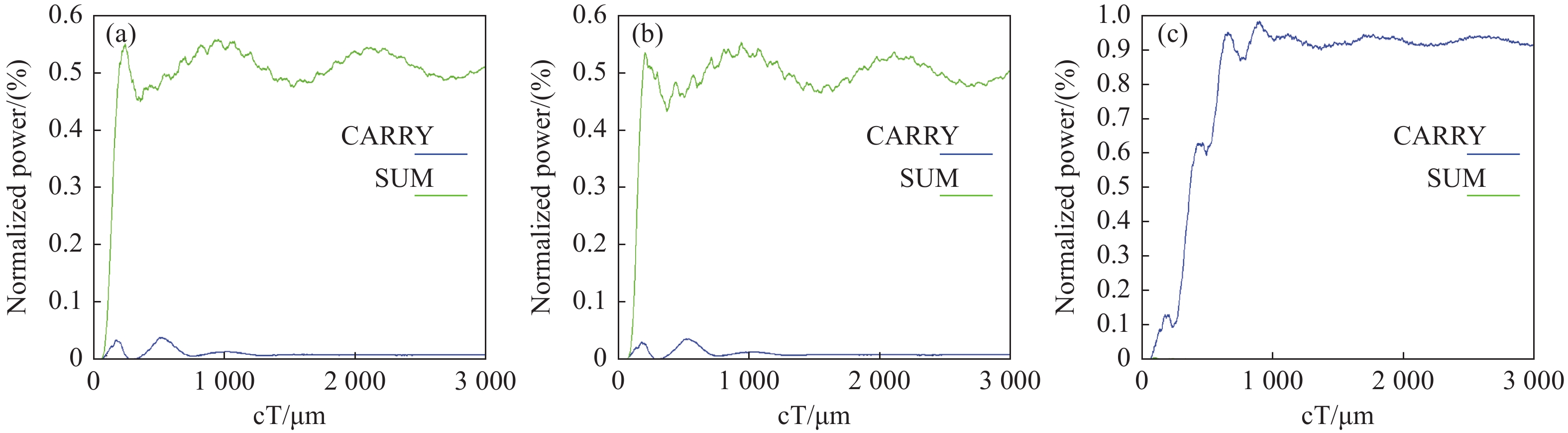

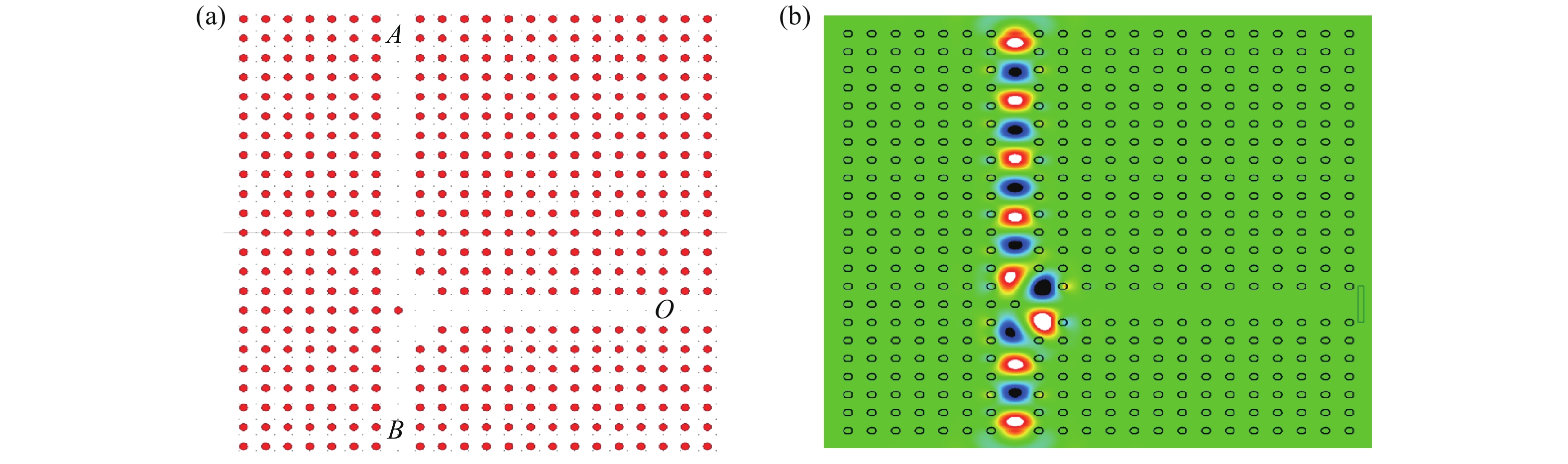

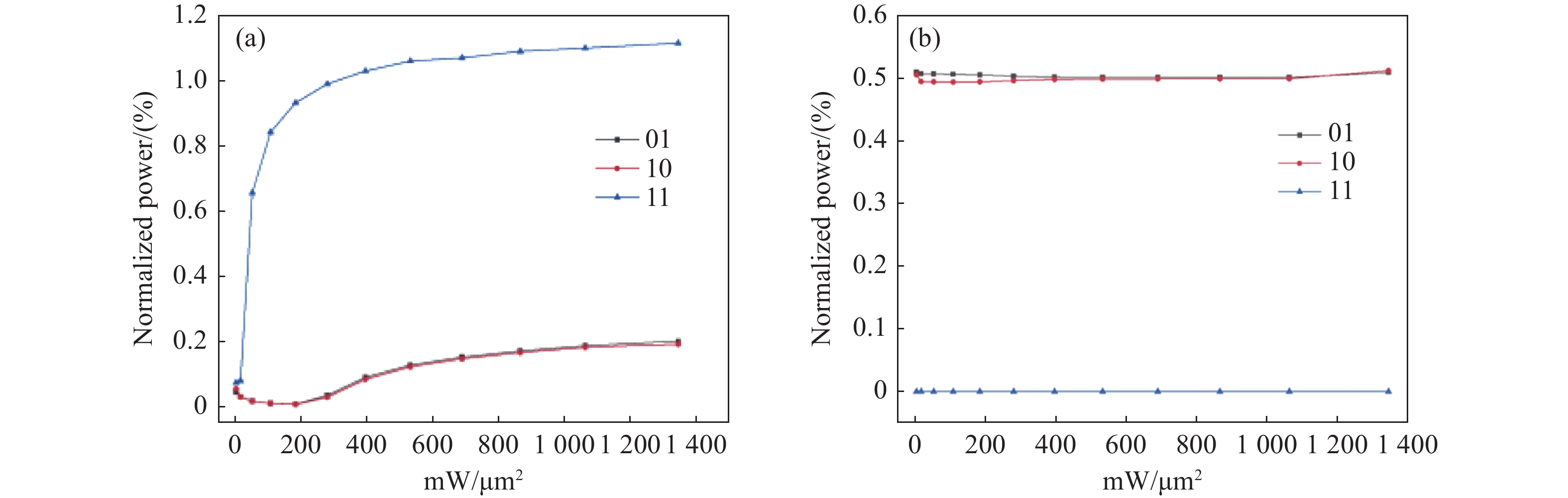

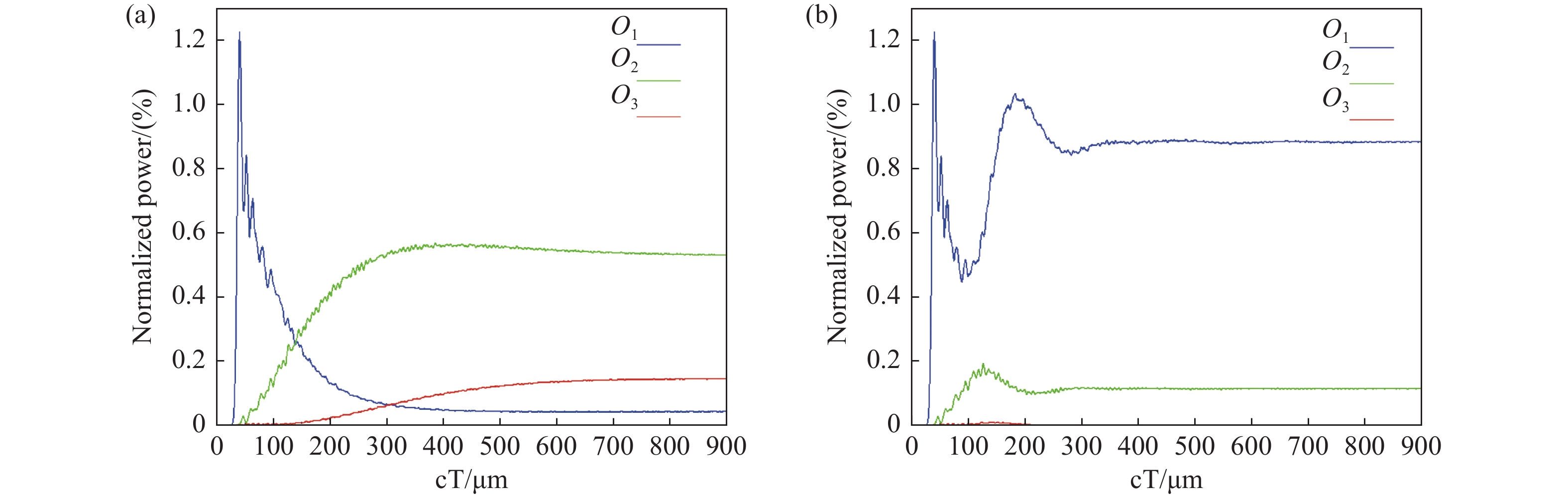

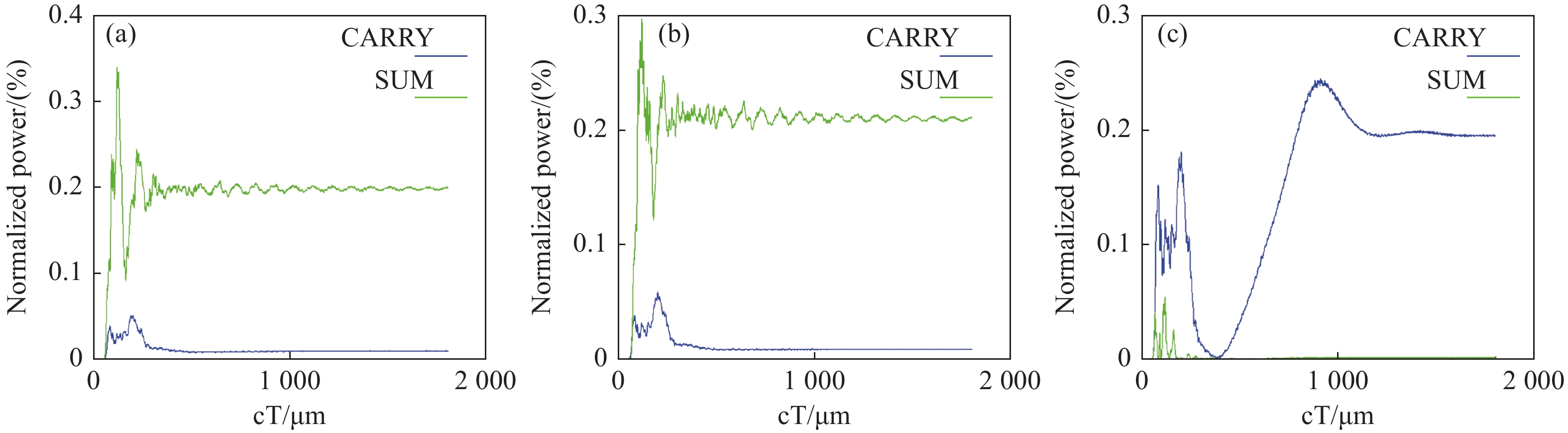

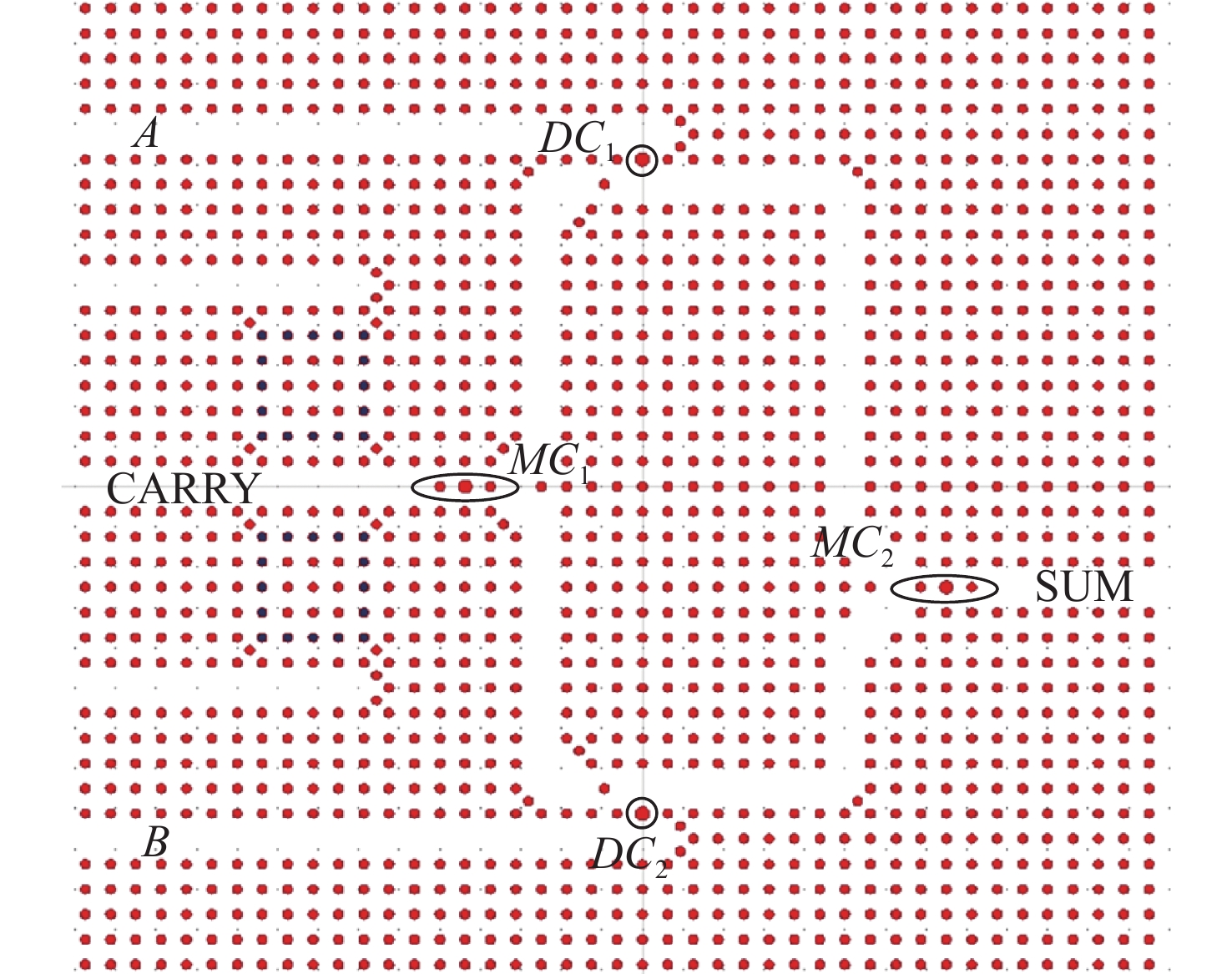

  • An all-optical half-adder is designed by combining the nonlinear effect and linear interference effect of photonic crystals. By dividing the light source into two parts equally, the half adder AND gate and XOR gate are designed separately. The nonlinear effect is used to realize the AND gate with high contrast, and the linear interference effect is used to realize the XOR logic, so that the overall response speed of the device is improved. In this design structure, the device only has threshold requirements for the signal light source power. When the signal power is greater than 51.4 mW/μm2, it has stable output and strong anti-interference ability. The designed contrast of the half adder carry output port is 20.69 dB, and the output port contrast is 20.13 dB. The data transfer rate is 0.75 Tbits/s and the occupied area is 623 μm2.
