基于数字相位恢复算法的正交相移键控自由空间相干光通信系统

管海军 刘云清 张凤晶

管海军, 刘云清, 张凤晶. 基于数字相位恢复算法的正交相移键控自由空间相干光通信系统[J]. 中国光学(中英文), 2019, 12(5): 1131-1138. doi: 10.3788/CO.20191205.1131
引用本文: 管海军, 刘云清, 张凤晶. 基于数字相位恢复算法的正交相移键控自由空间相干光通信系统[J]. 中国光学(中英文), 2019, 12(5): 1131-1138. doi: 10.3788/CO.20191205.1131
GUAN Hai-jun, LIU Yun-qing, ZHANG Feng-jing. Coherent free-space optical communication system with quadrature phase-shift keying modulation using a digital phase recovery algorithm[J]. Chinese Optics, 2019, 12(5): 1131-1138. doi: 10.3788/CO.20191205.1131
Citation: GUAN Hai-jun, LIU Yun-qing, ZHANG Feng-jing. Coherent free-space optical communication system with quadrature phase-shift keying modulation using a digital phase recovery algorithm[J]. Chinese Optics, 2019, 12(5): 1131-1138. doi: 10.3788/CO.20191205.1131

基于数字相位恢复算法的正交相移键控自由空间相干光通信系统

doi: 10.3788/CO.20191205.1131
基金项目:

国家自然科学基金 60505201

吉林省科技发展计划青年科研基金 20160520175JH

详细信息
    作者简介:

    管海军(1981-), 男, 吉林长春人, 吉林大学工学硕士, 长春理工大学博士研究生, 高级工程师, 主要从事近地激光通信大气湍流影响抑制技术方面的研究。E-mail:navy2.14@163.com

    刘云清(1970-), 男, 河南焦作人, 工学博士, 教授, 博士生导师, 主要从事智能信息处理与自动控制技术方面的研究。E-mail:mzlyq@cust.edu.cn

  • 中图分类号: TN929.1

Coherent free-space optical communication system with quadrature phase-shift keying modulation using a digital phase recovery algorithm

Funds:

National Natural Science Foundation of China 60505201

Jilin Youth Research Foundation for Science and Technology Development 20160520175JH

More Information
    Corresponding author: LIU Yun-qing
  • 摘要: 近年来,大气湍流所引起的信号相位扰动以及光强闪烁对自由空间相干光通信系统性能的影响逐渐成为研究人员关注的焦点。为了提高系统性能,本文对自由空间相干光通信系统进行了研究。在假设大气湍流所引入的光强闪烁以及相位抖动分别服从对数正态以及高斯分布的条件下,本文提出了基于数字相位恢复算法(CPR)的正交相移键控(QPSK)自由空间相干光通信系统,该系统采用了二阶联合的相位恢复算法结构。仿真结果表明:该结构可以极大地降低相位噪声对系统产生的影响,且其误符号率比只采用一阶M次方的相位恢复算法的系统低3个数量级。因此,该系统的提出对于自由空间光通信性能的提升有着较大意义。

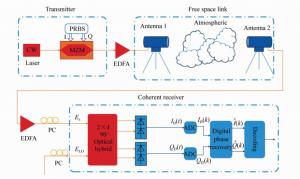

  • 图 1  系统结构模型

    Figure 1.  System structure model

    图 2  一阶M次方的相位恢复算法结构

    Figure 2.  Structure of the single-stage M-th power phase recovery algorithm

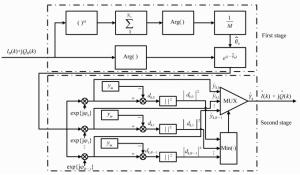

    图 3  二阶联合相位恢复算法结构

    Figure 3.  Structure of the two-stage joint phase recovery algorithm

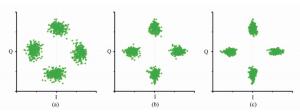

    图 4  激光器线宽为100kHz时的星座图.(a)相位校正前, (b)单阶相位校正, (c)双阶联合相位校正后

    Figure 4.  Normalized constellation diagram of QPSK signal with laser linewidth of 100 kHz for the transmitter and the local oscillator. (a)Before using carrier phase recovery algorithm, (b)after using single-stage carrier phase recovery algorithm, and (c)after using two-stage joint carrier phase recovery algorithm

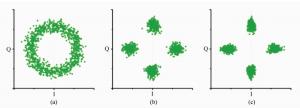

    图 5  激光器线宽为100 kHz,频偏为20 MHz时的星座图. (a)相位校正前, (b)单阶相位校正后, (c)双阶联合相位校正后

    Figure 5.  Normalized constellation diagram of QPSK signal with laser linewidth of 100 kHz and frequency offset of 20 MHz for the transmitter and the local oscillator. (a)Before using carrier phase recovery algorithm, (b)after using single-stage carrier phase recovery algorithm, and (c)after using two-stage joint carrier phase recovery algorithm

    图 6  双阶校正、单阶校正和无校正系统误符号率和激光器线宽的关系

    Figure 6.  SER versus linewidth for the two-stage, single-stage and without carrier phase recovery algorithm

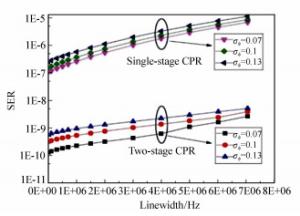

    图 7  不同湍流条件下双阶校正和单阶校正系统误符号率和激光器线宽的关系

    Figure 7.  SER versus linewidth which is measured with the two-stage and single-stage carrier phase recovery algorithm for σϕ=0.07, σϕ=0.1, σϕ=0.13

    表  1  仿真参数

    Table  1.   Simulation parameters

    参数设置 Value
    波长 1 550 nm
    接收口径D 5 cm
    折射率结构常数Cn2 1.5×10-15 m-2/3
    相干长度r0 24.5 cm
    传输距离L 1 000 m
    里托夫方差σR 0.17
    相位方差σϕ 0.07 rad
    下载: 导出CSV
  • [1] HOU L F, ZHANG L, KIM J. Energy modeling and power measurement for mobile robots[J]. Energies, 2019, 12(1):27.
    [2] 马爽, 吴志勇, 高世杰, 等.改进的大气激光通信PPM调制解调系统设计[J].哈尔滨工业大学学报, 2016, 48(5):105-109. http://d.old.wanfangdata.com.cn/Periodical/hebgydxxb201605018

    MA SH, WU ZH Y, GAO SH J, et al.. Design of modified atmospheric laser communication PPM modulation-demodulation system[J]. Journal of Harbin Institute of Technology, 2016, 48(5):105-109.(in Chinese) http://d.old.wanfangdata.com.cn/Periodical/hebgydxxb201605018
    [3] 宋少华, 仝召民.用于激光背光源电视的扫描分光与消散斑系统[J].光学 精密工程, 2019, 27(2):271-278. http://d.old.wanfangdata.com.cn/Periodical/gxjmgc201902001

    SONG SH H, TONG ZH M. Scanning beam splitting and speckle reduction system for laser backlight TV[J]. Opt. Precision Eng., 2019, 27(2):271-278.(in Chinese) http://d.old.wanfangdata.com.cn/Periodical/gxjmgc201902001
    [4] 吴伟辉, 杨永强, 毛桂生, 等.激光选区熔化自由制造异质材料零件[J].光学 精密工程, 2019, 27(3):517-526. http://d.old.wanfangdata.com.cn/Periodical/gxjmgc201903002

    WU W H, YANG Y Q, MAO G SH, et al.. Free manufacturing of heterogeneous materials part by selective laser melting[J]. Opt. Precision Eng., 2019, 27(3):517-526.(in Chinese) http://d.old.wanfangdata.com.cn/Periodical/gxjmgc201903002
    [5] LI X L, GENG T W, MA SH, et al.. Performance improvement of coherent free-space optical communication with quadrature phase-shift keying modulation using digital phase estimation[J]. Applied Optics, 2017, 56(16):4695-4701. doi: 10.1364/AO.56.004695
    [6] LI L, GENG T W, WANG Y, et al.. Free-space optical communication using coherent detection and double adaptive detection thresholds[J]. IEEE Photonics Journal, 2019, 11(1):7900217. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=e6275320c1ba777016b5b267317ce864
    [7] 涂焱阳, 吴志勇, 马爽, 等.阈值可变的高速光通信脉冲位置调制的帧同步[J].中国激光, 2017, 44(11):106008. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zgjg201711027

    TU Y Y, WU ZH Y, MA SH, et al.. Frame synchronization of pulse position modulation in high-speed optical communication with variable threshold[J]. Chinese Lasers, 2017, 44(11):106008.(in Chinese) http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zgjg201711027
    [8] LI Y T, GUO S A, GENG T W, et al.. Evaluation on the capacity and outage performance of the free space optical system impaired by timing jitters over an aggregate channel[J]. Optical Engineering, 2017, 56(7):076108. doi: 10.1117/1.OE.56.7.076108
    [9] 徐春凤, 倪小龙, 刘智.激光大气湍流传输中的光强闪烁特性[J].光学 精密工程, 2016, 24(10s):183-189. http://www.eope.net/gxjmgc/CN/abstract/abstract16628.shtml

    XU CH F, NI X L, LIU ZH. Scintillation in turbulent atmosphere laser communication[J]. Opt. Precision Eng., 2016, 24(10s):183-189.(in Chinese) http://www.eope.net/gxjmgc/CN/abstract/abstract16628.shtml
    [10] 谢伟良, 汤俊雄.基于Turbo码的大气无线光通信系统特性分析[J].中国激光, 2003, 30(9):835-838. doi: 10.3321/j.issn:0258-7025.2003.09.015

    XIE W L, TANG J X. Analysis on characterization of atmospheric optical wireless communication system based on turbo code[J]. Chinese Lasers, 2003, 30(9):835-838.(in Chinese) doi: 10.3321/j.issn:0258-7025.2003.09.015
    [11] 高宠, 马晶, 谭立英, 等.大气光通信中大气闪烁时间平滑效应研究[J].光学学报, 2006, 26(4):481-486. doi: 10.3321/j.issn:0253-2239.2006.04.001

    GAO CH, MA J, TAN L Y, et al.. Time-averaging effects for atmospheric scintillation in atmospheric optical communication[J]. Acta Optica Sinica, 2006, 26(4):481-486.(in Chinese) doi: 10.3321/j.issn:0253-2239.2006.04.001
    [12] 陈纯毅, 杨华民, 姜会林, 等.大气光通信中大气湍流影响抑制技术研究进展[J].兵工学报, 2009, 30(6):779-791. doi: 10.3321/j.issn:1000-1093.2009.06.022

    CHEN CH Y, YANG H M, JIANG H L, et al.. Research progress of mitigation technologies of turbulence effects in atmospheric optical communication[J]. Acta Armamentarii, 2009, 30(6):779-791.(in Chinese) doi: 10.3321/j.issn:1000-1093.2009.06.022
    [13] IP E, KAHN J M. feedforward carrier recovery for coherent optical communications[J]. Journal of Lightwave Technology, 2005, 23(9):2675-2692. https://www.osapublishing.org/jlt/abstract.cfm?uri=jlt-25-9-2675
    [14] LI X, CAO Y W, YU S, et al.. A simplified feedforward carrier recovery algorithm for coherent optical QAM system[J]. Journal of Lightwave Technology, 2011, 29(5):801-807. doi: 10.1109/JLT.2011.2106197
    [15] VITERBI A. Nonlinear estimation of PSK-modulated carrier phase with application to burst digital transmission[J]. IEEE Transactions on Information Theory, 1983, 29(4):543-551. https://ieeexplore.ieee.org/document/1056713
    [16] LI M, CVIJETIC M. Coherent free space optics communications over the maritime atmosphere with use of adaptive optics for beam wavefront correction[J]. Applide Optics, 2015, 54(6):1453-1462. doi: 10.1364/AO.54.001453
    [17] NOLL R J. Zernike polynomials and atmospheric turbulence[J]. Journal of the Optical Society of America, 1976, 66(3):207-211. doi: 10.1364/JOSA.66.000207
    [18] FRIED D L. Optical heterodyne detection of an atmospherically distorted signal wave front[J]. Proceedings of the IEEE, 1967, 55(1):57-77. doi: 10.1109/PROC.1967.5377
    [19] FRIED D L. Optical resolution through a randomly inhomogeneous medium for very long and very short exposures[J]. Journal of the Optical Society of America, 1966, 56(10):1372-1379. doi: 10.1364/JOSA.56.001372
    [20] FRIED D L. Optical heterodyne detection of an atmospherically distorted signal wave front[J]. Proceedings of the IEEE, 1967, 55(1):57-77. doi: 10.1109/PROC.1967.5377
    [21] BELMONTE A, KAHN J M. Capacity of coherent free-space optical links using diversity-combining techniques[J]. Optics Express, 2009, 17(15):12601-12611. doi: 10.1364/OE.17.012601
    [22] LY-GAGNON D S, TSUKAMOTO S, KATOH K, et al. Coherent detection of optical quadrature phase-shift keying signals with carrier phase estimation[J]. Journal of Lightwave Technology, 2006, 24(1):12-21. doi: 10.1109/JLT.2005.860477
