High-performance photodetectors based on zero-dimensional lead-free perovskite thin films
-
摘要:
本文利用MACl后处理的方法来改善反溶剂获得的MA3Sb2I9钙钛矿薄膜的质量，促使MACl与钙钛矿薄膜之间出现Cl-Sb键相互作用，钝化了MA3Sb2I9薄膜表面的I−空位及晶界缺陷。该处理不仅能够有效改善薄膜的表面形貌和结晶性，而且降低了薄膜表面缺陷态密度，提高了载流子提取和传输效率。基于优化薄膜制备的自供电光电探测器件的灵敏度由3.89 × 107 Jones提升至5.72 × 108 Jones，提升了一个数量级；上升/下降时间也由37/76 ms降低到31/37 ms，器件的响应速度也得到了提升。
Abstract:In this study, we employ a MACl post-treatment to enhance the quality of MA3Sb2I9 perovskite thin films fabricated through antisolvent processing. This treatment facilitated the formation of Cl-Sb bond interactions between MACl and the perovskite thin films, effectively passivating the I− vacancies and grain boundary defects on the MA3Sb2I9 thin-film surface. This process not only improve the surface morphology and crystallinity of the thin film but also reduced the defect states density of the surface, thereby enhancing the efficiency of carrier extraction and transport. Consequently, the sensitivity of self-powered photodetectors based on the optimized thin-film preparation increased from 3.89 × 107 Jones to 5.72 × 108 Jones, representing an improvement by one order of magnitude. Furthermore, the rise and fall times were shortened from 37/76 ms to 31/37 ms, respectively, indicating an enhancement in the response speed of the devices.
-
Key words:
- perovskite /
- zero-dimensional /
- lead-free /
- self-powered /
- photodetectors
-

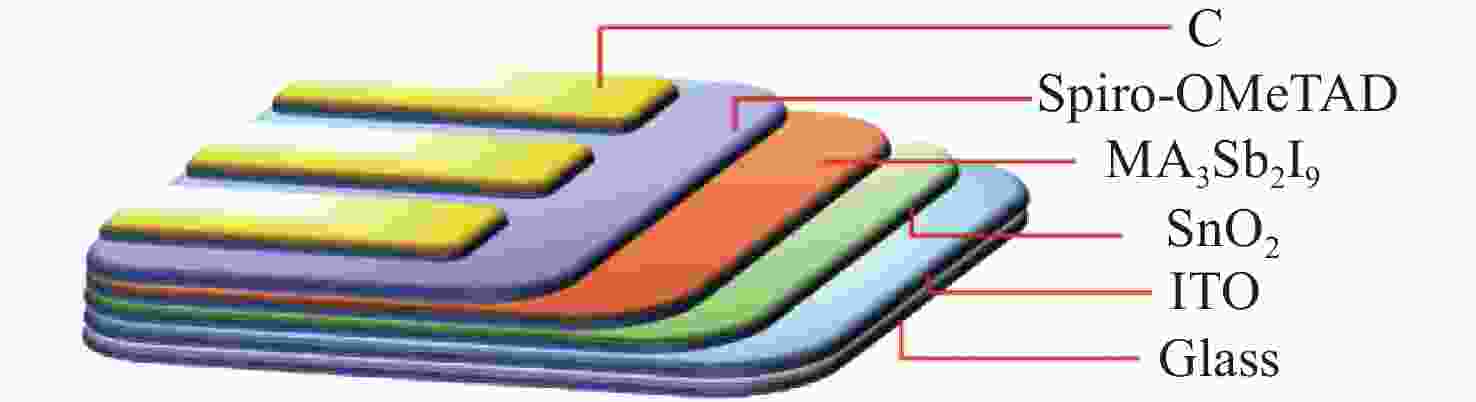

图 1 MA3Sb2I9钙钛矿光电探测器的器件结构示意图
Figure 1. Schematic diagram of the device structure of MA3Sb2I9 perovskite photodetector

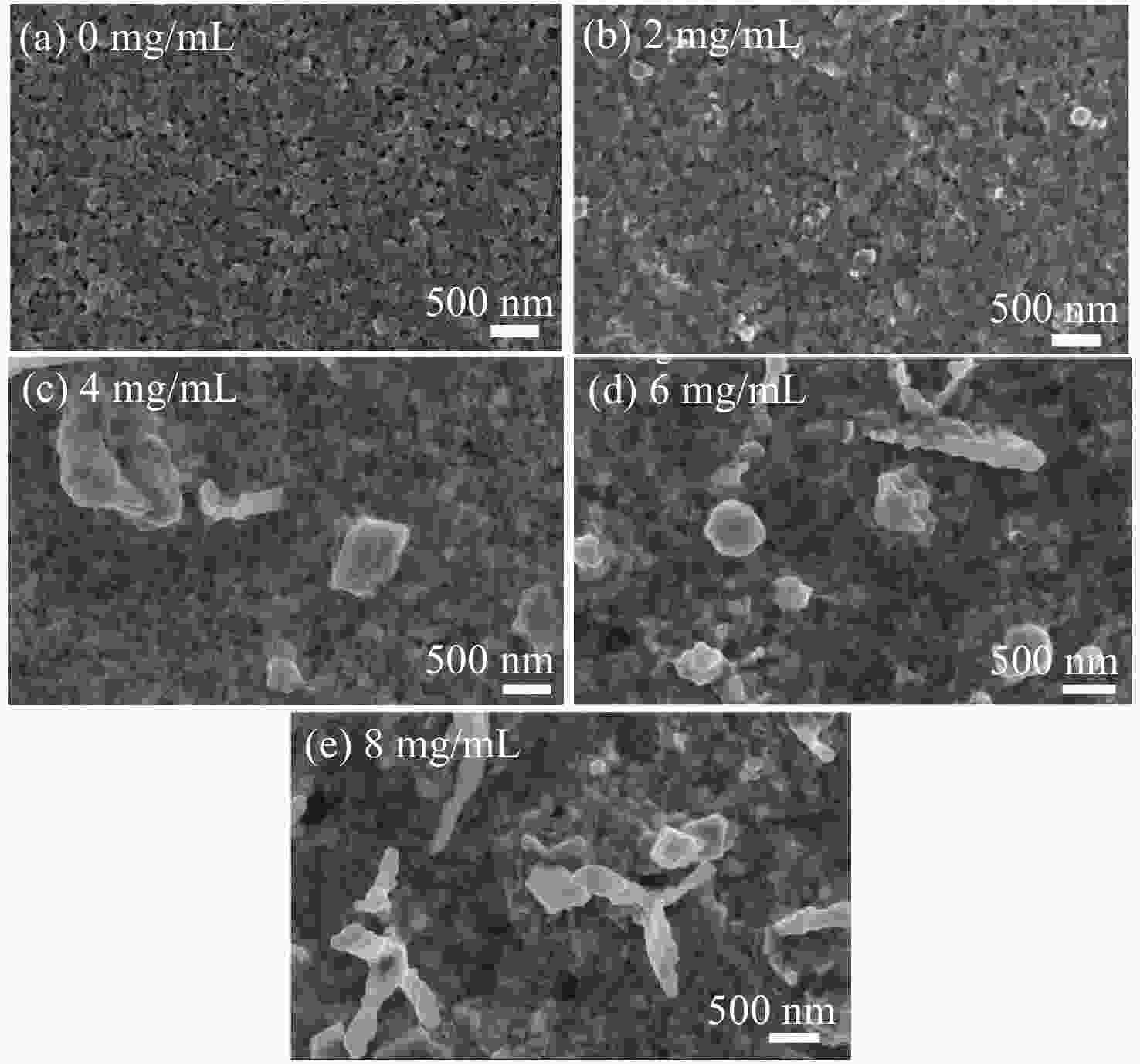

图 2 不同浓度的 MACl溶液处理后的MA3Sb2I9钙钛矿薄膜的SEM图
Figure 2. SEM images of MA3Sb2I9 perovskite thin films treated by MACl solution with different concentrations

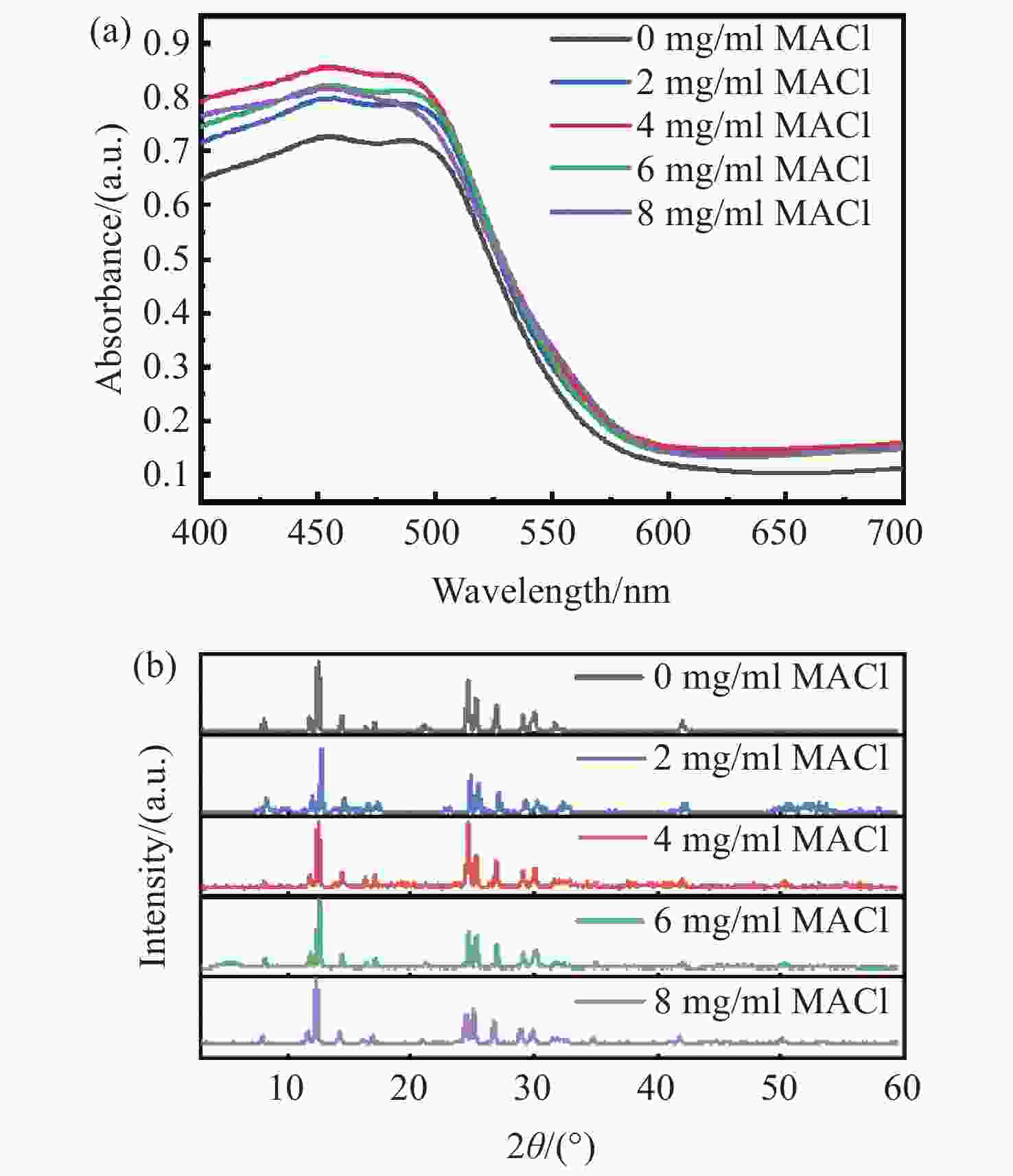

图 3 MACl处理前后的MA3Sb2I9钙钛矿薄膜的（a）UV-vis光谱及（b）XRD图
Figure 3. (a) UV-vis spectra and (b) XRD patterns of the MA3Sb2I9 perovskite thin films before and after the MACl treatment

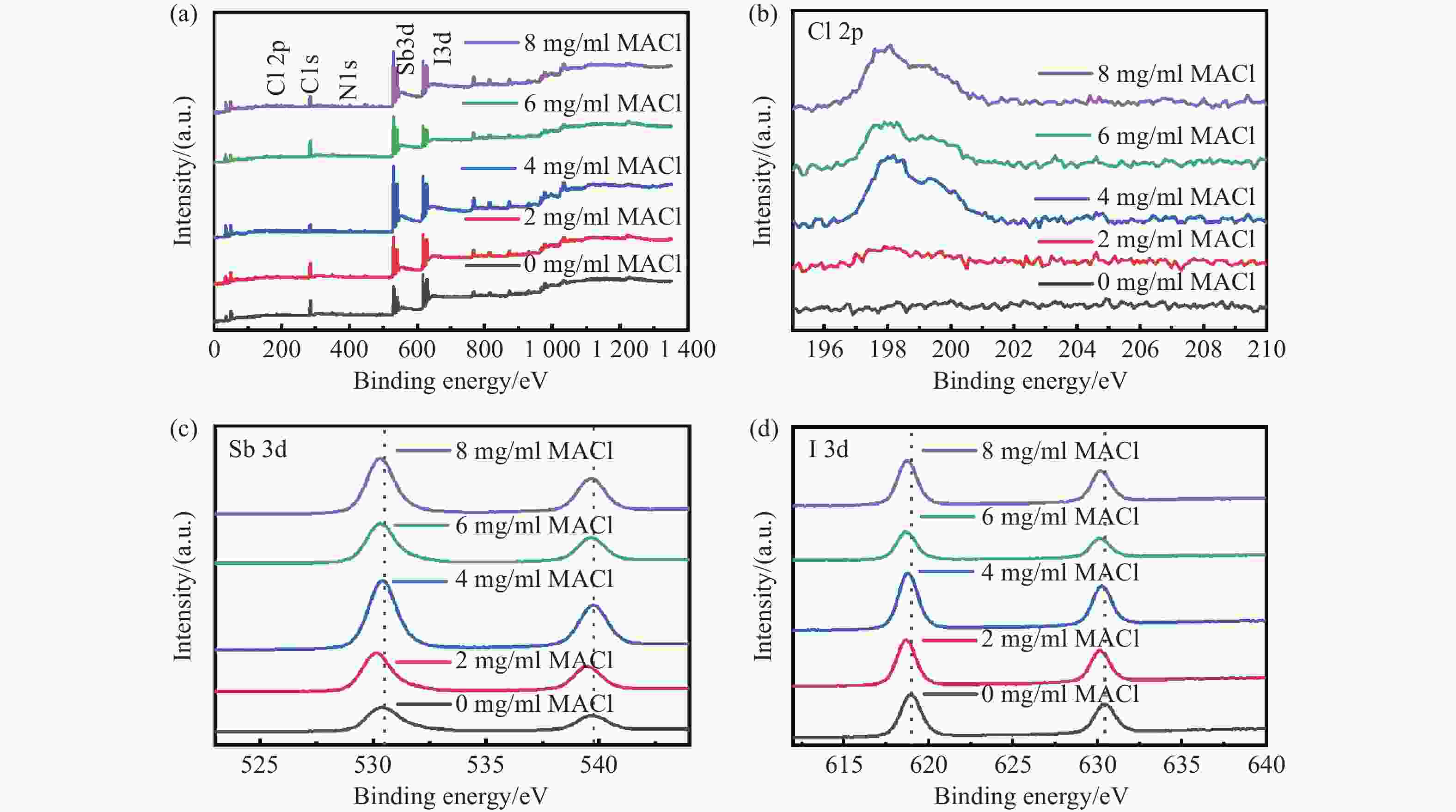

图 4 不同浓度MACl处理前后的钙钛矿薄膜（a）XPS全谱及高分辨率的（b）Cl 2p（c）Sb 3d（d）I 3d图谱
Figure 4. (a) XPS measurement full spectrum, high-resolution spectrum of (b) Cl 2p (c) Sb 3d (d) I 3d of perovskite thin films before and after MACl treatment with different concentrations

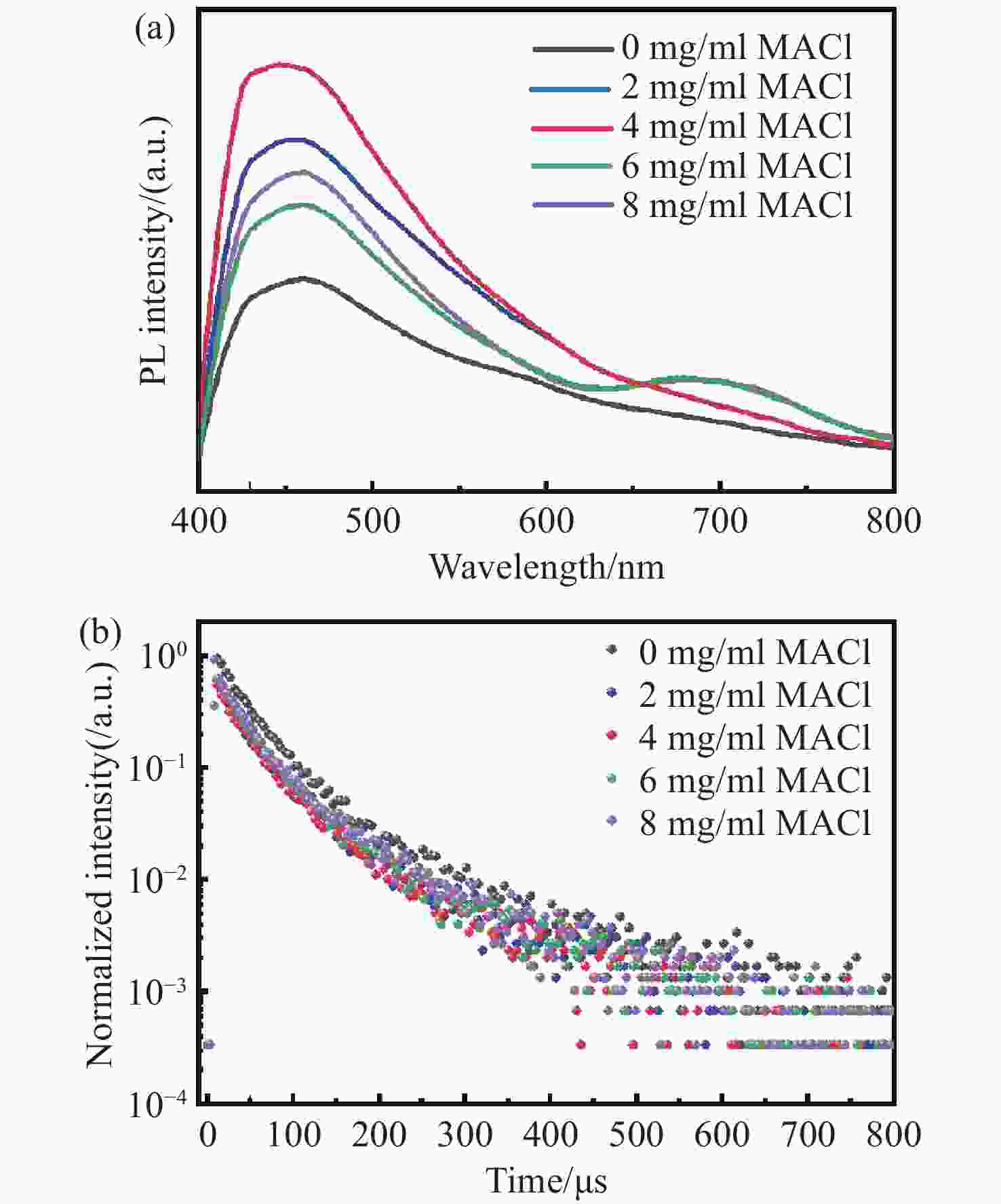

图 5 不同浓度MACl处理前后的MA3Sb2I9钙钛矿薄膜的（a）PL谱（b）TRPL谱
Figure 5. (a) Steady-state PL, (b) TRPL spectrum of MA3Sb2I9 perovskite thin films before and after MACl treatment with different concentrations

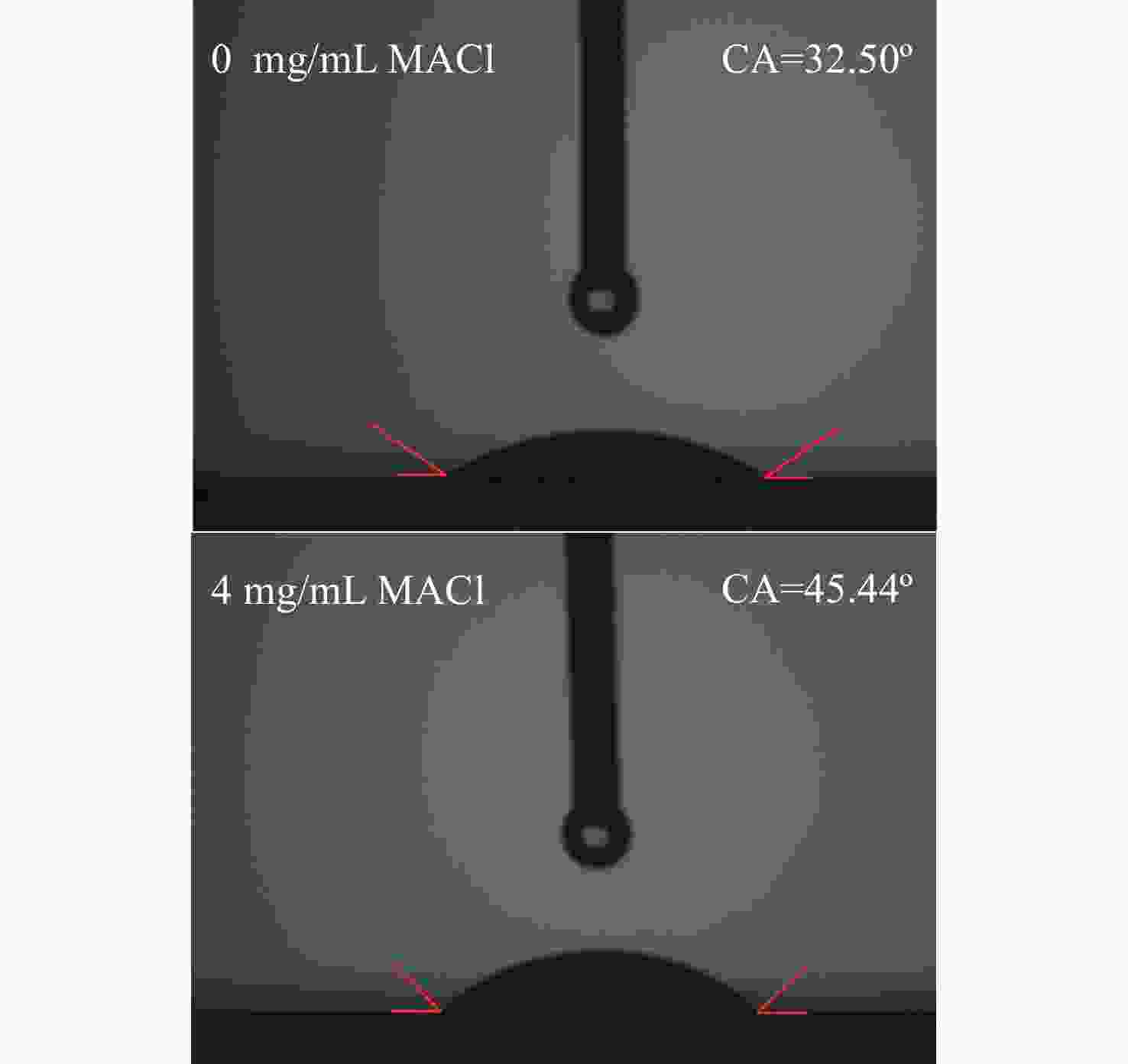

图 6 MACl处理前后MA3Sb2I9钙钛矿薄膜的水接触角图
Figure 6. Water contact angle of MA3Sb2I9 perovskite thin films before and after MACl treatment

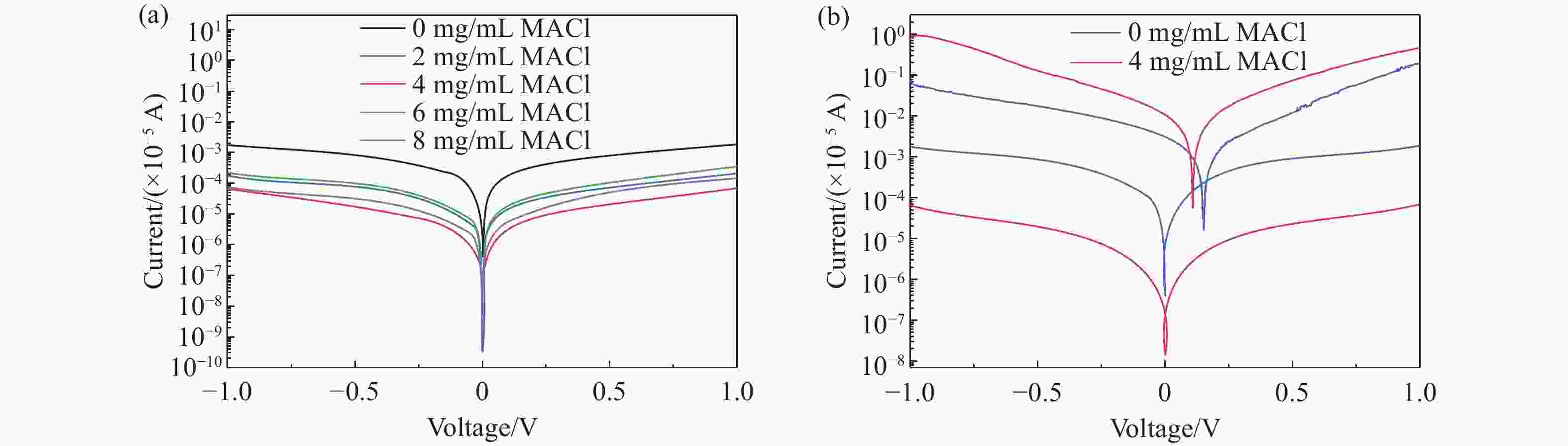

图 7 MA3Sb2I9钙钛矿光电探测器处理结果。（a）经不同浓度MACl后处理的暗态I-V曲线，（b）未处理和最优条件下的光、暗态I-V曲线
Figure 7. (a) Dark-state I-V curves of MA3Sb2I9 perovskite photodetectors treated with MACl of different concentrations, (b) light and dark-state I-V curves of under untreated and optimal conditions
图 8 MA3Sb2I9钙钛矿光电探测器的（a）Jsc统计图，（b）EQE，（c）R，（d）D*
Figure 8. (a) Jsc distribution, (b) R, (c) EQE, (d) D* of the MA3Sb2I9 perovskite photodetector
-
[1] 翟彤彤, 李云辉, 朱建伟, 等. 卤化物钙钛矿纳米晶的电化学发光研究进展[J]. 分析化学,2023,51(5):642-651.ZHAI T-T, LI Y-H, ZHU J-W, et al. Progress in electrochemiluminescence of halide perovskites nanocrystals[J]. Chinese Journal of Analytical Chemistry, 2023, 51(5): 642-651. (in Chinese). [2] 张伟. 钙钛矿材料在新能源发展中的经济效益分析[J]. 应用化学,2024,41(9):1379-1380. doi: 10.37188/CO.2023-0044ZHANG W. Economic Benefit Analysis of Perovskite Materials in the Development of New Energy[J]. Chinese Journal of Applied Chemistry, 2024, 41(9): 1379-1380. (in Chinese). doi: 10.37188/CO.2023-0044 [3] 张博文, 韩丹, 薛梦芸, 等. CsPbBr3纳米晶电子辐照效应研究[J]. 中国光学(中英文),2024,17(1):178-186.ZHANG B-W, HAN D, XUE M-Y, et al. Effect of electron irradiation on CsPbBr3 perovskite nanocrystal[J]. Chinese Optics, 2024, 17(1): 178-186. (in Chinese). [4] SUN J, DING L M. Linearly polarization-sensitive perovskite photodetectors[J]. Nano-Micro Letters, 2023, 15(1): 90. doi: 10.1007/s40820-023-01048-y [5] 张润, 战宏梅, 赵晨阳, 等. 含氟膦氧衍生物修饰的纯蓝光钙钛矿发光二极管[J]. 应用化学,2024,41(6):830-838.ZHANG R, ZHAN H M, ZHAO C Y, et al. Pure blue perovskite light-emitting diodes modified with fluorine-containing phosphine oxide derivatives[J]. Chinese Journal of Applied Chemistry, 2024, 41(6): 830-838. (in Chinese). [6] QIU X C, XIA J N, LIU Y, et al. Ambient-stable 2D Dion-Jacobson phase tin halide perovskite field-effect transistors with mobility over 1.6 Cm2 V-1s-1[J]. Advanced Materials, 2023, 35(44): 2305648. doi: 10.1002/adma.202305648 [7] TURREN-CRUZ S H, SALIBA M, MAYER M T, et al. Enhanced charge carrier mobility and lifetime suppress hysteresis and improve efficiency in planar perovskite solar cells[J]. Energy & Environmental Science, 2018, 11(1): 78-86. [8] CHEN Y, LUO G, XU L, et al. Ligand-free Cs2PdBr6 perovskite microcrystals with narrow bandgap and high photoelectrochemical performance in aqueous solution[J]. Advanced Sensor and Energy Materials, 2024, 3(3): 100116. [9] ZHAO H, WANG SH R, SUN M N, et al. Enhanced stability and optoelectronic properties of MAPbI3 films by a cationic surface-active agent for perovskite solar cells[J]. Journal of Materials Chemistry A, 2018, 6(23): 10825-10834. doi: 10.1039/C8TA00457A [10] HE J, SU J, DI J Y, et al. Surface reconstruction strategy improves the all-inorganic CsPbIBr2 based perovskite solar cells and photodetectors performance[J]. Nano Energy, 2022, 94: 106960. doi: 10.1016/j.nanoen.2022.106960 [11] 冯晓娜, 李丹, 梁春军. 有机卤化物盐对钙钛矿太阳电池器件性能的影响[J]. 半导体光电,2020,41(5):644-647.FENG X N, LI D, LIANG CH J. Effects of organic halide salt on the performance of perovskite solar cells[J]. Semiconductor Optoelectronics, 2020, 41(5): 644-647. (in Chinese). [12] LIN H R, ZHOU CH K, TIAN Y, et al. Low-dimensional organometal halide perovskites[J]. ACS Energy Letters, 2018, 3(1): 54-62. doi: 10.1021/acsenergylett.7b00926 [13] ZHANG Y, LI CH Y, ZHAO H Y, et al. Synchronized crystallization in tin-lead perovskite solar cells[J]. Nature Communications, 2024, 15(1): 6887. doi: 10.1038/s41467-024-51361-2 [14] SLAVNEY A H, HU T, LINDENBERG A M, et al. A bismuth-halide double perovskite with long carrier recombination lifetime for photovoltaic applications[J]. Journal of the American Chemical Society, 2016, 138(7): 2138-2141. doi: 10.1021/jacs.5b13294 [15] YANG B, LI Y J, TANG Y X, et al. Constructing sensitive and fast lead-free single-crystalline perovskite photodetectors[J]. The Journal of Physical Chemistry Letters, 2018, 9(11): 3087-3092. doi: 10.1021/acs.jpclett.8b01116 [16] HAO F, STOUMPOS C C, CAO D H, et al. Lead-free solid-state organic-inorganic halide perovskite solar cells[J]. Nature Photonics, 2014, 8(6): 489-494. doi: 10.1038/nphoton.2014.82 [17] NOEL N K, STRANKS S D, ABATE A, et al. Lead-free organic-inorganic tin halide perovskites for photovoltaic applications[J]. Energy & Environmental Science, 2014, 7(9): 3061-3068. [18] KIM M, KIM G H, LEE T K, et al. Methylammonium chloride induces intermediate phase stabilization for efficient perovskite solar cells[J]. Joule, 2019, 3(9): 2179-2192. doi: 10.1016/j.joule.2019.06.014 [19] LIANG Q J, LIU J G, CHENG ZH K, et al. Enhancing the crystallization and optimizing the orientation of perovskite films via controlling nucleation dynamics[J]. Journal of Materials Chemistry A, 2016, 4(1): 223-232. doi: 10.1039/C5TA08015K [20] MATEEN M, ARAIN Z, YANG Y, et al. MACl-induced intermediate engineering for high-performance mixed-cation perovskite solar cells[J]. ACS Applied Materials & Interfaces, 2020, 12(9): 10535-10543. [21] ZHU W D, DENG M Y, ZHANG Z Y, et al. Intermediate phase halide exchange strategy toward a high-quality, thick CsPbBr3 film for optoelectronic applications[J]. ACS Applied Materials & Interfaces, 2019, 11(25): 22543-22549. -
