Dispersion-scan characterization of partially coherent ultrashort pulses: a differential evolution algorithm analysis
doi: 10.37188/CO.EN-2026-0001
-
摘要:
目的：为了从色散扫描轨迹中恢复脉冲信息，本文采用了一种差分进化算法。方法：生成一个部分相干脉冲序列，并使用传统差分进化算法及其改进版本进行测试。结果：传统差分进化算法和改进差分进化算法的恢复误差分别为7%和1%。结论：改进算法能够更准确地恢复部分相干脉冲序列的色散扫描轨迹。
Abstract:Objective: To retrieve the pulse information from the dispersion scanning (d-scan) trace, a differential evolution (DE) algorithm is used. Methods: A partially coherent pulse train is generated and then test by traditional DE algorithm and its improved version. Results: The errors retrieved using the traditional and improved DE algorithms are 7% and 1%, respectively. Conclusion: The improved algorithm can more accurately retrieve the d-scan trace of partially coherent pulse train.
-
Figure 1. Partially coherent pulse trains generated with initial spectral FWHM of (a) 30 THz, (b) 60 THz, and (c) 100 THz. Gray curves:
6000 randomly generated pulses. Dashed lines: averaged spectral intensity (blue: 30 THz, violet: 60 THz, magenta: 100 THz). (d) Interpulse coherence for 30 THz (blue solid), 60 THz (violet dashed), and 100 THz (magenta dotted).

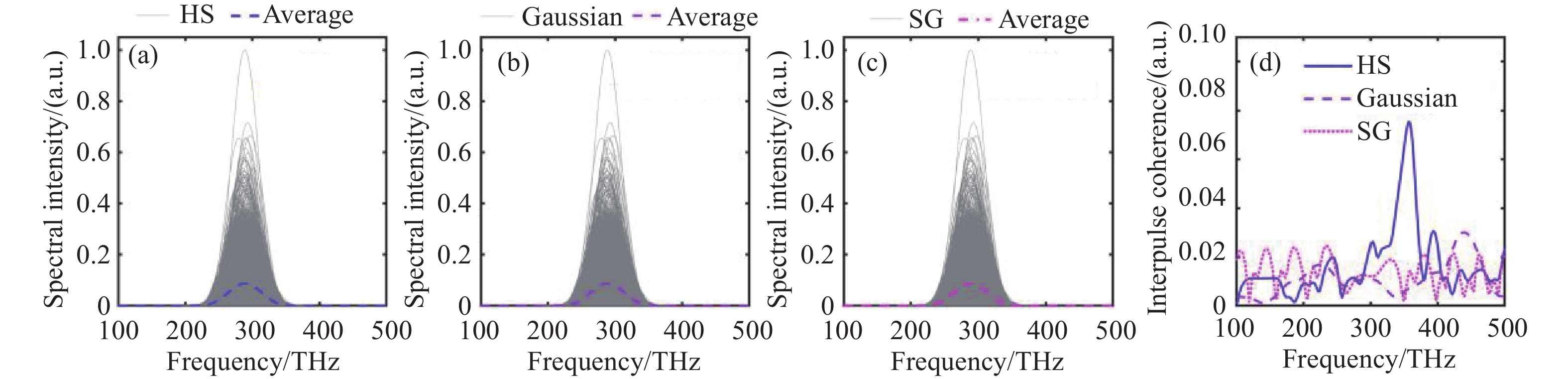

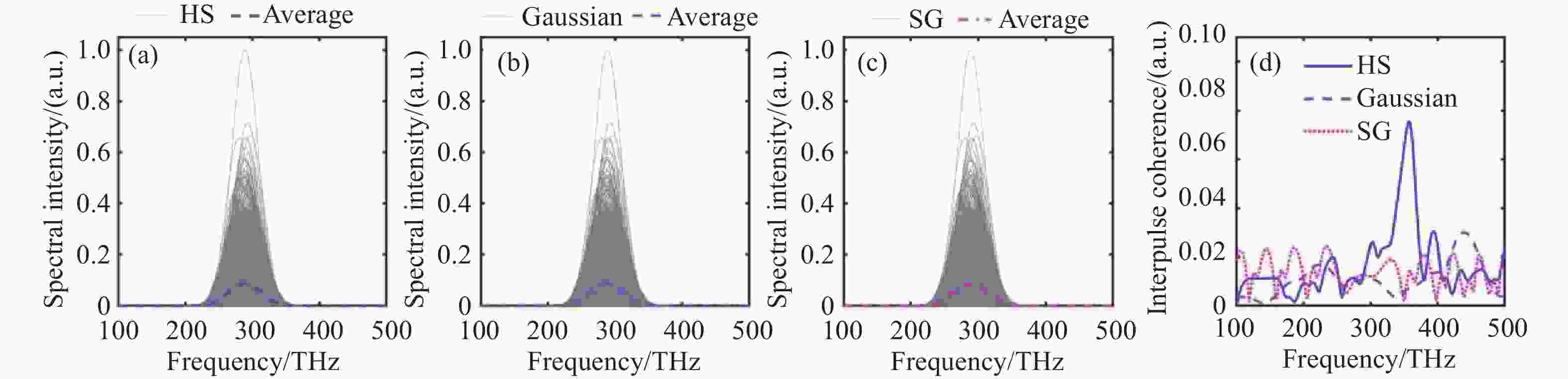

Figure 2. Partially coherent pulse trains generated with initial spectral shapes: (a) HS, (b) Gaussian, (c) SG. Gray curves:
6000 randomly generated pulses. Dashed lines: averaged spectral intensity (blue: HS, violet: Gaussian, magenta: SG). (d) Interpulse coherence for HS (blue solid), Gaussian (violet dashed), and SG (magenta dotted).

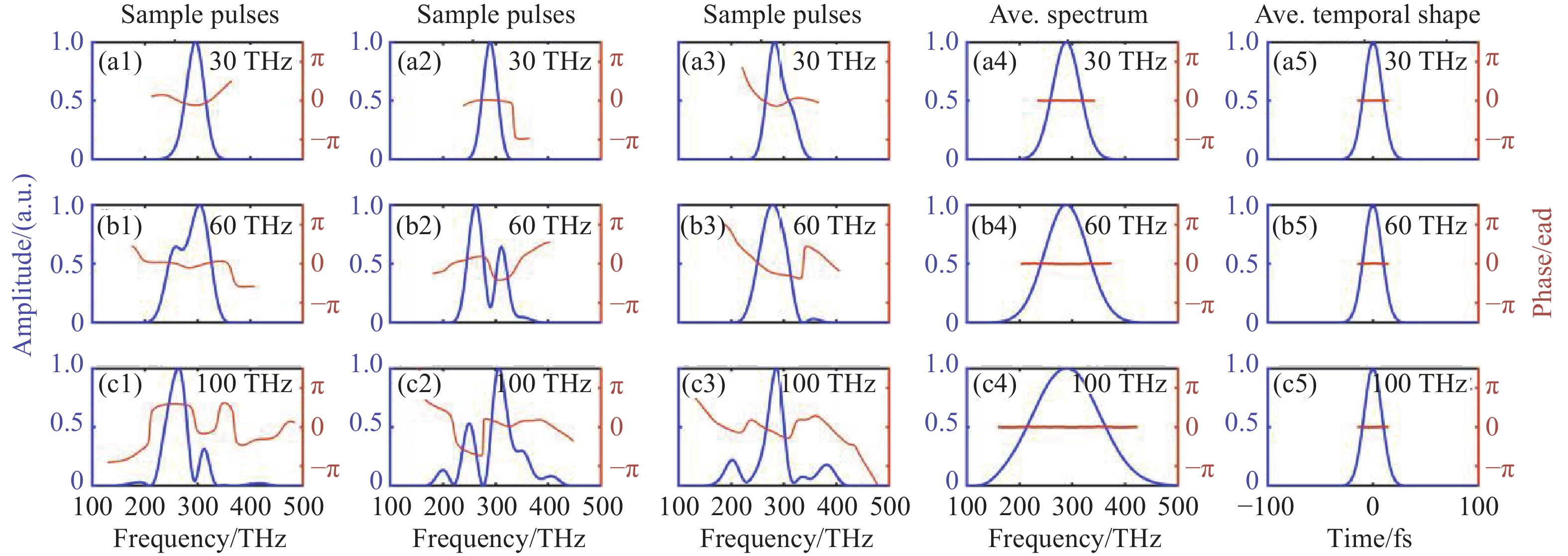

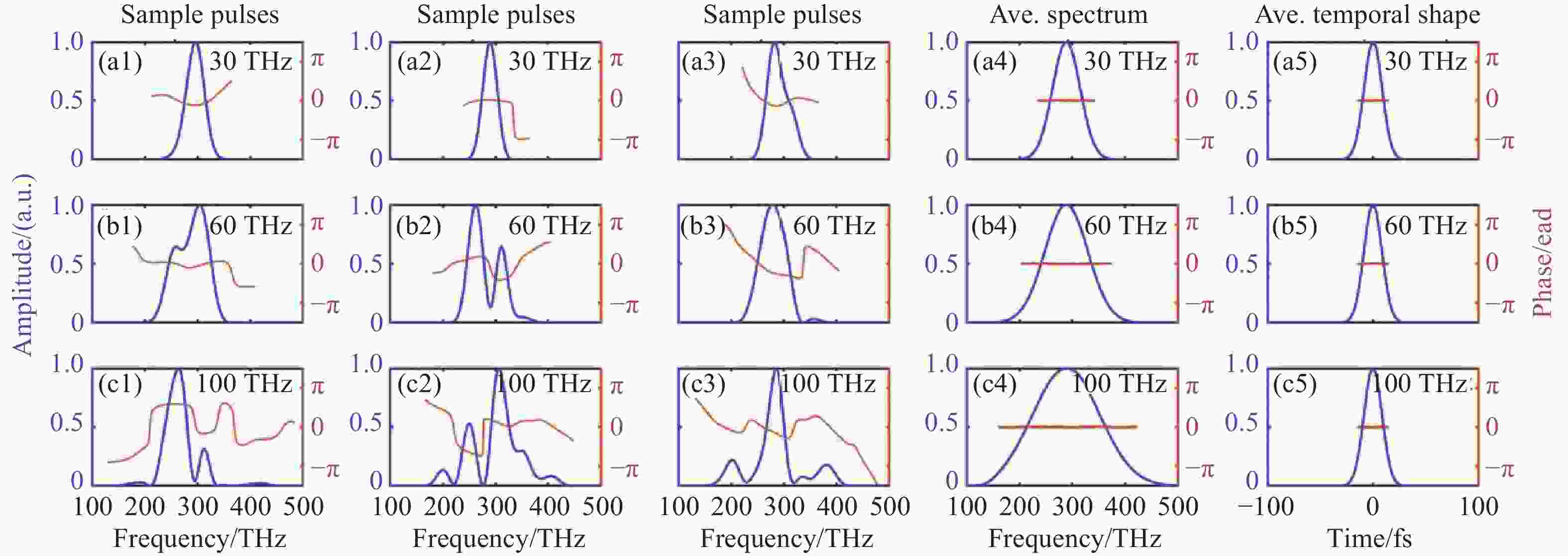

Figure 3. Sample pulses for initial spectral width of (a1−a3) 30 THz, (b1−b3) 60 THz, and (c1−c3) 100 THz. (a4, b4, c4) Ensemble-averaged spectra; (a5, b5, c5) ensemble-averaged temporal shapes over
6000 pulses.

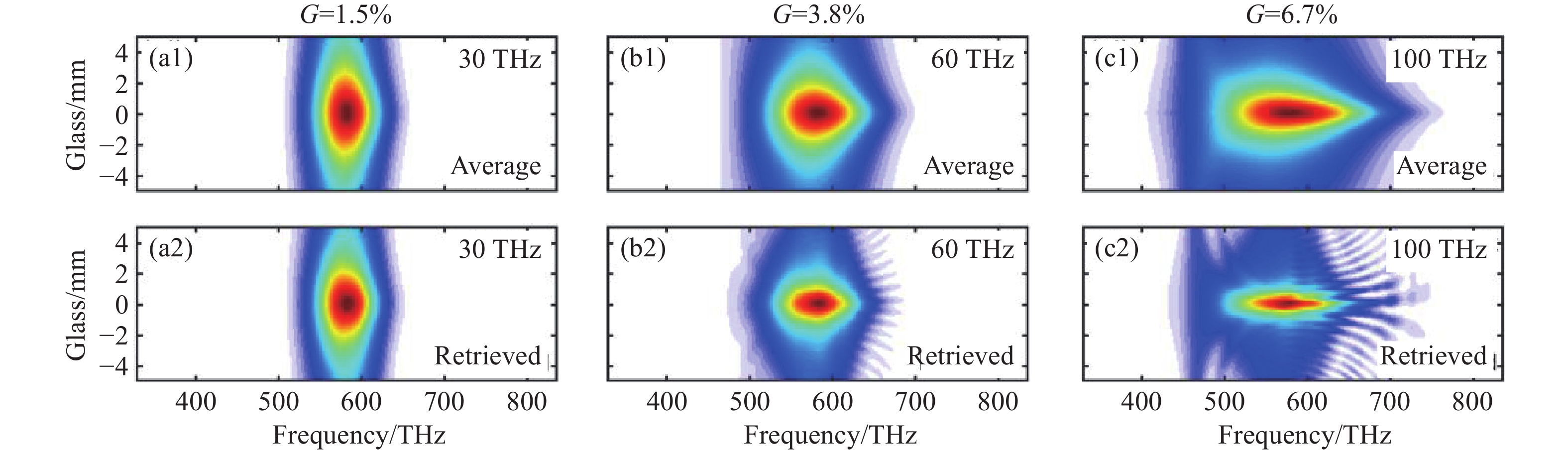

Figure 4. (a1, b1, c1) Average d-scan traces for 30 THz, 60 THz, and 100 THz. (a2, b2, c2) Corresponding traces retrieved with traditional DE.

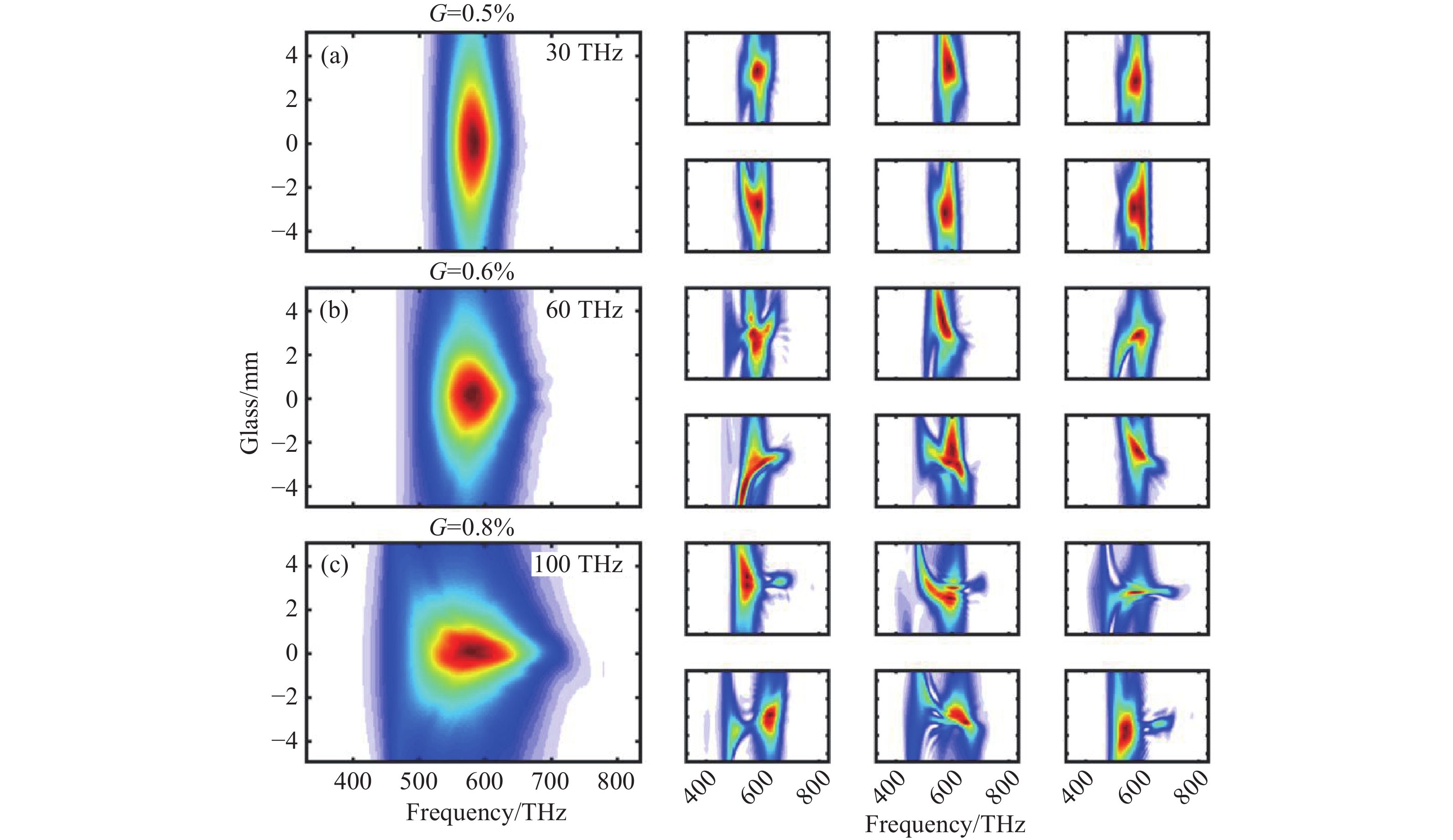

Figure 5. Retrieved d-scan traces for (a) 30 THz, (b) 60 THz, and (c) 100 THz. Six representative subset traces are shown to the right of each panel.

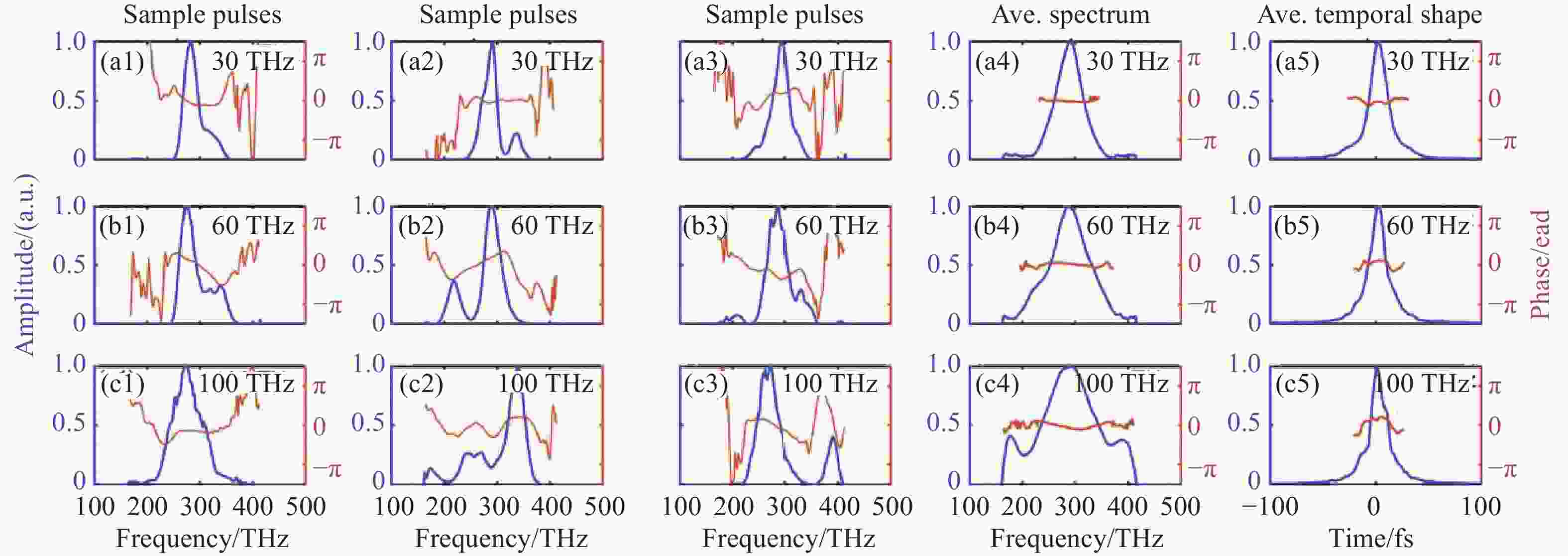

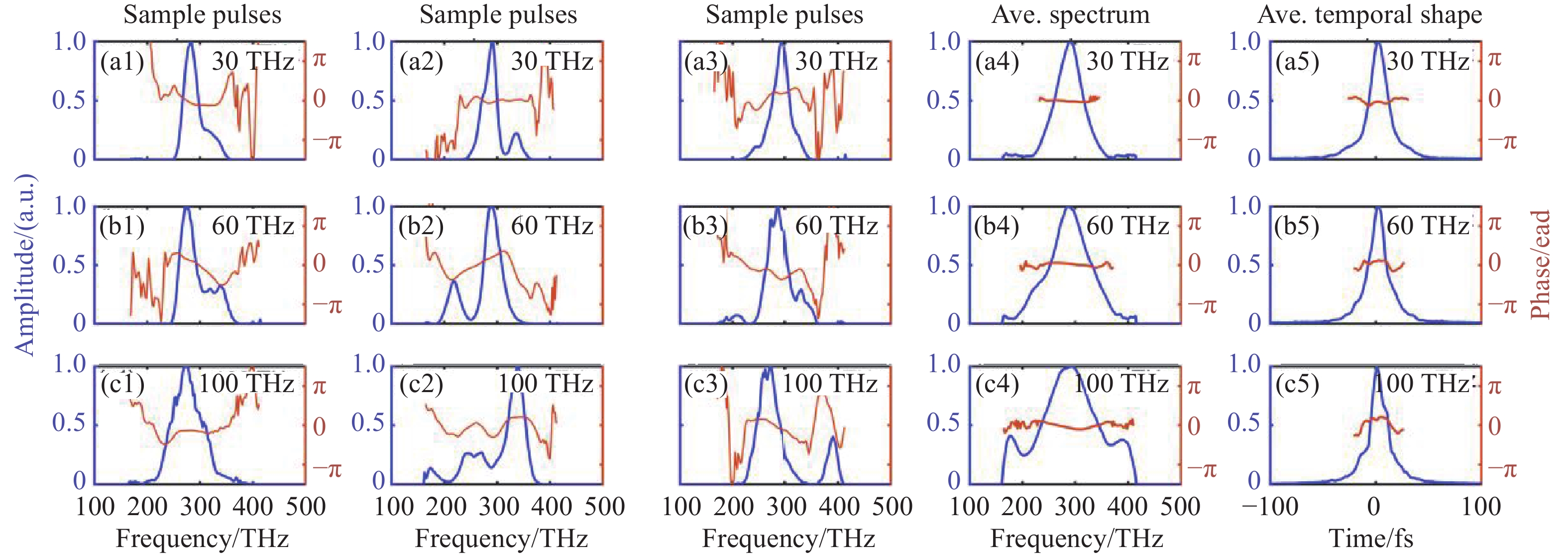

Figure 6. Retrieved results for initial spectral width of (a1−a5) 30 THz, (b1−b5) 60 THz, and (c1−c5) 100 THz. (a1−a3, b1−b3, c1−c3) Random sample pulses; (a4, b4, c4) retrieved average spectrum and phase; (a5, b5, c5) retrieved average temporal shape and phase.

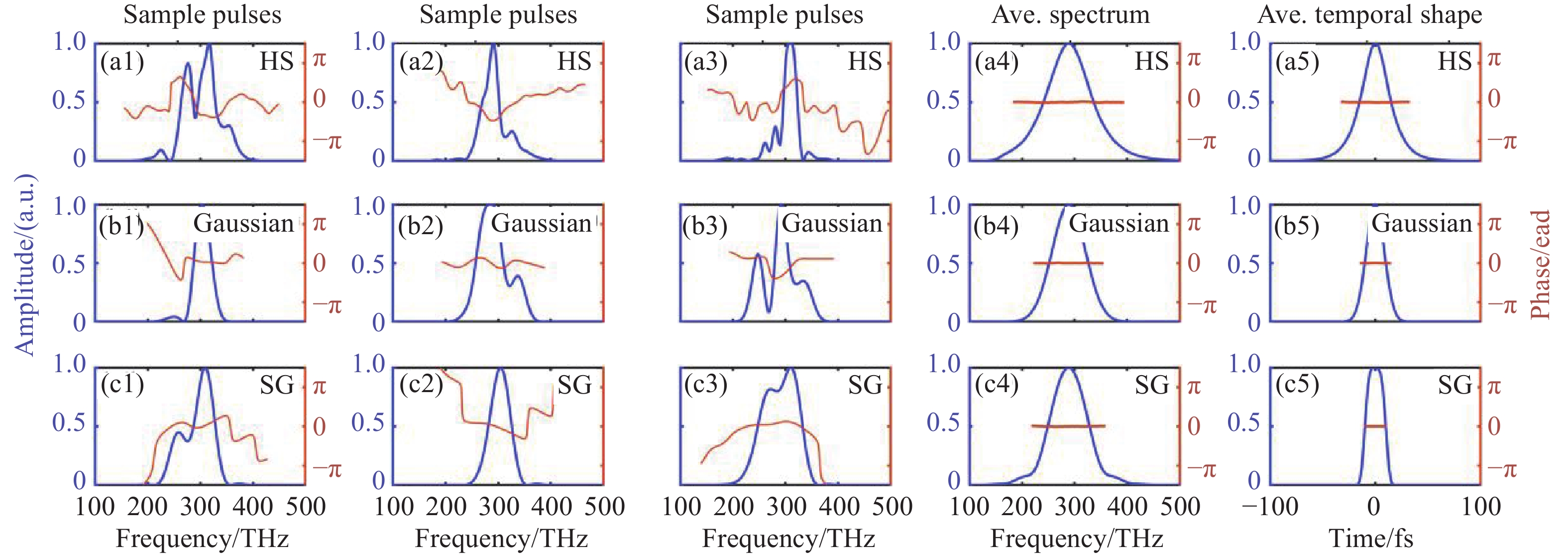

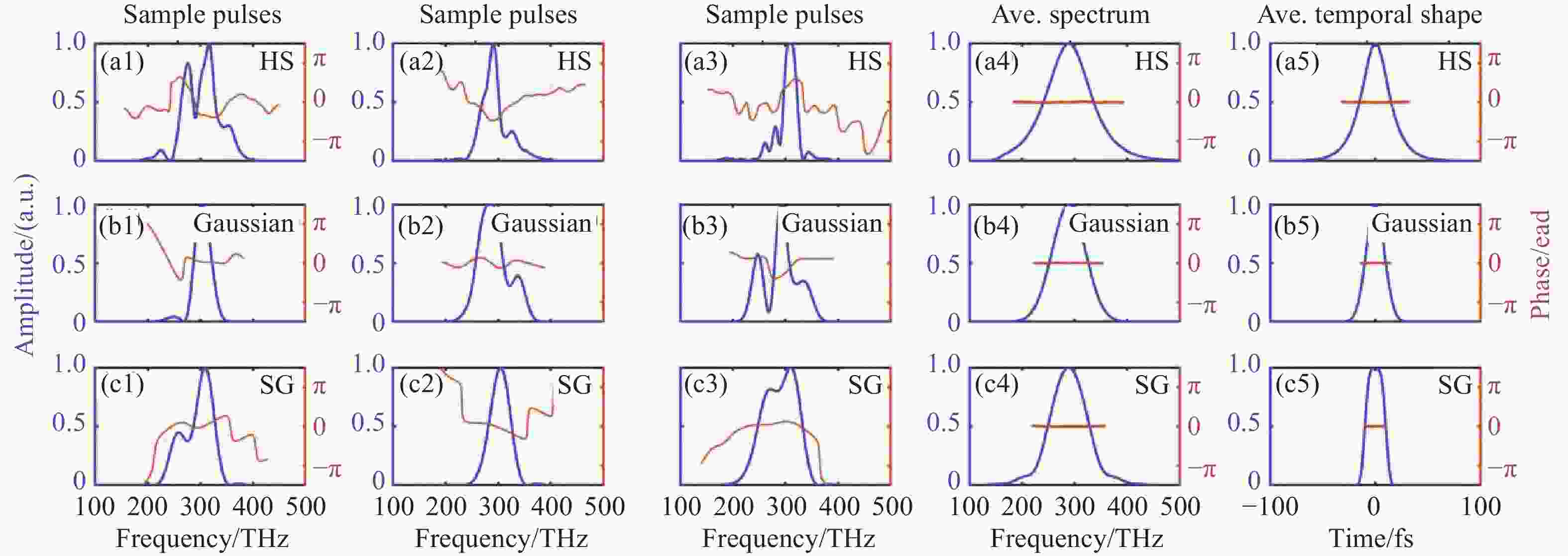

Figure 7. Sample pulses for initial spectral shape and phase of (a1−a3) HS, (b1−b3) Gaussian, and (c1−c3) SG. (a4, b4, c4) Ensemble-averaged spectra and phase; (a5, b5, c5) ensemble-averaged temporal shapes and phase.

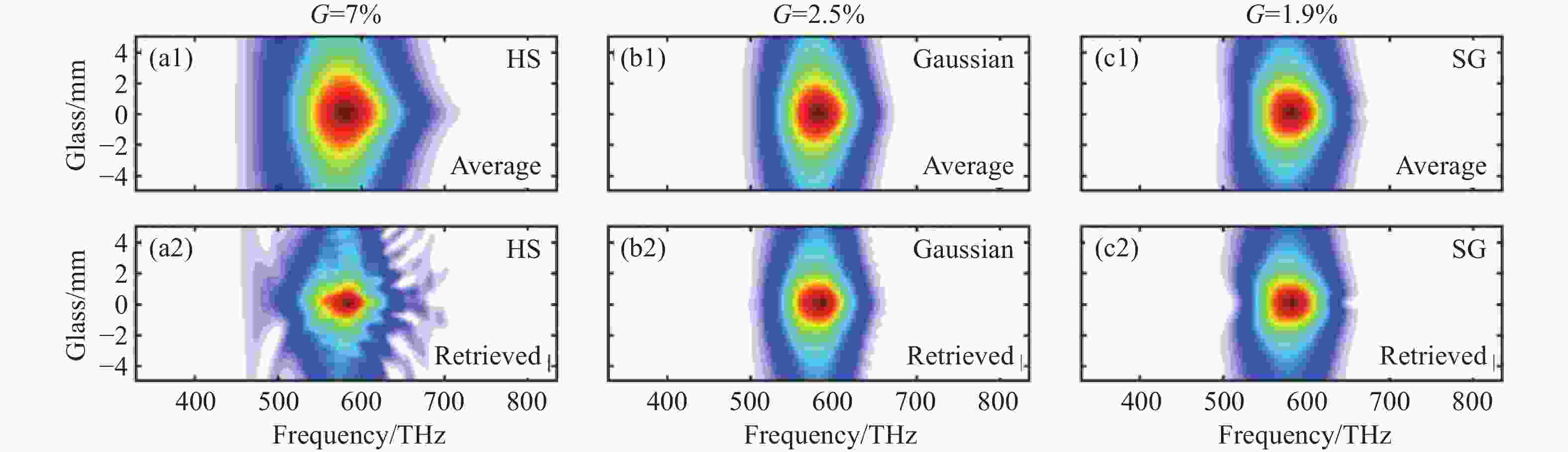

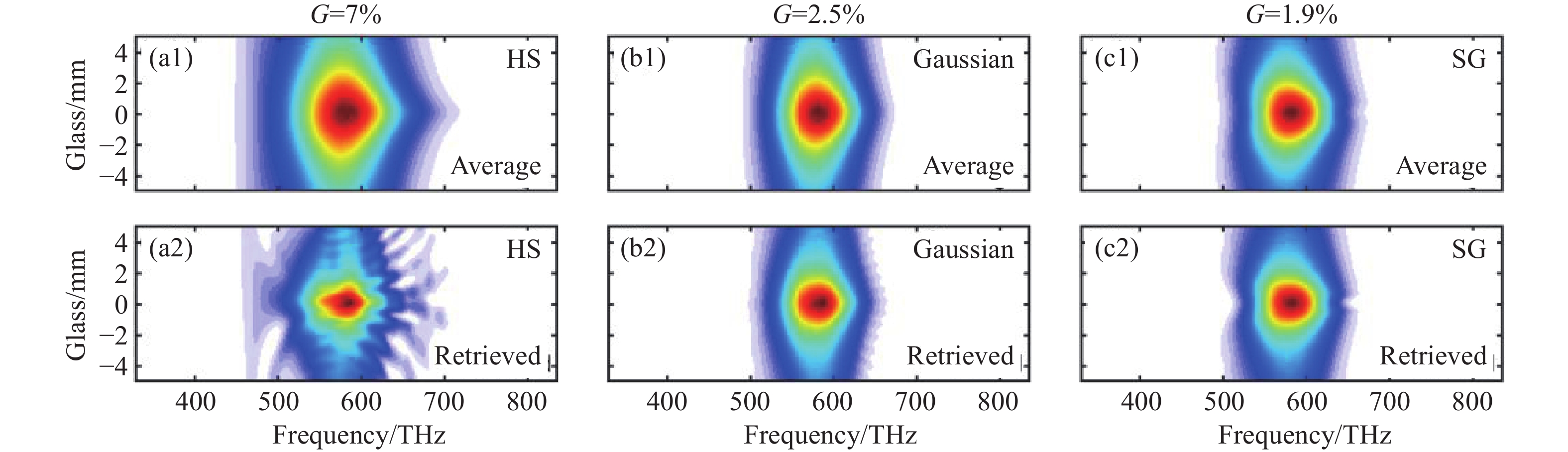

Figure 8. (a1, b1, c1) Average d-scan traces for HS, Gaussian, and SG. (a2, b2, c2) Corresponding traces retrieved with traditional DE.

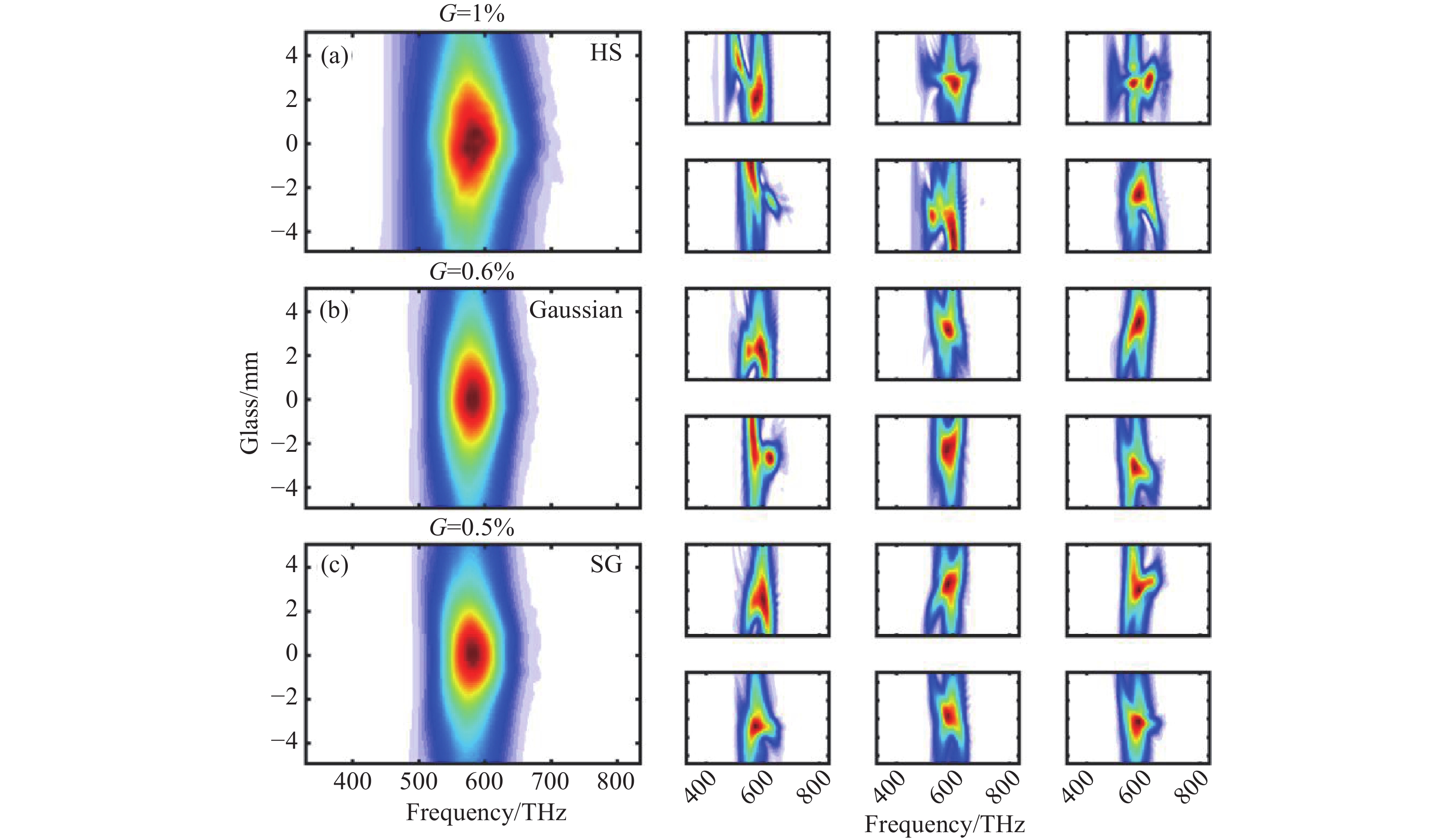

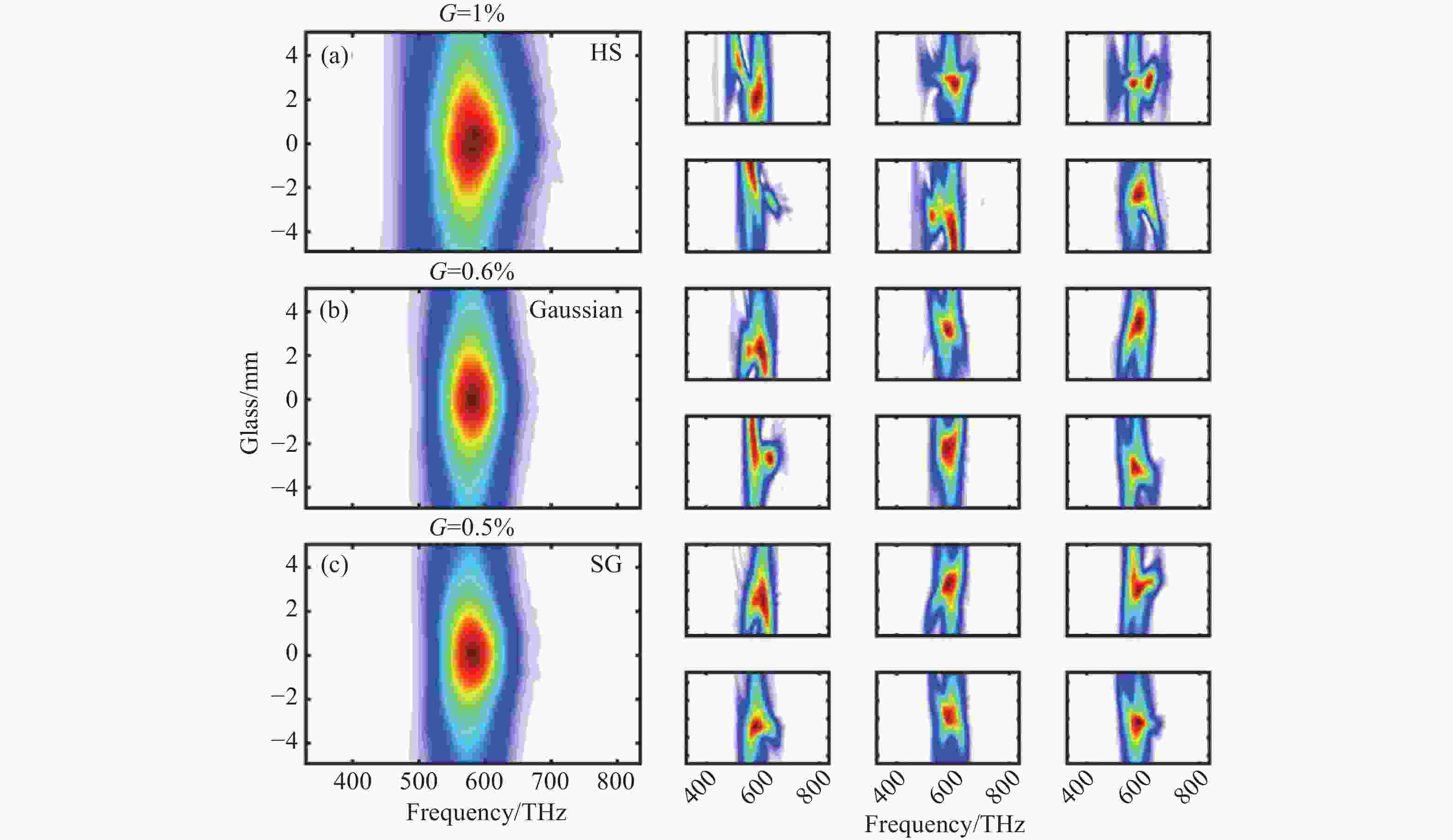

Figure 9. Retrieved d-scan traces for (a) HS, (b) Gaussian, and (c) SG. Six representative subset traces are shown to the right of each panel.
-
[1] STRICKLAND D, MOUROU G. Chirped pulse amplification[J]. Optics Communications, 1985, 56(3): 219-221. [2] TREBINO R, DELONG K W, FITTINGHOFF D N, et al. Measuring ultrashort laser pulses in the time-frequency domain using frequency-resolved optical gating[J]. Review of Scientific Instruments, 1997, 68(9): 3277-3295. doi: 10.1063/1.1148286 [3] HUANG SH W, CIRMI G, MOSES J, et al. High-energy pulse synthesis with sub-cycle waveform control for strong-field physics[J]. Nature Photonics, 2011, 5(8): 475-479. doi: 10.1038/nphoton.2011.140 [4] LENG Y X. From chirped pulse amplification to high field laser physics: a brief introduction to the Nobel Prize in Physics 2018[J]. Chinese Journal of Nature, 2018, 40(6): 400-406. (in Chinese). doi: 10.3969/j.issn.0253-9608.2018.06.002 [5] KIM M, LEE C, SHIN P, et al. Generation of 1 MHz 15 fs pulses in the near-infrared with high energy and their application to time-resolved spectroscopy[J]. Optics Express, 2024, 32(21): 36577-36585. doi: 10.1364/OE.537904 [6] KIM J. Practical method for achieving single-photon femtosecond time-resolved spectroscopy: transient stimulated emission[J]. The Journal of Physical Chemistry Letters, 2024, 15(20): 5407-5412. doi: 10.1021/acs.jpclett.4c01008 [7] OKSENHENDLER T, BOCK S, DREYER J, et al. Advanced laser pulse metrology through 2D self-referenced spectral interferometry[J]. Scientific Reports, 2025, 15(1): 17729. doi: 10.1038/s41598-025-02813-2 [8] KANG Y, WANG X H, TANG L H, et al. High repetition rate and high energy ultrashort laser pulse: the next light source for attosecond spectroscopy[J]. ACS Photonics, 2025, 12(5): 2279-2290. doi: 10.1021/acsphotonics.4c01896 [9] TORRES-COMPANY V, LAJUNEN H, FRIBERG A T. Coherence theory of noise in ultrashort-pulse trains[J]. Journal of the Optical Society of America B, 2007, 24(7): 1441-1450. doi: 10.1364/JOSAB.24.001441 [10] YANG Y T, JI Y B, XIE Y H, et al. Generation and observation of noise-like pulses in an ultrafast fiber laser at 1.7 μm[J]. Optics & Laser Technology, 2024, 174: 110715. doi: 10.1016/j.optlastec.2024.110715 [11] WANG ZH H, ZHOU Z X, JI Y B, et al. Dynamic observation of ultrashort pulses with chaotic features in a tm-doped fiber laser with a single mode fiber–grade index multimode fiber–single mode fiber structure[J]. Photonics, 2025, 12(5): 465. doi: 10.3390/photonics12050465 [12] BERMÚDEZ MACIAS I J, DÜSTERER S, IVANOV R, et al. Study of temporal, spectral, arrival time and energy fluctuations of SASE FEL pulses[J]. Optics Express, 2021, 29(7): 10491-10508. doi: 10.1364/OE.419977 [13] SOCOL Y, GOVER A, ELIRAN A, et al. Study of coherence limits and chirp control in long pulse FEL oscillator[J]. Physical Review Special Topics-Accelerators and Beams, 2005, 8: 080701. [14] KOVALSKY M G, HNILO A A, TREDICCE J R. Extreme events in the Ti: sapphire laser[J]. Optics Letters, 2011, 36(22): 4449-4451. doi: 10.1364/OL.36.004449 [15] TANG ZH Q, LUO D P, XIE G H, et al. Nonlinear dynamics of relative intensity noise transfer at fiber amplification and supercontinuum generation[J]. Optics Communications., 2024, 554: 130131. doi: 10.1016/j.optcom.2023.130131 [16] SIMPSON T B, SUELZER J S, USECHAK N G. Phase shifts in gain-switched semiconductor laser subharmonic pulse trains[J]. IEEE Journal of Quantum Electronics, 2024, 60(6): 2000512. doi: 10.1109/jqe.2024.3453281 [17] BASAK S, BLANCO A, LÓPEZ C. Large fluctuations at the lasing threshold of solid-and liquid-state dye lasers[J]. Scientific Reports, 2016, 6: 32134. doi: 10.1038/srep32134 [18] ANGELSKY O V, BEKSHAEV A Y, ZENKOVA C Y, et al. Correlation optics, coherence and optical singularities: basic concepts and practical applications[J]. Frontiers in Physics, 2022, 10: 924508. doi: 10.3389/fphy.2022.924508 [19] POLLI D, BRIDA D, MUKAMEL S, et al. Effective temporal resolution in pump-probe spectroscopy with strongly chirped pulses[J]. Physical Review A, 2010, 82(5): 053809. doi: 10.1103/PhysRevA.82.053809 [20] RHODES M, STEINMEYER G, RATNER J, et al. Pulse‐shape instabilities and their measurement[J]. Laser & Photonics Reviews, 2013, 7(4): 557-565. [21] SYTCEVICH I, GUO CH, MIKAELSSON S, et al. Characterizing ultrashort laser pulses with second harmonic dispersion scans[J]. Journal of the Optical Society of America B, 2021, 38(5): 1546-1555. doi: 10.1364/JOSAB.412535 [22] TAJALLI A, CHANTEAU B, KRETSCHMAR M, et al. Few-cycle optical pulse characterization via cross-polarized wave generation dispersion scan technique[J]. Optics Letters, 2016, 41(22): 5246-5249. doi: 10.1364/OL.41.005246 [23] SALGADO-REMACHA F J, ALONSO B, CRESPO H, et al. Single-shot d-scan technique for ultrashort laser pulse characterization using transverse second-harmonic generation in random nonlinear crystals[J]. Optics Letters, 2020, 45(14): 3925-3928. doi: 10.1364/OL.397033 [24] MIRANDA M, ARNOLD C L, FORDELL T, et al. Characterization of broadband few-cycle laser pulses with the d-scan technique[J]. Optics Express, 2012, 20(17): 18732-18743. doi: 10.1364/OE.20.018732 [25] KLEINERT S, TAJALLI A, NAGY T, et al. Rapid phase retrieval of ultrashort pulses from dispersion scan traces using deep neural networks[J]. Optics Letters, 2019, 44(4): 979-982. doi: 10.1364/OL.44.000979 [26] GERTH D, ESCOTO E, STEINMEYER G, et al. Regularized differential evolution for a blind phase retrieval problem in ultrashort laser pulse characterization[J]. Review of Scientific Instruments, 2019, 90(4): 043116. doi: 10.1063/1.5085937 [27] KOROBENKO A, ROSENBERGER P, SCHÖTZ J, et al. Single-shot dispersion sampling for optical pulse reconstruction[J]. Optics Express, 2021, 29(8): 11845-11853. doi: 10.1364/OE.420602 [28] PFEIFER T, JIANG Y H, DÜSTERER S, et al. Partial-coherence method to model experimental free-electron laser pulse statistics[J]. Optics Letters, 2010, 35(20): 3441-3443. doi: 10.1364/OL.35.003441 [29] DUDLEY J M, GENTY G, COEN S. Supercontinuum generation in photonic crystal fiber[J]. Reviews of Modern Physics, 2006, 78(4): 1135-1184. doi: 10.1103/RevModPhys.78.1135 [30] STORN R, PRICE K. Differential evolution–a simple and efficient heuristic for global optimization over continuous spaces[J]. Journal of Global Optimization, 1997, 11(4): 341-359. doi: 10.1023/A:1008202821328 [31] ESCOTO E, GERTH D, HOFMANN B, et al. Strategies for the characterization of partially coherent ultrashort pulses with dispersion scan[J]. Journal of the Optical Society of America B, 2019, 36(8): 2092-2098. doi: 10.1364/JOSAB.36.002092 -
