摘要:
反射镜是空间相机的核心部组件，其性能直接影响了空间相机在轨成像质量，铝合金反射镜凭借其良好的加工工艺性成为了空间相机反射镜的发展方向之一。

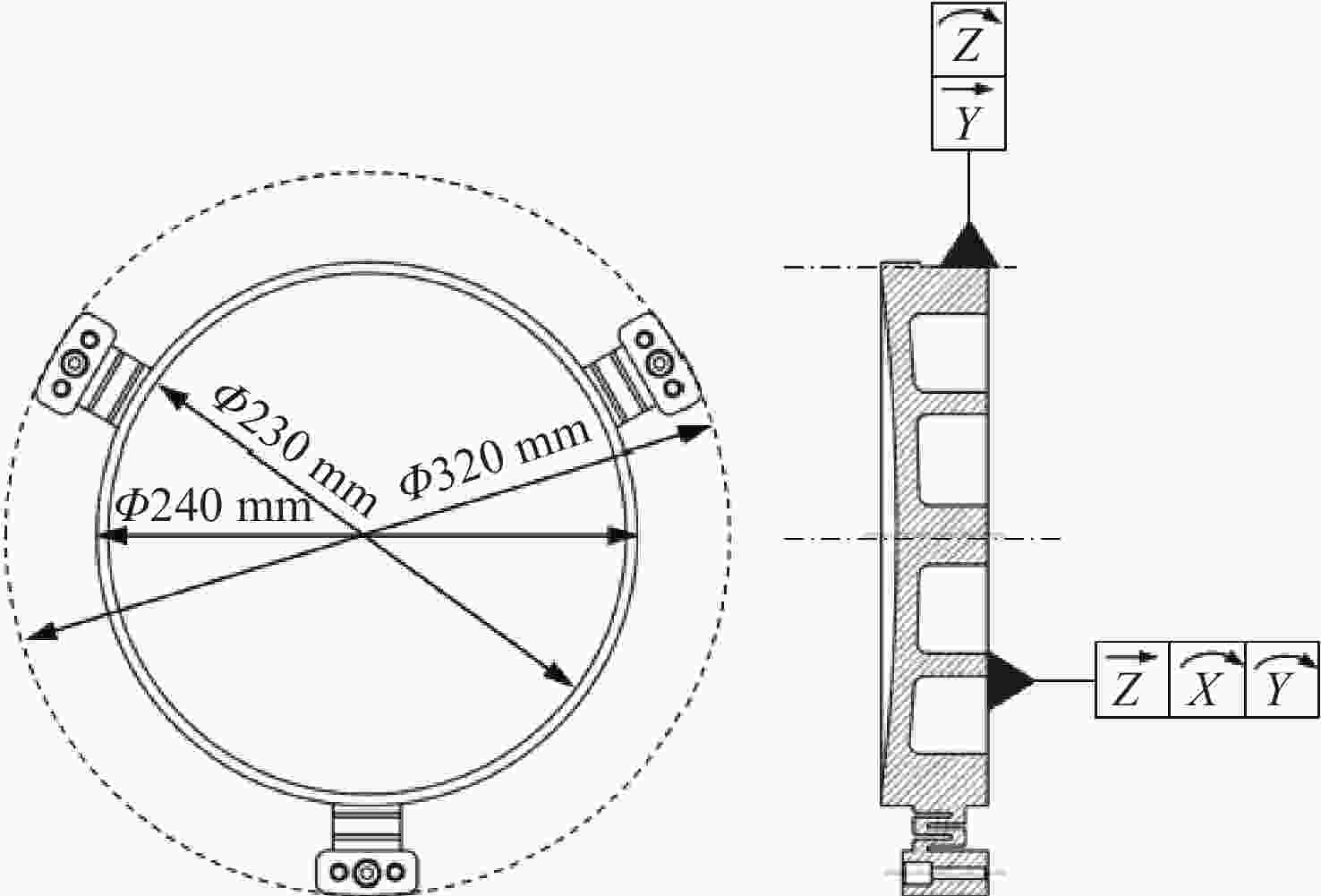

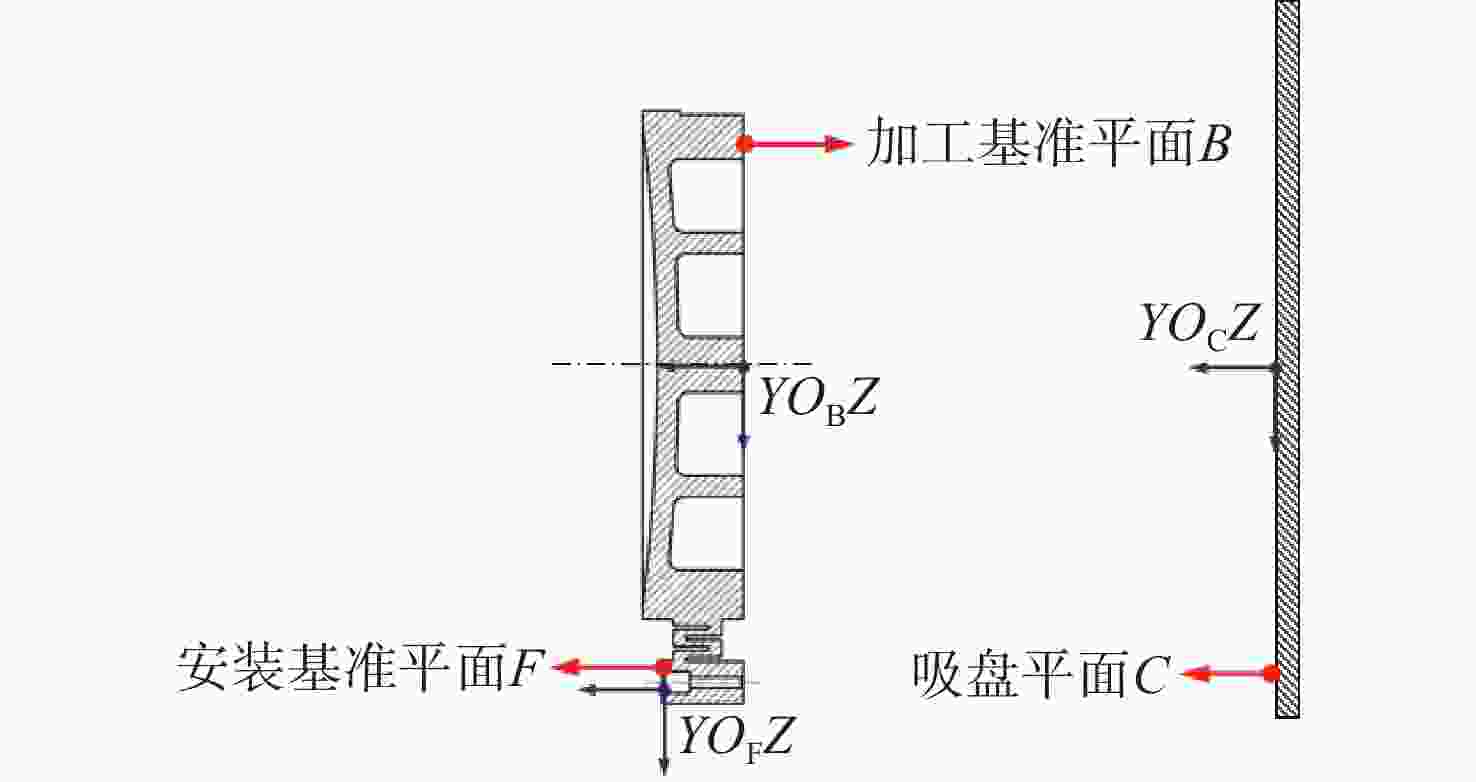

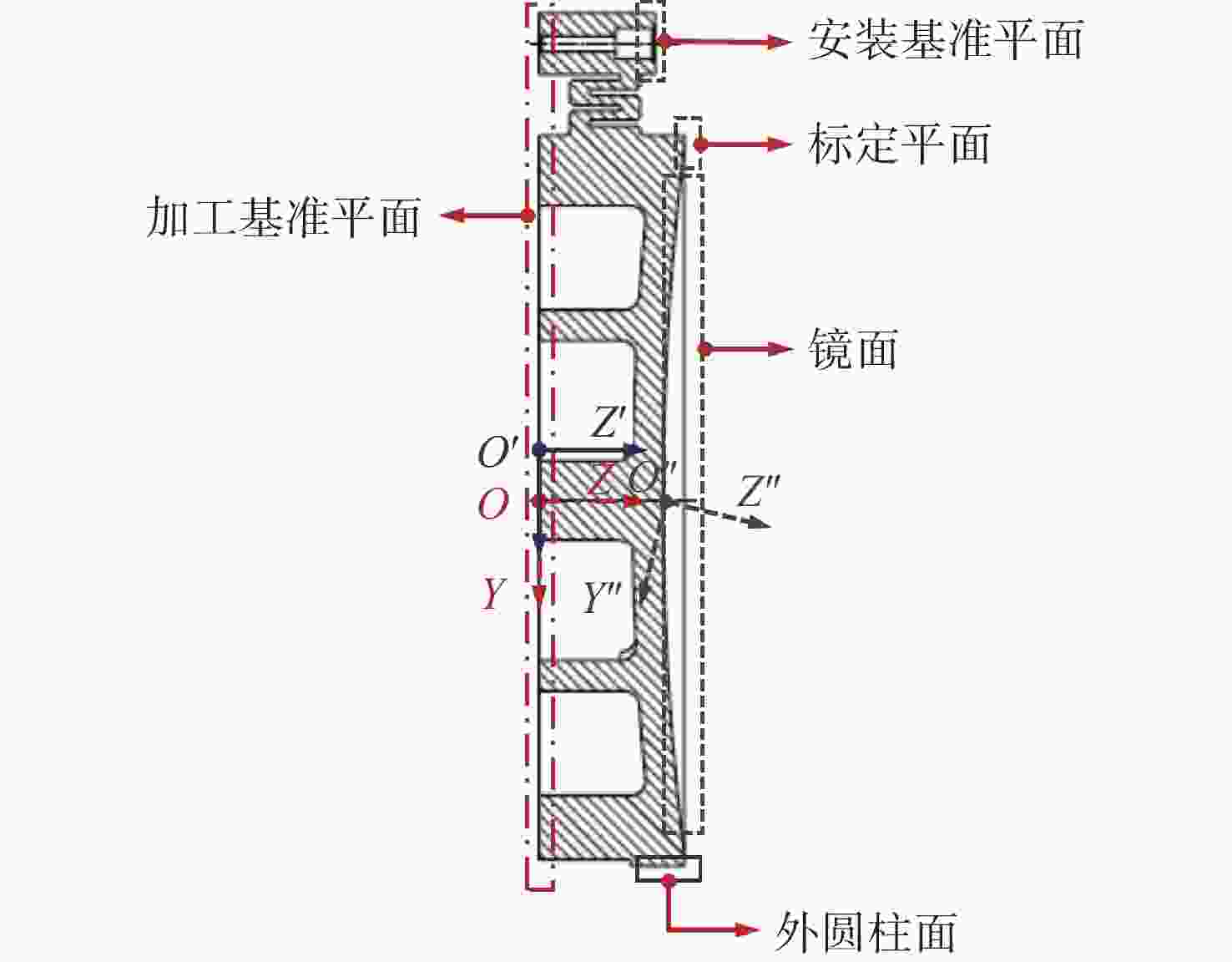

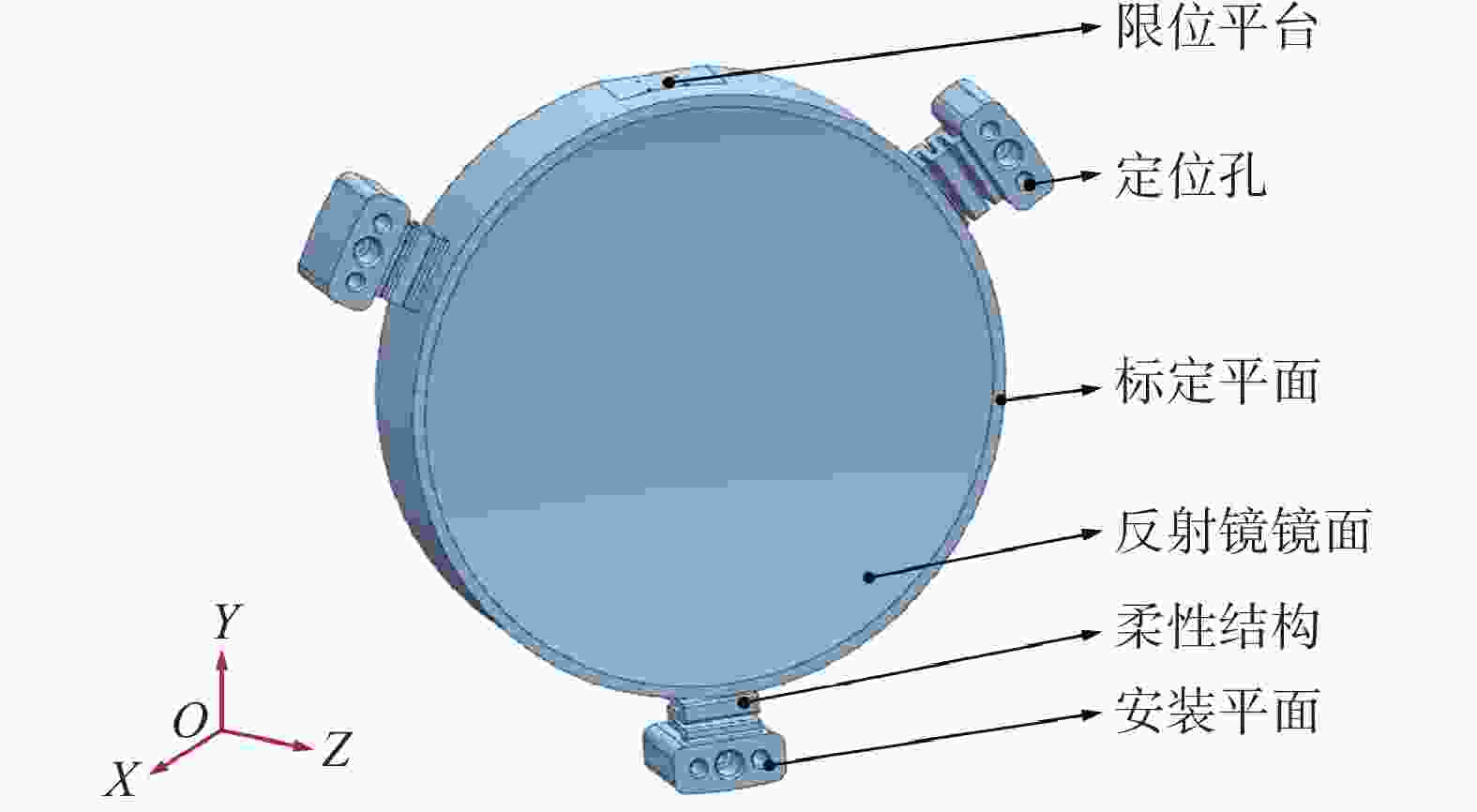

目的： 为了降低空间相机装调难度，开展了共基准一体化铝合金反射镜结构和工艺协同设计研究。过程： 首先，基于镜面、柔性结构、安装基准等多功能要素集成于一体的理念，开展一体化反射镜结构设计。然后，在结构设计同时开展共基准工艺设计，建立了加工过程误差传递数学模型和精度分配方案。最后，针对所设计的反射镜开展了仿真分析和加工验证。结果： 结果表明：一体化反射镜在典型工况下面形误差变化小于RMS0.01λ@632.8 nm，加工面形精度可达到RMS0.016λ@632.8 nm，共基准一体化反射镜光学基准和机械基准偏差优于2″。结论： 本文设计的共基准一体化铝合金反射镜能够满足空间金属反射镜稳定可靠、面形精度高、光机基准一致性优异等要求。Abstract:The mirror is one of the great significance components of the space camera, and the aluminum alloy mirror is becoming one of the development directions of space camera mirrors with its excellent processability.

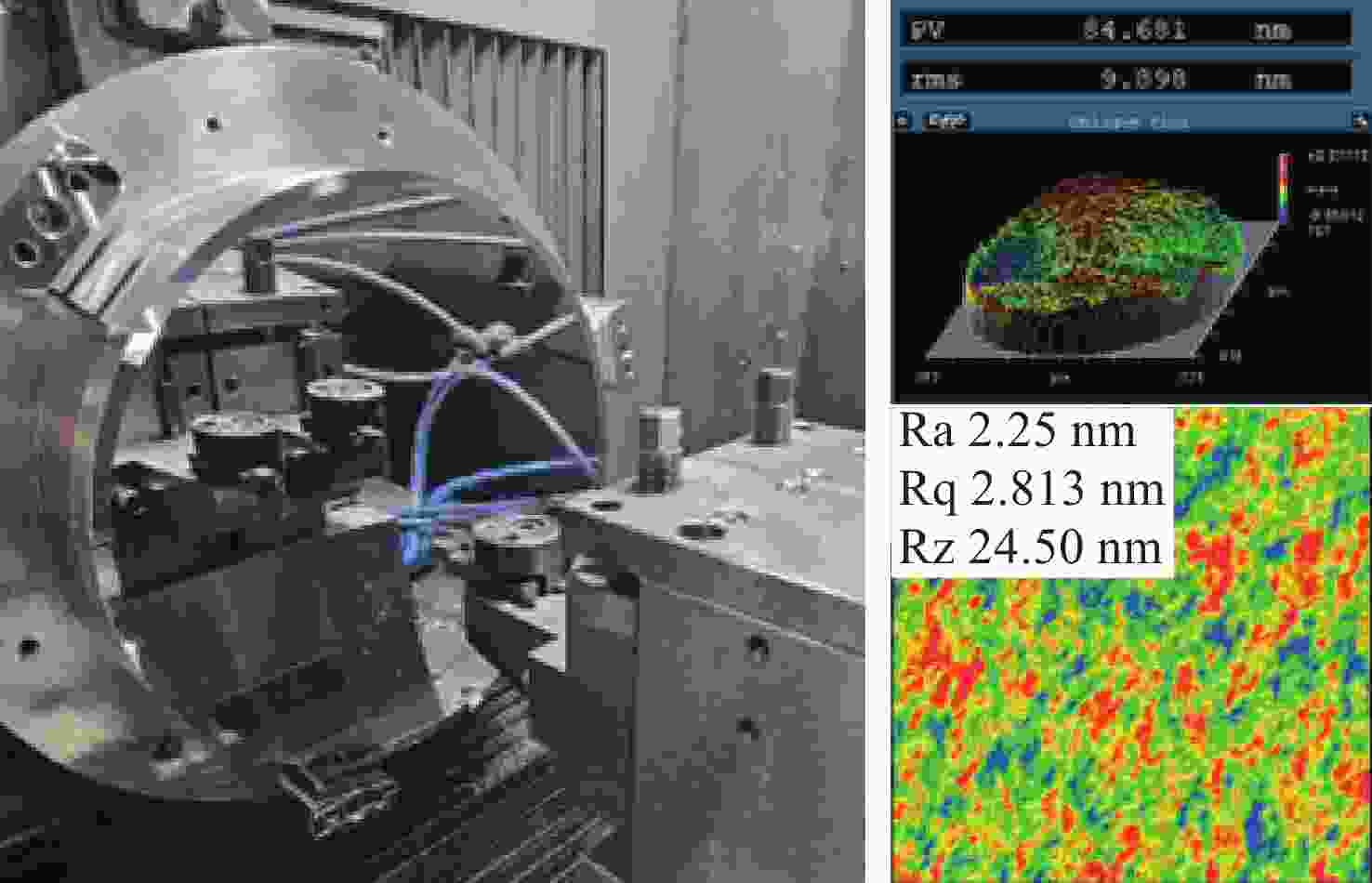

Objective: To reduce the difficulty of installing and adjusting space cameras, an monolithic aluminum alloy mirror structure design was carried out.Method : First, based on the concept of integrating multiple functions such as mirror surface, flexible support, installation reference and so on, the structure design of an monolithic mirror was carried out. Besides, while designing the structure, co-reference process design was conducted simultaneously. This design was informed by establishing an error transmission model and a corresponding precision allocation scheme. Finally, simulation analysis and processing were carried out on the designed mirror.Result: The results show that the surface accuracy variation of the monolithic mirror was less than RMS 0.01λ@632.8 nm under typical working conditions, and the precision of the processed mirror could reached up to RMS 0.016λ@ 632.8 nm, and the deviation between the mechanical and optical references was better than 2". Conclusion: The monolithic aluminum alloy mirrors designed in this study can satisfy the space mirror requirements of stability, high precision and excellent consistency. -

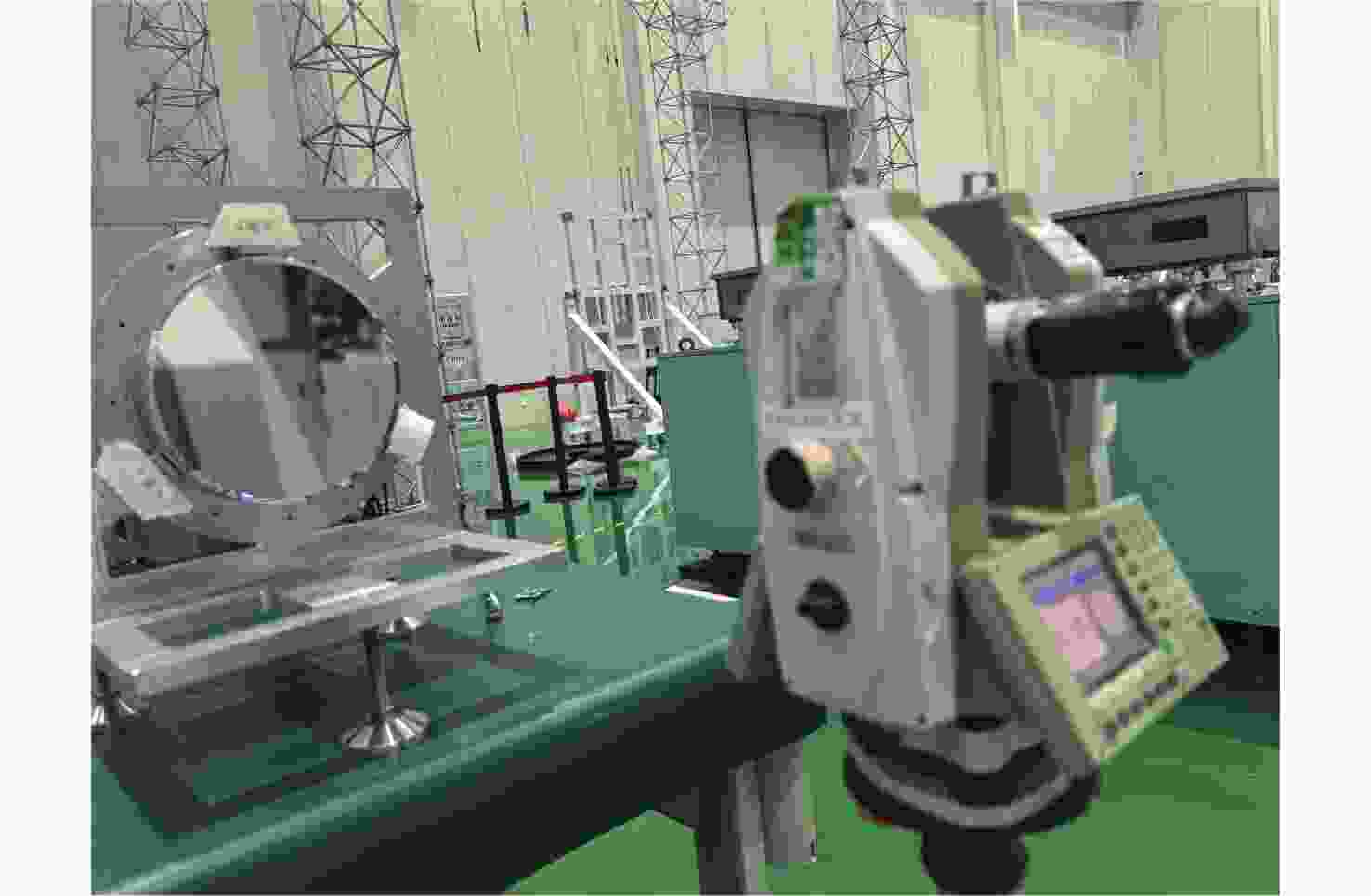

图 9 一体化反射镜标定检测图
Figure 9. Diagram of optical reference test of monolithic aluminum alloy mirror
表 1 某空间相机反射镜的主要指标要求
Table 1. Indicators of the space mirror
项目 指标要求 通光口径mm ≥220 面形精度nm ≤RMS1/50λ@632.8 nm 算术平均表面粗糙度nm ≤5 质量kg ≤5 工作温度范围/ °C ±4 载荷作用下面形变化/nm
（光轴重力变形除外）≤RMS1/50λ@632.8 nm 重力载荷下镜面偏心/μm ≤10 重力载荷下镜面倾斜/″ ≤10
下载: 导出CSV

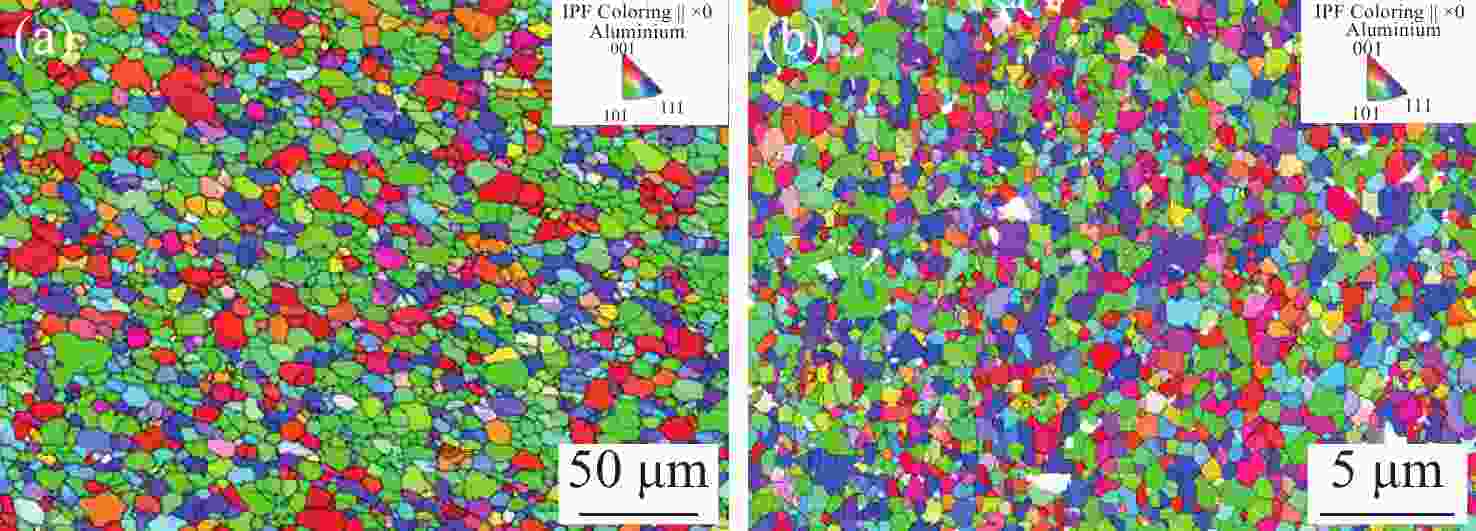

表 2 铝合金材料参数
Table 2. Parameters of the Aluminum alloy
参数 AA606l-T6 RSA6061-T6 密度ρ/ kg/m3 2700 2700 弹性模量E/GPa 69 70 泊松比μ/- 0.33 0.33 抗拉强度σb/MPa 320 330 线胀系数α/10−6·°C−1 22.8 23 热导率λ/mW·mm−1·°C−1 155 160
下载: 导出CSV

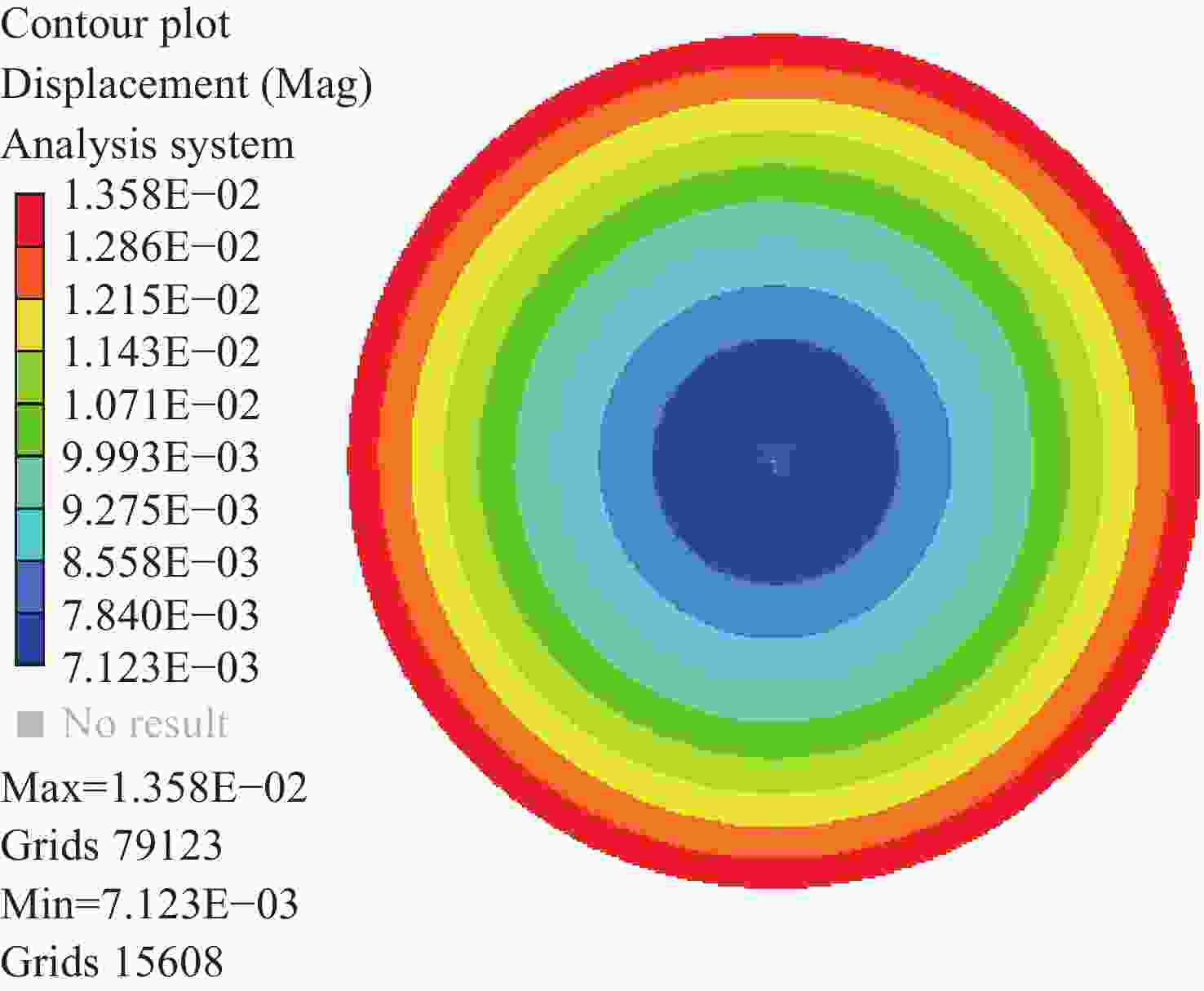

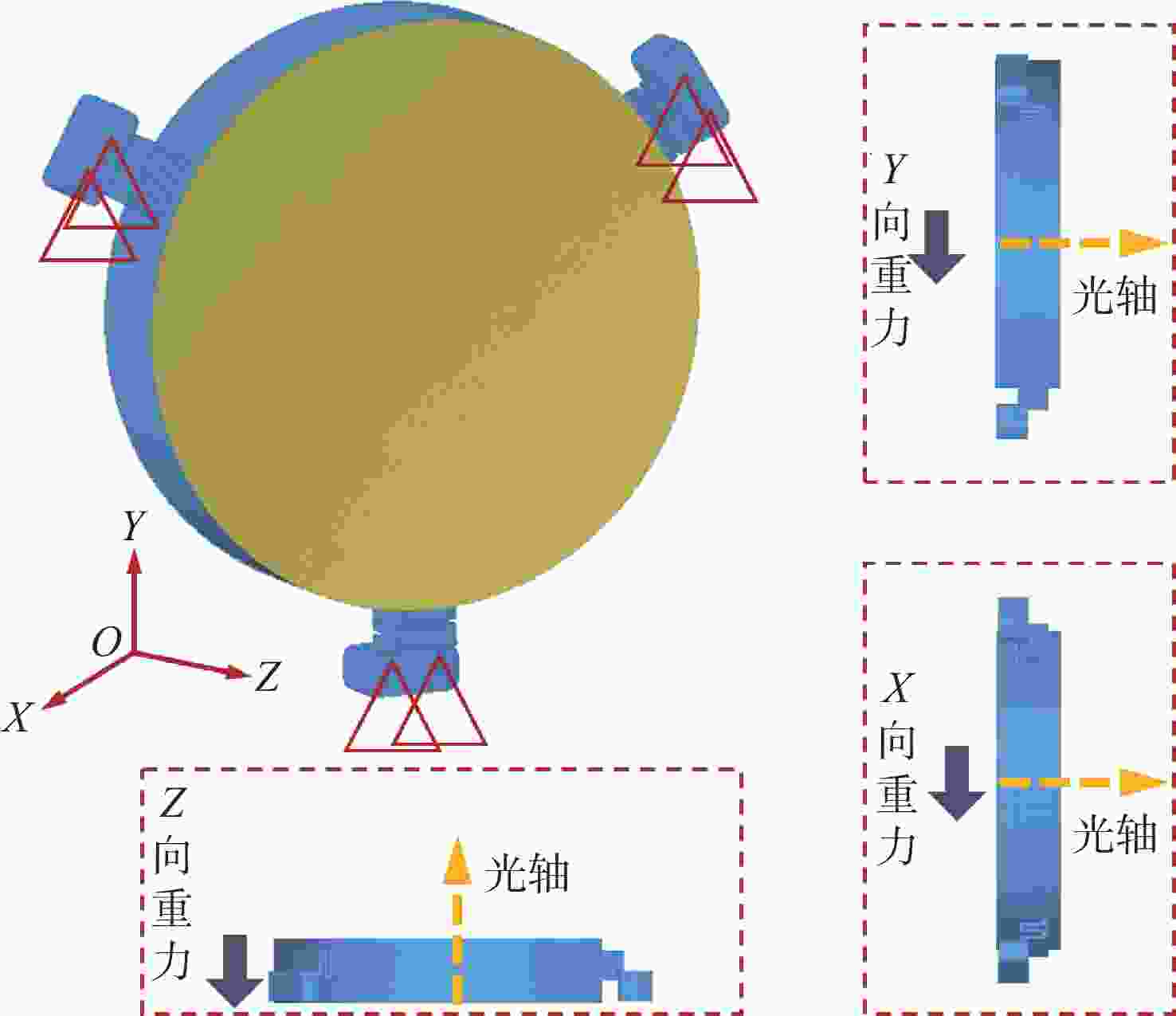

表 3 重力变形分析结果
Table 3. Gravity deformation analysis results
参数 X Y Z 偏心/μm ΔX 2.490 1.47E-05 1.68E-08 ΔY 1.81E-05 2.490 -5.06E-06 ΔZ 1.05E-05 -5.98E-06 2.799 倾斜/" θx 0.004 0.898 0.004 θy 0.762 0.240 0.748 面形变化/nm RMS 4.027 4.026 21.029
下载: 导出CSV
表 4 模态分析结果
Table 4. Mode analysis results
阶数 频率/Hz 振型 1 287.79 绕Z轴移动 2 362.85 绕X轴移动 3 362.86 绕Y轴移动 4 440.33 绕Y轴转动 5 440.35 绕X轴转动 6 675.09 绕Z轴转动
下载: 导出CSV
-
[1] 王成彬, 孙胜利, 孙小进, 等. 基于增材制造的碳化硅双面反射镜设计与可靠性验证[J]. 光学 精密工程, 2026, 34(1): 26-34.WANG CH B, SUN SH L, SUN X J, et al. Design and reliability verification of SiC double-sided reflector based on additive manufacturing[J]. Optics and Precision Engineering, 2026, 34(1): 26-34. (in Chinese). [2] 徐超, 彭小强, 戴一帆. 复杂曲面铝反射镜超精密制造现状[J]. 光电工程, 2020, 47(8): 200147.XU CH, PENG X Q, DAI Y F. Current status of ultra-precision manufacturing of complex curved aluminum reflectors[J]. Opto-Electronic Engineering, 2020, 47(8): 200147. (in Chinese). [3] 王振忠, 施晨淳, 张鹏飞, 等. 先进光学制造技术最新进展[J]. 机械工程学报, 2021, 57(8): 23-56. doi: 10.3901/JME.2021.08.023WANG ZH ZH, SHI CH CH, ZHANG P F, et al. Recent progress of advanced optical manufacturing technology[J]. Journal of Mechanical Engineering, 2021, 57(8): 23-56. (in Chinese). doi: 10.3901/JME.2021.08.023 [4] CHEN Z Z, HUANG W W, ZHU ZH W, et al. Ultra-precision diamond turning error compensation via iterative learning from on-machine measured data[J]. International Journal of Precision Engineering and Manufacturing, 2023, 24(12): 2181-2195. doi: 10.1007/s12541-023-00869-6 [5] DAI Y Q, ZHANG G Q, LUO T, et al. Centre cone generation and its force performance in single-point diamond turning[J]. International Journal of Mechanical Sciences, 2020, 184: 105780. doi: 10.1016/j.ijmecsci.2020.105780 [6] ZHANG K, QU H M, GUAN H J, et al. Design and fabrication technology of metal mirrors based on additive manufacturing: a review[J]. Applied Sciences, 2021, 11(22): 10630. doi: 10.3390/app112210630 [7] 胡喻阁, 王晓伟, 陆卫国. 全铝合金同轴四反长波红外光学系统设计[J]. 红外与激光工程, 2025, 54(11): 202503.HU Y G, WANG X W, LU W G. All-aluminium coaxial four-inverse long-wave infrared optical system design[J]. Infrared and Laser Engineering, 2025, 54(11): 202503. (in Chinese). [8] HARTUNG J, VON LUKOWICZ H, KINAST J. Theoretical compensation of static deformations of freeform multimirror substrates[J]. Applied Optics, 2018, 57(15): 4020-4031. doi: 10.1364/AO.57.004020 [9] KIRSCHSTEIN S, KOCH A, SCHÖNEICH J, et al. Metal mirror TMA, telescopes of the JSS product line: design and analysis[C]. Proceedings of the SPIE 5962, Optical Design and Engineering II, SPIE, 2005: 59621M. [10] 谭双龙, 王灵杰, 张新, 等. 可见光级铝合金反射镜一体化设计与分析[J]. 长春理工大学学报(自然科学版), 2017, 40(3): 5-8,12.TAN SH L, WANG L J, ZHANG X, et al. Snap together design and analysis of visible quality aluminum mirror[J]. Journal of Changchun University of Science and Technology (Natural Science Edition), 2017, 40(3): 5-8,12. (in Chinese). [11] 范磊, 赵勇志, 曹玉岩. 红外离轴系统金属反射镜设计与分析[J]. 红外技术, 2015, 37(5): 374-379.FAN L, ZHAO Y ZH, CAO Y Y. Design and analysis of metal mirror for infrared off-axial system[J]. Infrared Technology, 2015, 37(5): 374-379. (in Chinese). [12] 王上, 张星祥, 沙巍, 等. 一体化铝合金反射镜的拓扑优化设计与分析[J]. 红外技术, 2022, 44(1): 61-65.WANG SH, ZHANG X X, SHA W, et al. Topology optimization design and analysis of an integrated aluminum alloy mirror[J]. Infrared Technology, 2022, 44(1): 61-65. (in Chinese). [13] JASINEVICIUS R G, OTOBONI J A, BASSO I, et al. Size effects in ultraprecision machining of aluminum alloys: conventional AA6061-T6 and RSA 6061-T6[J]. Journal of Manufacturing Processes, 2021, 68: 136-157. doi: 10.1016/j.jmapro.2021.07.027 [14] 陈宜锐, 易幼平, 黄始全. 基于低温挤压的6061铝合金光学反射镜材料制备工艺[J]. 中南大学学报(自然科学版), 2025, 56(5): 1773-1783.CHEN Y R, YI Y P, HUANG SH Q. Preparation technology of 6061 alμminμm alloy optical mirror material based on low temperature extrusion[J]. Journal of Central South University (Science and Technology), 2025, 56(5): 1773-1783. (in Chinese). [15] 何春雷, 王姝淇, 李东洋, 等. 晶粒对多晶材料超精密切削影响的研究进展[J]. 机械工程学报, 2024, 60(3): 373-392.HE CH L, WANG SH Q, LI D Y, et al. Research progress on the influence of crystalline grain in ultra-precision cutting of polycrystalline material[J]. Journal of Mechanical Engineering, 2024, 60(3): 373-392. (in Chinese). [16] KUMAR N. An exploration of microstructural in-homogeneity in the 6082 Al alloy processed through room temperature multi-axial forging[J]. Materials Characterization, 2021, 176: 111134. doi: 10.1016/j.matchar.2021.111134 [17] 袁健, 裴思宇, 霍占伟, 等. 大口径宽温反射镜中心支撑结构设计[J]. 中国光学(中英文), 2025, 18(1): 150-159. doi: 10.37188/CO.2024-0060YUAN J, PEI S Y, HUO ZH W, et al. Design of the central support structure of a large aperture mirror with a wide working temperature[J]. Chinese Optics, 2025, 18(1): 150-159. (in Chinese). doi: 10.37188/CO.2024-0060 [18] XU K, HU H X, ZHANG X, et al. Accuracy verification methodology for computer-generated hologram used for testing a 3.5-meter mirror based on an equivalent element[J]. Light: Advanced Manufacturing, 2024, 5(2): 25. doi: 10.37188/lam.2024.025 -
