| Citation: | Wang Hao-xing, LIU Jia, WANG Hai-yang, WANG Jun, LI Yuan-hao, YIN Jian-xiong, WAN Shun, DAI Yun-teng, JIA Ping-gang. Metal-sensitive diaphragm fiber optic pressure sensor with temperature compensation[J]. Chinese Optics. doi: 10.37188/CO.EN-2025-0021
|

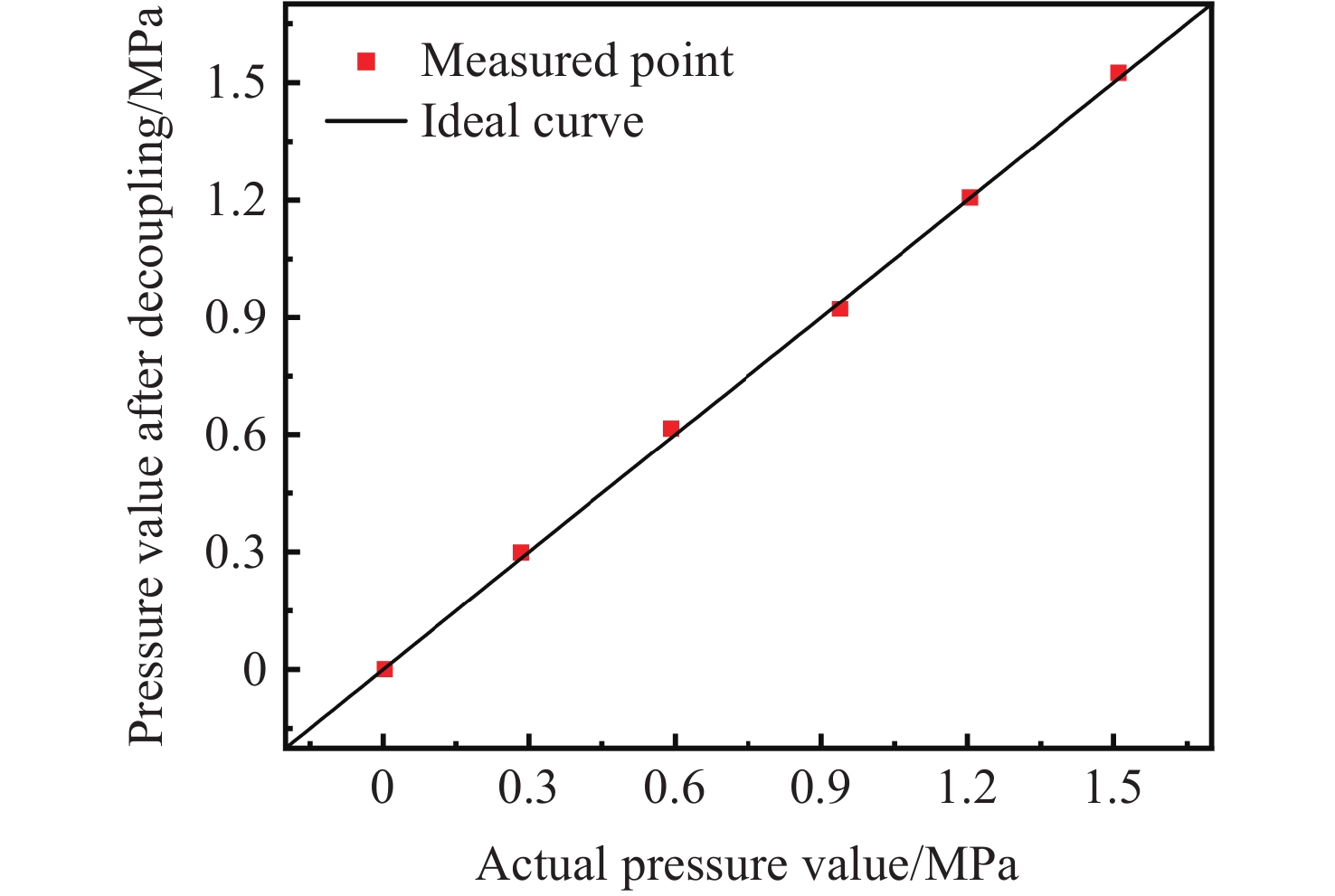

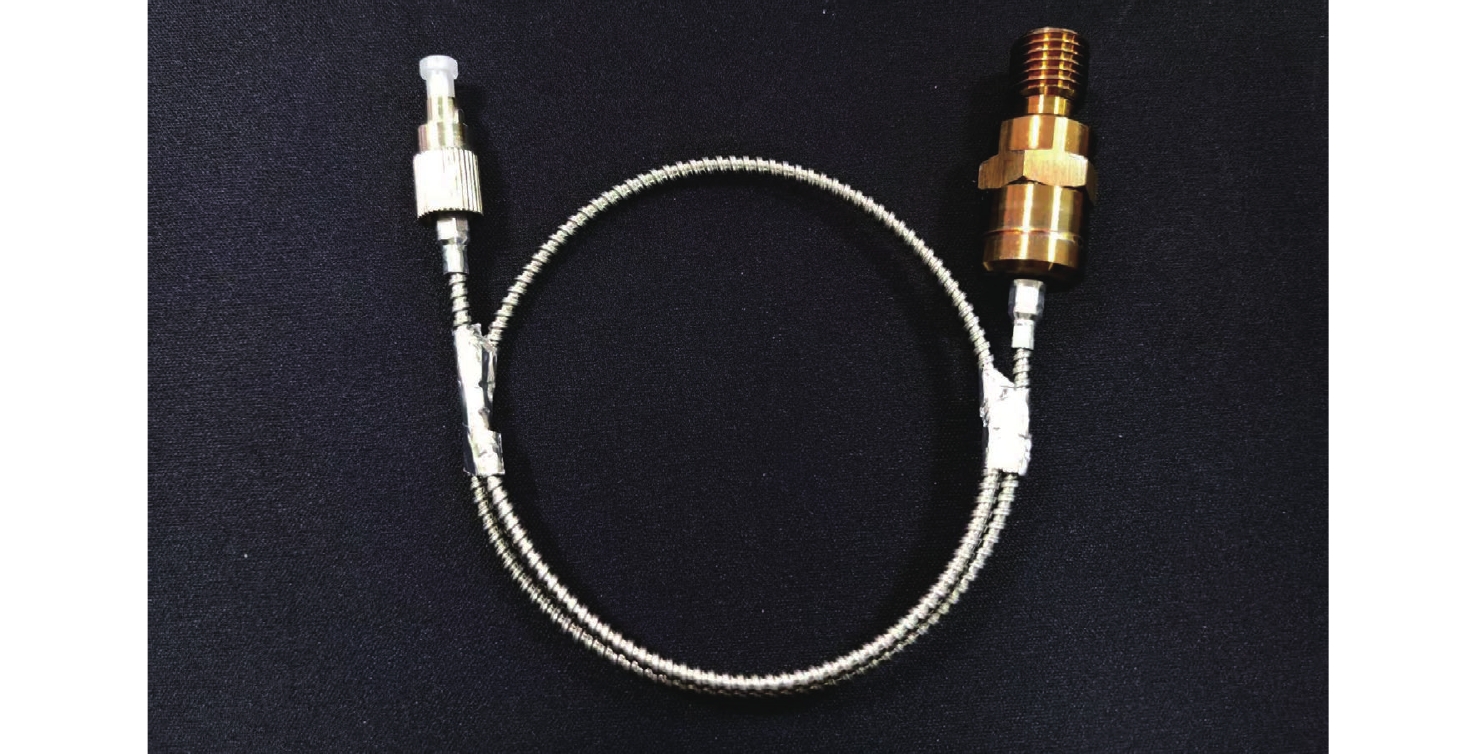

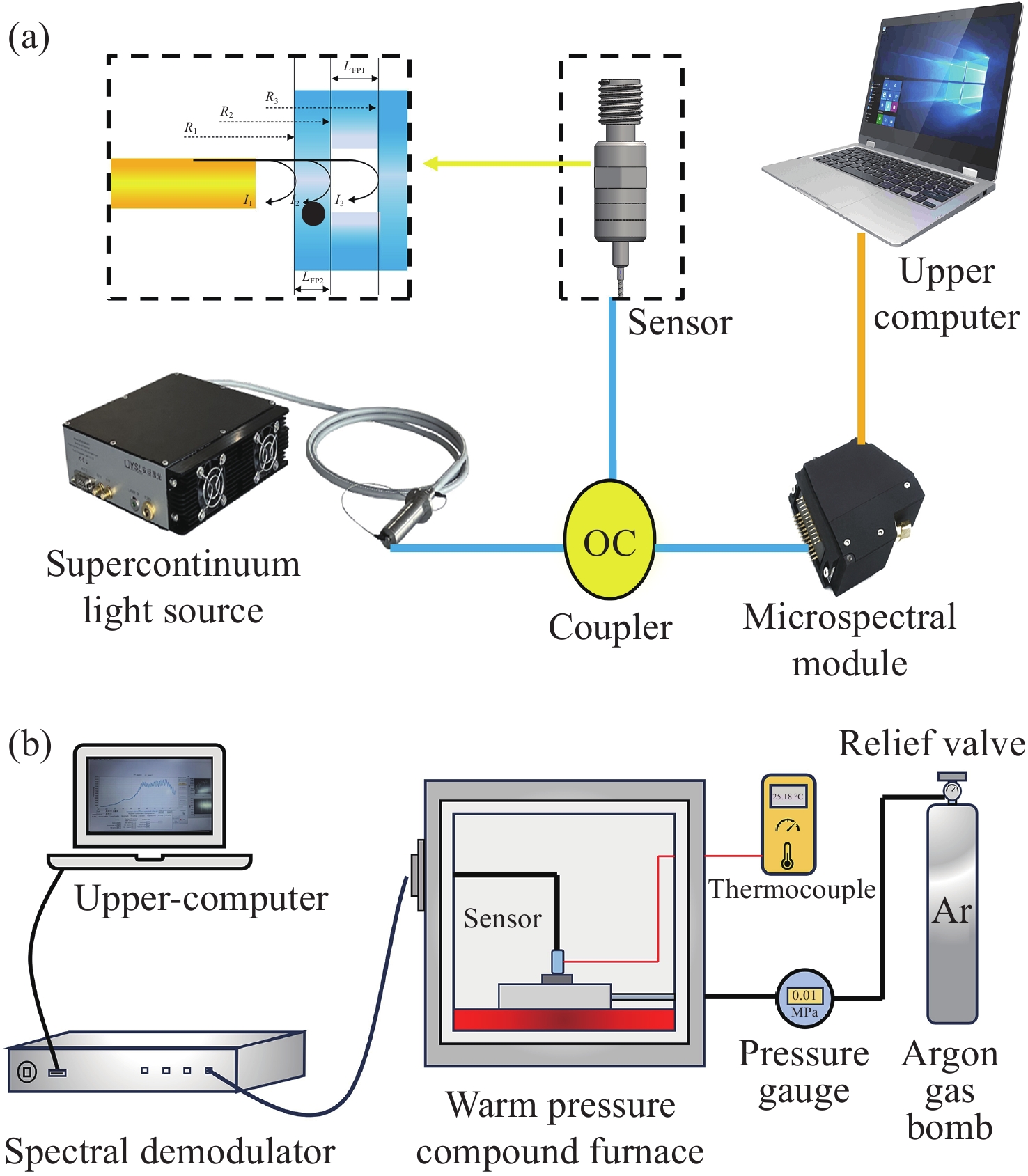

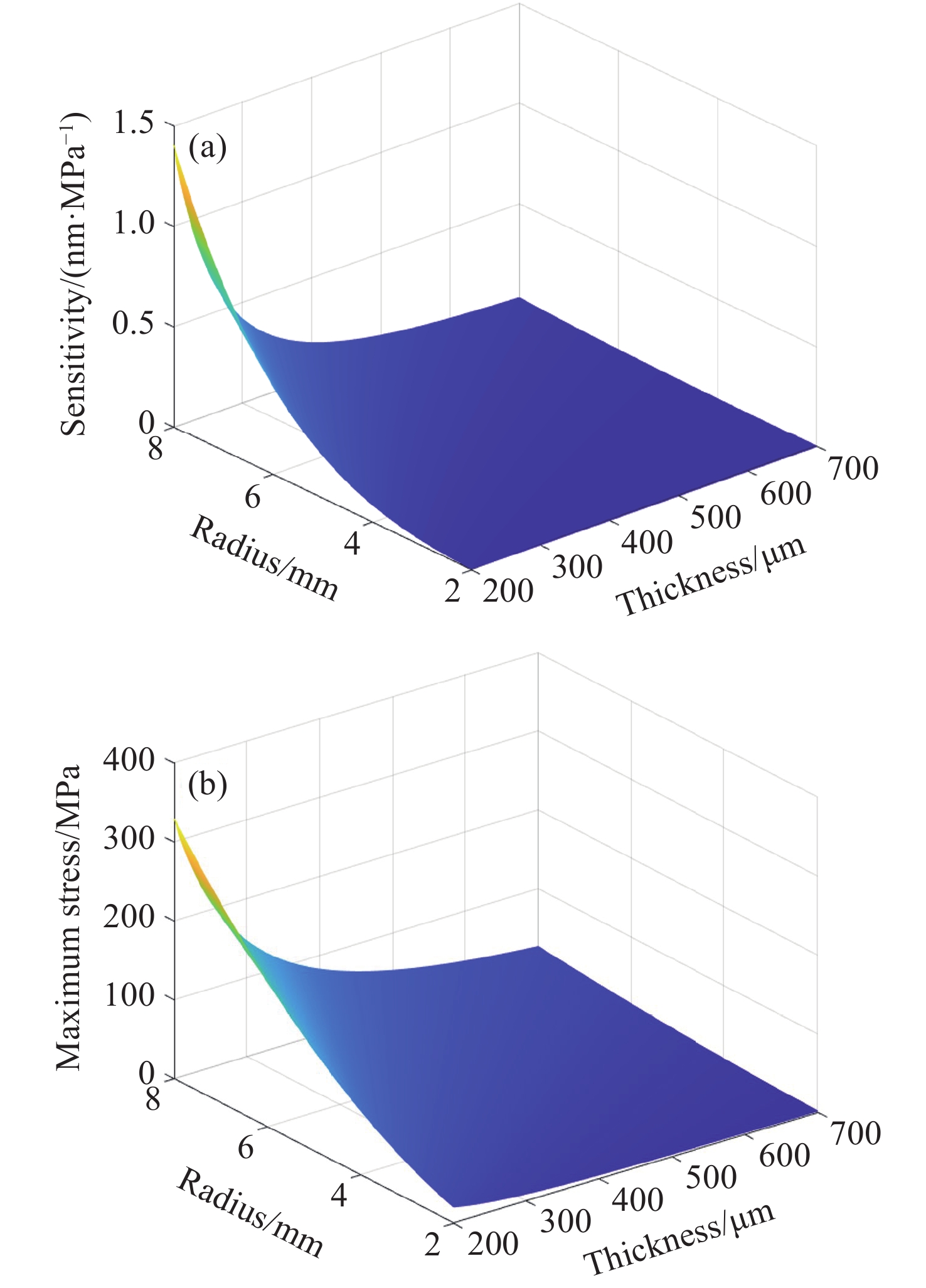

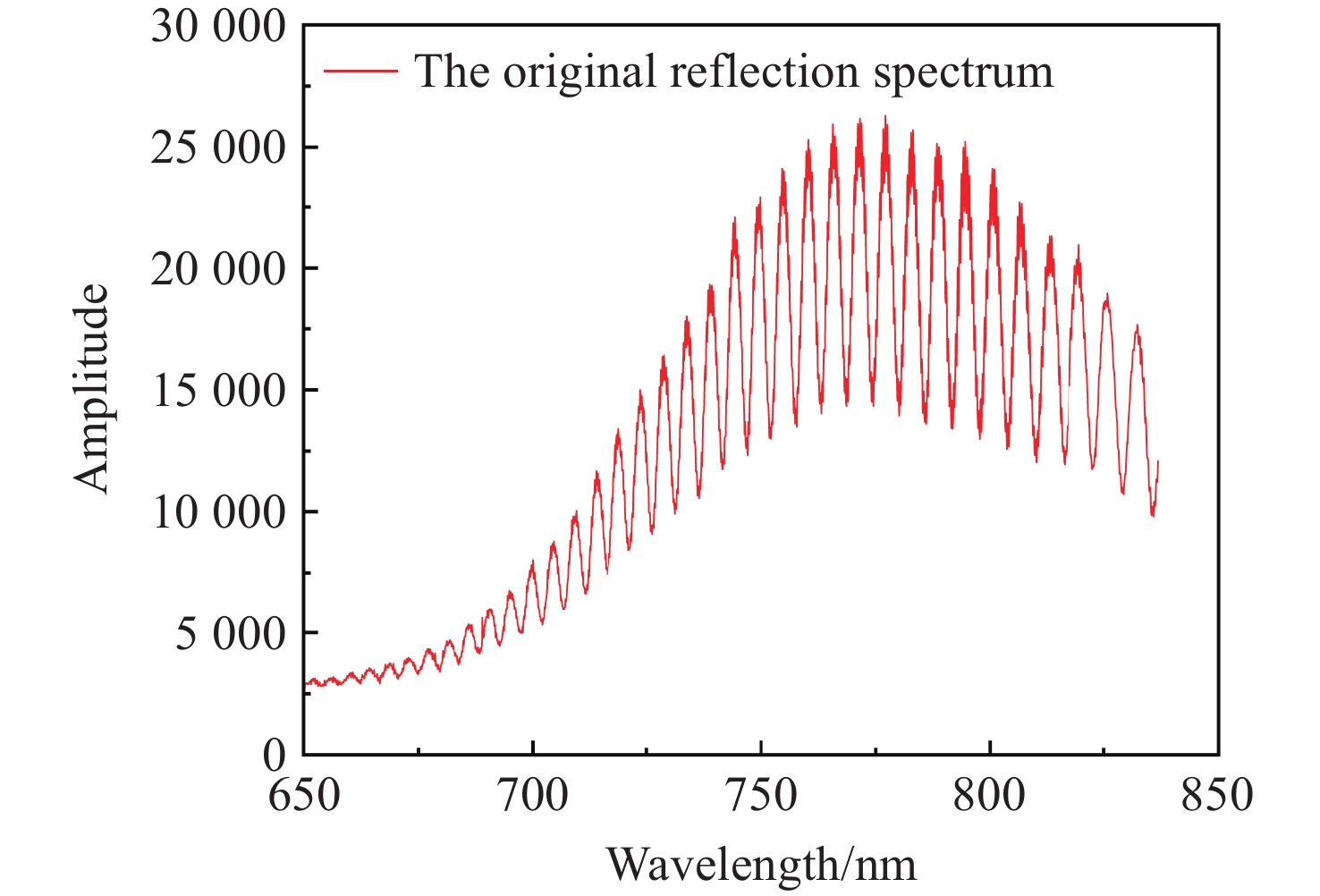

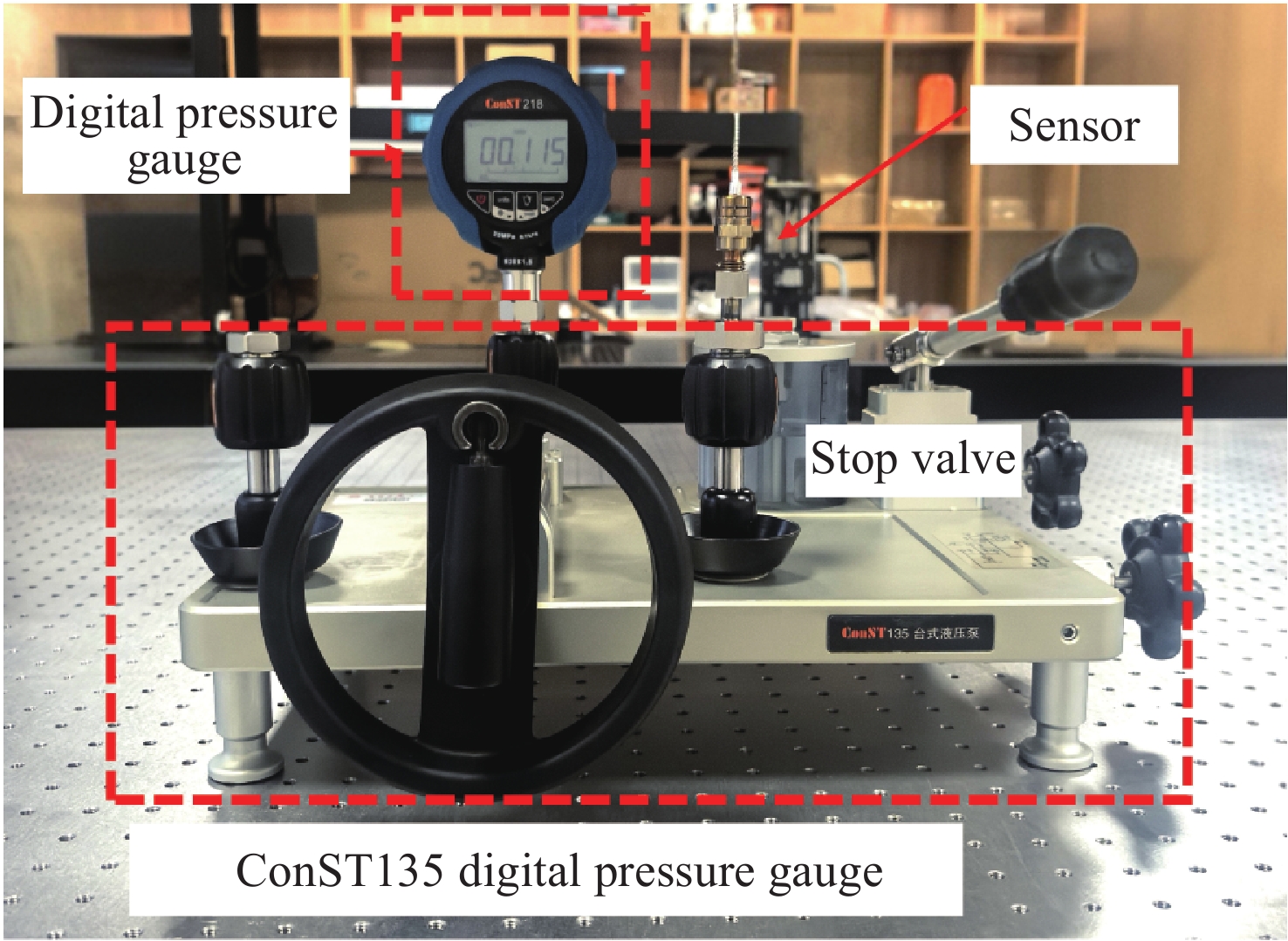

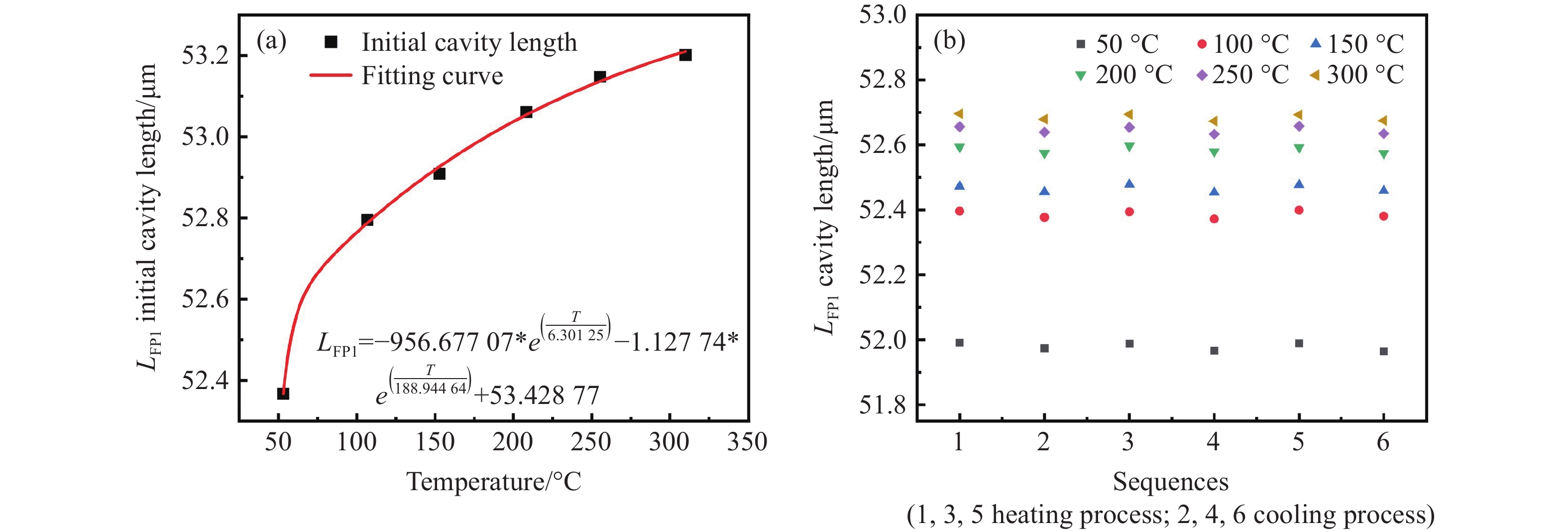

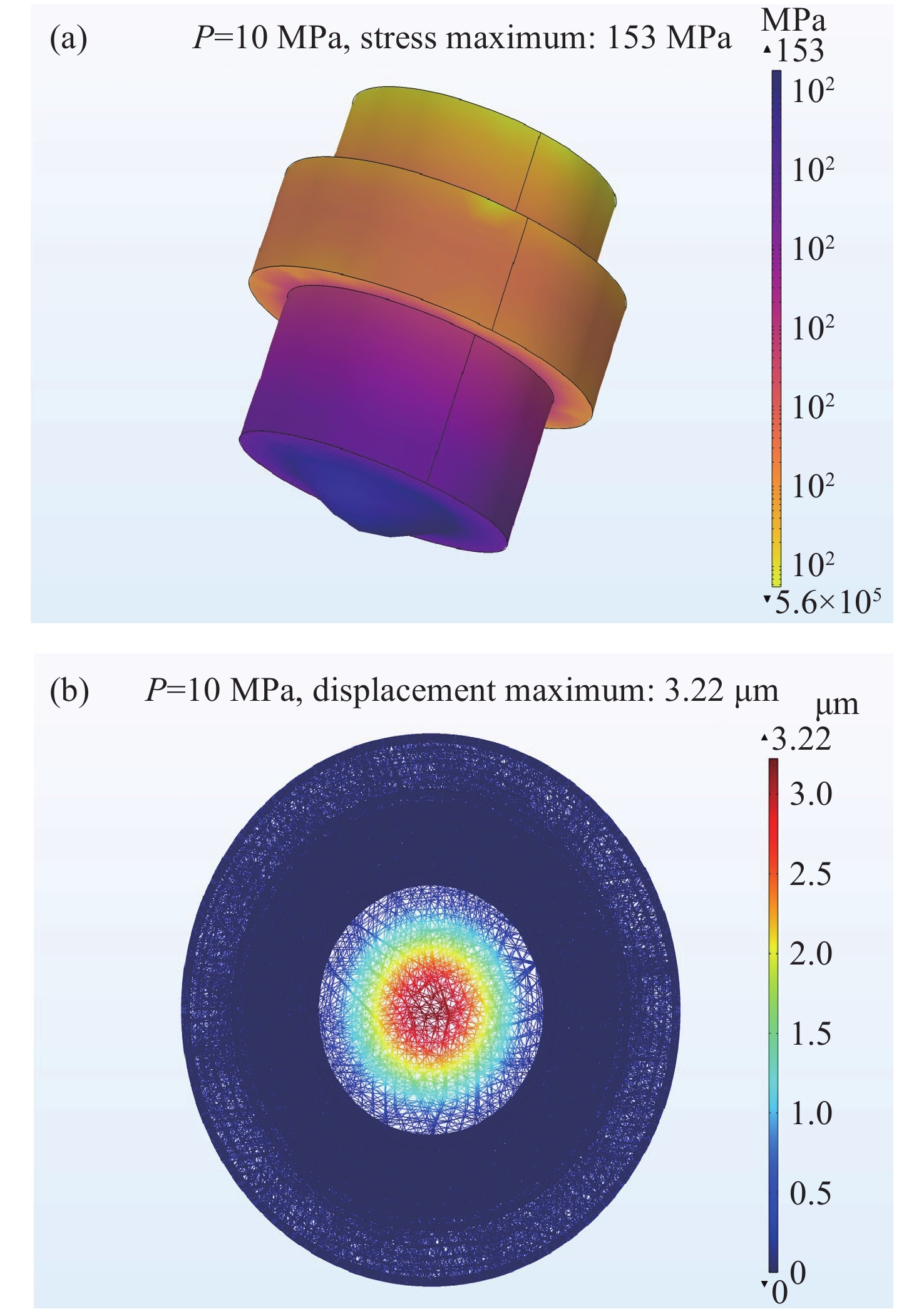

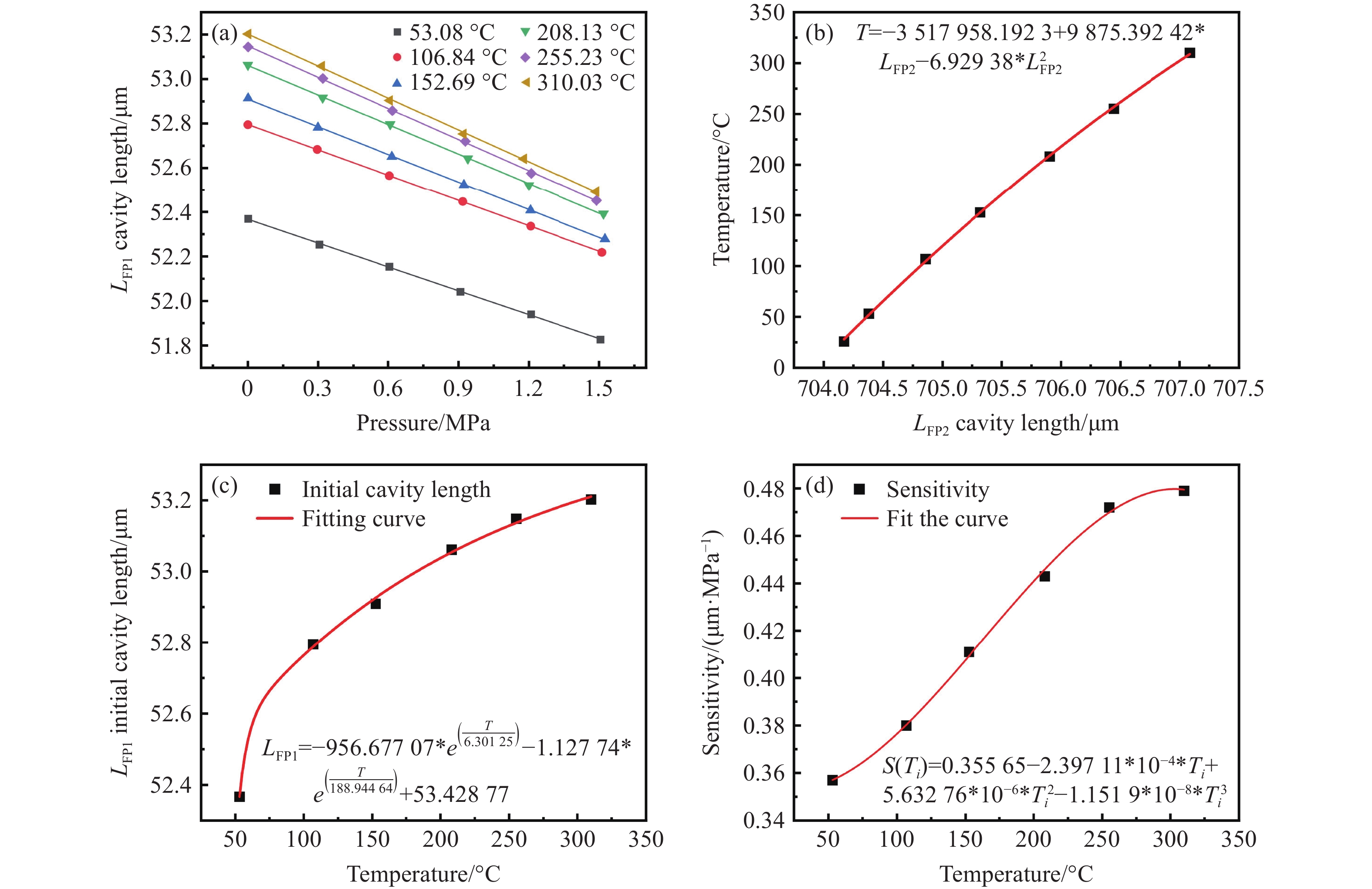

A metal-sensitive diaphragm fiber optic pressure sensor with temperature compensation is proposed to address pressure monitoring in high-temperature environments, such as engine fuel systems, oil and gas wells, and aviation hydraulic systems. The sensor combines a metal-sensitive diaphragm and a sapphire wafer to form a temperature-pressure dual Fabry-Perot (FP) interference cavity. A cross-correlation signal demodulation algorithm and a temperature decoupling method are utilized to reduce the influence of temperature crosstalk on pressure measurement. Experimental results show that the maximum nonlinear error of the accuracy of the sensor pressure measurement is 0.75% FS and 0.99% FS at room temperature and 300 °C, respectively, in a pressure range of 0−10 MPa and 0−1.5 MPa. The sensor’s pressure measurement accuracy is 1.7% full scale (FS) when using the temperature decoupling method. The sensor exhibits good static pressure characteristics, stability, and reliability, providing an effective solution for high-temperature pressure monitoring applications.
| [1] |
PULLIAM W J, RUSSLER P M, FIELDER R S. High-temperature high-bandwidth fiber optic MEMS pressure-sensor technology for turbine engine component testing[J]. Proceedings of SPIE, 2002, 4578: 229-238. doi: 10.1117/12.456079
|
| [2] |
REN J, WARD M, KINNELL P, et al. Plastic deformation of micromachined silicon diaphragms with a sealed cavity at high temperatures[J]. Sensors, 2016, 16(2): 204. doi: 10.3390/s16020204
|
| [3] |
CHEN Y K, XU Q, ZHANG X Q, et al. Materials and sensing mechanisms for high-temperature pressure sensors: a review[J]. IEEE Sensors Journal, 2023, 23(22): 26910-26924. doi: 10.1109/JSEN.2023.3323318
|
| [4] |
MARQUES C A F, POSPORI A, SÁEZ-RODRÍGUEZ D, et al. Aviation fuel gauging sensor utilizing multiple diaphragm sensors incorporating polymer optical fiber Bragg gratings[J]. IEEE Sensors Journal, 2016, 16(15): 6122-6129. doi: 10.1109/JSEN.2016.2577782
|
| [5] |
HAVRELAND A S, PETERSEN S D, ØSTERGAARD C, et al. Micro-fabricated all optical pressure sensors[J]. Microelectronic Engineering, 2017, 174: 11-15. doi: 10.1016/j.mee.2016.12.010
|
| [6] |
JIANG X N, KIM K, ZHANG SH J, et al. High-temperature piezoelectric sensing[J]. Sensors, 2014, 14(1): 144-169.
|
| [7] |
MAILLAUD F F M, PECHSTEDT R D. High-accuracy optical pressure sensor for gas turbine monitoring[J]. Proceedings of SPIE, 2012, 8421: 8421AF.
|
| [8] |
YAO Z, LIANG T, JIA P G, et al. A high-temperature piezoresistive pressure sensor with an integrated signal-conditioning circuit[J]. Sensors, 2016, 16(6): 913. doi: 10.3390/s16060913
|
| [9] |
WANG ZH F, CHEN J, WEI H M, et al. Sapphire Fabry–Perot interferometer for high-temperature pressure sensing[J]. Applied Optics, 2020, 59(17): 5189-5196. doi: 10.1364/AO.393353
|
| [10] |
LIU J, JIA P G, FENG F, et al. MgO single crystals MEMS-based fiber-optic fabry–perot pressure sensor for harsh monitoring[J]. IEEE Sensors Journal, 2021, 21(4): 4272-4279. doi: 10.1109/JSEN.2020.3029152
|
| [11] |
CAMPANELLA C E, CUCCOVILLO A, CAMPANELLA C, et al. Fibre bragg grating based strain sensors: review of technology and applications[J]. Sensors, 2018, 18(9): 3115. doi: 10.3390/s18093115
|
| [12] |
SAHOTA J K, GUPTA N, DHAWAN D, et al. Fiber Bragg grating sensors for monitoring of physical parameters: a comprehensive review[J]. Optical Engineering, 2020, 59(6): 060901.
|
| [13] |
WANG Q, ZHANG L, SUN CH S, et al. Multiplexed fiber-optic pressure and temperature sensor system for down-hole measurement[J]. IEEE Sensors Journal, 2008, 8(11): 1879-1883. doi: 10.1109/JSEN.2008.2006253
|
| [14] |
ZHAO Q CH, LIU X H, MA L, et al. Optical fiber pressure sensor based on F-P cavity in the oil and gas well[J]. IOP Conference Series: Earth and Environmental Science, 2017, 64: 012007. doi: 10.1088/1755-1315/64/1/012007
|
| [15] |
CHENG L, TONG X L, WEI J CH, et al. Highly accurate differential pressure FBG gas flow sensor[J]. Optical Fiber Technology, 2023, 75: 103189. doi: 10.1016/j.yofte.2022.103189
|
| [16] |
HU X S, SU D, QIAO X G, et al. Diaphragm-structured fiber-optic pressure sensors for oil downhole applications[J]. IEEE Sensors Journal, 2024, 24(9): 14270-14278. doi: 10.1109/JSEN.2024.3376085
|
| [17] |
CHEN H B, CHEN Q Q, WANG W, et al. Fiber-optic, extrinsic Fabry-Perot interferometric dual-cavity sensor interrogated by a dual-segment, low-coherence Fizeau interferometer for simultaneous measurements of pressure and temperature[J]. Optics Express, 2019, 27(26): 38744-38758. doi: 10.1364/OE.382761
|
| [18] |
SHAO ZH Q, WU Y L, SUN ZH Q, et al. Excellent repeatability, all-sapphire Fabry-Perot optical Pressure sensor based on wet etching and direct bonding for Harsh Environment Applications[J]. Optics Express, 2021, 29(13): 19831-19838. doi: 10.1364/OE.423753
|
| [19] |
SHAO ZH Q, WU Y L, WANG SH, et al. All-sapphire-based fiber-optic pressure sensor for high-temperature applications based on wet etching[J]. Optics Express, 2021, 29(3): 4139-4146. doi: 10.1364/OE.417246
|
| [20] |
ZHANG Y T, JIANG Y, YANG SH W, et al. Design of high-temperature vacuum fiber optic absolute pressure sensor for near-space vehicles[J]. Journal of Rocket Propulsion, 2024, 50(3): 118-123. (in Chinese). doi: 10.3969/j.issn.1672-9374.2024.03.013
|
| [21] |
ZHANG Y T, JIANG Y, YANG SH W, et al. All-sapphire fiber-optic sensor for the simultaneous measurement of ultra-high temperature and high pressure. Optics Express, 2024, 32(8): 14826-14836.
|
| [22] |
LI J S, JIA P G, WANG J, et al. Silica-MEMS-based fiber-optic fabry-perot pressure sensor for high-temperature applications[J]. Acta Photonica Sinica, 2022, 51(6): 0606005. doi: 10.3788/gzxb20225106.0606005
|
| [23] |
LIANG Y CH, CHEN H T. Design of diaphragm optical fiber pressure sensor based on F-P interference[J]. Journal of Hunan Post and Telecommunication College, 2021, 20(2): 1-3,35. (in Chinese). doi: 10.3969/j.issn.2095-7661.2021.02.001
|
| [24] |
CHEN H B, LIU J, ZHANG X X, et al. High-order harmonic-frequency cross-correlation algorithm for absolute cavity length interrogation of white-light fiber-optic Fabry-Perot sensors[J]. Journal of Lightwave Technology, 2020, 38(4): 953-960. doi: 10.1109/JLT.2019.2948214
|
| [25] |
ZHANG J Y, ZHANG X X, GUO Z L, et al. Fundamental and high-order cross-correlation combined demodulation method for absolute cavity length measurement of fiber-optic Fabry-Perot sensors[J]. Optical Engineering, 2022, 61(9): 096102.
|
| [26] |
KANG J W, CHEN H B, ZHANG X X, et al. Valley-positioning-assisted discrete cross-correlation algorithm for fast cavity length interrogation of fiber-optic Fabry-Perot sensors[J]. Measurement, 2022, 198: 11411.
|
| [27] |
WANG ZH F, CHEN J, WEI H M, et al. Sapphire Fabry-Perot interferometer for high-temperature pressure sensing[J]. Applied Optics, 2020, 59(17): 5189-5196. (查阅网上资料, 本条文献与第9条文献重复, 请确认).
|
Figures(11) / Tables(1)
