摘要

摘要:
在基于外差干涉原理的空间引力波探测任务中，抖动光程耦合噪声是一个重要的光学噪声源，对测量系统的精度产生显著影响。本文提出了一种分析多种因素共同作用下抖动光程耦合噪声的方法。首先设计了一个等效的测试质量干涉仪仿真光学平台，并采用高斯光束追踪模拟光束传播。通过模拟干涉信号，可以分析各种因素对抖动光程耦合噪声的影响，包括位置因素、光束参数因素、探测器参数因素和信号定义因素。在此基础上，在满足分析要求的参数范围内,构建了由多个影响因素组成的随机参数空间，并通过基于方差的全局敏感性分析对随机采样得到的模拟结果进行评估。主要效应指数和总效应指数的计算结果表明，测试质量的旋转角度和活塞效应（径向）对测试质量干涉仪中的抖动光程耦合噪声有显著影响。这一结论为空间激光干涉测量系统的设计和优化提供了定性参考。
- 空间干涉测量 /
- 光学仿真 /
- 抖动光程耦合噪声
Abstract:
For space-borne gravitational wave detection missions based on the heterodyne interferometry principle, tilt-to-length (TTL) coupling noise is an important optical noise source, significantly influencing the accuracy of the measurement system. This paper presents a method for analyzing TTL coupling noise under the joint influence of multiple factors. An equivalent simulated optical bench for the test mass interferometer was designed, and Gaussian beam tracing was adopted to simulate beam propagation. By simulating the interference signal, it can analyze the impact of various factors on the TTL coupling noise, including positional, beam parameters, detector parameters, and signal definition factors. On this basis, a random parameter space composed of multiple influential factors was constructed within a range satisfying the analysis requirement, and the corresponding simulation results from random sampling were evaluated via variance-based global sensitivity analysis. The calculated results of the main and total effect indexes show that the test mass rotation angle and the piston effect -lateral significantly influence the TTL coupling noise in the test mass interferometer. The analysis provides a qualitative reference for designing and optimizing space-borne laser interferometry systems.
- space interferometry /
- optical simulation /
- tilt-to-length coupling

HTML全文

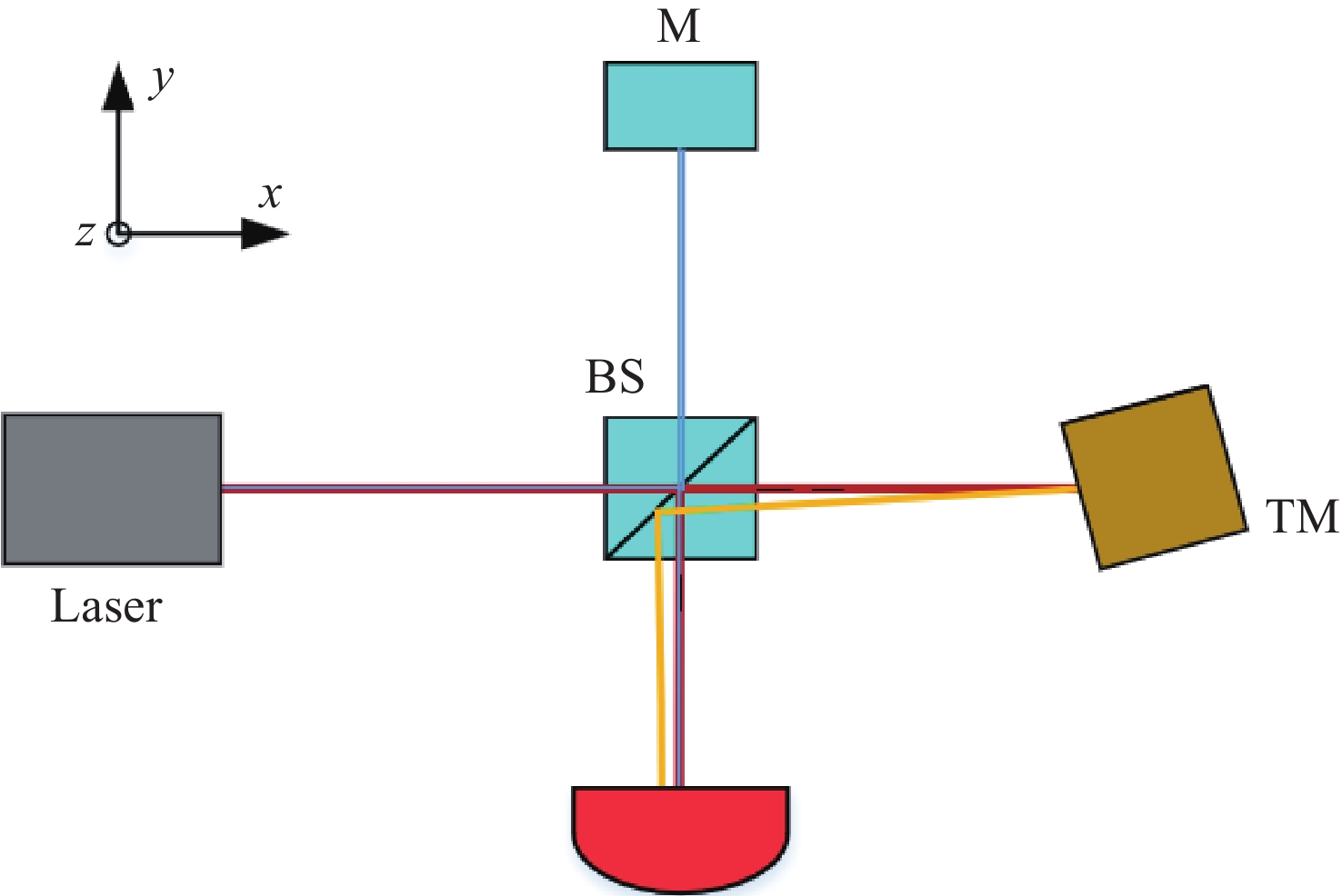

Figure 1. Schematic diagram of the simulated optical bench for the test mass interferometer. The left upper corner shows the coordinates of the optical bench, with the detailed coordinates and normal vectors of every optical component in Table 1

下载: 全尺寸图片幻灯片

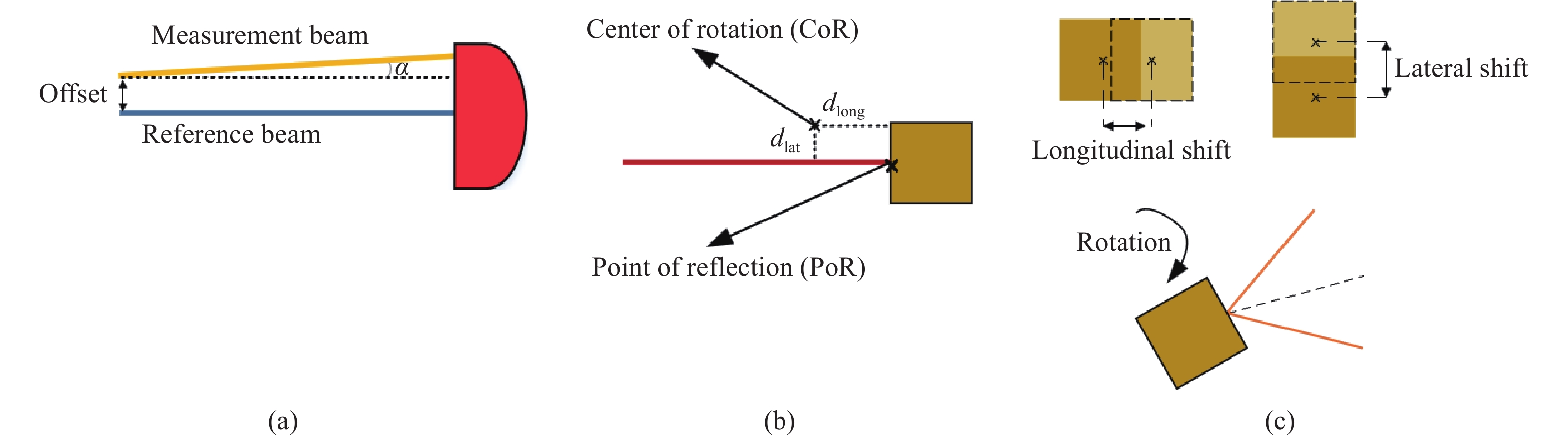

Figure 2. Schematic illustration of positional factors (a) The offset between the measurement and reference beam (b) The piston effect (c) The test mass shift and rotation

下载: 全尺寸图片幻灯片

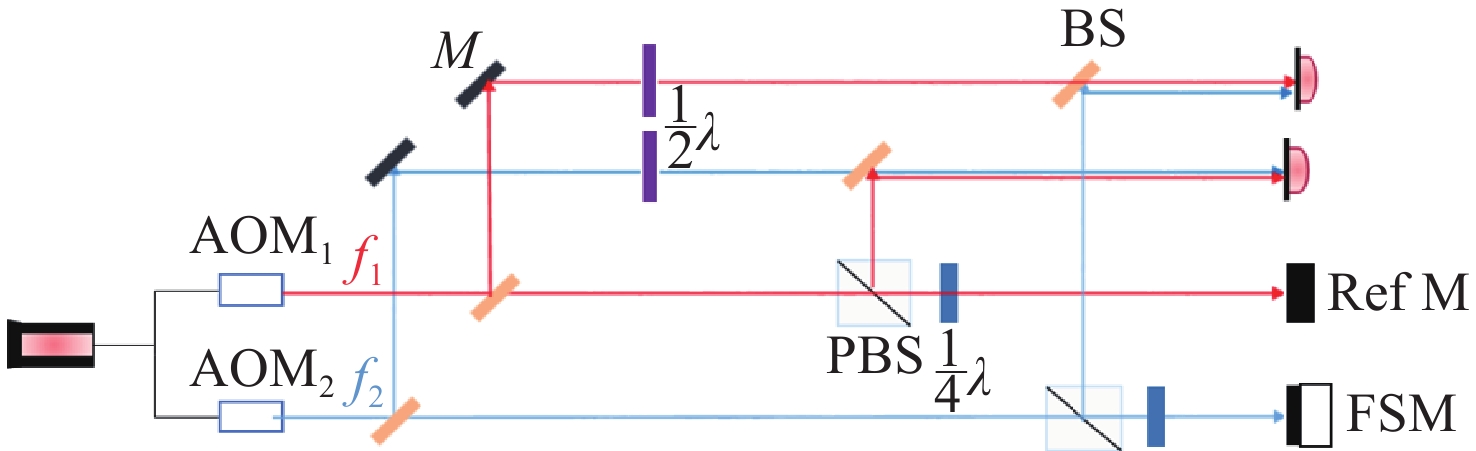

Figure 3. The experimental setup schematic. Components included: acousto-optical modulator (AOM), polarizing beam splitter (PBS), half wave plate (λ/2), quarter wave plate (λ/4), beam splitter (BS), stationary mirror (Ref M), fine steering mirror (FSM)

下载: 全尺寸图片幻灯片

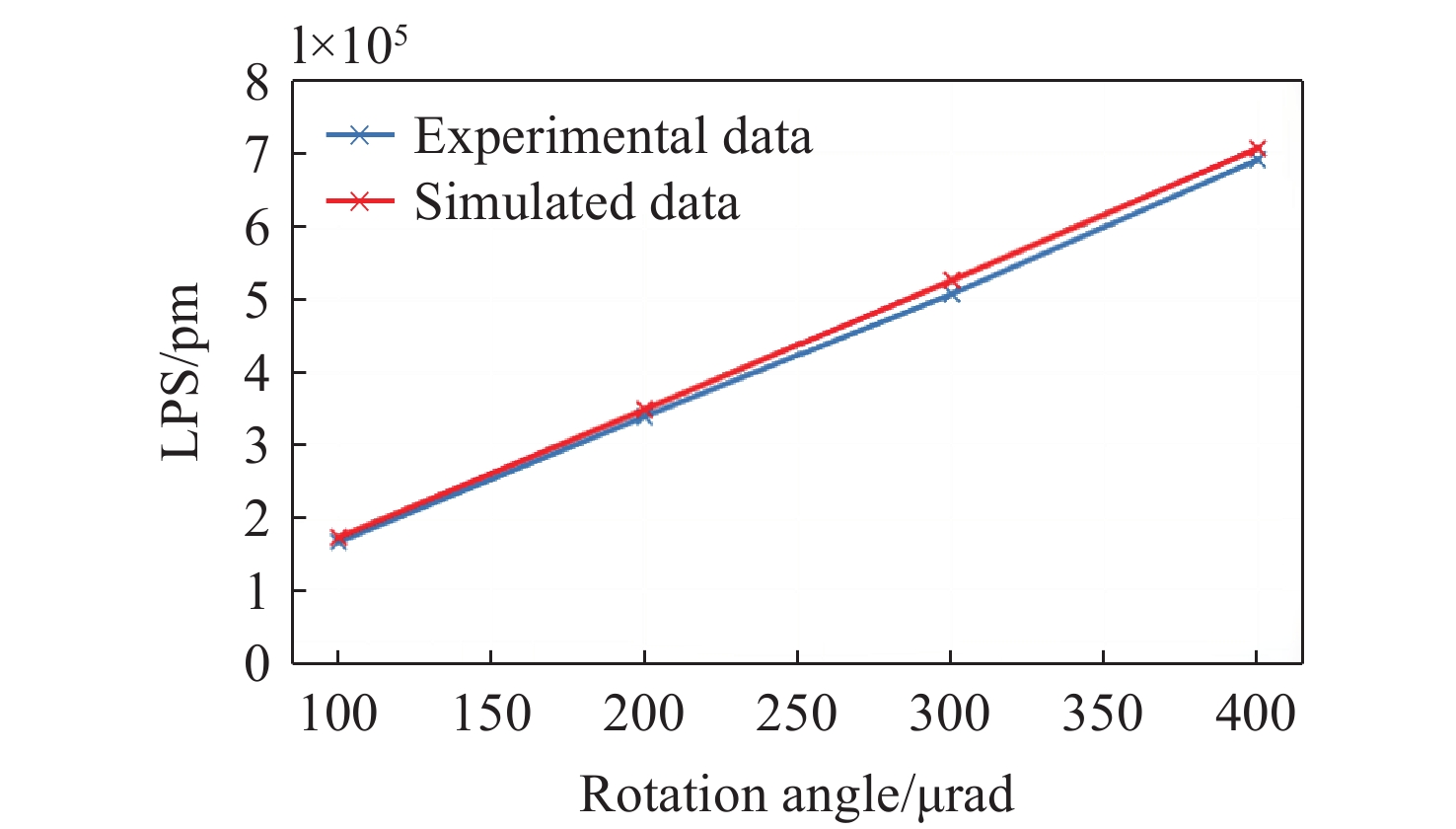

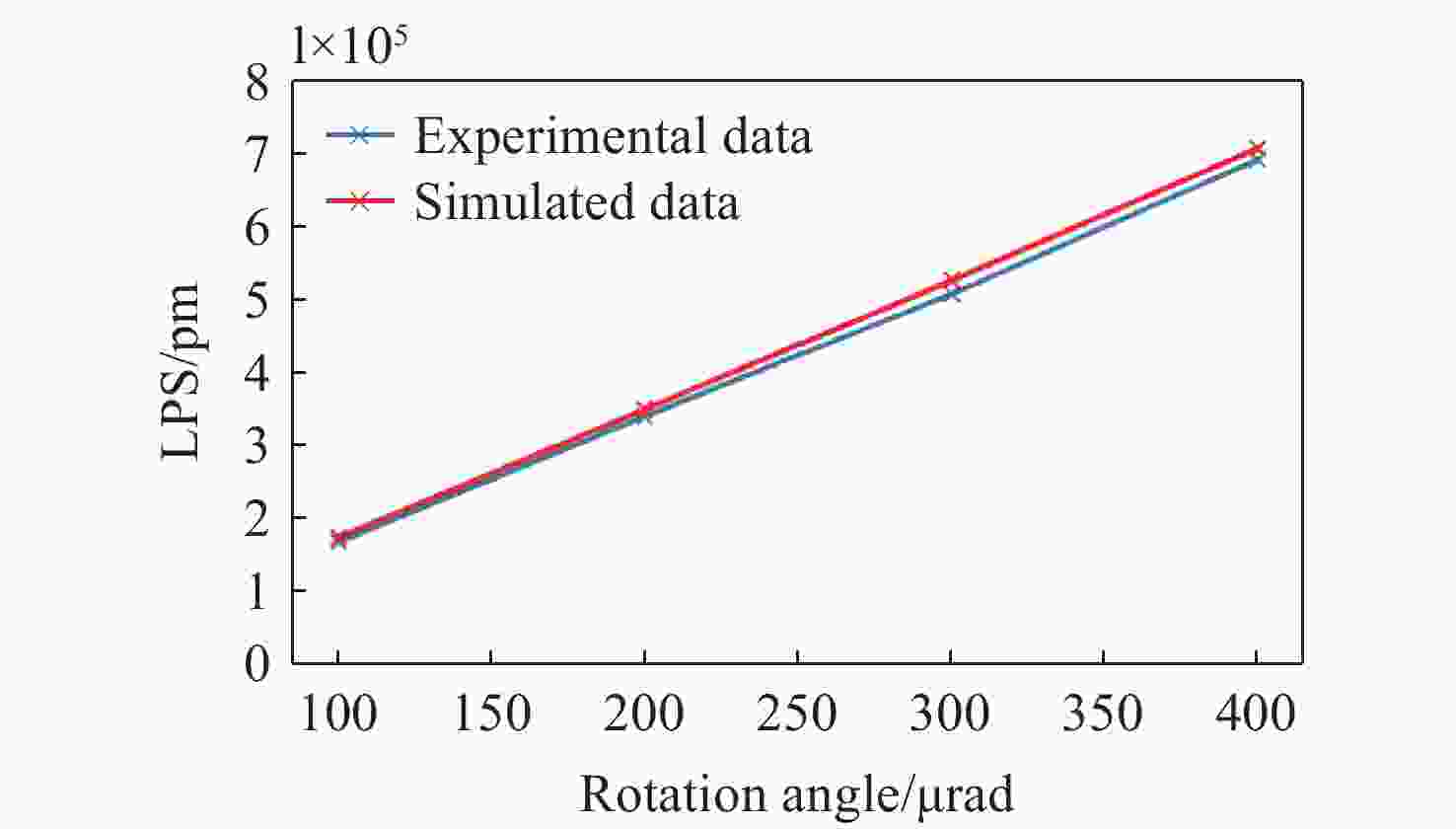

Figure 4. Comparison of experimental data and simulation data

下载: 全尺寸图片幻灯片

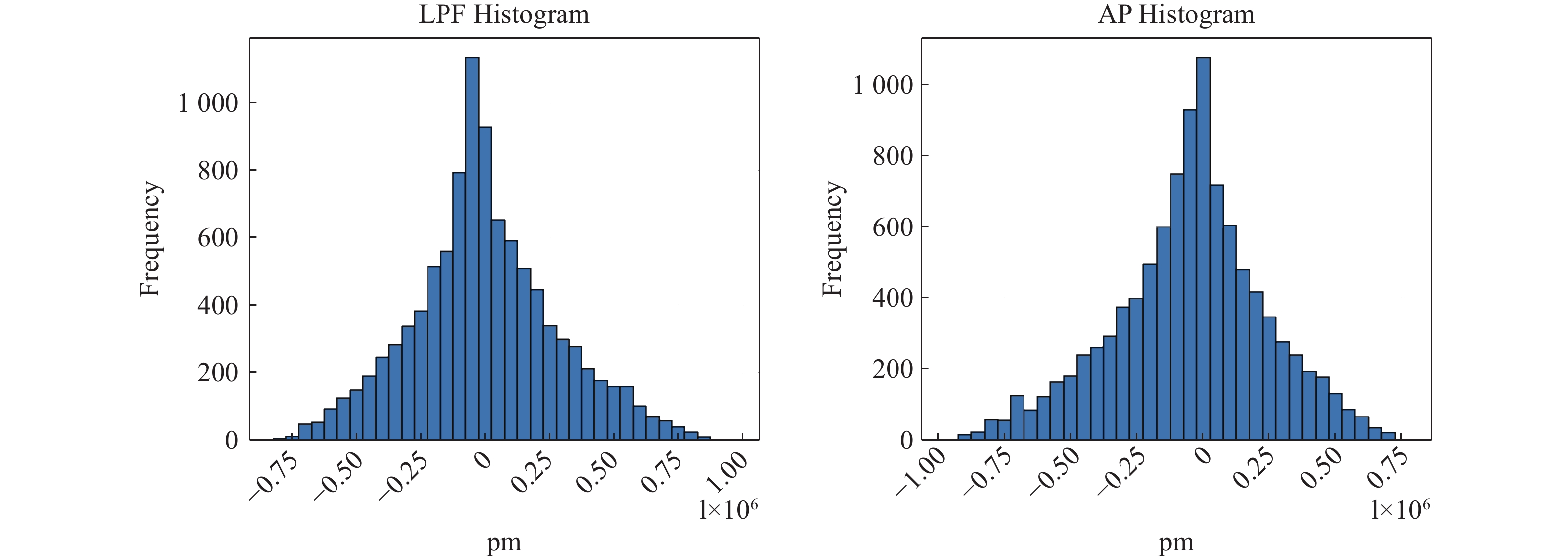

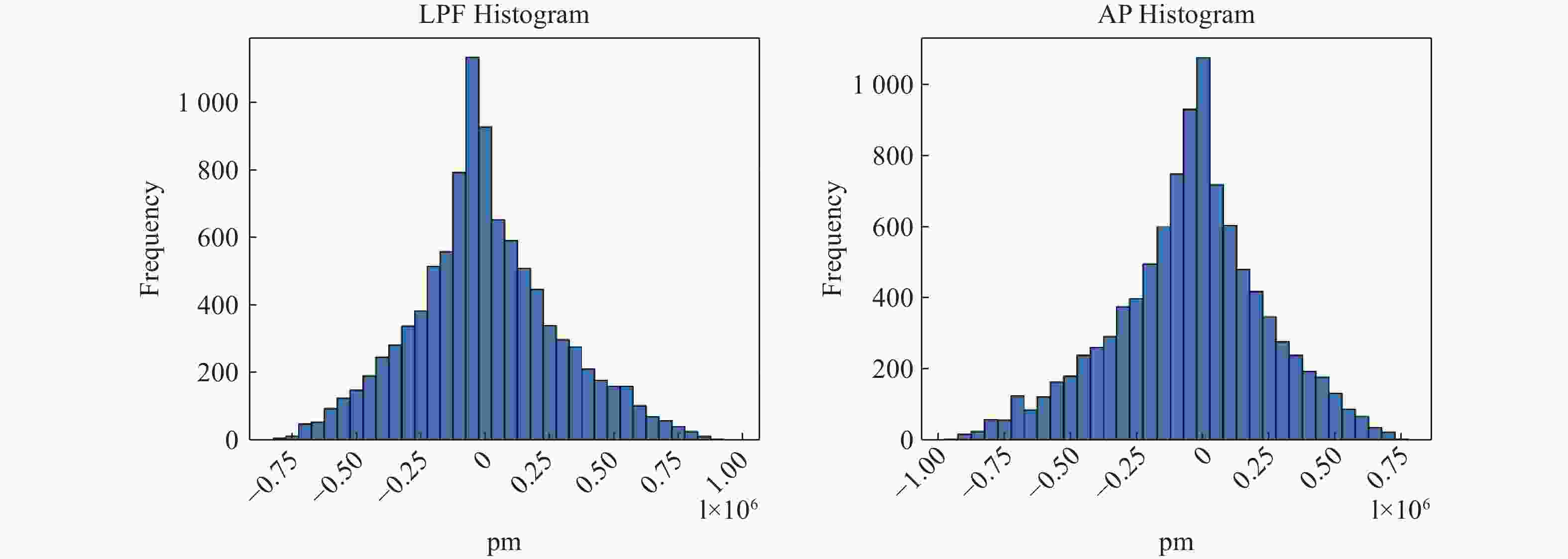

Figure 5. Histograms of LPS with LPF and AP definitions in 10,000 simulations

下载: 全尺寸图片幻灯片

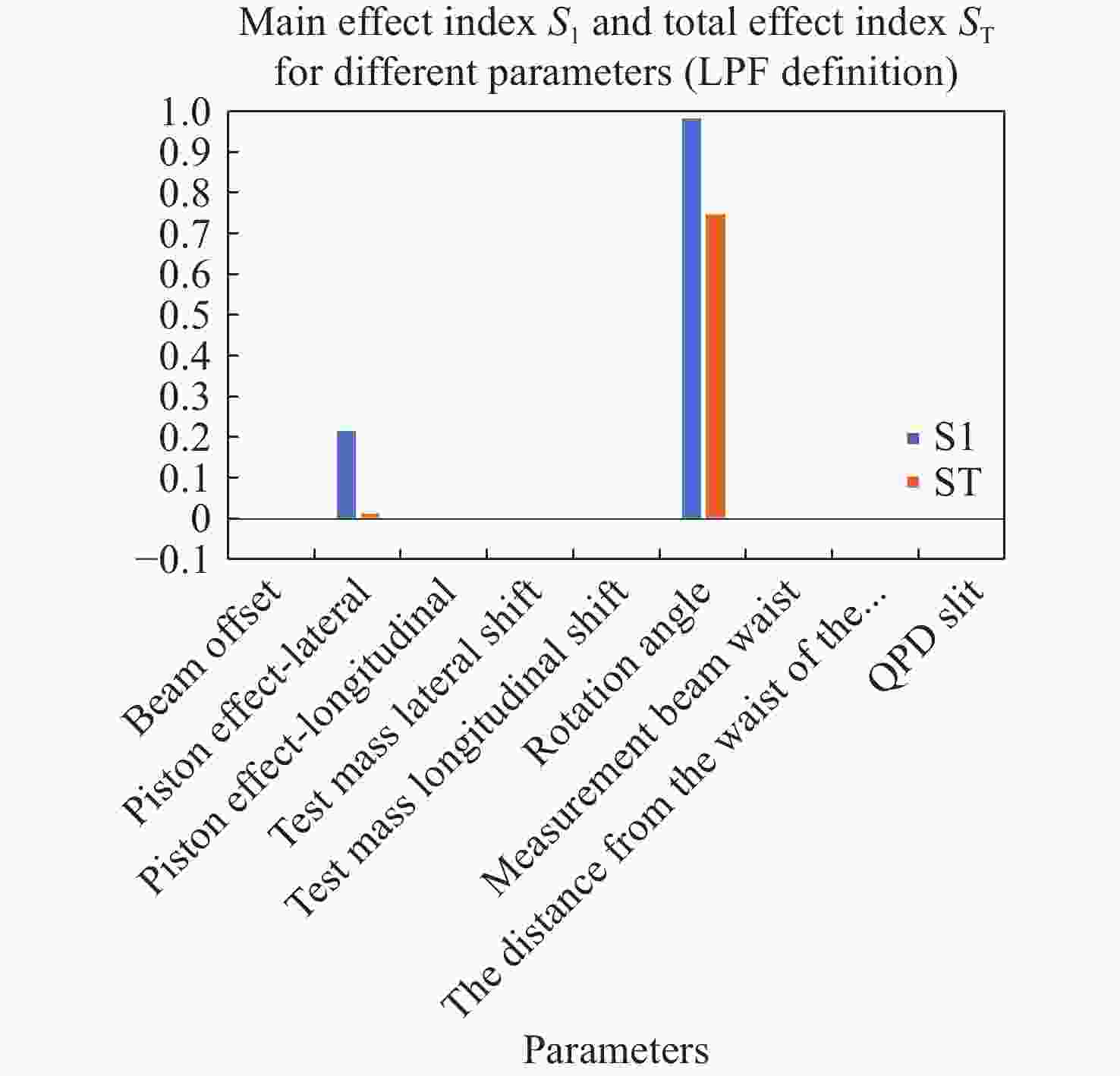

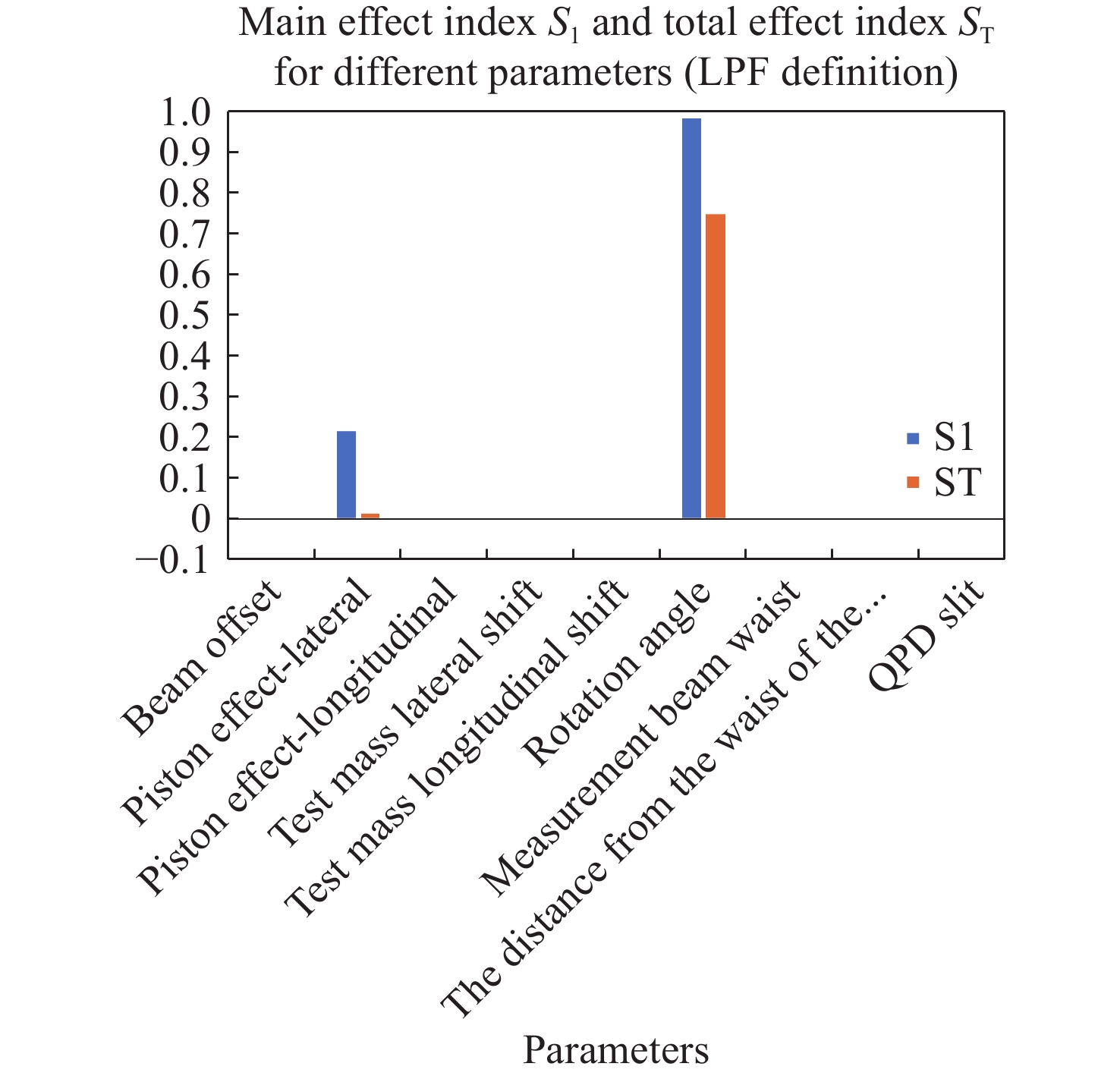

Figure 6. Visualization of the main effect index (S₁) for the LPF definition

下载: 全尺寸图片幻灯片

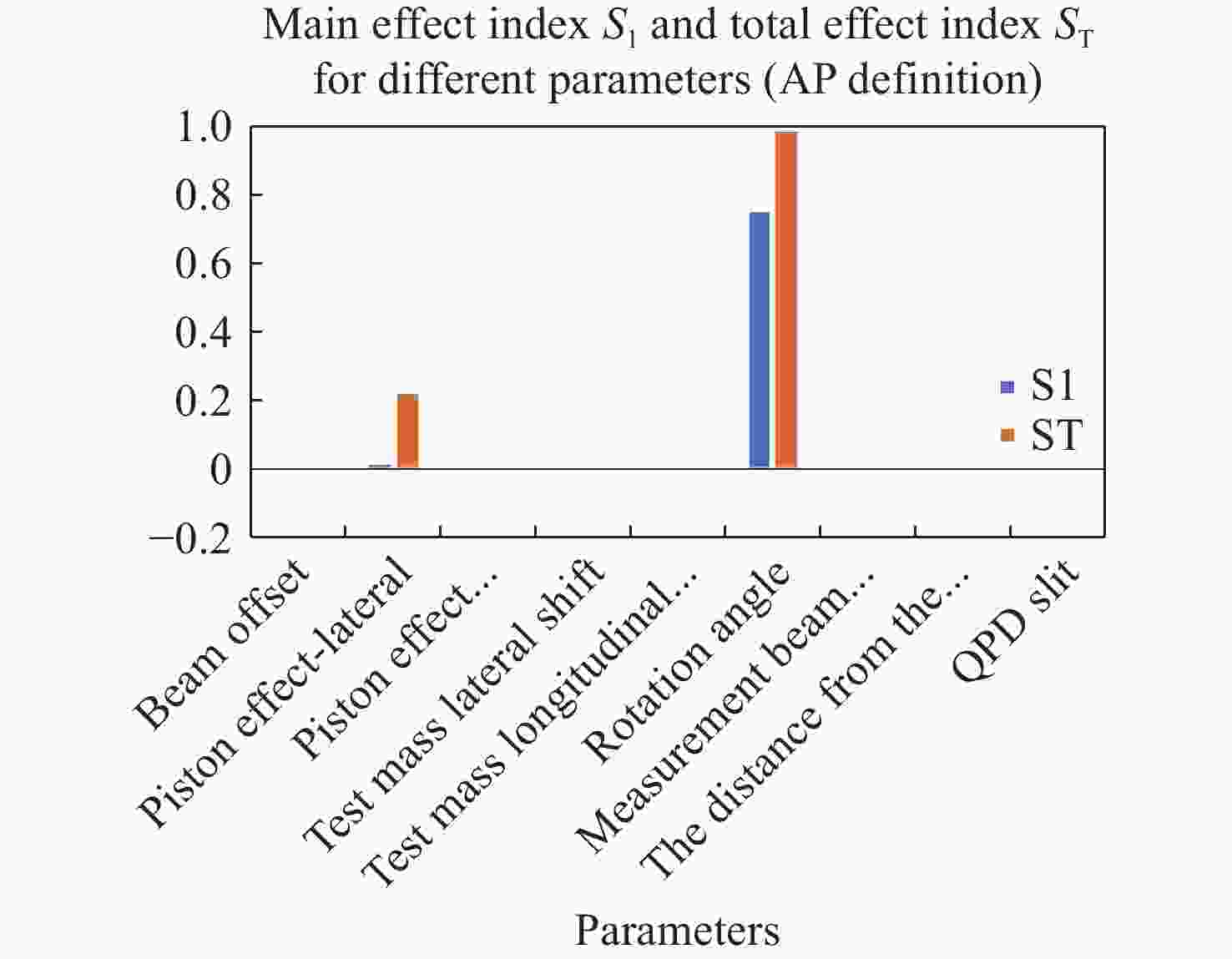

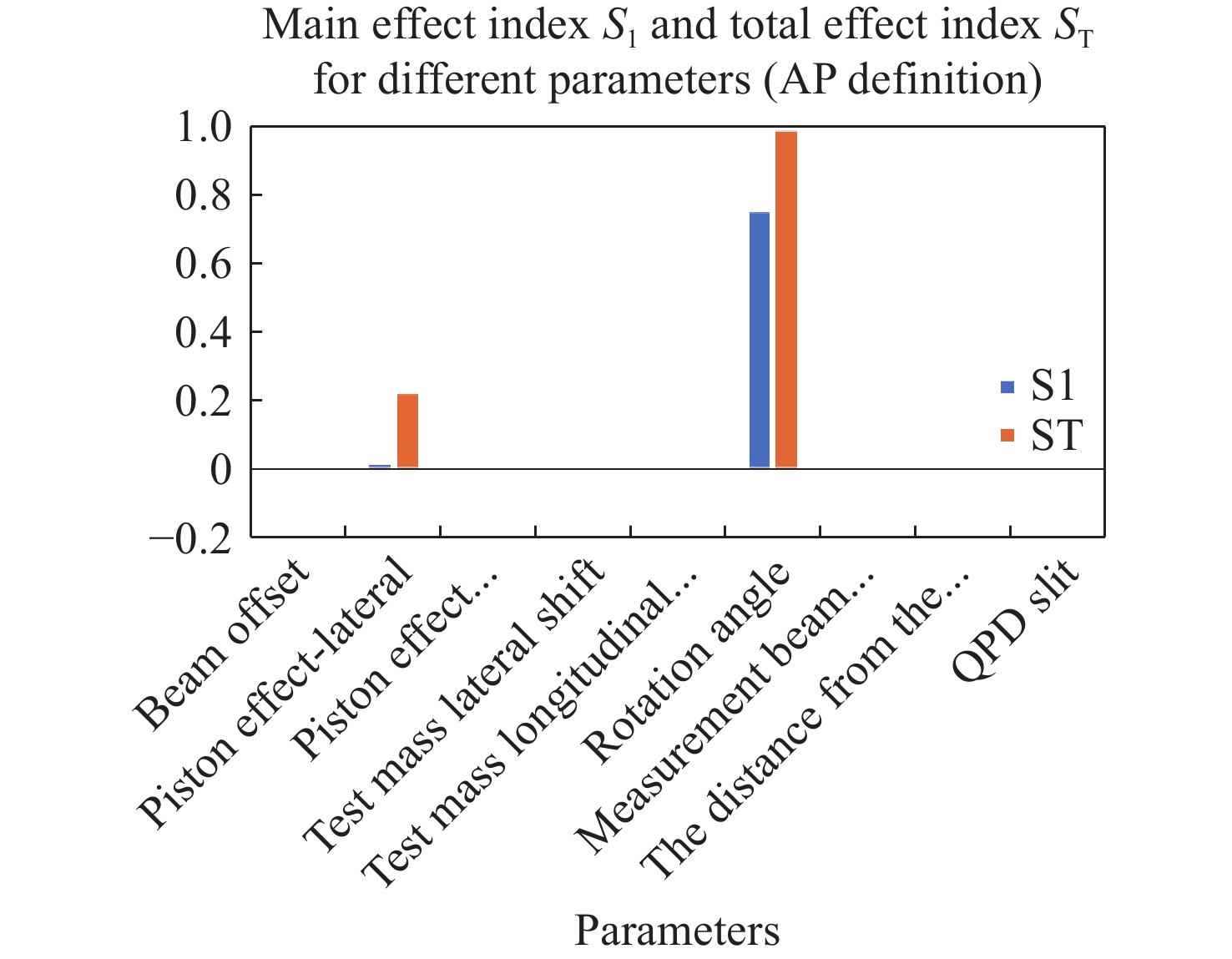

Figure 7. Visualization of the total effect index (S_T) for the AP definition

下载: 全尺寸图片幻灯片

Table 1. The type, position, and orientation of each component in the simulated optical bench used to analyze TTL coupling

Label	Component Name	Center coordinate cm	Normal Vector
Laser	Laser	(0,0,0)	(1,0,0)
BS	Beam splitter	(25,0,0)	(−1,0,0)
M	Mirror	(25,50,0)	(0,−1,0)
TM	Test mass	(50,0,0)	(1,0,0)
QPD	Quadrant photodiode	(25,-25,0)	(0,1,0)

下载: 导出CSV

Table 2. Physical parameters list

Parameter description	Value
Reference beam waist	0.5 mm
Distance from reference beam waist	0
Reference beam frequency	2.8195×10⁸ MHz +120 MHz
Measurement beam waist	0.5 mm
distance from measurement beam waist	0 mm
Measurement beam frequency	2.8195×10⁸ MHz + 120 MHz+1.6 MHz
QPD radius	1 cm
QPD slit size	50 µm

下载: 导出CSV

Table 3. Comparison of rotation angle (µrad) and relative error (%)

Rotation Angle (µrad)	Relative Error (%)
100	3.78
200	2.84
300	3.69
400	2.24

下载: 导出CSV

Table 4. Parameter space for multiple factor analysis

Factors	Parameter	Range
Positional	Beam offset	(0 μm, 100 μm)
	Piston effect (lateral)	(0 mm, 1 mm)
	Piston effect (longitudinal)	(0 mm, 1 mm)
	Test mass lateral shift	(0 μm, 100 μm)
	Test mass longitudinal shift	(0 μm, 100 μm)
	Rotation angle	(0 μrad, 100 μrad)
Beam parameter	Measurement beam waist	(0.5mm, 1 mm)
Beam parameter	The distance from the waist of the measurement beam	(0 mm, 50 mm)
Detector parameter	QPD slit	(0 μm, 100 μm)

下载: 导出CSV

Table 5. Maximum (absolute value) and minimum (absolute value) of the LPS with both LPF and AP in 10,000 simulations.

Signal definition	Maximum	Minimum
LPF	9.6939×10⁵ pm	6.4400 pm
AP	9.1285×10⁵ pm	14.7801 pm

下载: 导出CSV

Table 6. Main effect index S₁ and total effect index S_T for different parameters (LPF definition)

Factors	Parameter	S₁	S_T
Positional	Beam offset	0.00037	0.00023
	Piston effect (lateral)	0.01516	0.21815
	Piston effect (longitudinal)	8.8911×10⁻⁷	5.3478×10⁻⁹
	Test mass lateral shift	−0.00096	0.00217
	Test mass longitudinal shift	−1.0968×10⁻⁷	5.9016×10^-11
	Rotation angle	0.75350	0.99122
Beam parameter	Measurement beam waist	0.00081	0.00240
Beam parameter	Distance from the measurement beam’s waist	5.8822×10⁻⁶	3.1740×10⁻⁷
Detector parameter	QPD slit	0.00017	0.00028

下载: 导出CSV

Table 7. Main effect index S₁ and total effect index S_T for different parameters (AP definition)

Factors	Parameter	S₁	S_T
Positional	Beam offset	0.00093	0.00047
	Piston effect (lateral)	0.01409	0.21586
	Piston effect (longitudinal)	1.6607×10⁻⁶	5.29173×10⁻⁹
	Test mass lateral shift	-0.00117	0.00214
	Test mass longitudinal shift	−1.6703×10⁻⁷	7.6198×10^-11
	Rotation angle	0.75988	0.99156
Beam parameter	Measurement beam waist	0.00085	0.00039
Beam parameter	Distance from the measurement beam’s waist	2.1826×10⁻⁶	5.2593×10⁻⁸
Detector parameter	QPD slit	0.00073	0.00035

下载: 导出CSV
